Toyota Cressida
1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe
Discontinued model
Data version 1981-01

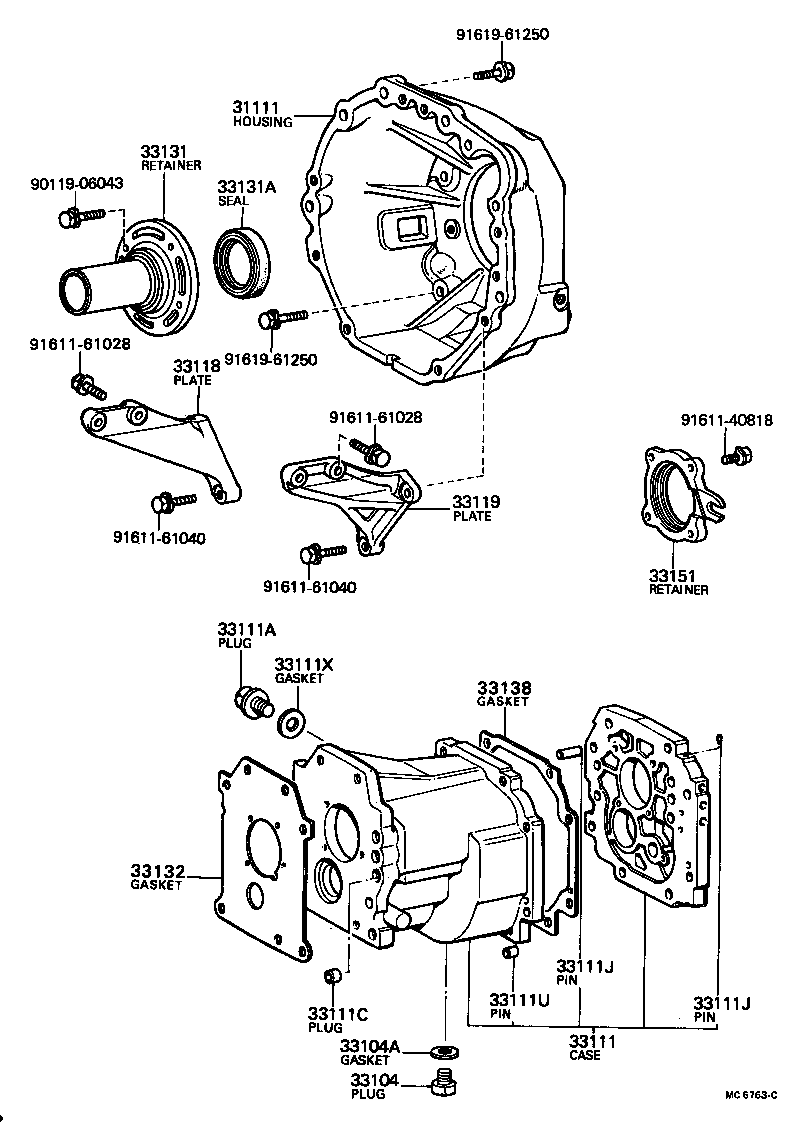

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31111 — Housing, Clutch | ||||
| 31111-20050 |
Housing, Clutch
1976-12 → 1978-08
ended
|
RX3# 4F,5F | — | |
| 31111-20060 |
Housing, Clutch
1980-01 → 1980-08
ended
|
TX30 4F | — | |
| 31111-20080 |
Housing, Clutch
1976-12 → 1977-05
ended
|
RX3# 3H | — | |
| 31111-20120 |
Housing, Clutch
1977-05 → 1978-08
ended
|
RX3# 3H | — | |
| 31111-20120 |
Housing, Clutch
1978-08 → 1980-08
ended
|
RX3# MTM | — | |
| 31111-22070 |
Housing, Clutch
1976-12 → 1978-02
ended
|
MX3# 4F | — | |
| 31111-22071 |
Housing, Clutch
1978-02 → 1980-08
ended
|
MX3# 4F | — | |
| 33104 — Plug Sub-assy, Drain(MTM) | ||||
| 90341-18057 |
Plug Sub-assy, Drain(MTM)
1976-12 → 1980-08
ended
|
MX3#,RX3#,TX30 MTM | — | |
| 33104A — Gasket, Drain Plug(MTM) | ||||
| 12157-10010 |
Gasket, Drain Plug(MTM)
1976-12 → 1980-08
ended
|
MX3#,RX3#,TX30 MTM | — | |
| 33111 — Case, Manual Transmission | ||||
| 33101-20010 |
Case, Manual Transmission
1976-12 → 1979-01
ended
|
MX3#,RX3# 4F,5F | — | |
| 33101-20011 |
Case, Manual Transmission
1979-01 → 1980-08
ended
|
MX3#,RX3#,TX30 4F,5F | — | |
| 33111-30061 |
Case, Manual Transmission
1976-12 → 1979-02
ended
|
RX3# RHD 3H | — | |
| 33111-30062 |
Case, Manual Transmission
1979-02 → 1980-08
ended
|
RX3# RHD 3H | — | |
| 33111-30080 |
Case, Manual Transmission
1976-12 → 1979-02
ended
|
RX3# LHD 3H | — | |
| 33111-30081 |
Case, Manual Transmission
1979-02 → 1980-08
ended
|
RX3# LHD 3H | — | |
| 33111A — Plug, Manual Transmission Case | ||||
| 90341-18002 |
Plug, Manual Transmission Case
1976-12 → 1980-08
ended
|
MX3#,RX3#,TX30 MTM | — | |
| 33111C — Plug(FOR TRANSMISSION CASE) | ||||
| 90331-20044 |
Plug(FOR TRANSMISSION CASE)
1976-12 → 1980-08
ended
|
MX3#,RX3#,TX30 4F,5F | — | |
| 90344-53015 |
Plug(FOR TRANSMISSION CASE)
1976-12 → 1980-08
ended
|
RX3# 3H | — | |
| 33111J — Pin, Straight(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12195 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
1976-12 → 1980-08
ended
|
MX3#,RX3#,TX30 4F,5F | — | |
| 90250-12216 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
1976-12 → 1980-08
ended
|
RX3# 3H | — | |
| 90334-06017 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
1976-12 → 1980-08
ended
|
MX3#,RX3#,TX30 4F,5F | — | |
| 33111U — Pin, Ring(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-13017 note |
Pin, Ring(FOR MANUAL TRANSMISSION CASE)
1976-12 → 1980-08
ended
|
MX3#,RX3#,TX30 4F,5F | — | |
| 33111X — Gasket, Transmission Case Plug | ||||
| 12157-10010 |
Gasket, Transmission Case Plug
1976-12 → 1980-08
ended
|
MX3#,RX3#,TX30 MTM | — | |
| 33118 — Plate, Stiffener, RH(MTM) | ||||
| 33118-14010 |
Plate, Stiffener, RH(MTM)
1980-01 → 1980-08
ended
|
TX30 4F | — | |
| 33118-22030 |
Plate, Stiffener, RH(MTM)
1976-12 → 1980-08
ended
|
RX3# MTM | — | |
| 33118-22040 |
Plate, Stiffener, RH(MTM)
1976-12 → 1980-08
ended
|
MX3# 4F | — | |
| 33119 — Plate, Stiffener, LH(MTM) | ||||
| 33119-14040 |
Plate, Stiffener, LH(MTM)
1980-01 → 1980-08
ended
|
TX30 4F | — | |
| 33119-22020 |
Plate, Stiffener, LH(MTM)
1976-12 → 1978-09
ended
|
RX3# MTM | — | |
| 33119-22021 |
Plate, Stiffener, LH(MTM)
1978-09 → 1980-08
ended
|
RX3# MTM | — | |
| 33119-22030 |
Plate, Stiffener, LH(MTM)
1976-12 → 1980-08
ended
|
MX3# 4F | — | |
| 33131 — Retainer, Bearing, Front(MTM) | ||||
| 33131-30040 |
Retainer, Bearing, Front(MTM)
1976-12 → 1980-08
ended
|
RX3# 3H | — | |
| 33131-31010 |
Retainer, Bearing, Front(MTM)
1976-12 → 1980-08
ended
|
RX3#,TX30 4F,5F | — | |
| 33131A — Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
1976-12 → 1980-08
ended
|
MX3#,RX3#,TX30 4F,5F | — | |
| 90311-32106 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
1976-12 → 1980-08
ended
|
RX3# 3H | — | |
| 33132 — Gasket, Front Bearing Retainer(MTM) | ||||
| 33132-20040 |
Gasket, Front Bearing Retainer(MTM)
1976-12 → 1980-08
ended
|
MX3#,RX3#,TX30 4F,5F | — | |
| 33132-20050 |
Gasket, Front Bearing Retainer(MTM)
1979-02 → 1980-08
ended
|
RX3# 3H | — | |
| 33132-30040 |
Gasket, Front Bearing Retainer(MTM)
1976-12 → 1979-02
ended
|
RX3# 3H | — | |
| 33138 — Gasket, Intermediate Plate | ||||
| 33142-20020 |
Gasket, Intermediate Plate
1976-12 → 1980-08
ended
|
RX3# 5F | — | |
| 33142-31010 |
Gasket, Intermediate Plate
1976-12 → 1980-08
ended
|
MX3#,RX3#,TX30 4F | — | |
| 33151 — Retainer, Output Shaft Rear Bearing(MTM) | ||||
| 33151-20010 |
Retainer, Output Shaft Rear Bearing(MTM)
1976-12 → 1980-08
ended
|
RX3# 5F | — | |
| 33151-30030 |
Retainer, Output Shaft Rear Bearing(MTM)
1976-12 → 1980-08
ended
|
RX3# 3H | — | |
| 33151-31010 |
Retainer, Output Shaft Rear Bearing(MTM)
1976-12 → 1980-08
ended
|
MX3#,RX3#,TX30 4F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
