Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01

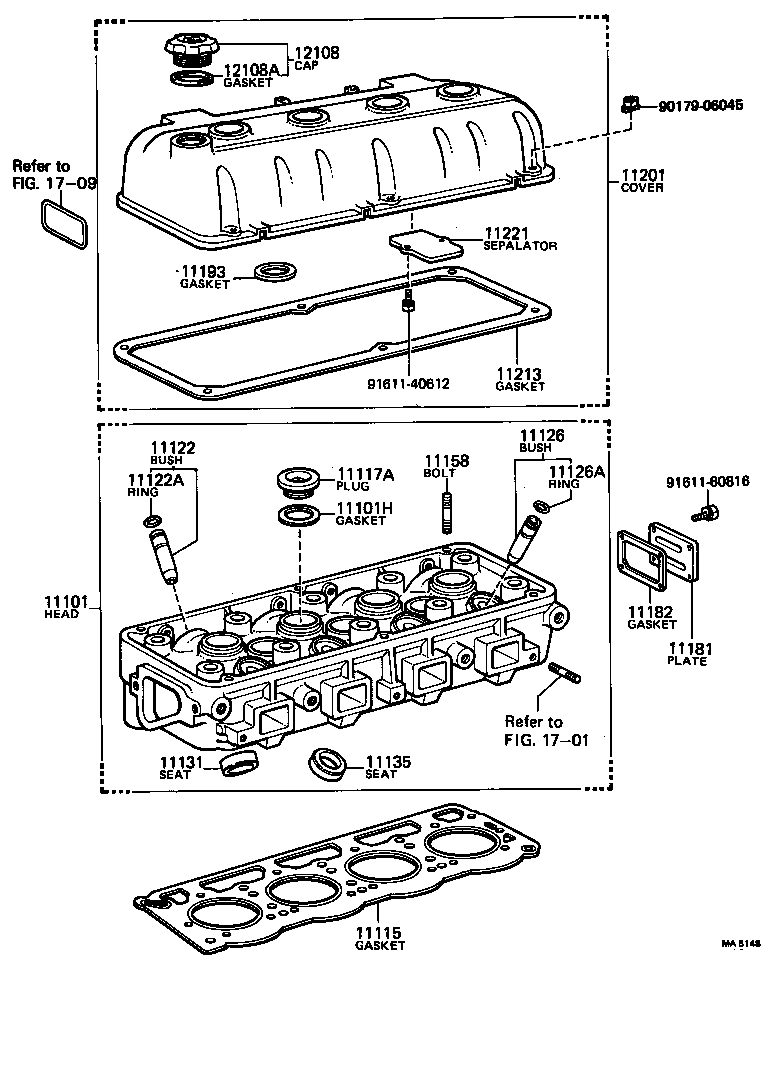

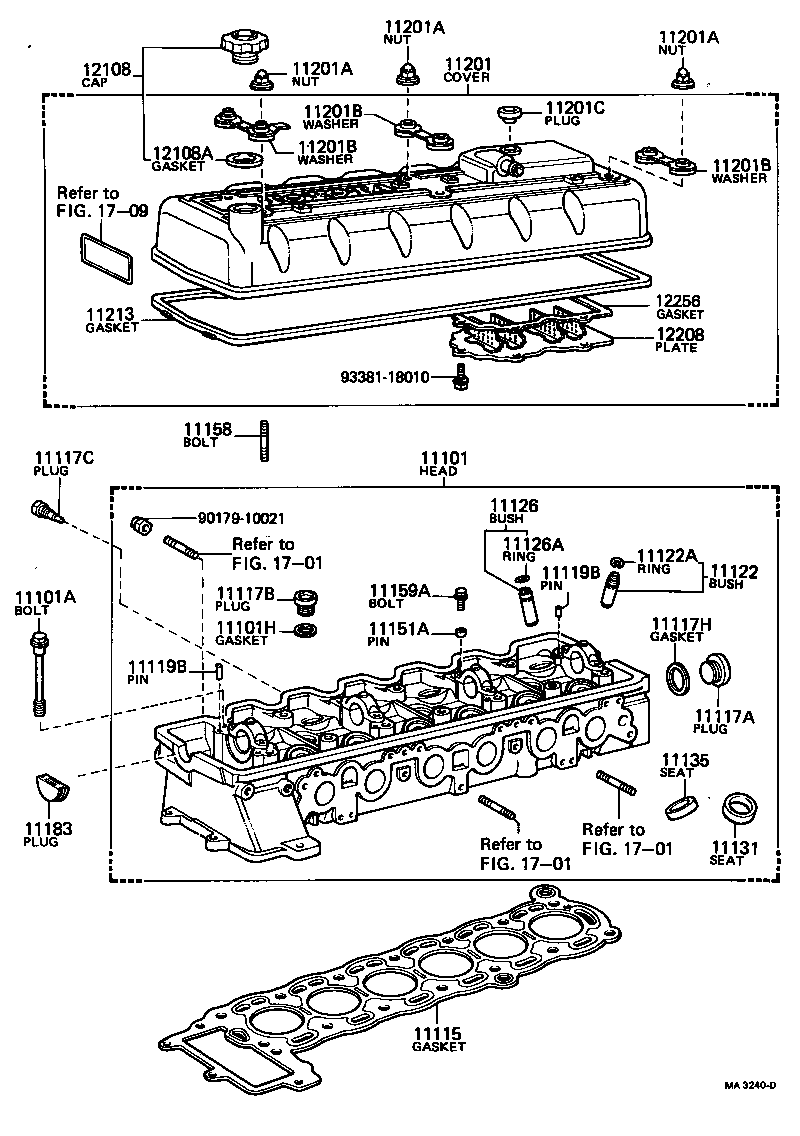

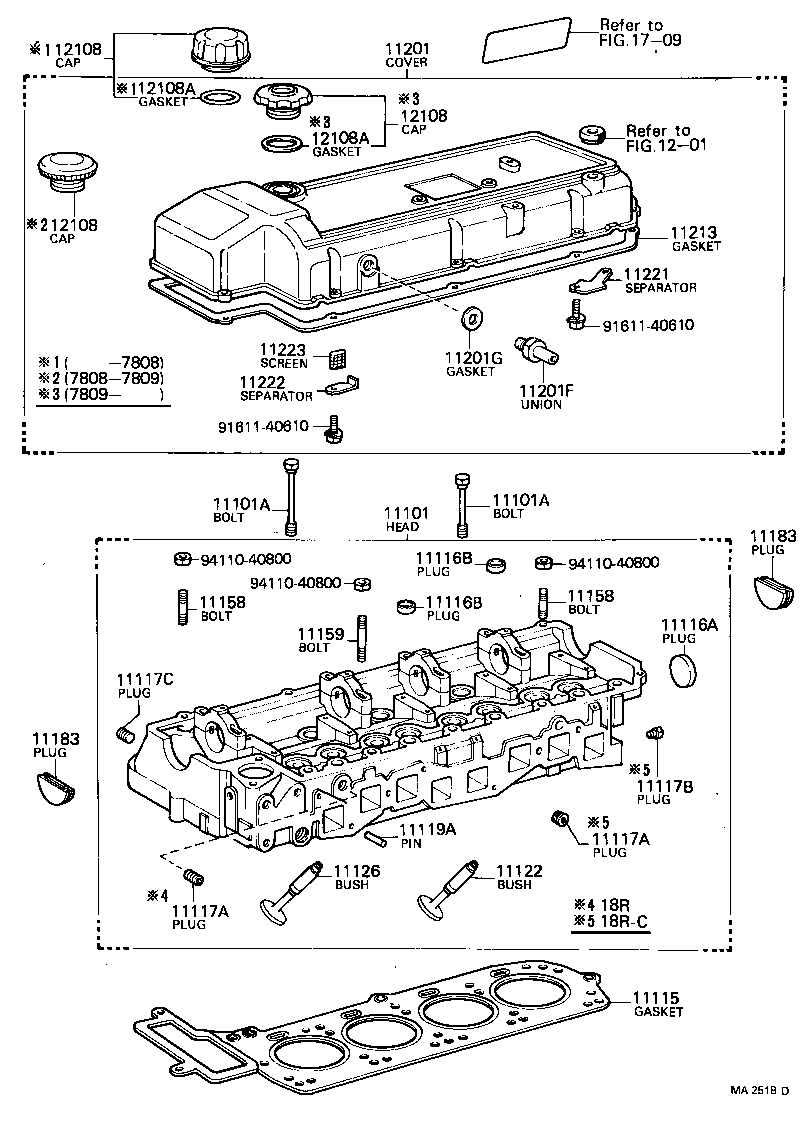

Cylinder Head

40 part groups · 4 illustrations

PNC	Description
11101	Head Sub-assy, Cylinder
11101A	Bolt(FOR CYLINDER HEAD SET)
11101H	Gasket(FOR CYLINDER HEAD SCREW PLUG)
11115	Gasket, Cylinder Head
11116A	Plug, Tight, NO.1
11116B	Plug, Tight, NO.2
11117A	Plug, W/Head Taper Screw, NO.1
11117B	Plug, W/Head Taper Screw, NO.2
11117C	Plug, W/Head Taper Screw, NO.3
11117H	Gasket(FOR WATER HOLE)
11119A	Pin, Straight, NO.1
11119B	Pin, Straight, NO.2
11122	Bush, Intake Valve Guide
11122A	Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
11126	Bush, Exhaust Valve Guide
11126A	Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
11131	Seat, Intake Valve
11135	Seat, Exhaust Valve
11151A	Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11158	Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159	Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
11159A	Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11181	Plate, Cylinder Head, Rear
11182	Gasket, Cylinder Head Rear Plate
11183	Plug, Semicircular
11193	Gasket, Spark Plug Tube
11201	Cover Sub-assy, Cylinder Head
11201A	Nut, Cap(FOR CYLINDER HEAD COVER)
11201B	Washer, Seal(FOR CYLINDER HEAD COVER)
11201C	Plug(FOR POSITIVE CRANKCASE VENTILATION VALVE HOLE)
11201F	Union(FOR POSITIVE CRANKCASE VENTILATION)
11201G	Gasket(FOR POSITIVE CRANKCASE VENTILATION)
11213	Gasket, Cylinder Head Cover
11221	Separator, Cylinder Head Cover, NO.1
11222	Separator, Cylinder Head Cover, NO.2
11223	Screen,Cylinder Head Cover
12108	Cap Sub-assy, Oil Filler
12108A	Gasket(FOR OIL FILLER CAP)
12208	Plate Sub-assy, Ventilation Baffle
12256	Gasket, Ventilation Baffle

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
