Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

36 part groups · 3 illustrations

Illustrations

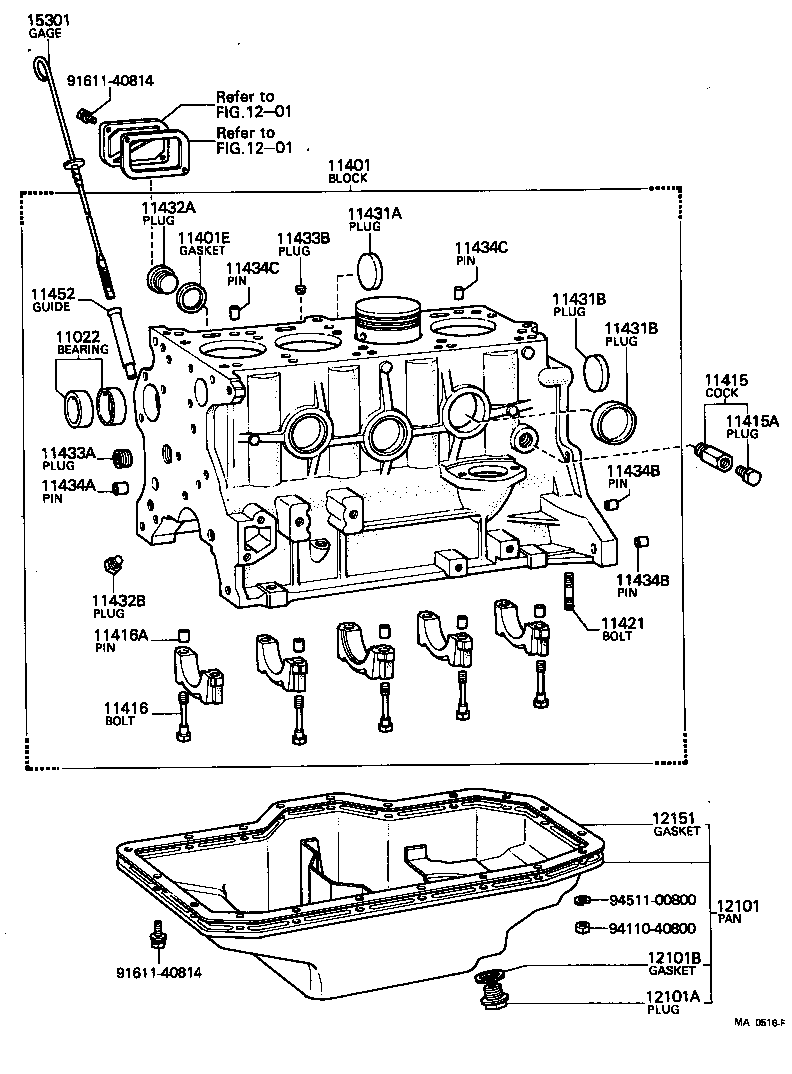

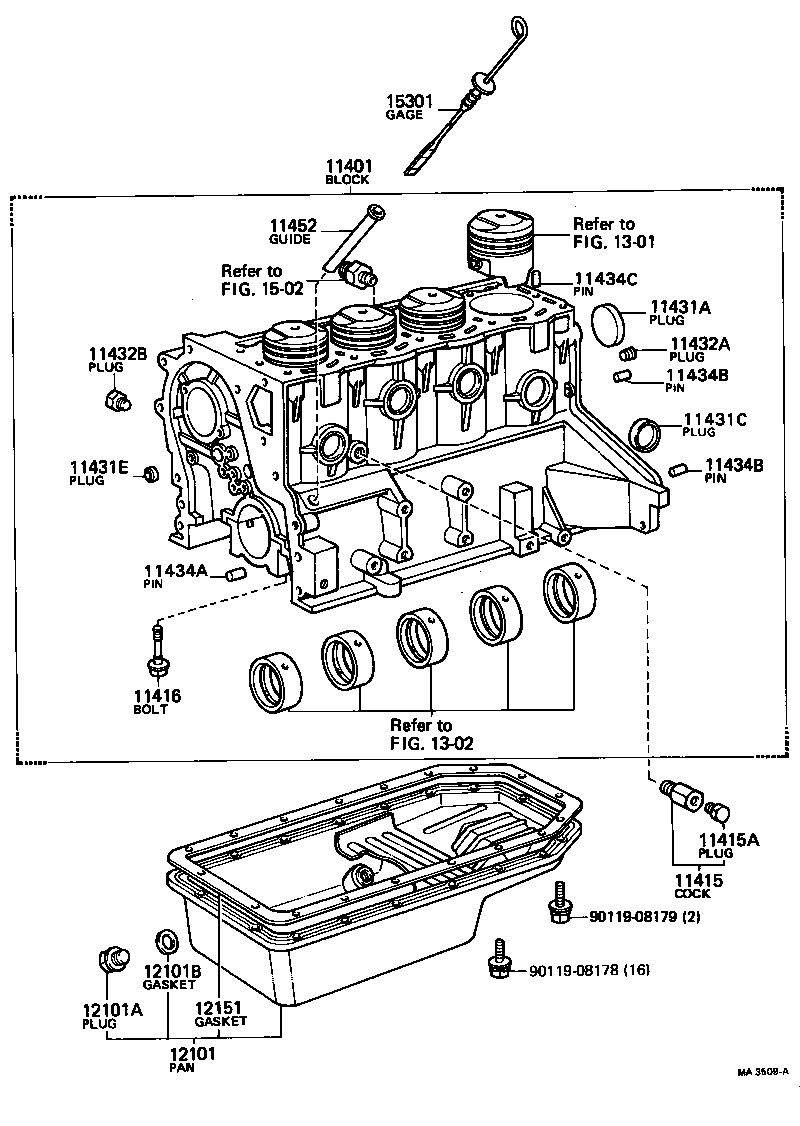

Figure MA3241B MA3241B 1976-12 → 1980-08 Figure MA0516F MA0516F 1976-12 → 1980-08 Figure MA3509A MA3509A 1980-01 → 1980-08

Part groups

PNCDescription
11022 Bearing Set, Pump Drive Shaft
11401 Block Sub-assy, Cylinder
11401E Gasket(FOR CYLINDER BLOCK PLUG)
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11416A Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
11418 Bush, Solid(FOR DISTRIBUTOR)
11419 Bolt, Stud(FOR FUEL PUMP)
11421 Bolt, Stud(FOR OIL PAN)
11427 Bolt, Stud(FOR TIMING CHAIN COVER SET)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431E Plug, Tight, NO.5(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11432B Plug, W/Head Taper Screw, NO.2
11432C Plug, W/Head Taper Screw, NO.3
11432D Gasket, W/Head Taper Screw Plug
11432E Gasket, W/Head Taper Screw Plug
11433A Plug, Straight, NO.1
11433B Plug, Straight, NO.2
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11437 Bush, Oil Pump Shaft Guide
11452 Guide, Oil Level Gage
11492 Plate, Water Seal
11493 Gasket, Water Seal Plate
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12151 Gasket, Oil Pan
12238 Plate, Ventilation Baffle
15301 Gage Sub-assy, Oil Level
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
