Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 5 illustrations

Illustrations

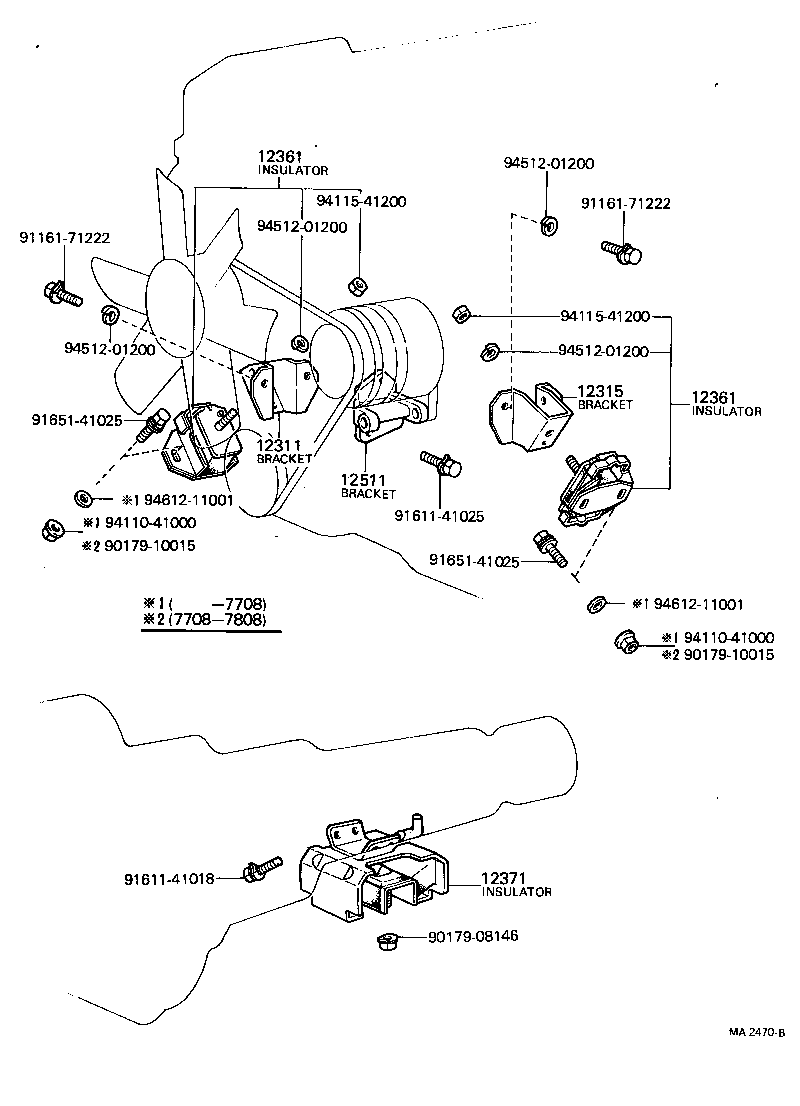

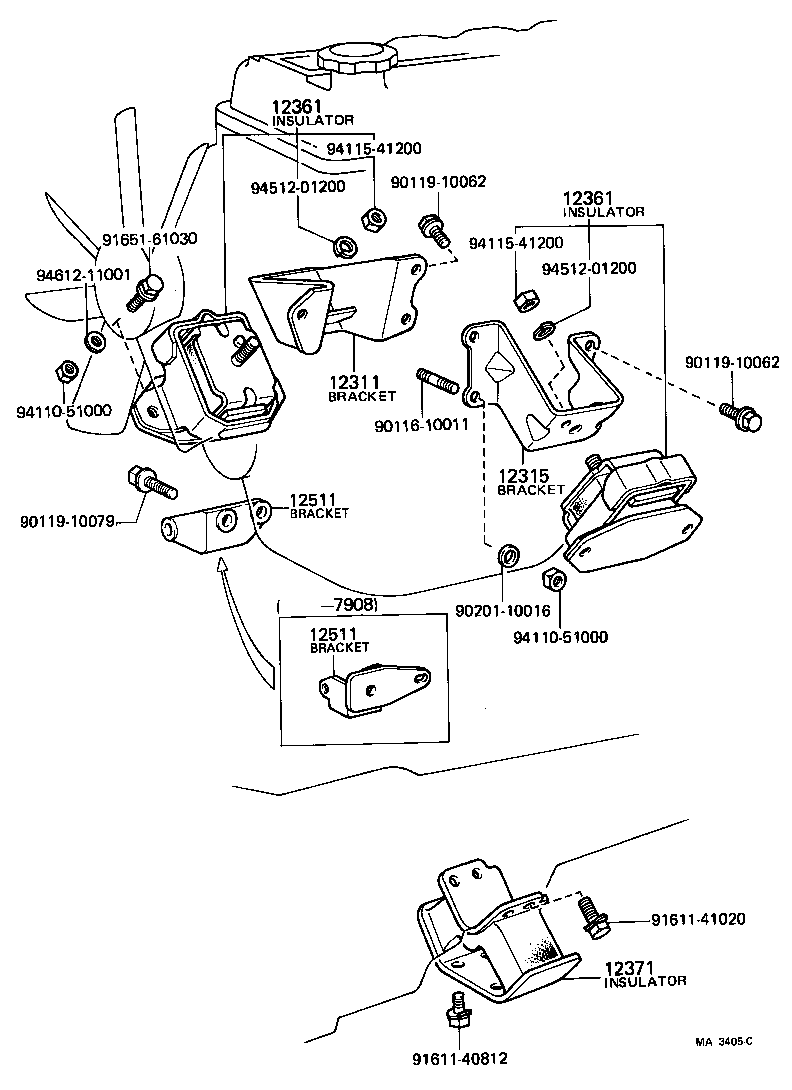

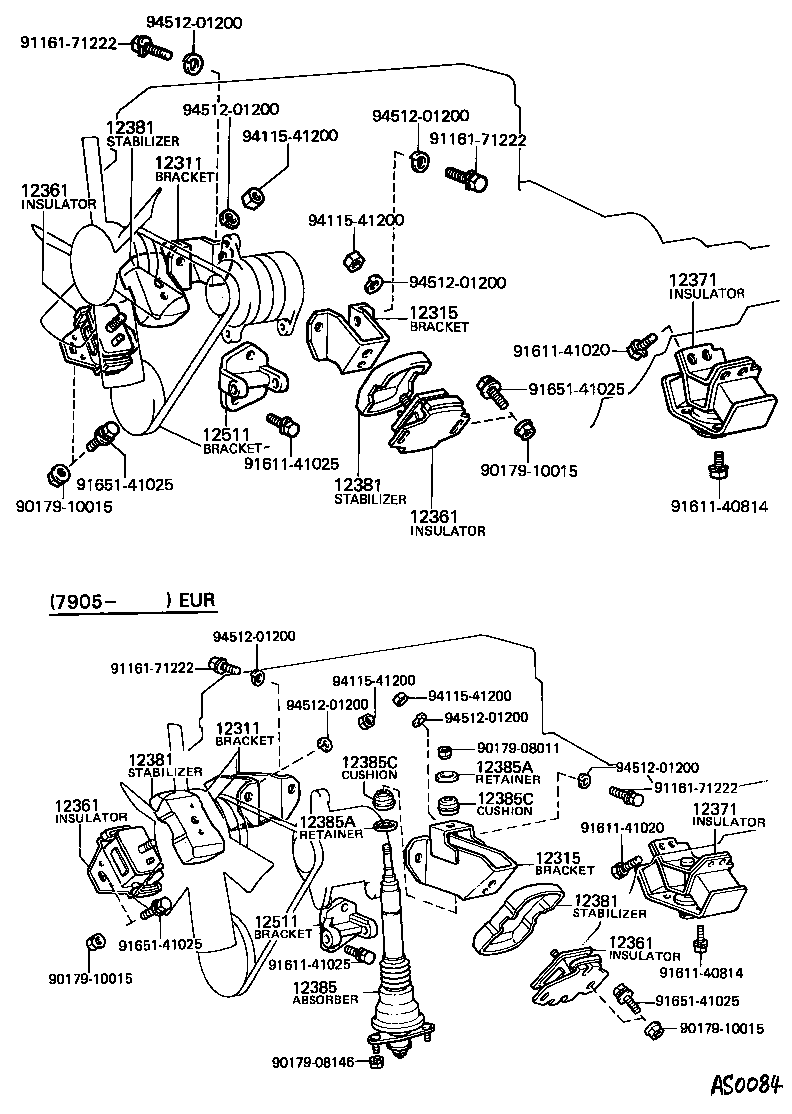

Figure MA2525C MA2525C 1976-12 → 1978-08 Figure MA3405C MA3405C 1978-08 → 1980-08 Figure MA2470B MA2470B 1976-12 → 1978-08 Figure AS0084 AS0084 1978-08 → 1980-08 Figure MA4351 MA4351 1980-01 → 1980-08

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12385 Absorber, Engine Mounting, NO.1
12385A Retainer, Shock Absorber Cushion
12385C Cushion, Shock Absorber
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
