Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

22 part groups · 7 illustrations

Illustrations

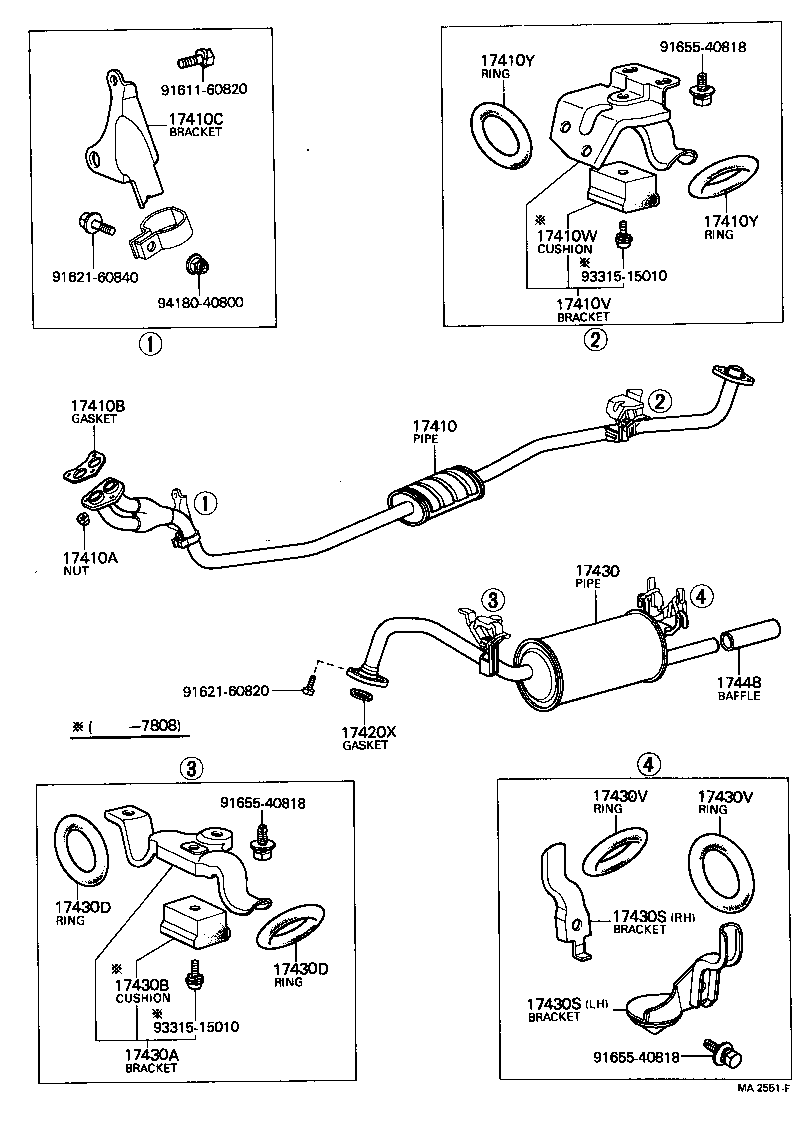

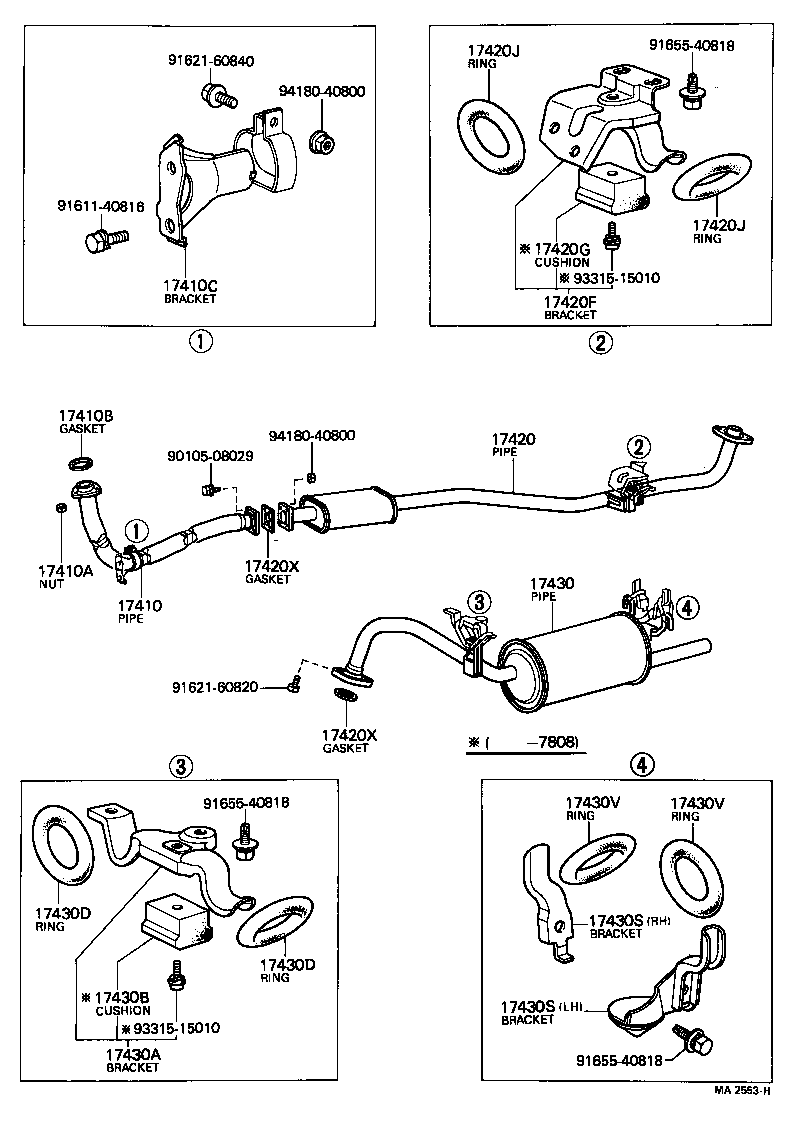

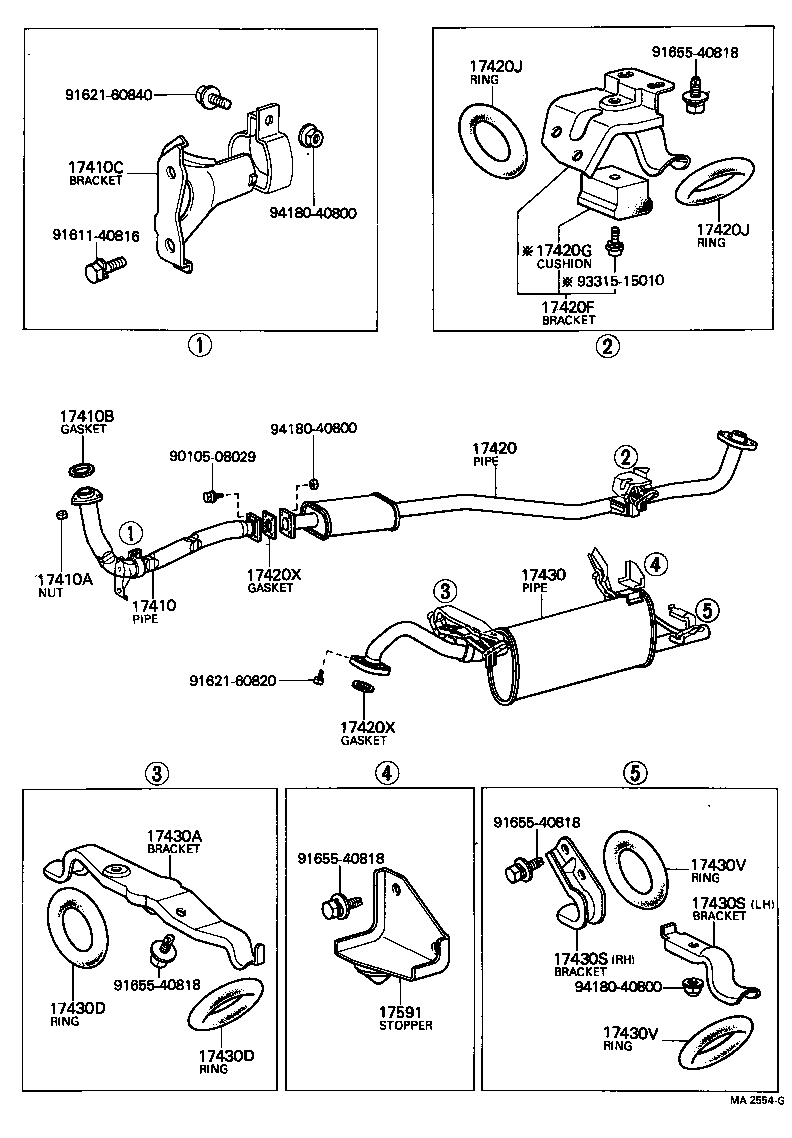

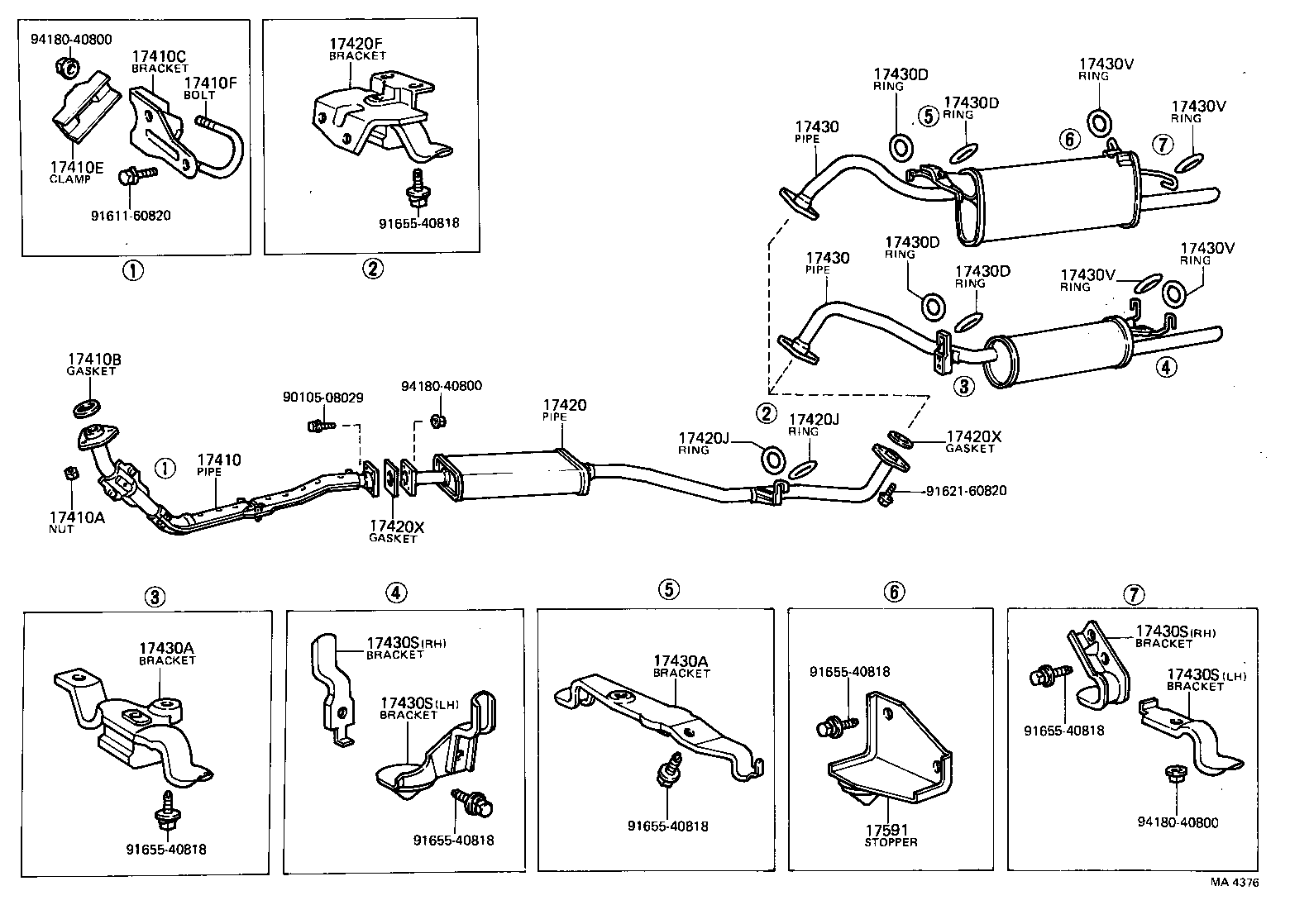

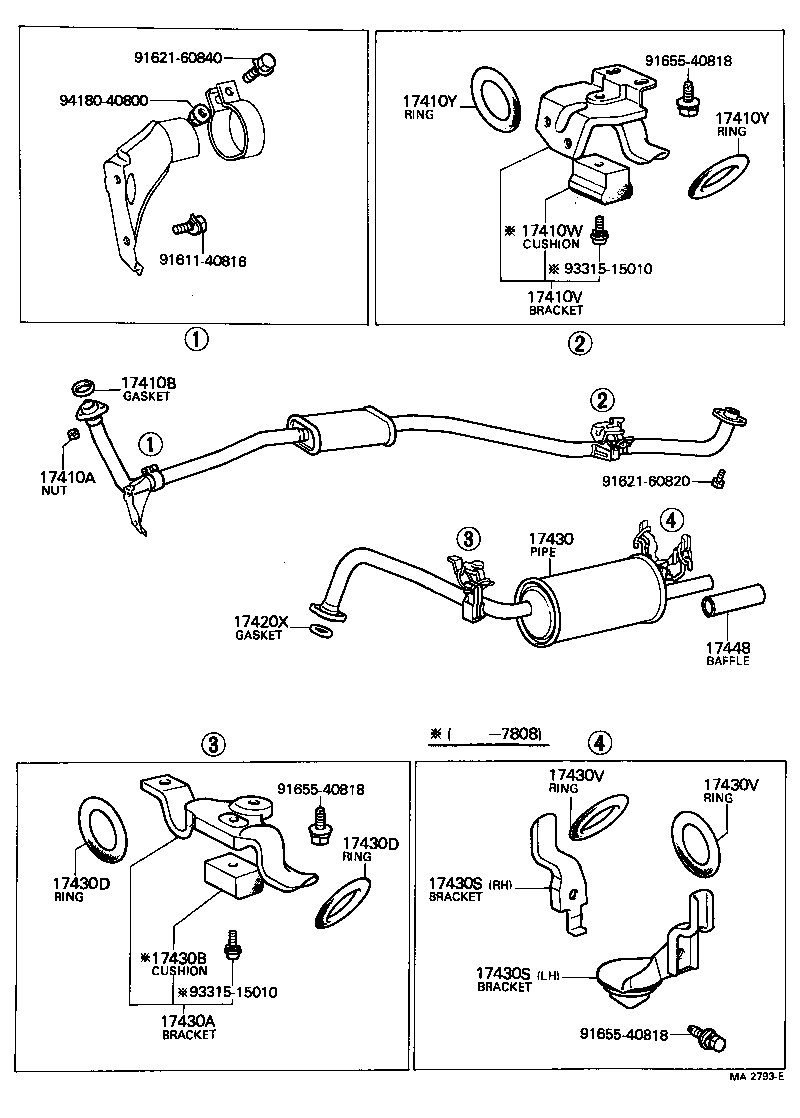

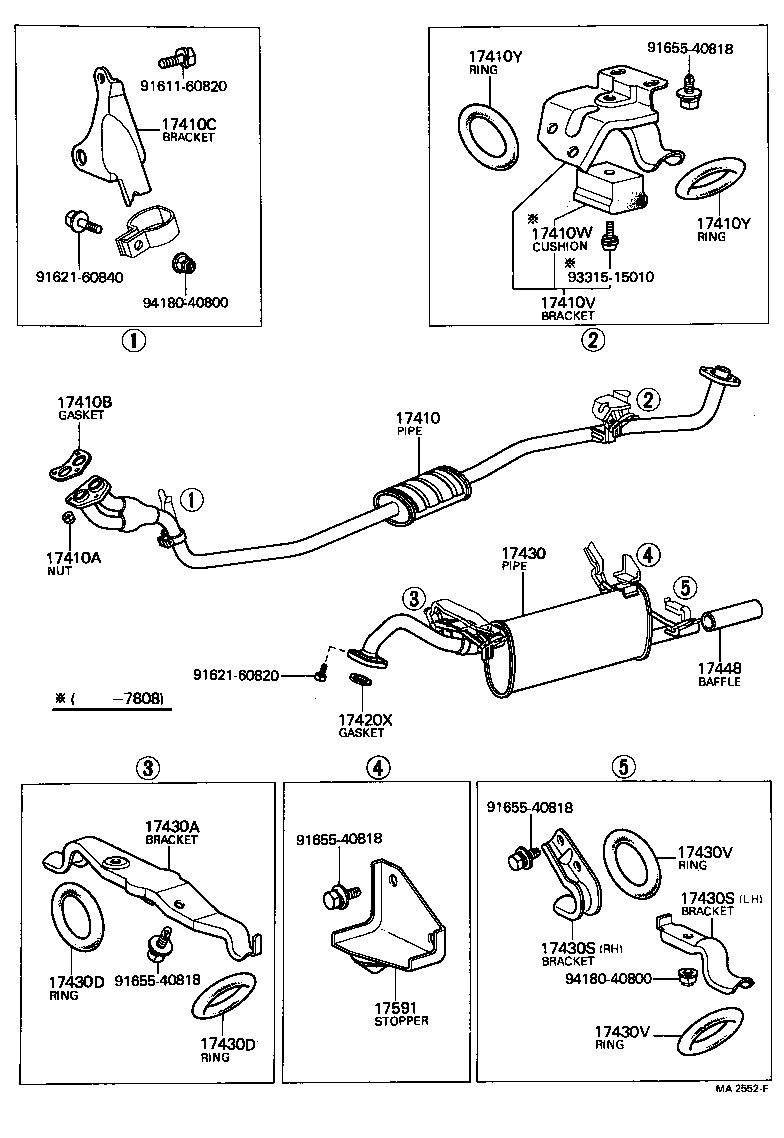

Figure MA4375 MA4375 1980-01 → 1980-08 Figure MA2551F MA2551F 1976-12 → 1980-08 Figure MA2552F MA2552F 1976-12 → 1980-08 Figure MA2553H MA2553H 1976-12 → 1979-08 Figure MA2793E MA2793E 1977-07 → 1980-01 Figure MA2554G MA2554G 1976-12 → 1979-08 Figure MA4376 MA4376 1979-08 → 1980-08

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410W Cushion, Exhaust Pipe Front (FOR REAR)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420F Bracket, Exhaust Pipe, Center
17420G Cushion, Exhaust Pipe Center, Center
17420J Bolt OR Ring, Exhaust Pipe Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17448 Baffle, Tailpipe
17591 Stopper, Exhaust Pipe Hanger
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
