Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

19 part groups · 7 illustrations

Illustrations

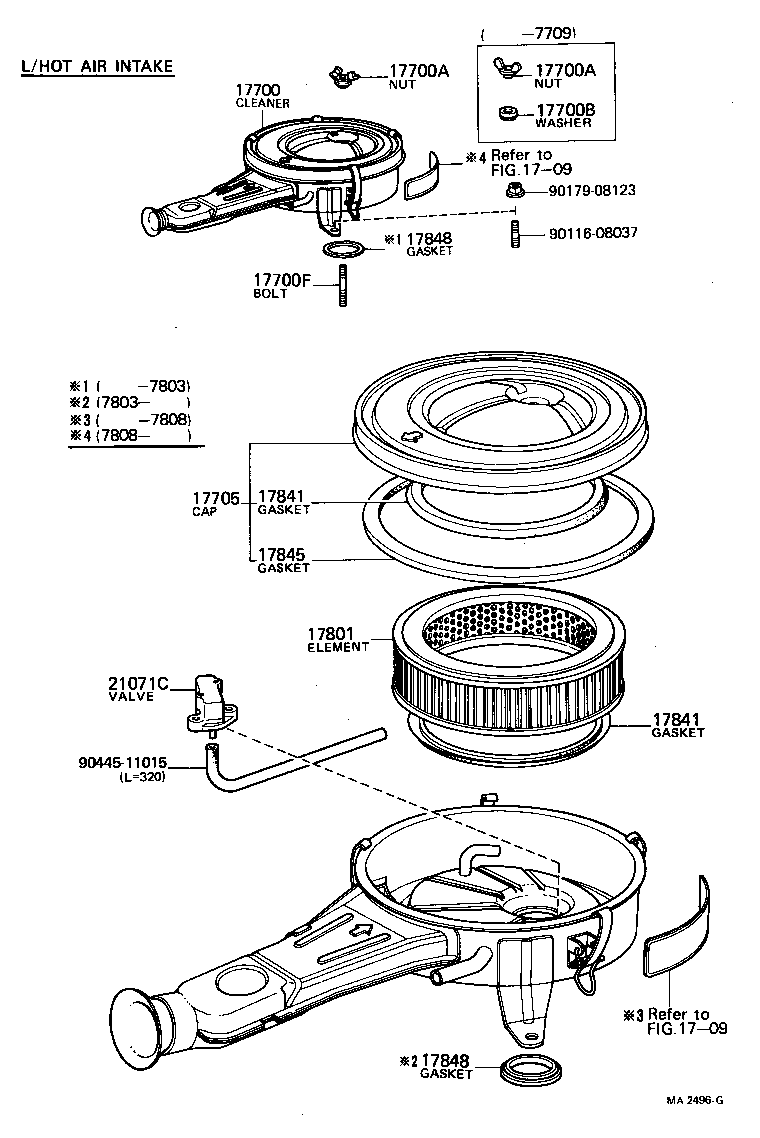

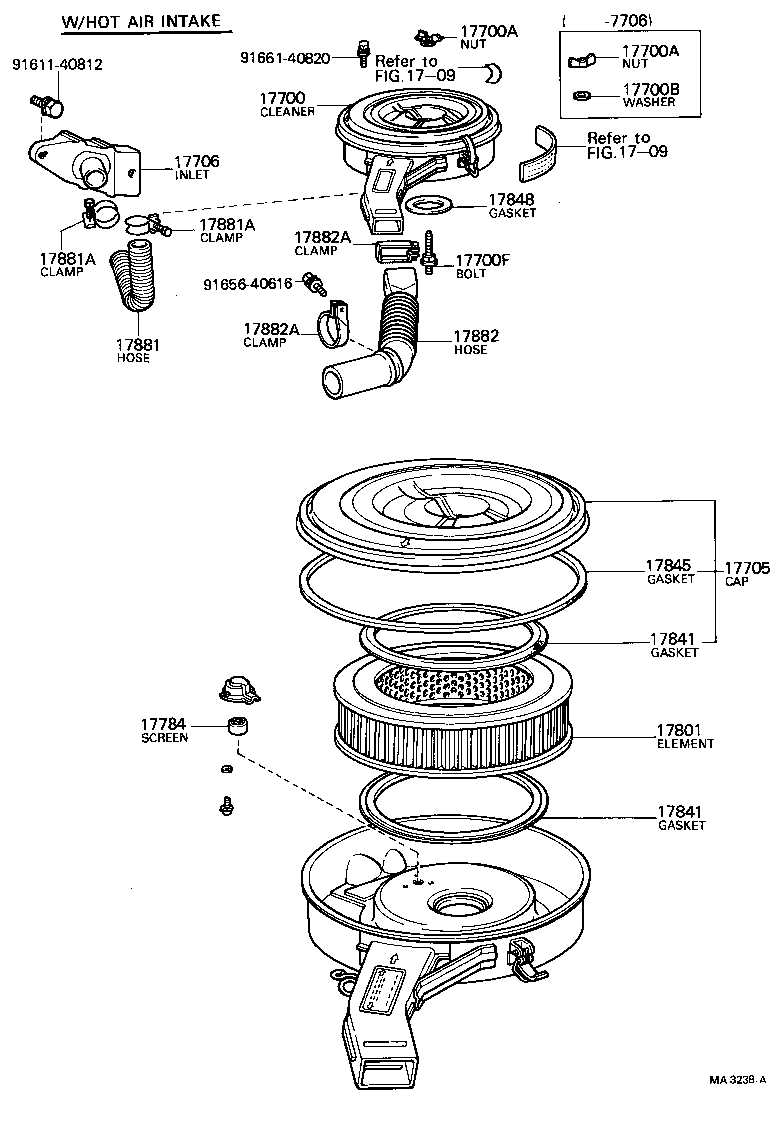

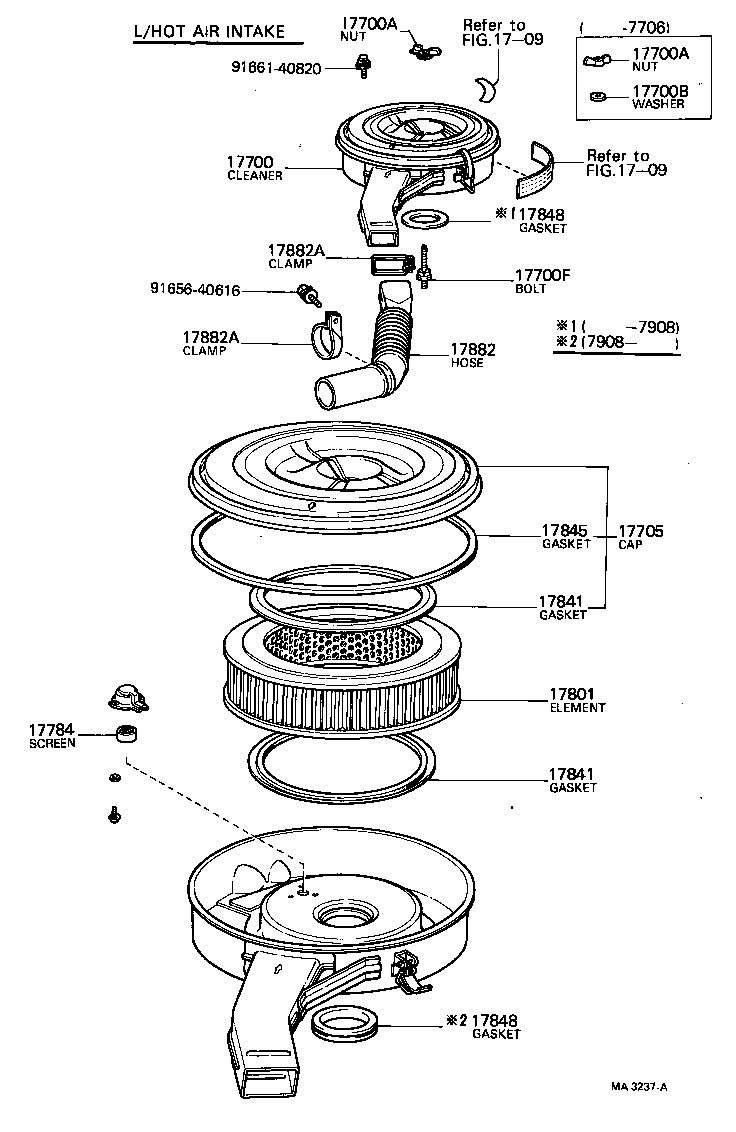

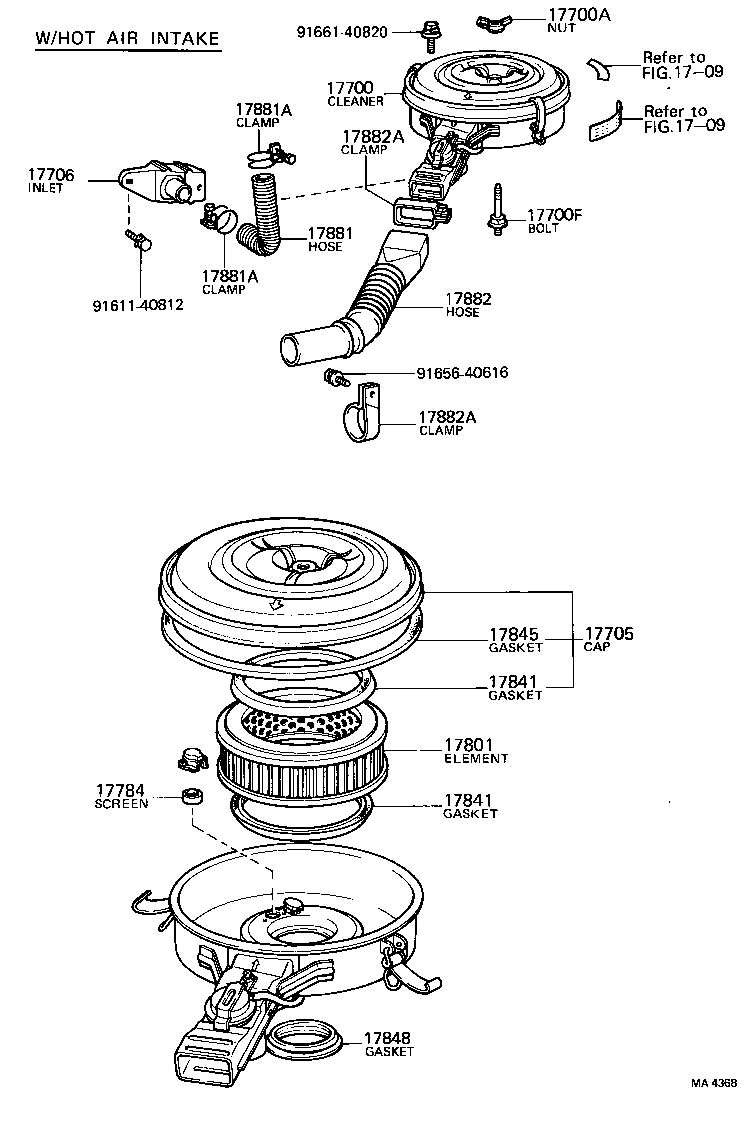

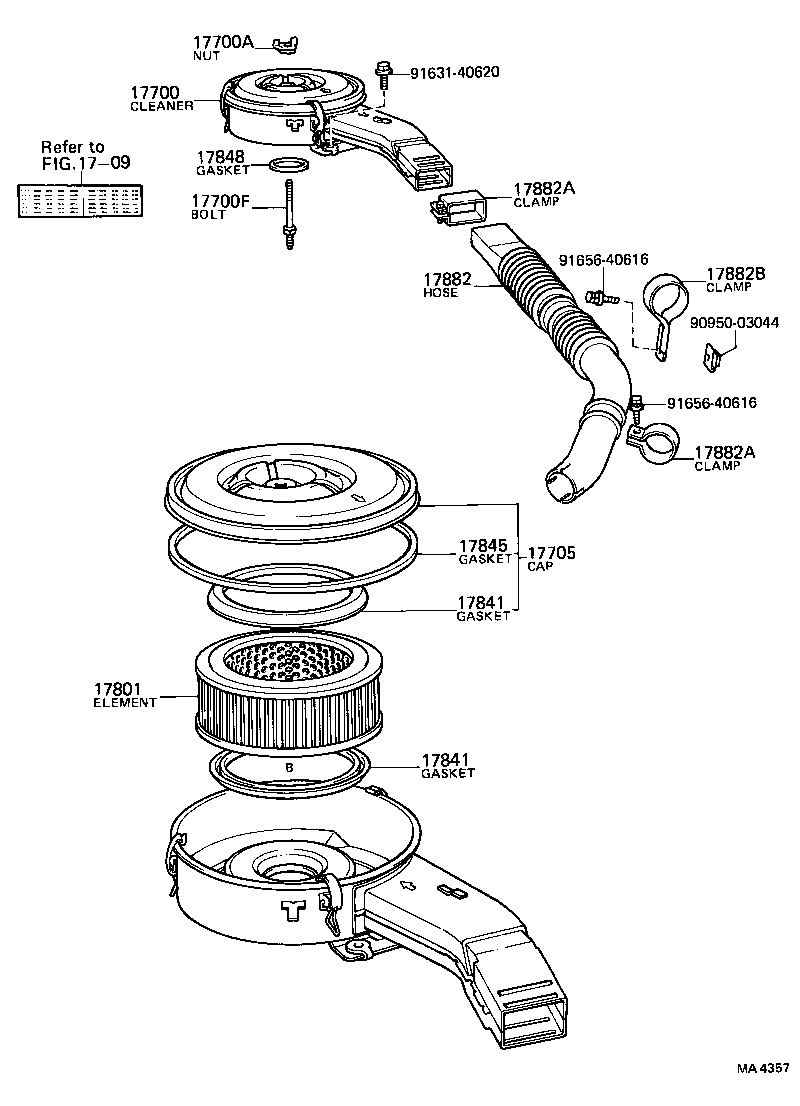

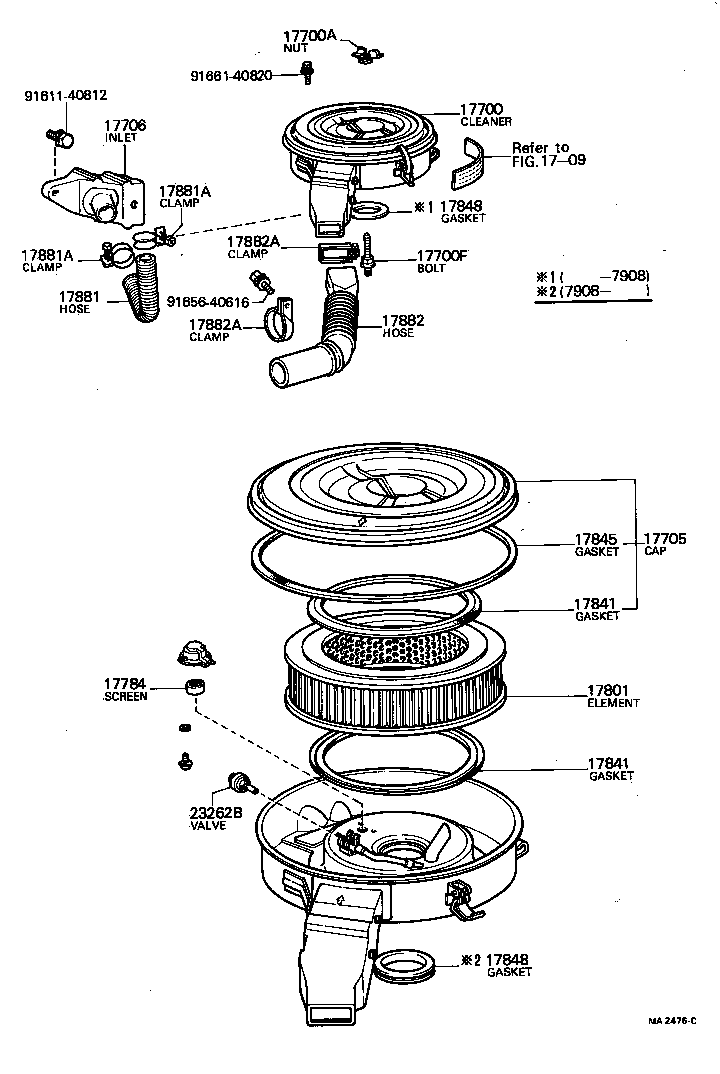

Figure MA2555H MA2555H 1976-12 → 1980-08 Figure MA2496G MA2496G 1977-07 → 1980-01 Figure MA3237A MA3237A 1976-12 → 1980-08 Figure MA3238A MA3238A 1976-12 → 1979-08 Figure MA4368 MA4368 1979-08 → 1980-08 Figure MA2476C MA2476C 1977-07 → 1980-08 Figure MA4357 MA4357 1980-01 → 1980-08

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17784 Screen, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17882B Clamp(FOR COOL AIR INTAKE)
21071C Valve Sub-assy, Thermostatic(FOR AIR CLEANER)
23262B Valve, Bimetal Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
