Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Pump

5 part groups · 2 illustrations

Illustrations

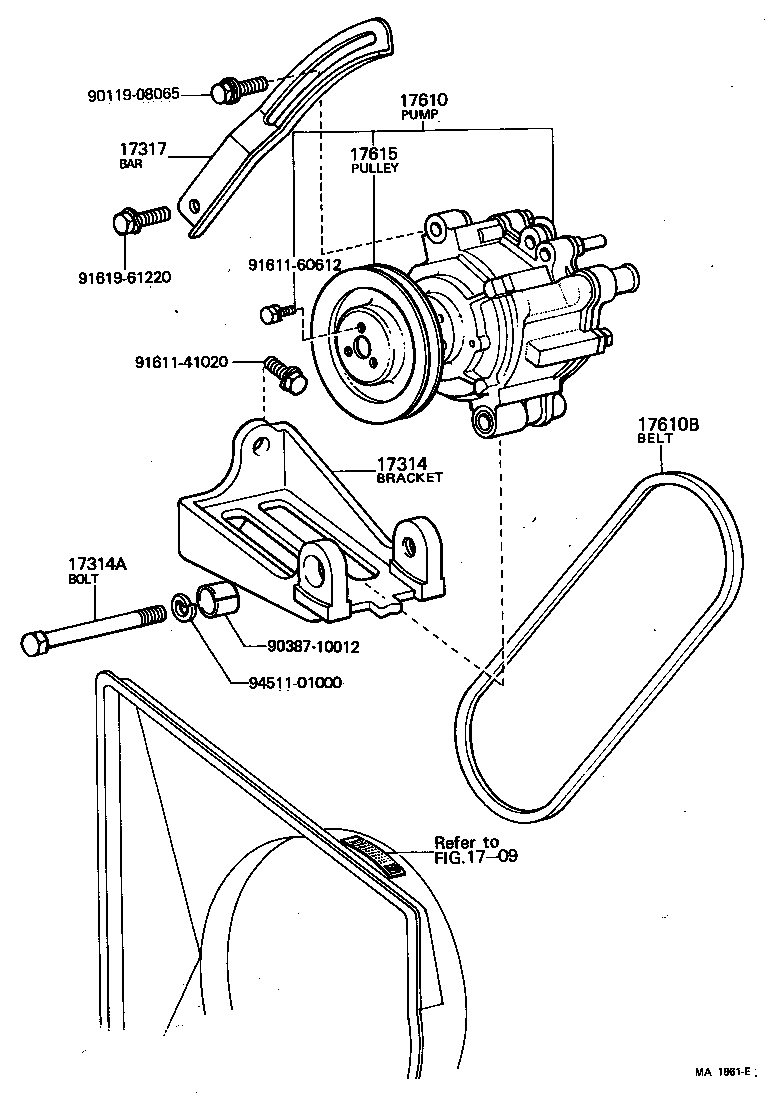

Figure MA2197E MA2197E 1976-12 → 1980-08 Figure MA1861E MA1861E 1977-07 → 1980-08

Part groups

PNCDescription
17314 Bracket, Air Pump
17314A Bolt, Hexagon(FOR AIR PUMP BRACKET SETTING)
17317 Bar, Air Pump Adjusting, NO.1
17610 Pump Assy, Air
17615 Pulley(FOR AIR PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
