Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

13 part groups · 2 illustrations

Illustrations

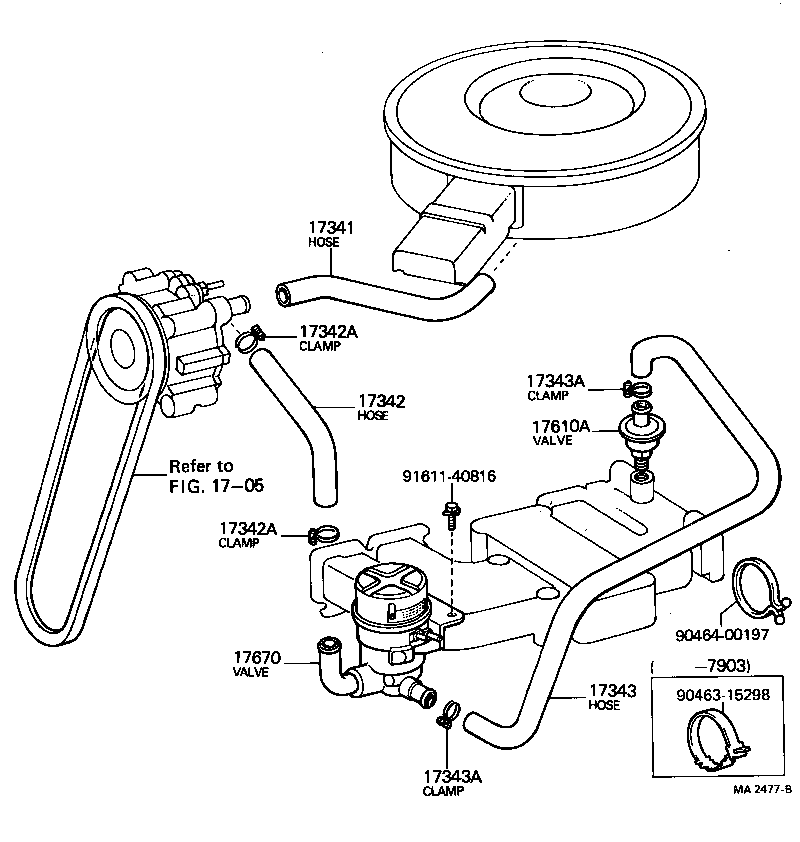

Figure MA2198B MA2198B 1976-12 → 1980-08 Figure MA2477B MA2477B 1977-08 → 1980-08

Part groups

PNCDescription
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17344A Clamp OR Clip, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)
17351 Manifold, Air Injection
17610A Valve, Check(FOR AIR INJECTION SYSTEM)
17670 Valve Assy, Air By-pass
25710 Valve Assy, Air Switching
25710C Ring, O
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
