Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

20 part groups · 18 illustrations

Illustrations

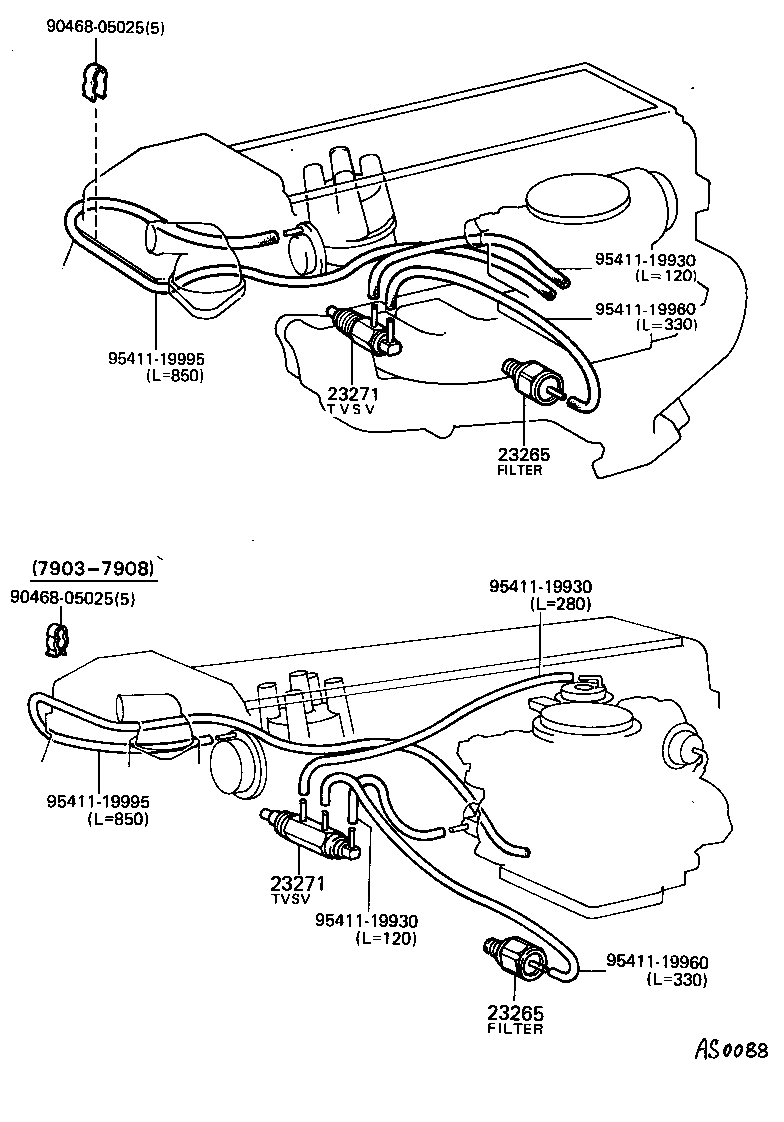

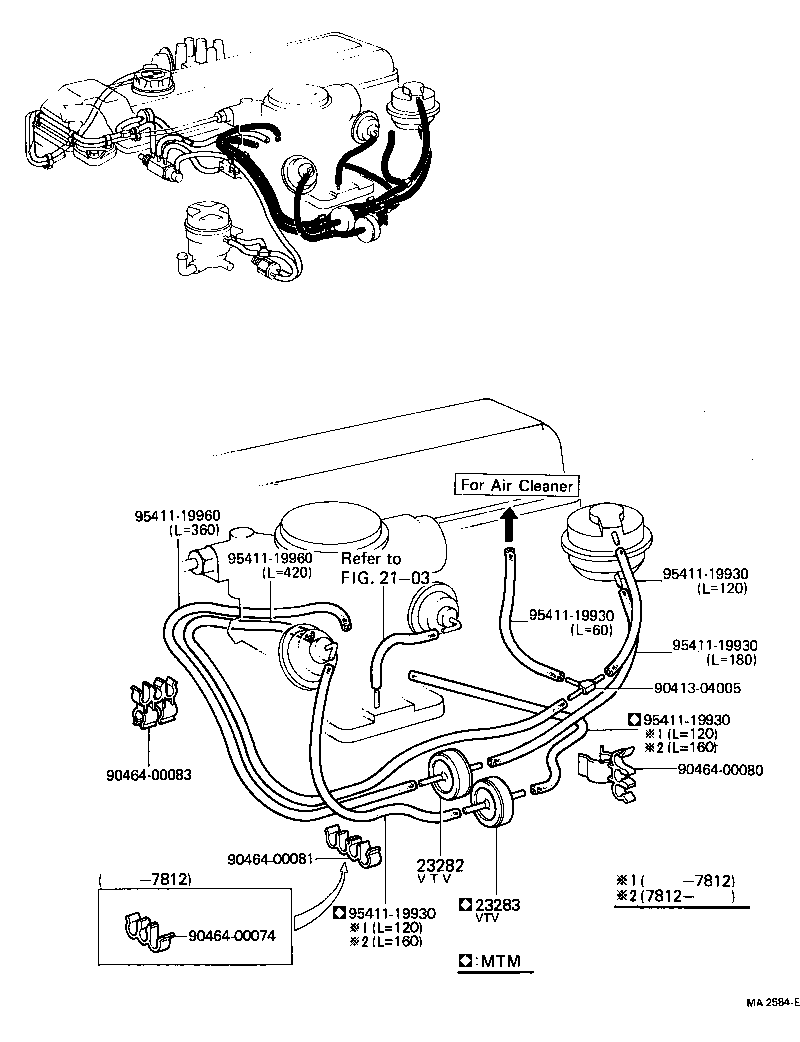

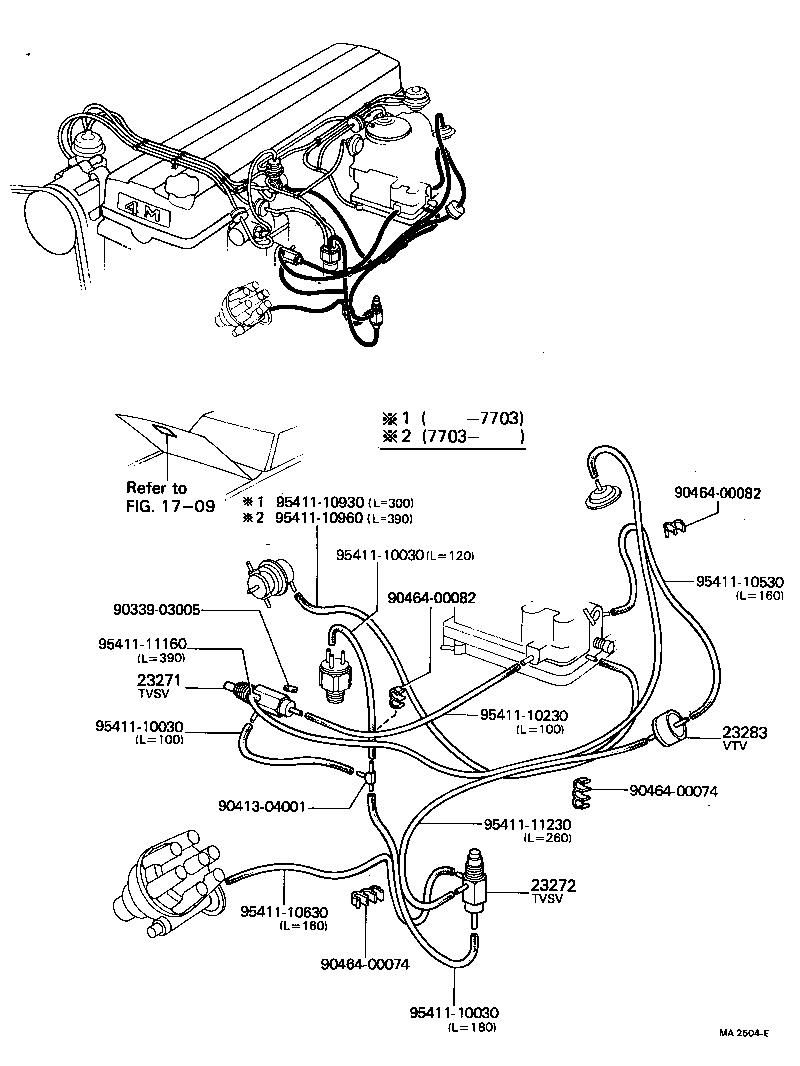

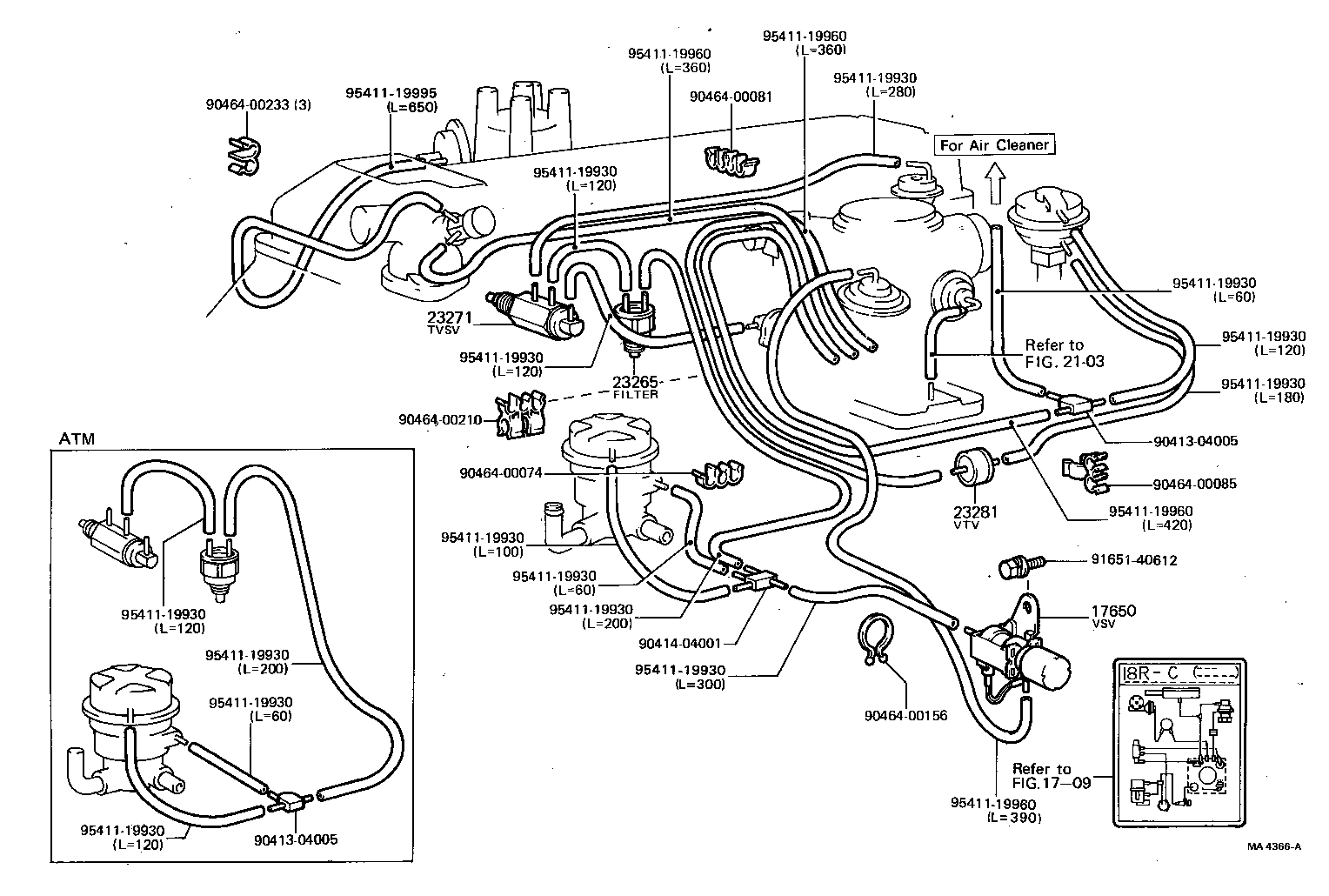

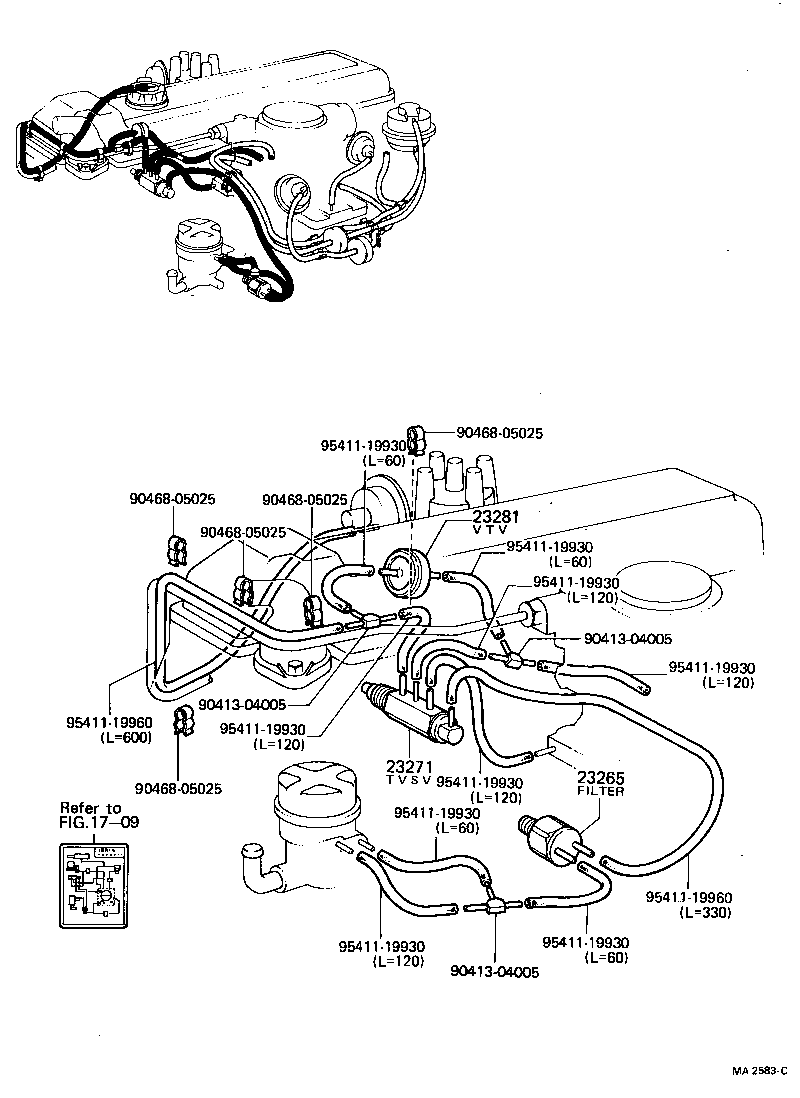

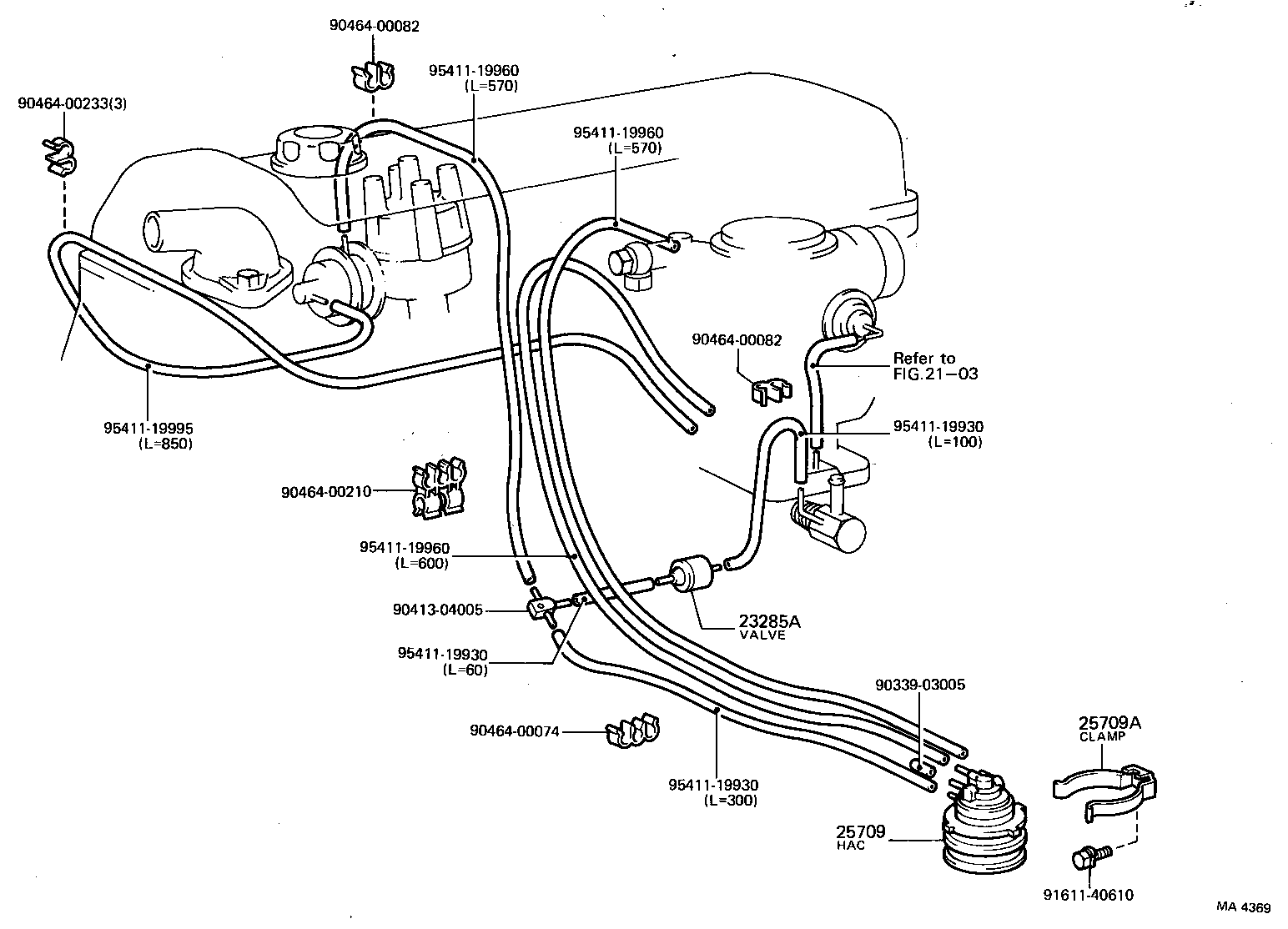

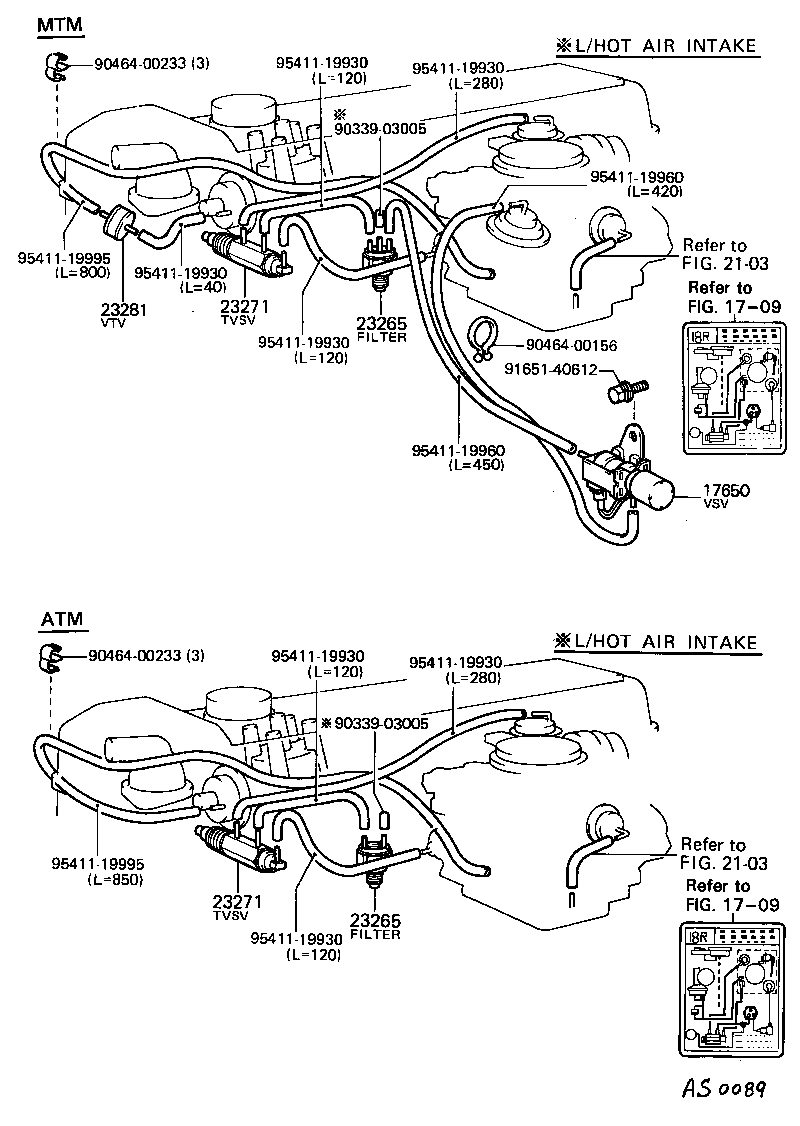

Figure AS0087 AS0087 1976-12 → 1980-08 Figure MA2794A MA2794A 1977-07 → 1980-08 Figure MA2504E MA2504E 1976-12 → 1978-03 Figure MA2505D MA2505D 1976-12 → 1978-03 Figure MA3190C MA3190C 1978-03 → 1979-02 Figure MA3191B MA3191B 1978-03 → 1979-02 Figure MA3835B MA3835B 1979-02 → 1980-08 Figure AS0087 AS0087 1976-12 → 1980-08 Figure AS0088 AS0088 1976-12 → 1979-07 Figure AS0088 AS0088 1979-07 → 1980-08 Figure AS0089 AS0089 1976-12 → 1979-08 Figure MA4365A MA4365A 1979-08 → 1980-08 Figure MA4369 MA4369 1979-07 → 1980-08 Figure MA2583C MA2583C 1977-07 → 1979-08 Figure MA2584E MA2584E 1977-07 → 1979-08 Figure MA4366A MA4366A 1979-08 → 1980-08 Figure AS0087 AS0087 1976-12 → 1980-08 Figure AS0088 AS0088 1980-01 → 1980-08

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23272 Valve, Thermostatic Vacuum Switching, NO.2
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23277 Valve, Vacuum Control, NO.3
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23284 Valve, Vacuum Transmitting, NO.4
23285A Valve, Check, NO.1
23288 Jet, NO.1
25709 Valve Sub-assy, High Altitude Compensator
25709A Clamp(FOR HIGH ALTITUDE COMPENSATOR VALVE)
25751 Clamp, Vacuum Control Valve, NO.1
25752 Clamp, Vacuum Control Valve, NO.2
25753 Clamp, Vacuum Control Valve, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
