Carburetor

181 part groups · 18 illustrations

Illustrations

MF1702E 1976-12 → 1979-02

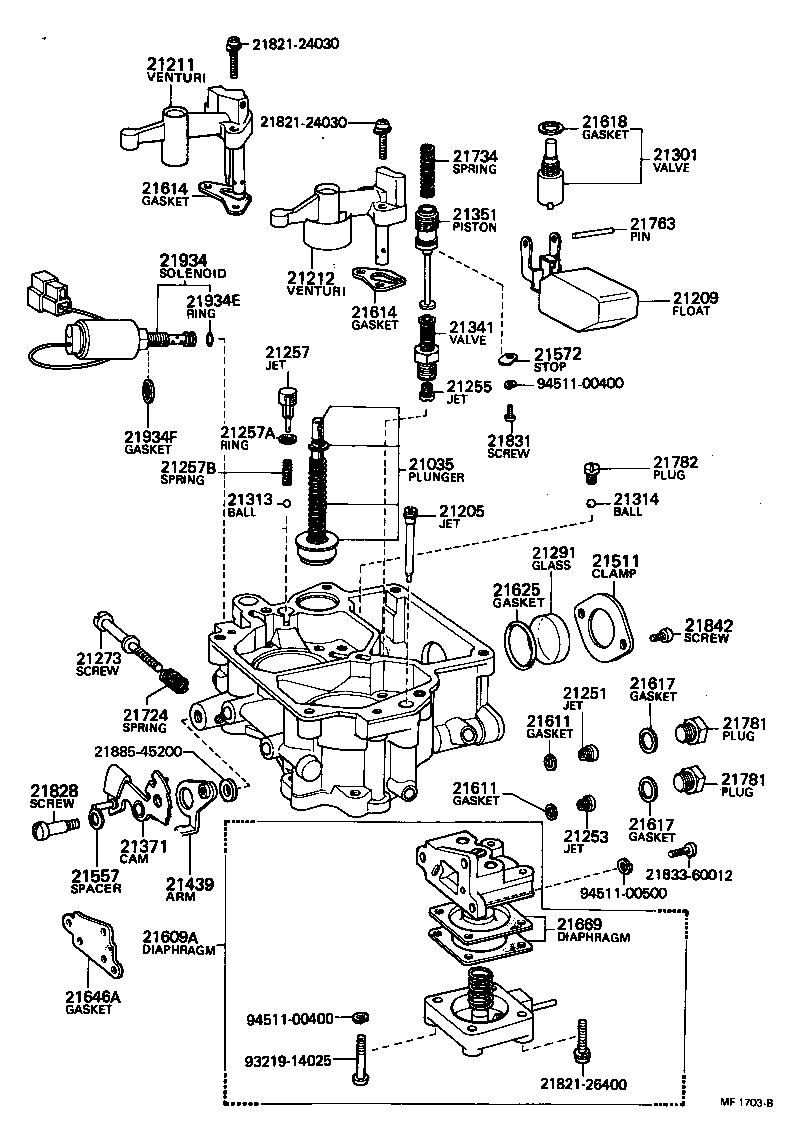

MF1703B 1976-12 → 1979-02

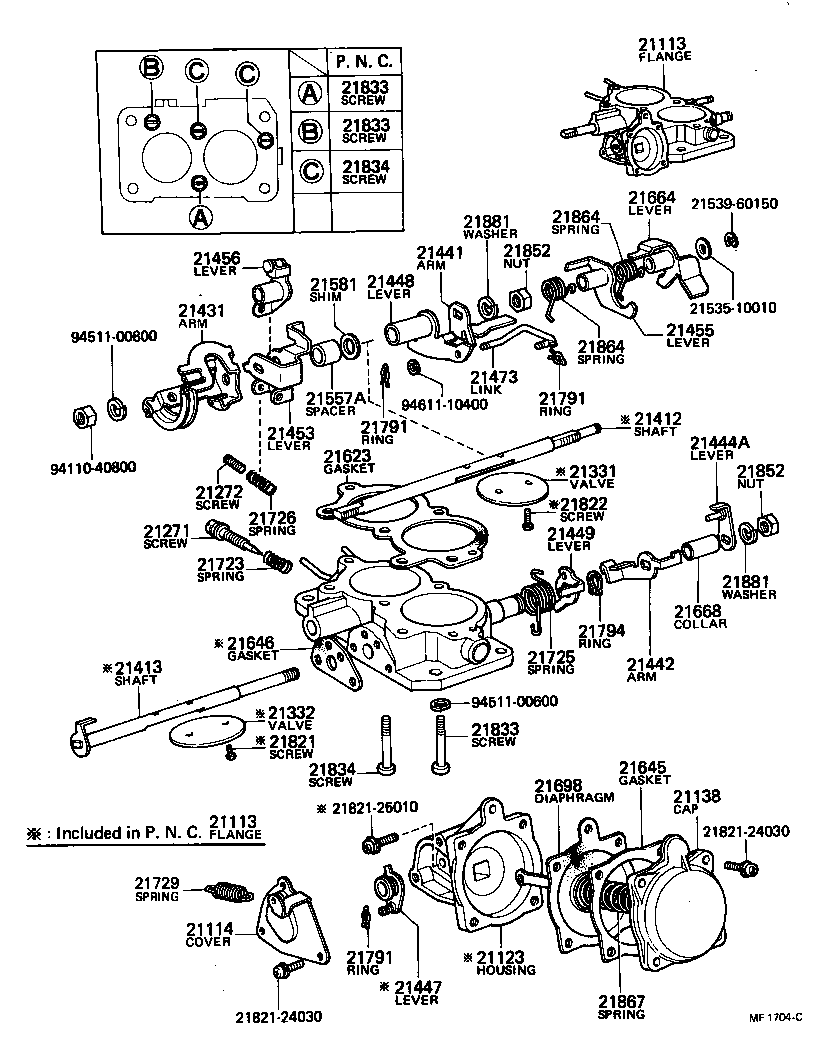

MF1704C 1976-12 → 1979-02

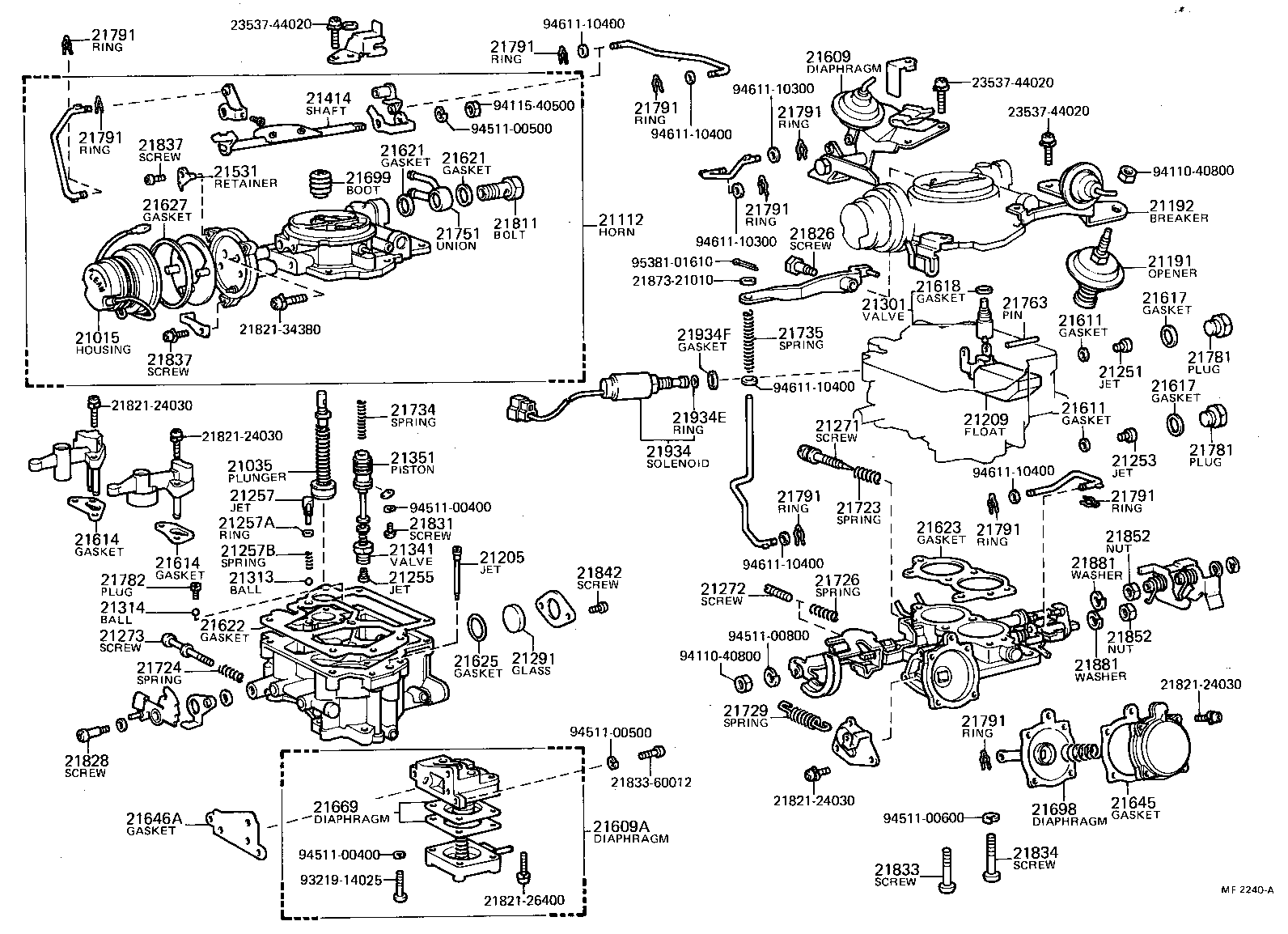

MF2240A 1979-02 → 1980-08

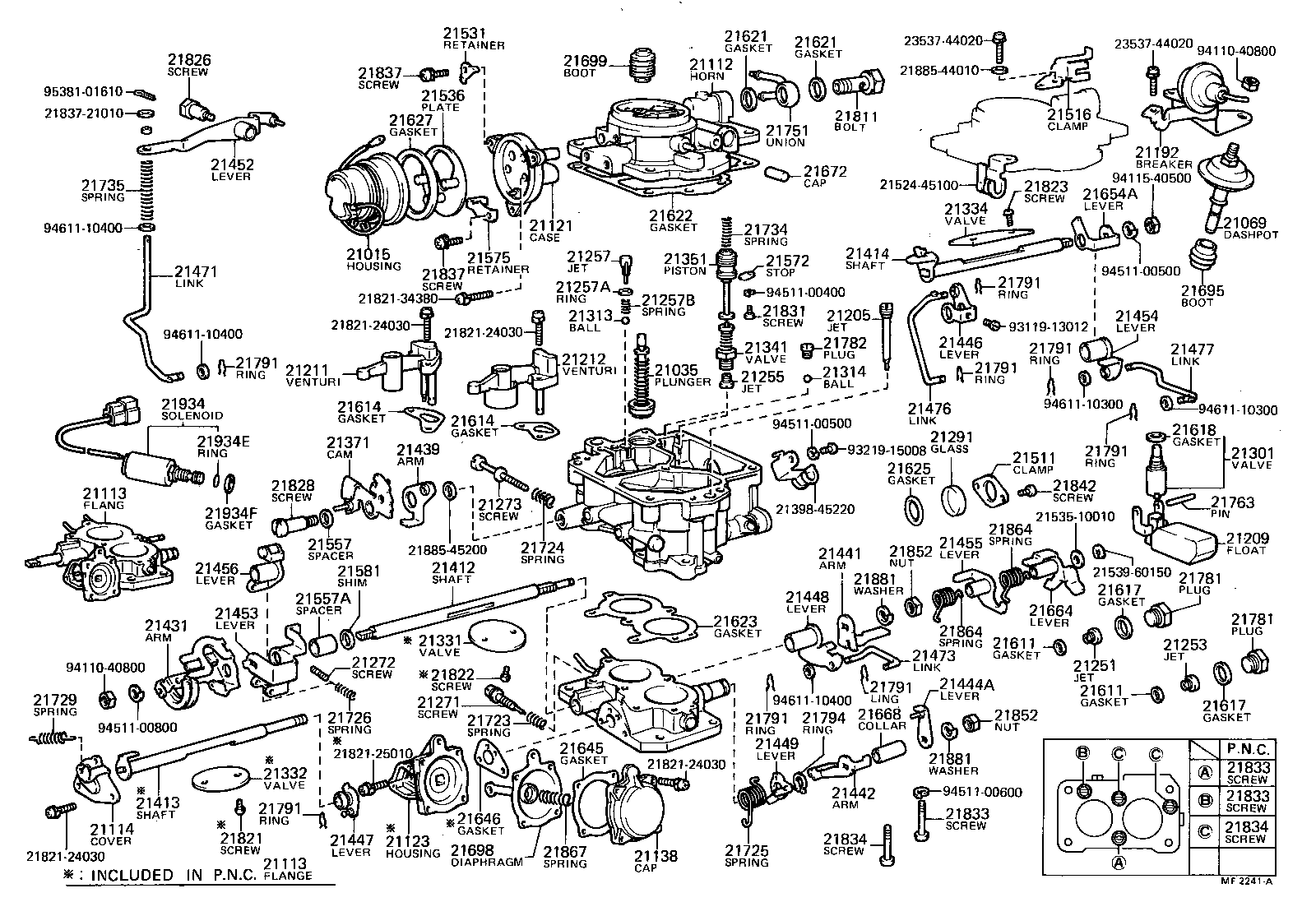

MF2241A 1977-07 → 1980-01

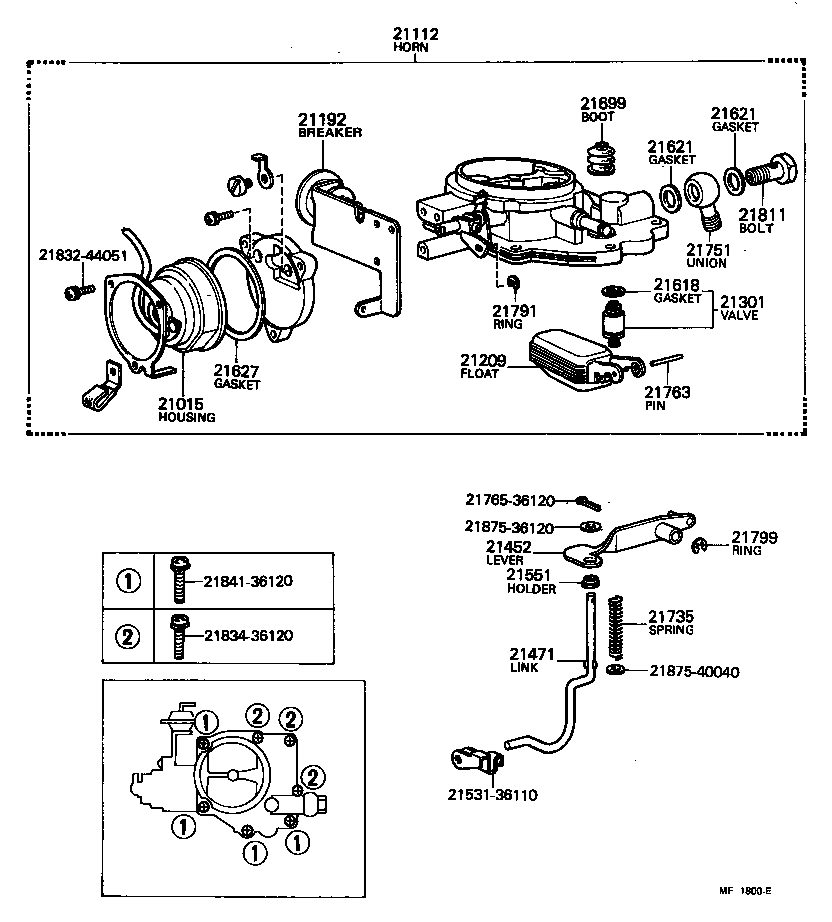

MF1800E 1976-12 → 1978-08

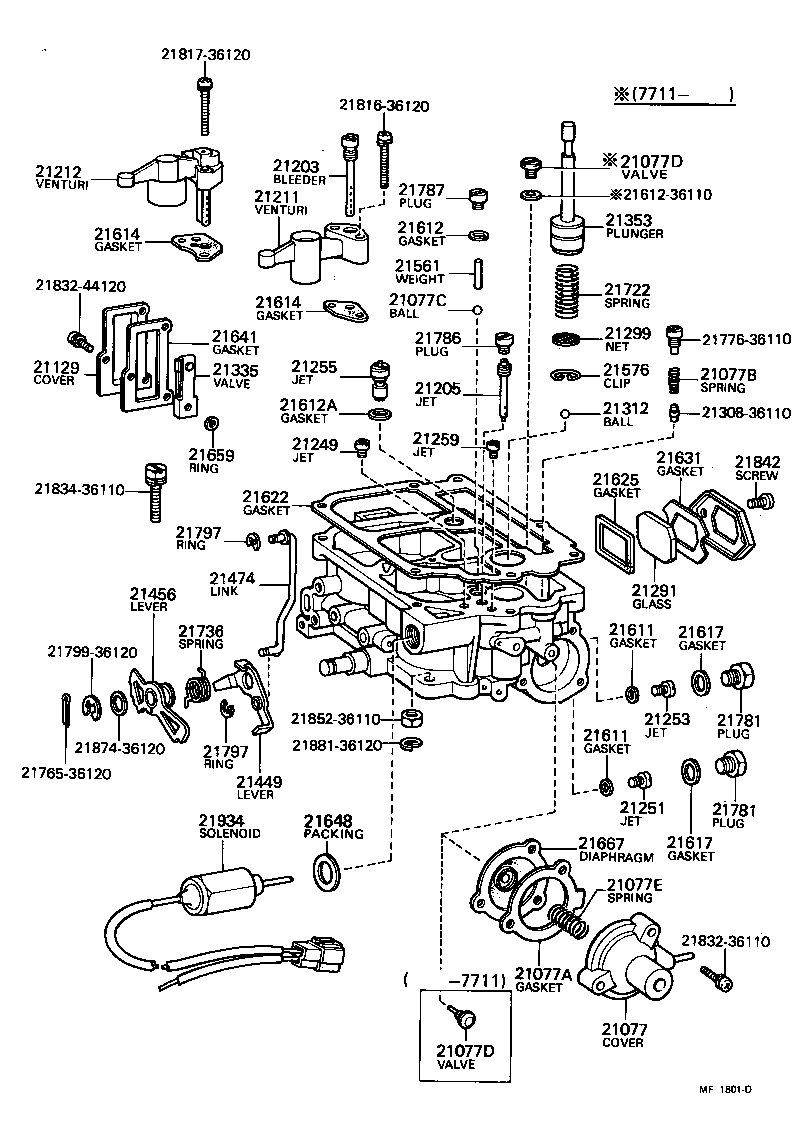

MF1801D 1976-12 → 1978-08

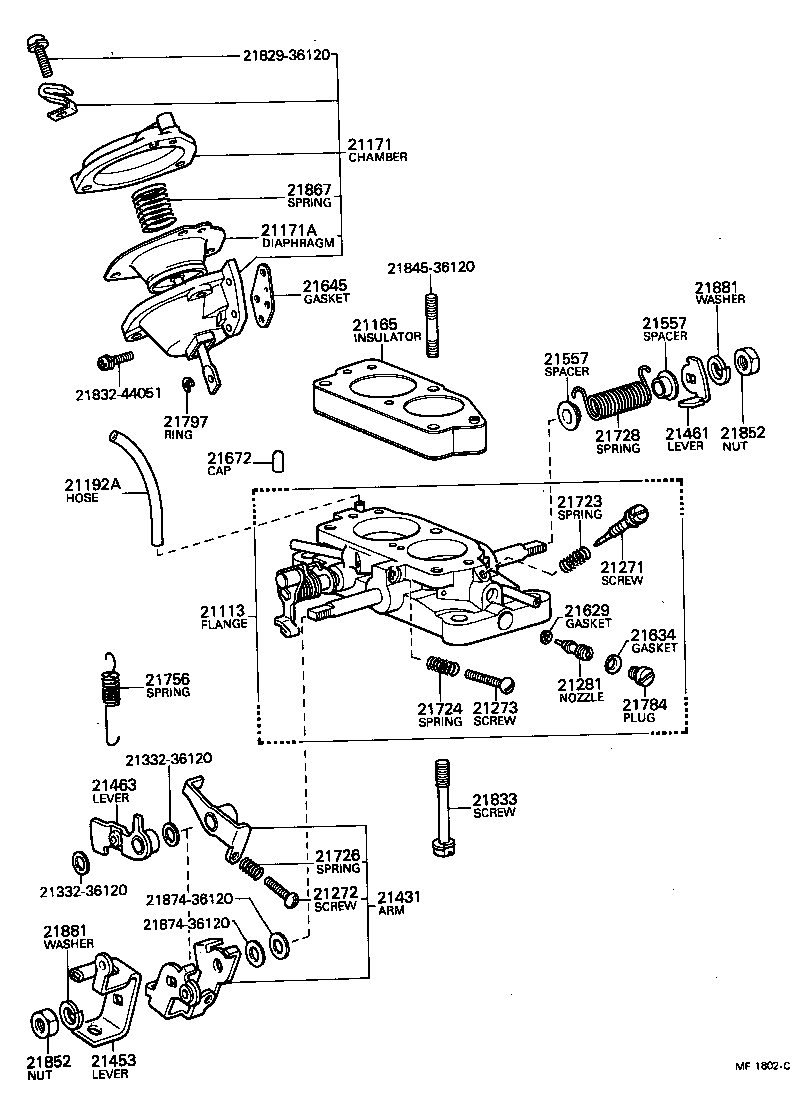

MF1802C 1976-12 → 1978-08

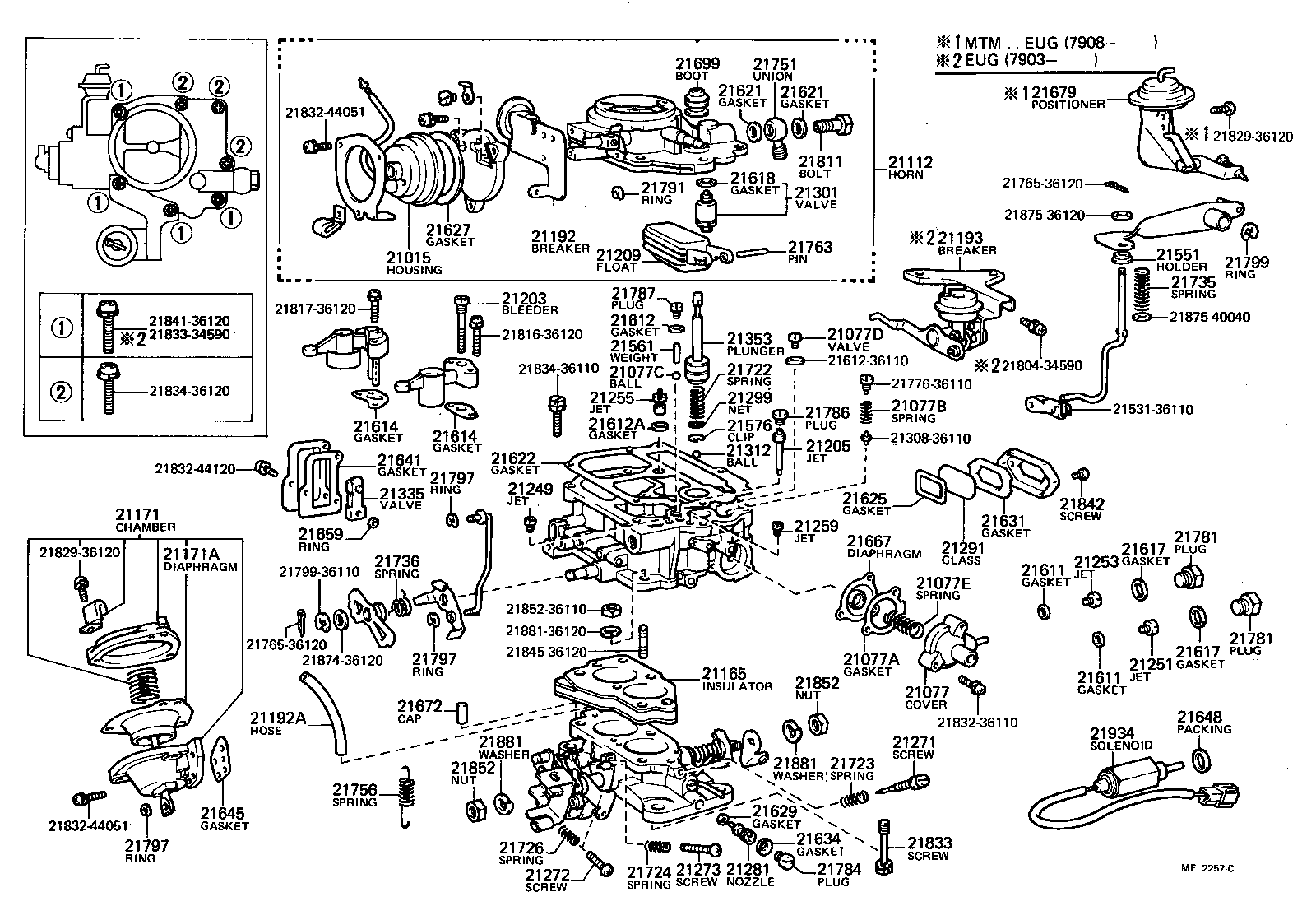

MF2257C 1978-08 → 1980-08

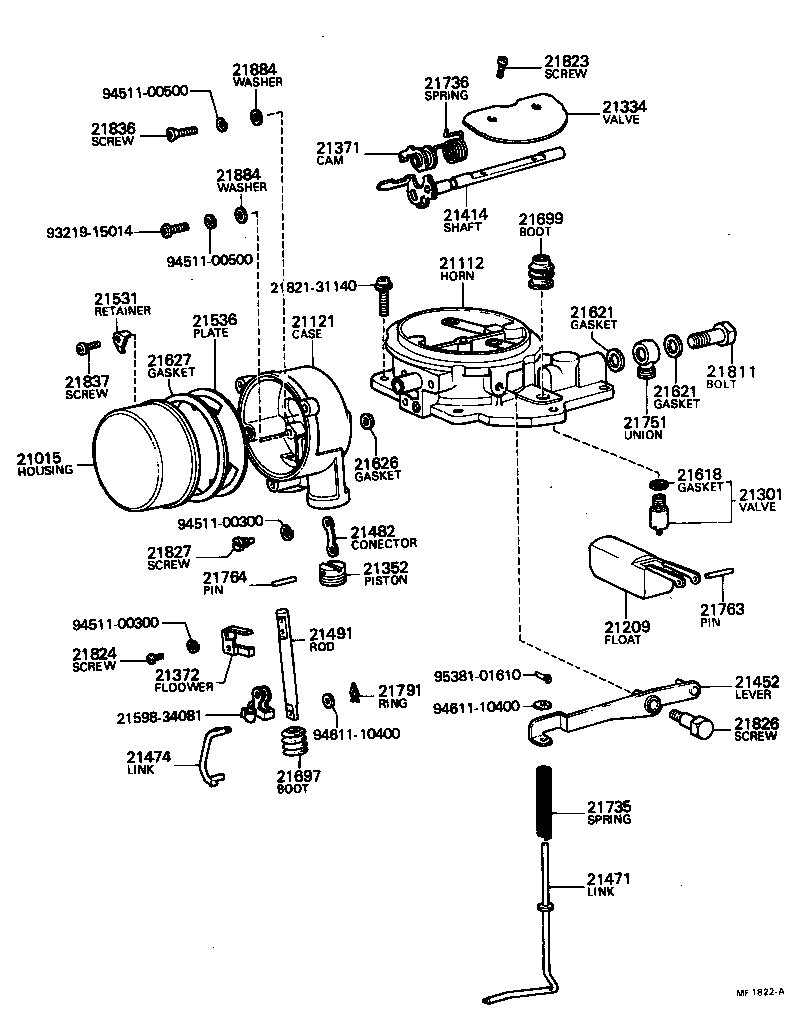

MF1822A 1977-04 → 1979-07

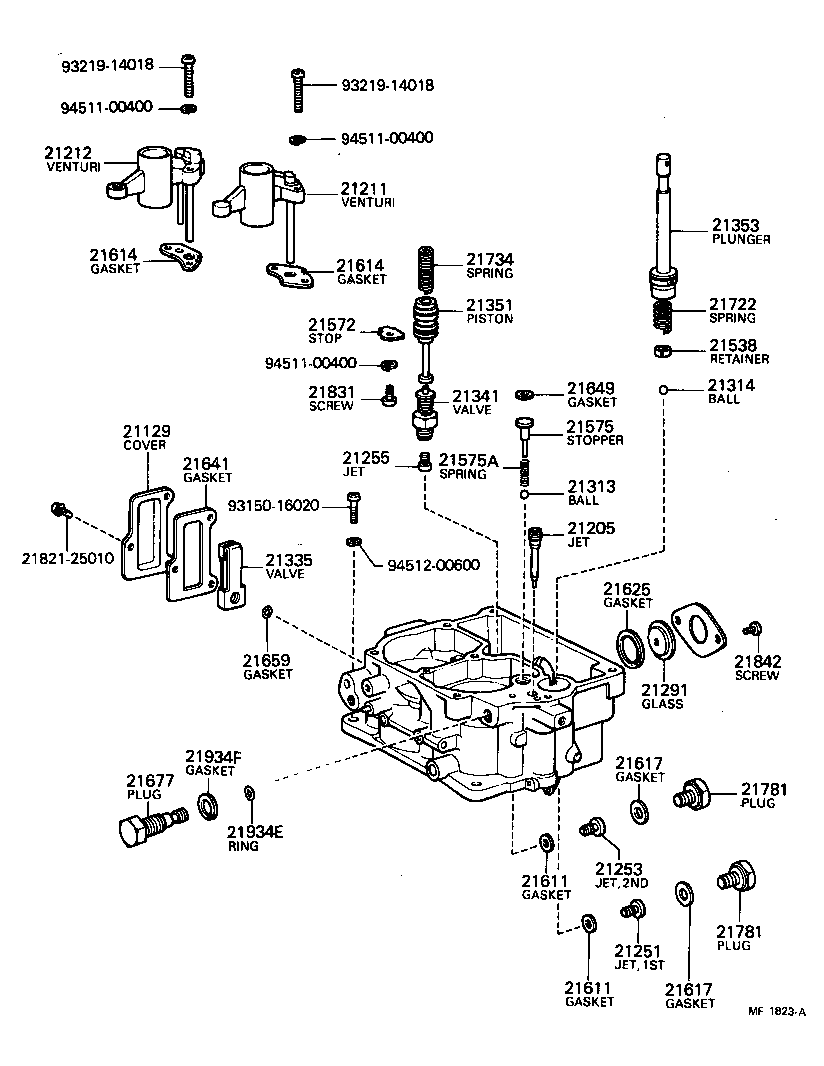

MF1823A 1977-04 → 1979-07

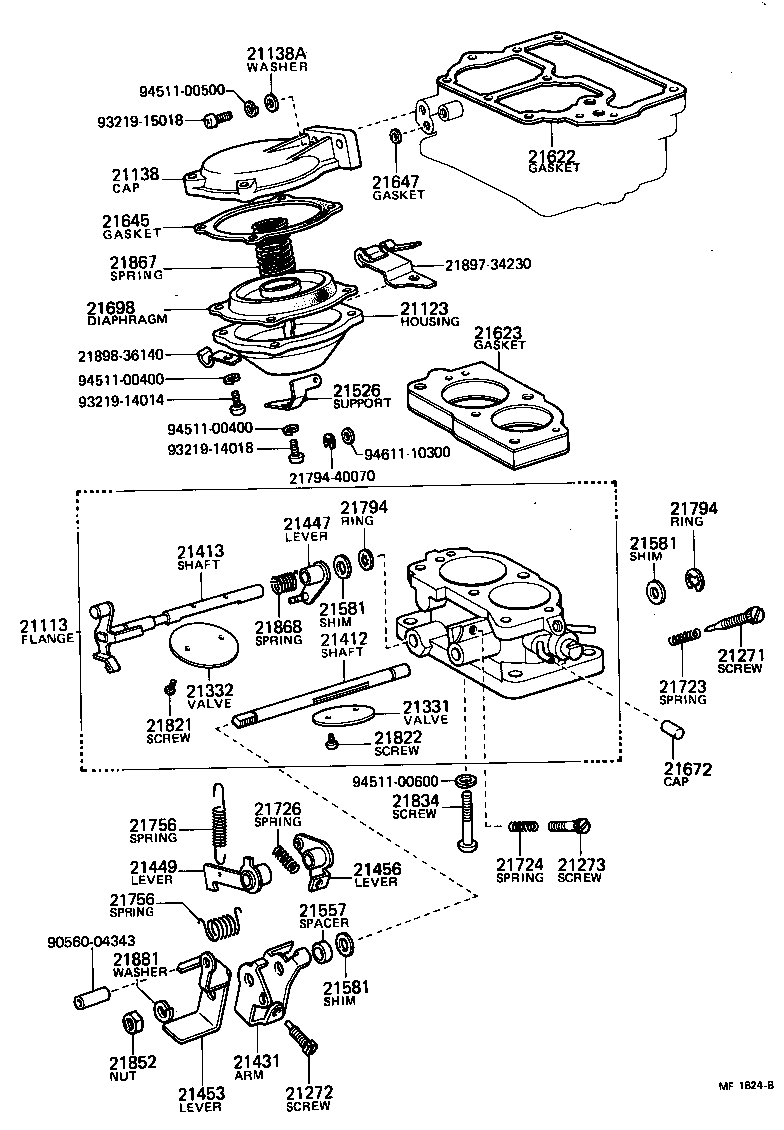

MF1824B 1977-04 → 1979-07

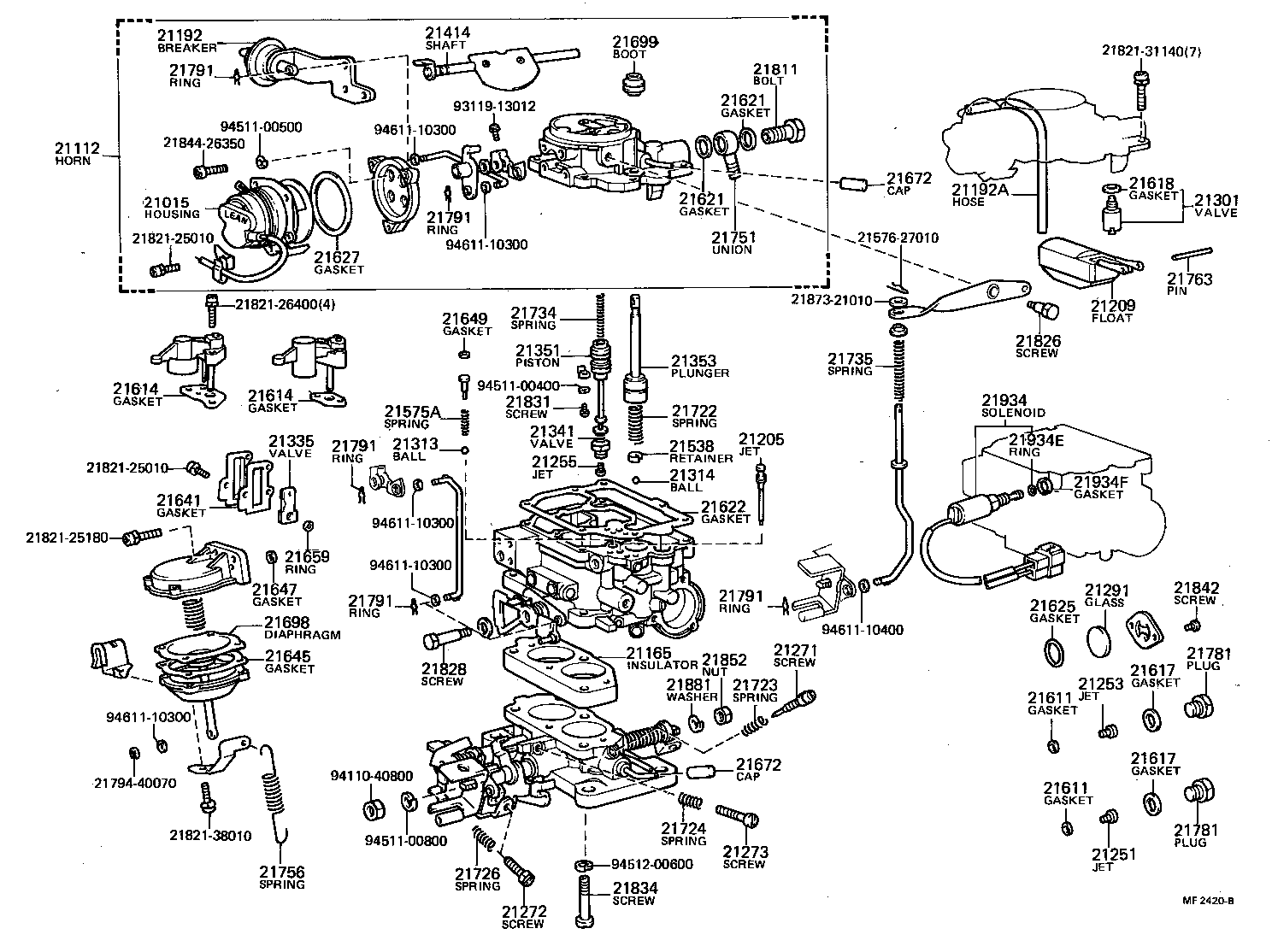

MF2420B 1979-07 → 1980-08

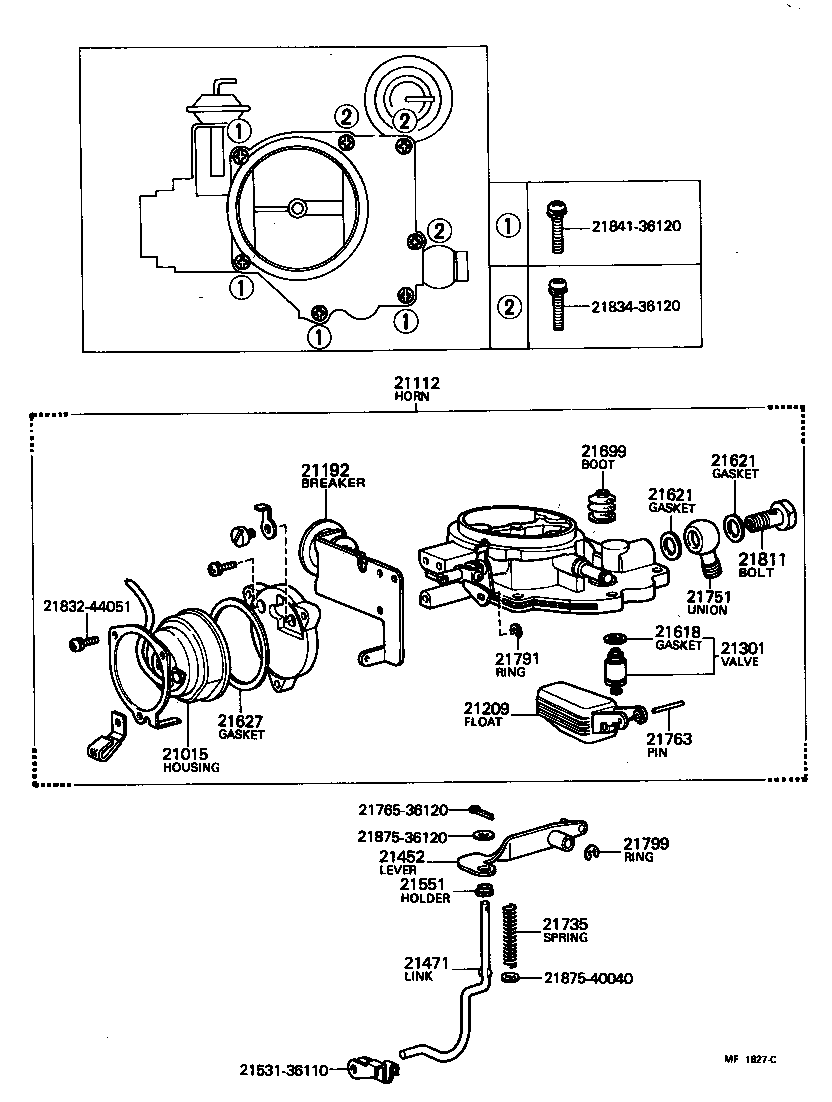

MF1827C 1977-07 → 1978-08

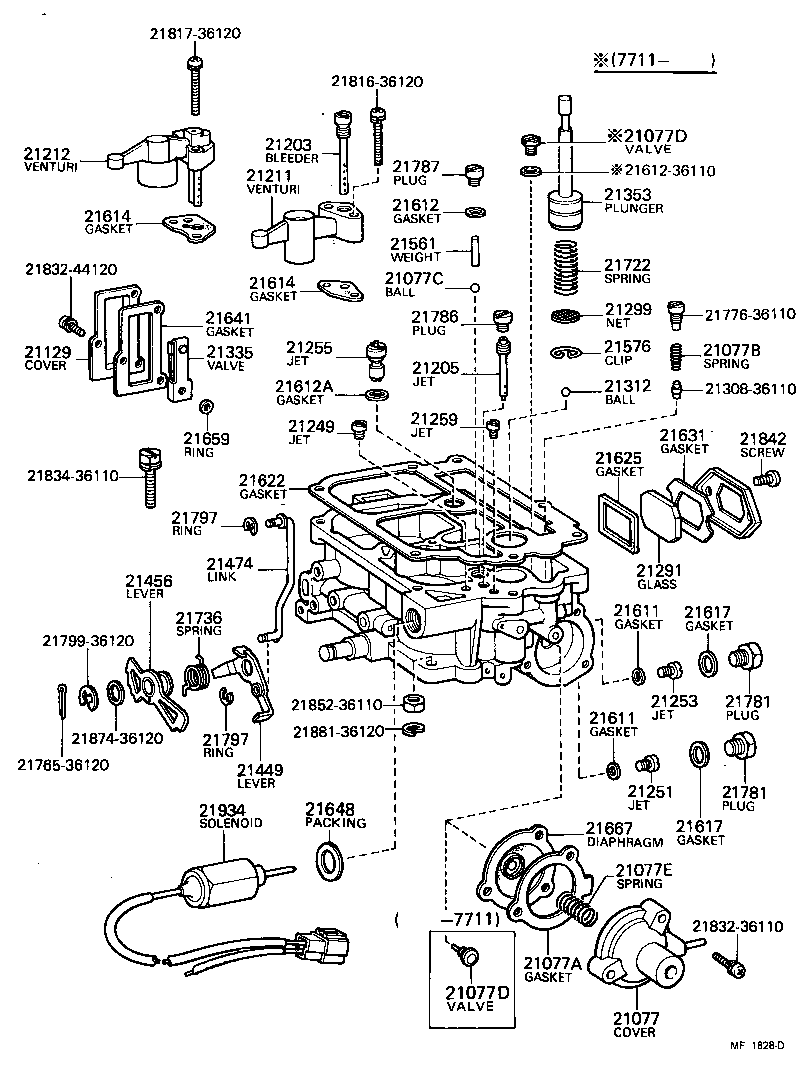

MF1828D 1977-07 → 1978-08

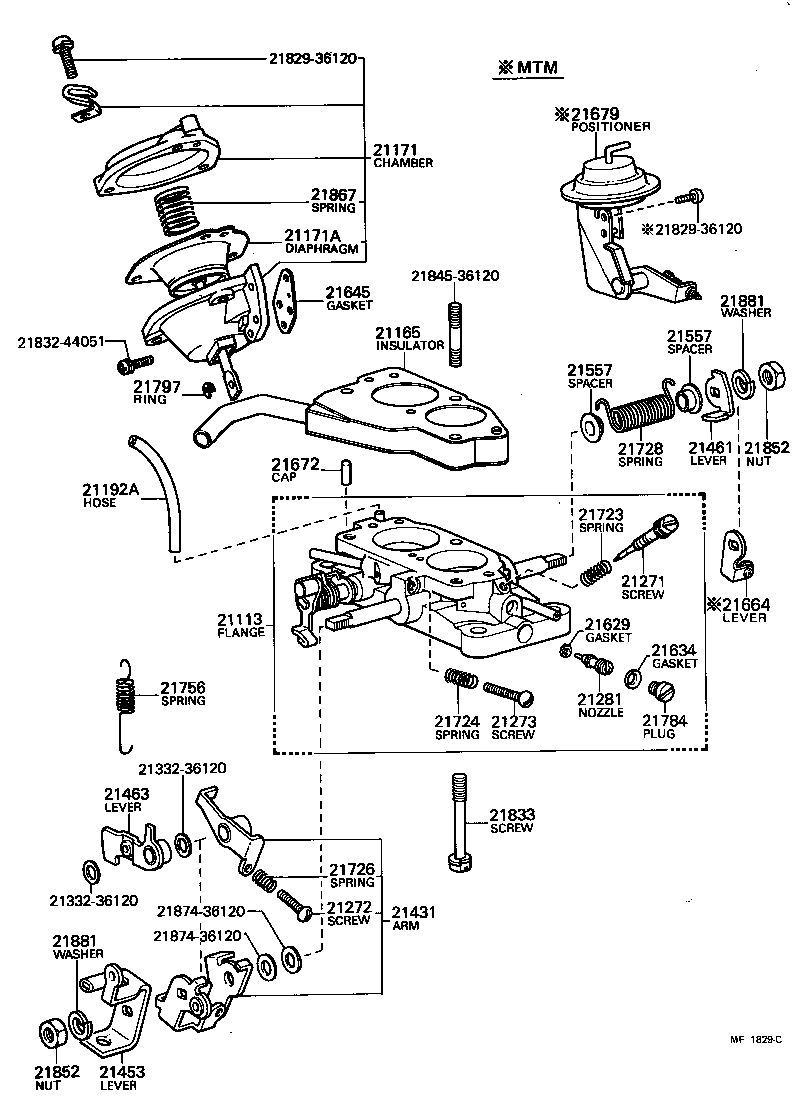

MF1829C 1977-07 → 1978-08

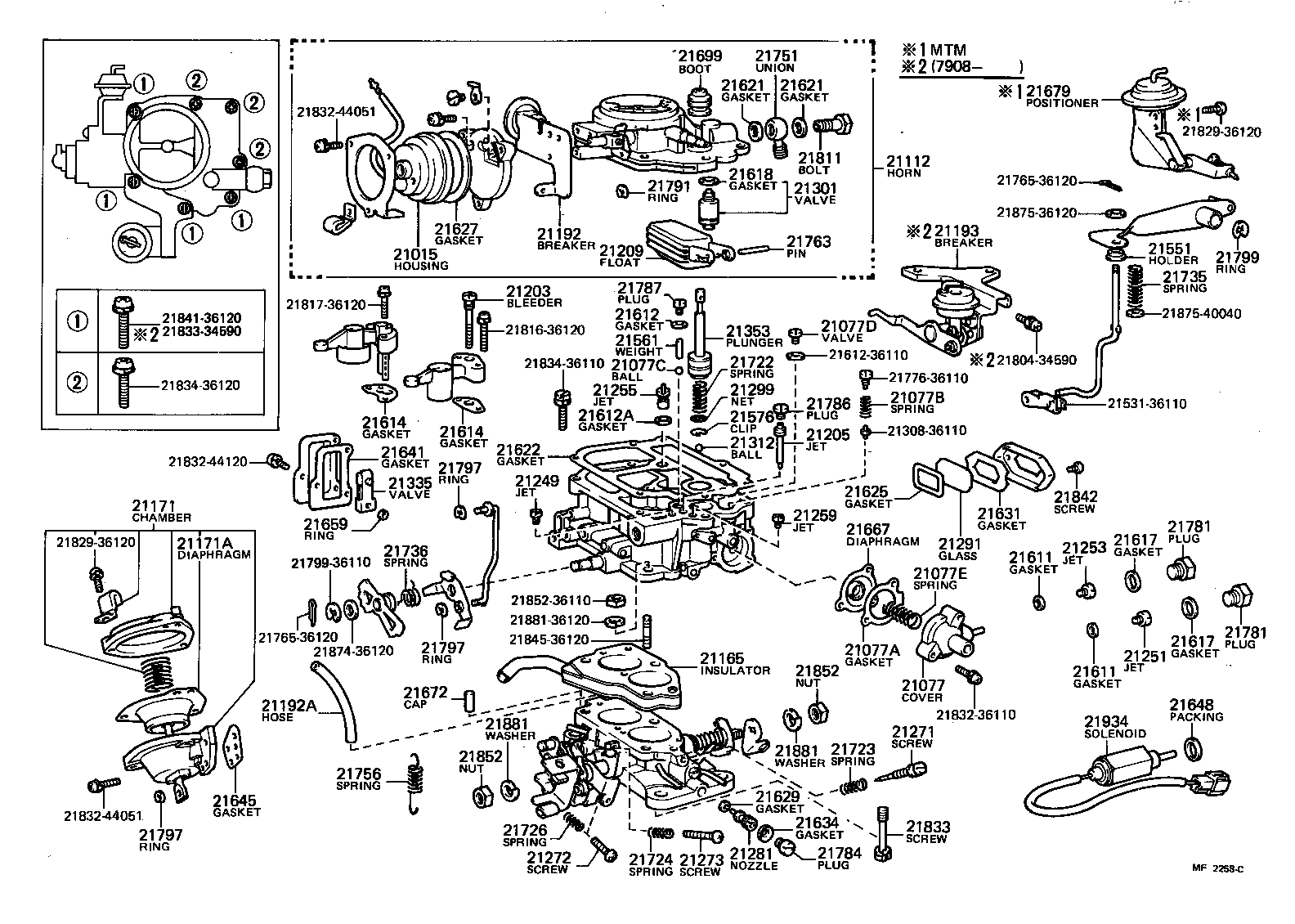

MF2258C 1978-08 → 1980-08

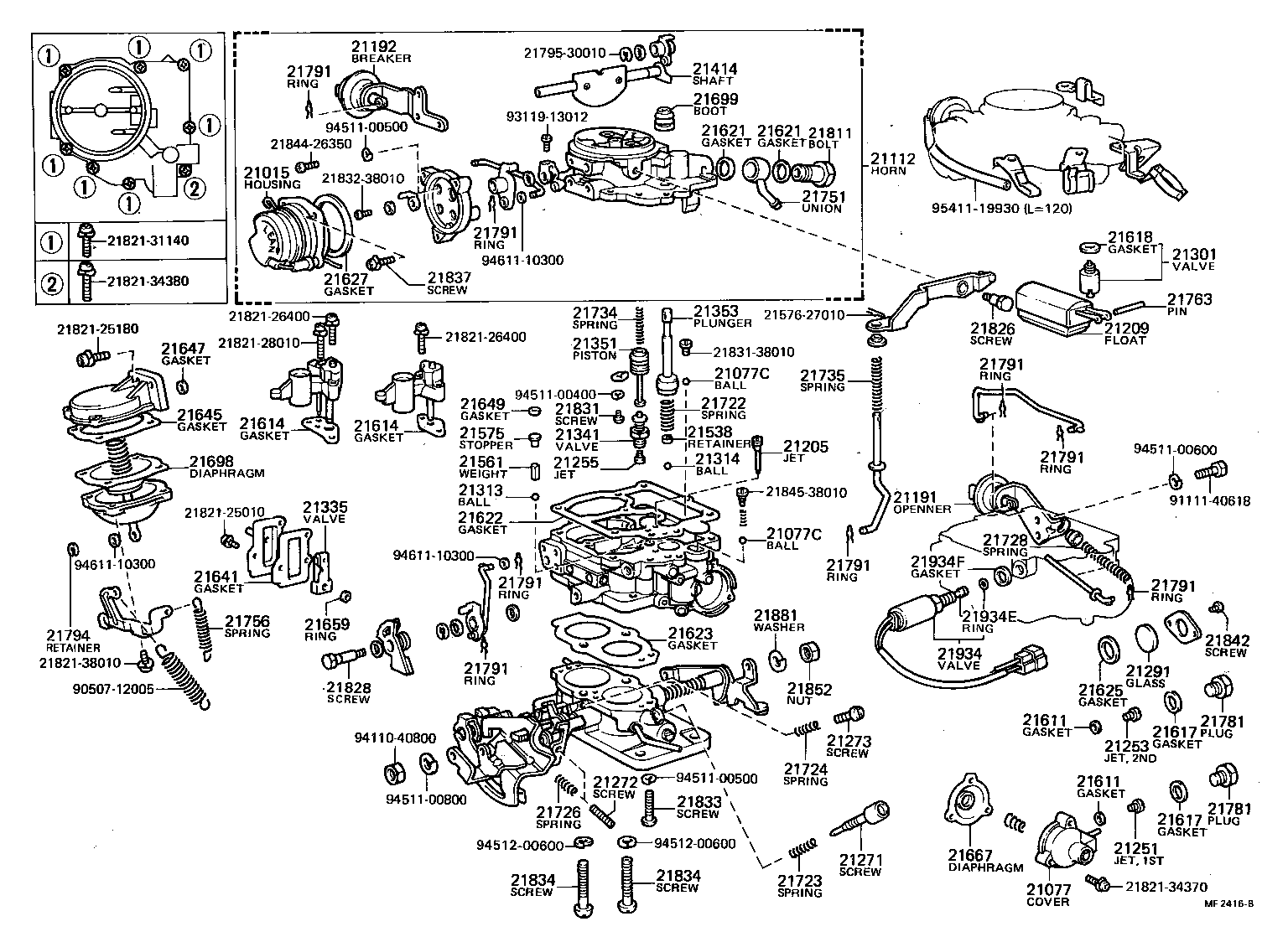

MF2416B 1980-01 → 1980-08

Part groups

PNC	Description
21015	Housing Sub-assy, Coil
21035	Plunger Sub-assy, Pump
21069	Dash Pot Sub-assy
21077	Cover(FOR AUXILIARY ACCELERATION PUMP)
21077A	Gasket(FOR AUXILIARY ACCELERATION PUMP)
21077B	Spring(FOR AUXILIARY ACCELERATION PUMP)
21077C	Ball, Steel(FOR AUXILIARY ACCELERATION PUMP)
21077D	Valve, Check(FOR AUXILIARY ACCELERATION PUMP)
21077E	Spring(FOR AUXILIARY ACCELERATION PUMP COVER)
21112	Horn, Air
21113	Flange, Carburetor
21114	Cover(FOR CHOKE LEVER)
21121	Case, Thermostat
21123	Housing, Diaphragm
21129	Cover(FOR THERMOSTATIC VALVE)
21138	Cap, Diaphragm
21138A	Washer(FOR DIAPHRAGM CAP SET)
21165	Insulator
21171	Chamber, Diaphragm
21171A	Diaphragm(FOR DIDPHRAGM CHAMBER)
21191	Opener
21192	Breaker
21192A	Hose, NO.1(FOR BREAKER)
21193	Breaker, 1ST Idle Cam
21203	Bleeder Sub-assy, 1ST Main Air
21205	Jet Sub-assy, Slow
21209	Float Sub-assy
21211	Venturi, 1ST Small
21212	Venturi, 2ND Small
21249	Jet, Air Bleed, NO.2
21251	Jet, 1ST Main
21253	Jet, 2ND Main
21255	Jet, Power
21257	Jet, Pump
21257A	Ring, O(FOR PUMP JET)
21257B	Spring(FOR PUMP JET)
21259	Jet, Air Bleed
21271	Screw, Idle Adjusting
21272	Screw, 1ST Idle Adjusting
21273	Screw, Throttle Adjusting
21281	Nozzle, Idle
21291	Glass, Level Gage
21299	Net, Pump Filter
21301	Valve Sub-assy, Needle
21312	Ball, Steel
21313	Ball, Steel, NO.1(FOR DISCHARGE WEIGHT)
21314	Ball, Steel, NO.2(FOR PUMP PLUNGER)
21331	Valve, 1ST Throttle
21332	Valve, 2ND Throttle
21334	Valve, Choke
21335	Valve, Thermostatic
21341	Valve, Power
21351	Piston, Power
21352	Piston, Vacuum
21353	Plunger, Pump
21371	Cam, 1ST Idle
21372	Follower, 1ST Idle Cam
21412	Shaft, 1ST Throttle
21413	Shaft, 2ND Throttle
21414	Shaft, Choke
21431	Arm, 1ST Throttle Shaft
21439	Arm, 1ST Idle
21441	Arm, 1ST Kick
21442	Arm, 2ND Kick
21444A	Lever
21446	Lever, 1ST Idle Cam
21447	Lever, Diaphragm
21448	Lever, 1ST Kick
21449	Lever, 2ND Kick
21452	Lever, Pump
21453	Lever, 1ST Throttle
21454	Lever, Choke
21455	Lever, Throttle
21456	Lever, 1ST Throttle Idle Adjusting, NO.1
21461	Lever, 1ST Idle
21463	Lever, 2ND Throttle
21471	Link, Pump Connecting
21473	Link, Throttle Shaft
21474	Link, Connecting
21476	Link, 1ST Idle
21477	Link, Choke Lever
21482	Connector, Piston
21491	Rod, Sliding
21511	Clamp, Level Gage
21516	Clamp, Connector
21526	Support, Back Spring
21531	Retainer, Coil Housing
21536	Plate, Coil Housing
21538	Retainer, Ball Check
21551	Holder, Back Spring
21557	Spacer(FOR 1ST IDLE CAM)
21557A	Spacer, NO.2
21561	Weight, Pump Discharge
21572	Stop, Power Piston
21575	Stopper, B(FOR DISCHARGE WEIGHT)
21575A	Spring(FOR STOPPER, B)
21576	Clip, Pump Strainer
21581	Shim, 1ST Throttle Shaft
21609	Diaphragm Sub-assy
21609A	Diaphragm, NO.2
21611	Gasket, Main Jet
21612	Gasket, Power Valve
21612A	Gasket, Power Jet
21614	Gasket, Venturi
21617	Gasket, Main Passage Plug
21618	Gasket, Needle Valve Seat
21621	Gasket, Union Nipple
21622	Gasket, Air Horn
21623	Gasket, Body Flange
21625	Gasket, Level Gage
21626	Gasket, Case
21627	Gasket, Coil Housing
21629	Gasket, Idle Nozzle
21631	Gasket, Main Guide
21634	Gasket, Slow Passage Plug
21641	Gasket(FOR THERMOSTATIC VALVE COVER)
21645	Gasket, Diaphragm, Cap
21646	Gasket, Diaphragm Housing, NO.1
21646A	Gasket, Diaphragm Housing, NO.2
21647	Gasket, Diaphragm Housing Cap
21648	Packing(FOR SLOW VALVE COVER)
21649	Gasket(FOR PUMP DISCHARGE WEIGHT STOPPER)
21654A	Lever, Relief
21659	Ring, O(FOR THERMOSTATIC VALVE)
21664	Lever(FOR DASH POT OR POSITIONER)
21667	Diaphragm
21668	Collar
21669	Diaphragm
21672	Cap
21677	Plug
21679	Positioner
21695	Boot(FOR DASH POT)
21697	Boot(FOR SLIDING ROD)
21698	Diaphragm
21699	Boot(FOR PUMP PLUNGER)
21722	Spring, Pump Damping
21723	Spring, Idle Adjusting
21724	Spring, Throttle Adjusting
21725	Spring, 2ND Throttle Back
21726	Spring, 1ST Idle Adjusting
21728	Spring, Throttle Valve Return
21729	Spring, 1ST Throttle Back
21734	Spring, Power Piston
21735	Spring, Pump Arm
21736	Spring, 1ST Idle Cam
21751	Union, Nipple
21756	Spring, Back(FOR THROTTLE SHAFT)
21763	Pin, Float Lever
21764	Pin, Piston(FOR VACUUM PISTON)
21781	Plug, Main Passage(FOR CARBURETOR JET)
21782	Plug, Nut(FOR ACCELERATING SYSTEM)
21784	Plug, Slow Passage
21786	Plug, Pump Passage
21787	Plug, Pump Jet
21791	Ring, Snap, NO.1(FOR CARBURETOR LINK)
21794	Ring, Retainer, NO.1(FOR THROTTLE SHAFT)
21797	Ring, Snap, NO.4(FOR CARBURETOR LINK)
21799	Ring, E, Top
21811	Bolt, Union Nipple
21821	Screw, 2ND Throttle Valve Set
21822	Screw, 1ST Throttle Valve Set
21823	Screw, Choke, Valve Set
21824	Screw, Set(FOR 1ST IDLE CAM FOLLOWER SET)
21826	Screw, Pump Arm Set
21827	Screw, Connector Set
21828	Screw, 1ST Idle Set
21831	Screw, Power Piston Stop
21833	Screw, Set, NO.1(FOR CARBURETOR BODY SET)
21834	Screw, Set, NO.2(FOR CARBURETOR BODY SET)
21836	Screw, Thermostat Case Set
21837	Screw, Coil Housing Set
21842	Screw, Set(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852	Nut, Throttle Lever Set
21864	Spring(FOR 1ST THROTTLE ARM)
21867	Spring, Diaphragm
21868	Spring, Diaphragm Relief
21881	Washer, Lock(FOR THROTTLE SHAFT)
21884	Washer, Thermostat Case Set
21934	Solenoid, Throttle Valve
21934E	Ring, O(FOR SOLENOID VALVE)
21934F	Gasket

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
