Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pump & Pipe

10 part groups · 6 illustrations

Illustrations

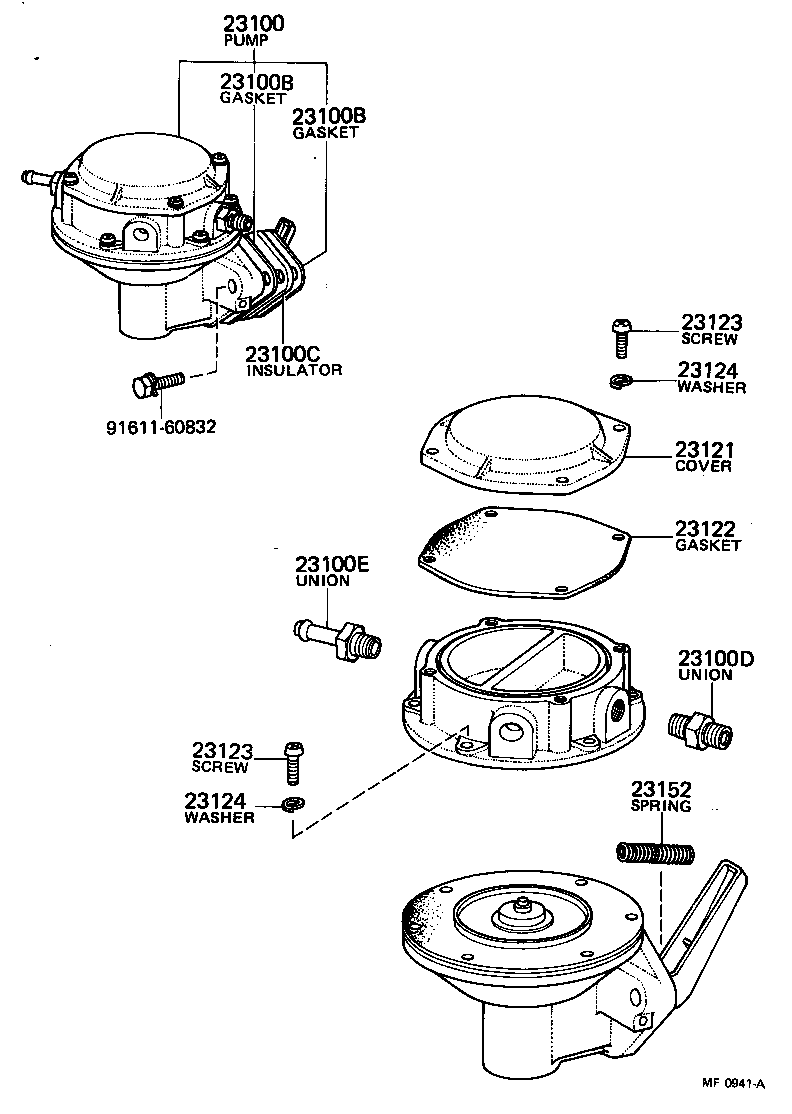

Figure MF1870A MF1870A 1976-12 → 1980-08 Figure MF0941A MF0941A 1976-12 → 1979-07 Figure MF0941A MF0941A 1979-07 → 1979-08 Figure MF2345A MF2345A 1979-07 → 1979-08 Figure MF2345A MF2345A 1979-08 → 1980-08 Figure MF2417 MF2417 1980-01 → 1980-08

Part groups

PNCDescription
23100 Pump Assy, Fuel
23100B Gasket, Fuel Pump
23100C Insulator, Fuel Pump
23100D Union, Nipple(FOR FUEL OUTLET)
23100E Union, Nipple(FOR FUEL INLET)
23121 Cover, Fuel Pump
23122 Gasket, Fuel Pump Cover
23123 Screw, Cover Set, NO.1
23124 Washer, Cover Set, NO.2
23152 Spring, Rocker Arm
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
