Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Extension Housing (MTM)

11 part groups · 3 illustrations

Illustrations

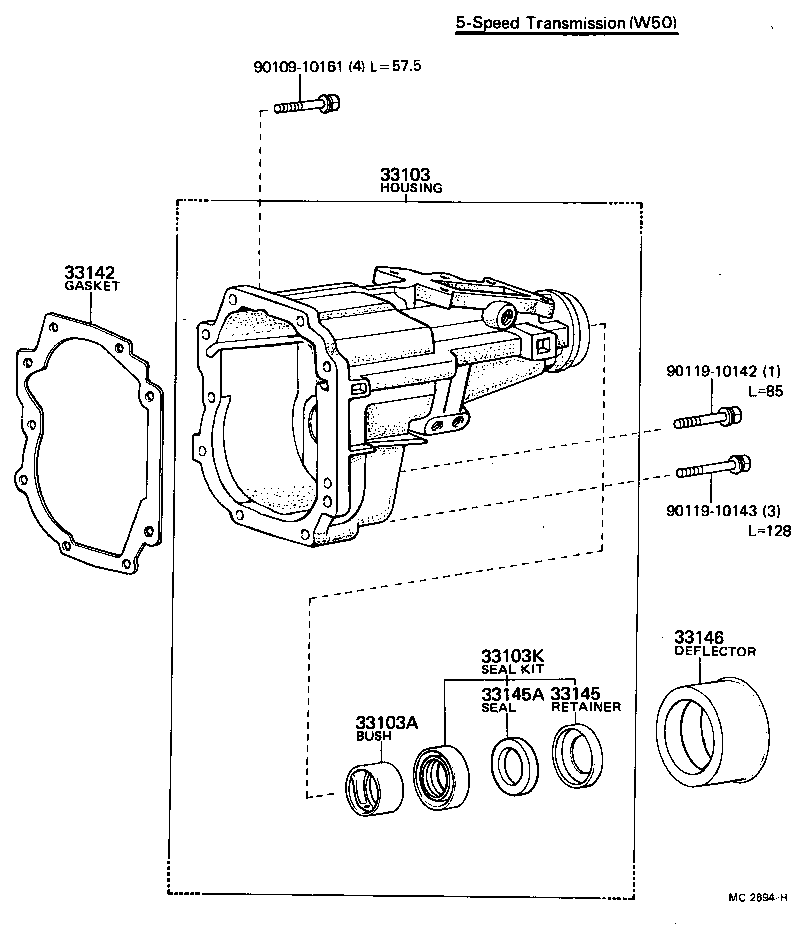

Figure MC4060C MC4060C 1976-12 → 1980-08 Figure MC2693E MC2693E 1976-12 → 1980-08 Figure MC2694H MC2694H 1976-12 → 1980-08

Part groups

PNCDescription
33103 Housing Sub-assy, Extension(MTM)
33103A Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33103B Plug, Breather(FOR TRANSMISSION EXTENSION HOUSING)
33103K Seal Kit, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33103R Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33124 Pipe, Oil Receiver(MTM)
33124A Clamp(FOR TRANSMISSION OIL RECEIVER PIPE)
33142 Gasket, Extension Housing(MTM)
33145 Retainer, Extension Housing Dust Seal(MTM)
33145A Seal, Dust(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33146 Deflector, Extension Housing Dust(MTM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
