Toyota Cressida
1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe
Discontinued model
Data version 1981-01

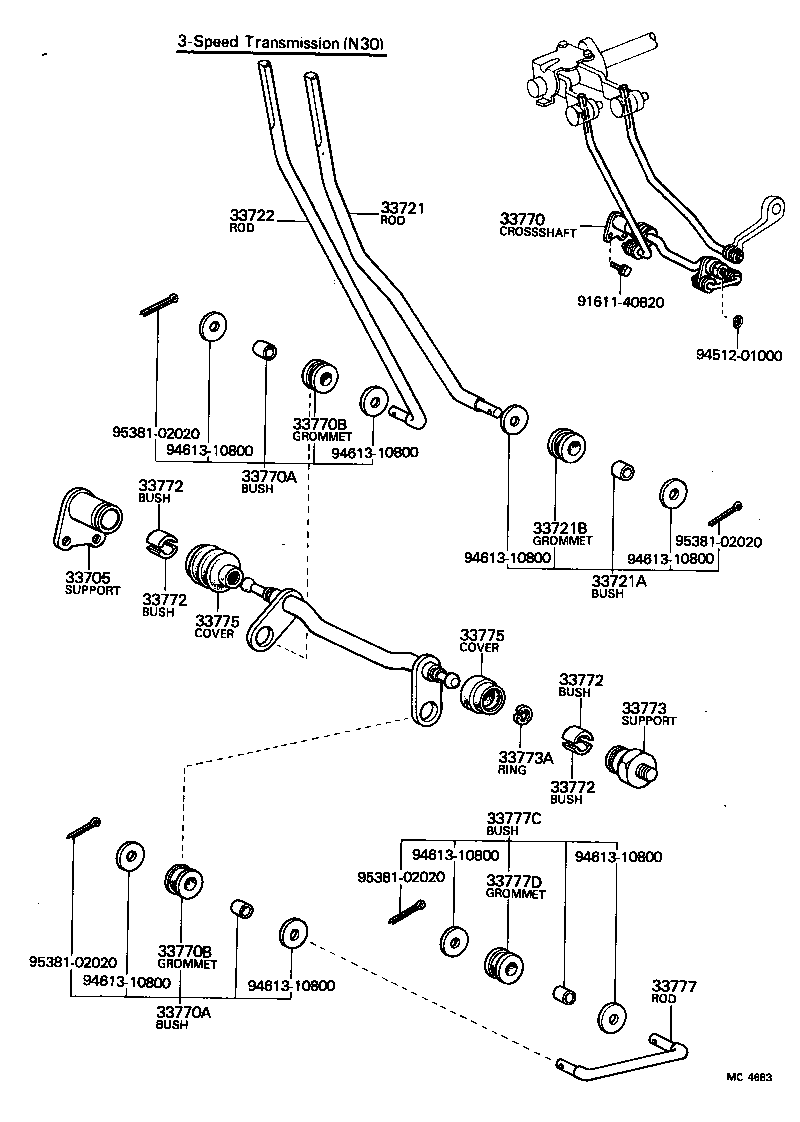

Control Shaft & Crossshaft
41 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33501 | Shaft Sub-assy, Control (FOR COLUMN SHIFT) |
| 33504 | Knob Sub-assy, Shift Lever (FOR COLUMN SHIFT) |
| 33505 | Seal Sub-assy, Control Shaft Dust (FOR COLUMN SHIFT) |
| 33506 | Retainer Sub-assy, Control Shift Lever (FOR COLUMN SHIFT) |
| 33513 | Shaft, Control Shaft Bracket, Upper |
| 33513A | Spring, Compression (FOR BRACKET UPPER SHAFT) |
| 33516 | Key, Control Lever Selecting |
| 33517 | Retainer, Control Shaft Upper Spring |
| 33518 | Bush, Upper Control Shaft Piece |
| 33518A | Washer, Plate (FOR UPPER CONTROL SHAFT PIECE BUSH) |
| 33518B | Ring, E (FOR UPPER CONTROL SHAFT PIECE BUSH) |
| 33522 | Seat, Shift Lever Plate (FOR COLUMN SHIFT) |
| 33523 | Pin, Shift Lever (FOR COLUMN SHIFT) |
| 33523A | Spring, Compression |
| 33530 | Lever Assy, Shift (FOR COLUMN SHIFT) |
| 33571 | Bracket, Control Shaft, Lower (FOR COLUMN SHIFT) |
| 33572 | Bush, Control Shaft Lower (FOR COLUMN SHIFT) |
| 33573 | Cover, Control Shaft Dust, Lower |
| 33705 | Support Sub-assy, Cross Shaft (FOR BODY SIDE) |
| 33711 | Lever, Control Shaft (FOR COLUMN SHIFT) |
| 33712 | Lever, Control Shaft |
| 33712A | Spacer (FOR CONTROL SHAFT LEVER) |
| 33721 | Rod, Low Speed Connecting |
| 33721A | Bush (FOR LOW SPEED CONNECTING ROD) |
| 33721B | Grommet (FOR LOW SPEED CONNECTING ROD) |
| 33722 | Rod, High Speed Connecting |
| 33723 | Swivel, Connecting Rod (FOR COLUMN SHIFT) |
| 33723A | Bush (FOR COLUMN SHIFT CONTROL SHAFT) |
| 33723B | Grommet (FOR COLUMN SHIFT CONTROL SHAFT) |
| 33723C | Nut, Hexagon (FOR CONTROL ROD SETTING) |
| 33723D | Washer, Toothed (FOR CONTROL ROD SETTING) |
| 33770 | Shaft Assy, Cross (FOR COLUMN SHIFT) |
| 33770A | Bush (FOR CROSS SHAFT) |
| 33770B | Gromet (FOR COLUMN SHIFT CROSS SHAFT) |
| 33772 | Bush, NO.1, Cross Shaft Support (FOR COLUMN SHIFT) |
| 33773 | Support, Cross Shaft, NO.1 (FOR COLUM SHIFT) |
| 33773A | Ring, Hole Snap (FOR CROSS SHAFT SUPPORT SNAP) |
| 33775 | Cover, Cross Shaft Dust (FOR COLUMN SHIFT) |
| 33777 | Rod, Gear Shift(FOR COLUMN SHIFT) |
| 33777C | Bush, Gear Shift Rod |
| 33777D | Grommet, Gear Shift Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
