Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

18 part groups · 3 illustrations

Illustrations

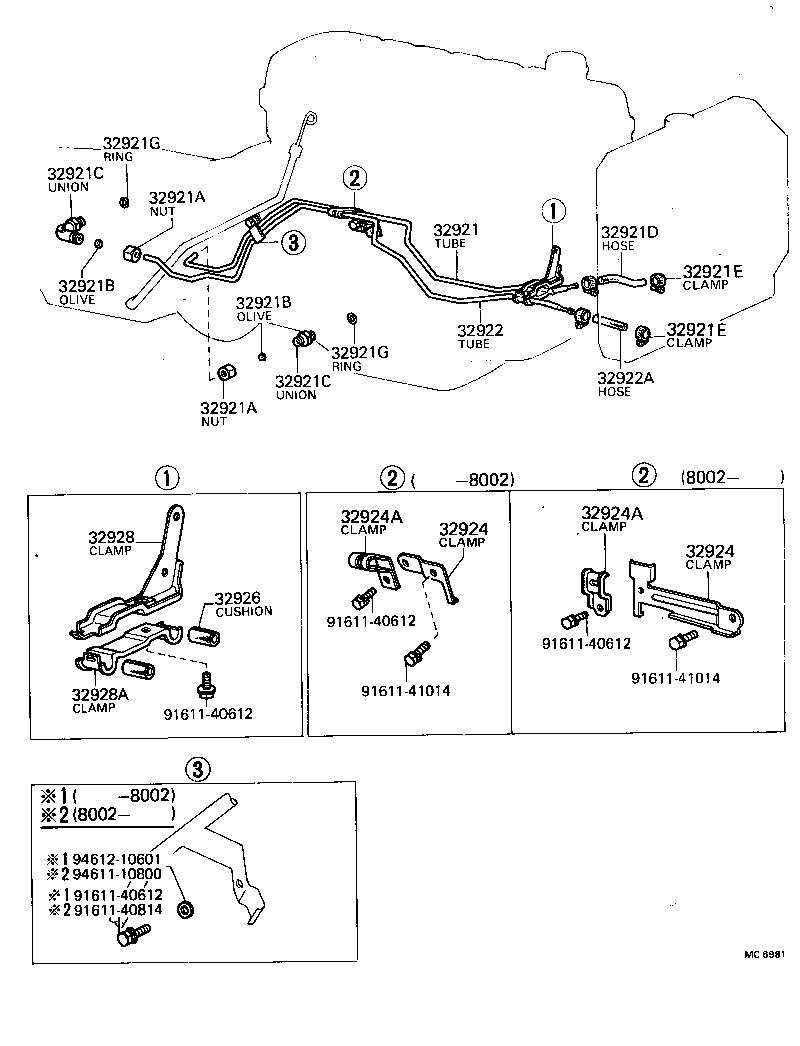

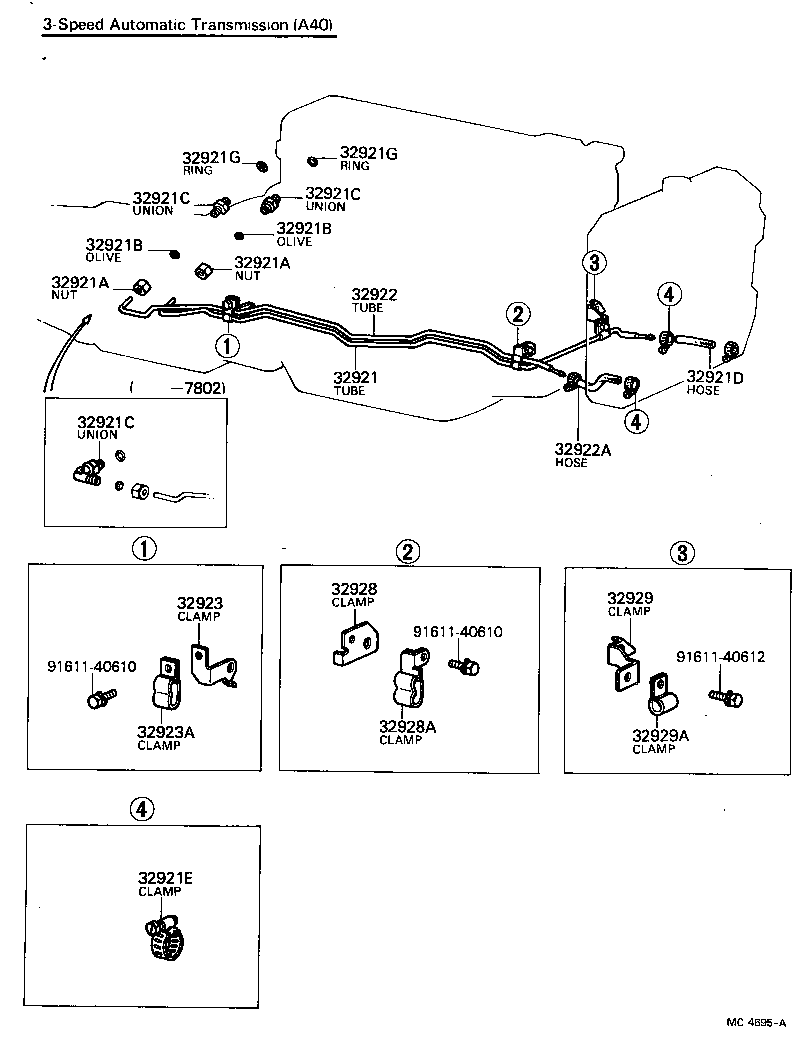

Figure MC5021C MC5021C 1980-01 → 1980-08 Figure MC4695A MC4695A 1976-12 → 1980-08 Figure MC6981 MC6981 1976-12 → 1980-08

Part groups

PNCDescription
32921 Tube, Oil Cooler Inlet, NO.1
32921A Nut, Union(FOR OIL COOLER TUBE)
32921B Olive(FOR OIL COOLER TUBE)
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921E Clamp, Hose(FOR OIL COOLER)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923A Clamp, Automatic Transmission Oil Cooler Tube
32924 Clamp, Oil Cooler Tube, NO.2
32924A Clamp(FOR OIL COOLER TUBE, NO.2)
32926 Cushion, Oil Cooler Tube(ATM)
32928 Clamp, Flexible Hose, NO.1
32928A Clamp(FOR FLEXIBLE HOSE CLAMP)
32929 Clamp, Flexible Hose, NO.2
32929A Clamp(FOR FLEXIBLE HOSE CLAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
