Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

16 part groups · 2 illustrations

Illustrations

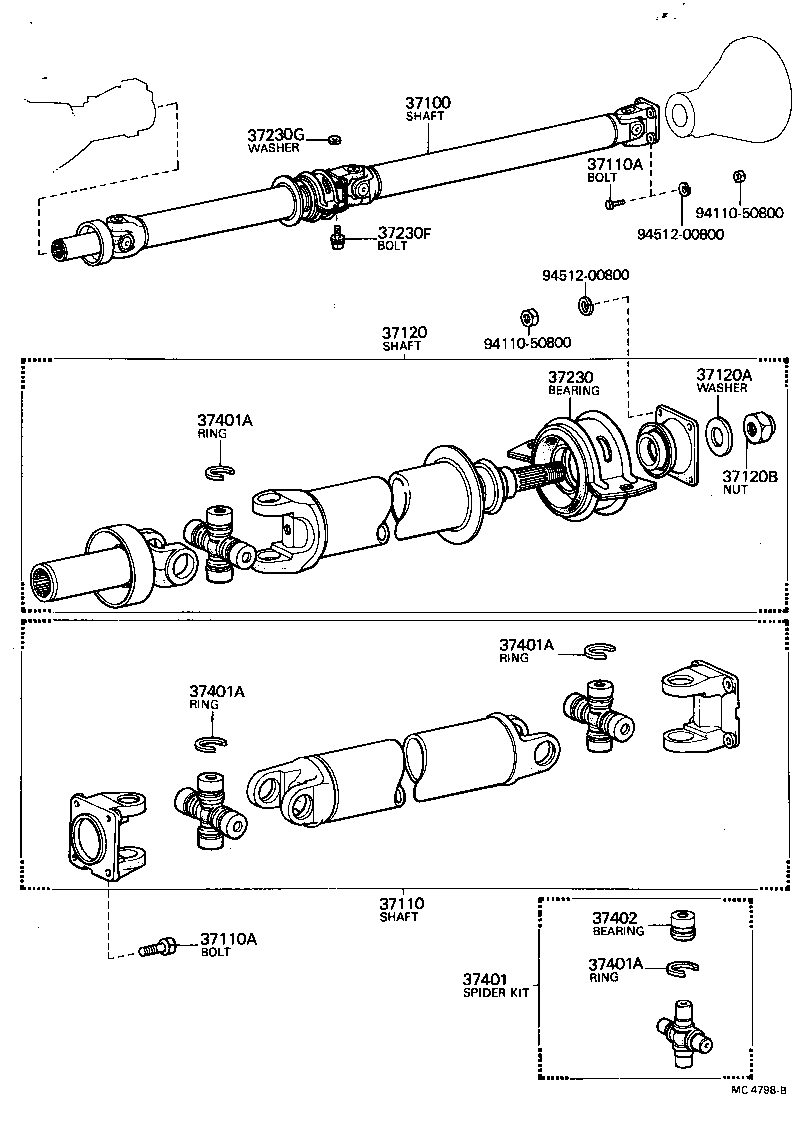

Figure MC4697 MC4697 1980-01 → 1980-08 Figure MC4798B MC4798B 1976-12 → 1980-08

Part groups

PNCDescription
37100 Shaft Assy, Propeller W/Center Bearing
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37120 Shaft Assy, Propeller Intermediate
37120A Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120B Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230 Bearing Assy, Center Support, NO.1
37230F Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
37230G Washer, NO.2 (FOR CENTER SUPPORT BEARING)
37302 Yoke Sub-assy, Universal Joint Sleeve
37315 Yoke, Universal Joint Flange
37331 Cover, Sliding Shaft Dust
37401 Spider Kit, Universal Joint
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
