Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

12 part groups · 2 illustrations

Illustrations

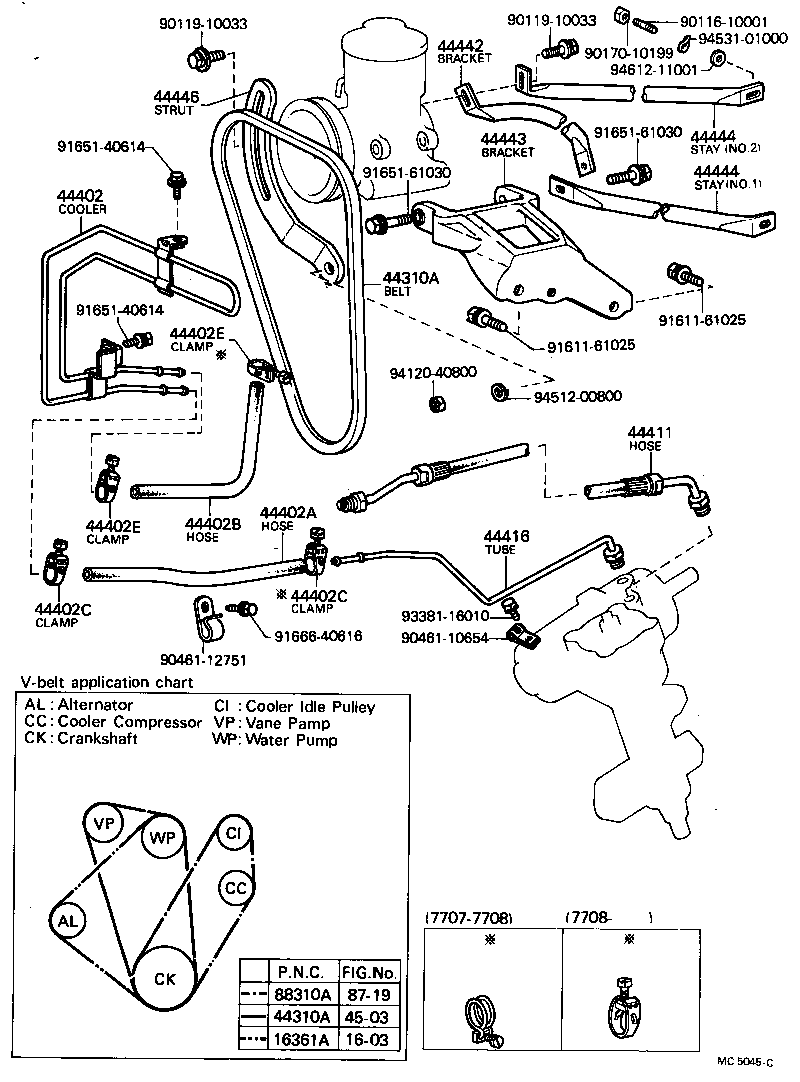

Figure MC4799C MC4799C 1976-12 → 1980-08 Figure MC5045C MC5045C 1977-07 → 1980-01

Part groups

PNCDescription
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402A Hose, Power Steering Oil Cooler Inlet
44402B Hose, Power Steering Oil Cooler Outlet
44402C Clamp, Power Steering Oil Cooler Inlet Hose
44402E Clamp, Power Steering Oil Cooler Outlet Hose
44411 Hose, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44441 Bracket, Pump, Front
44442 Bracket, Pump, Rear
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
