Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

16 part groups · 6 illustrations

Illustrations

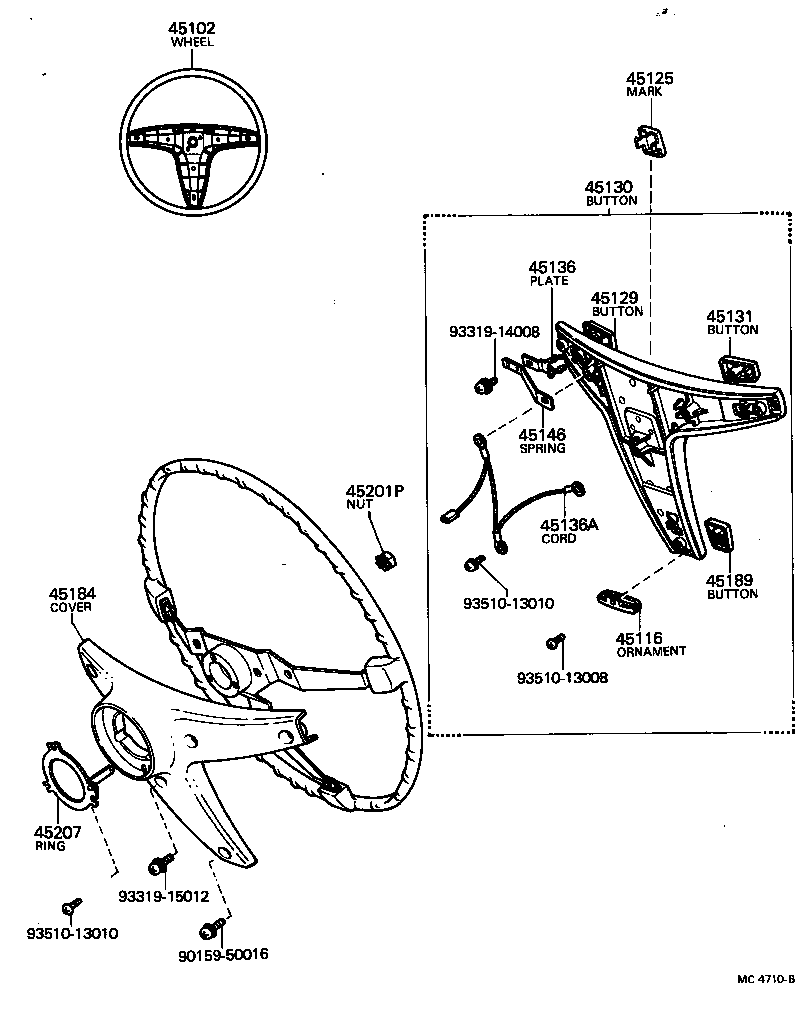

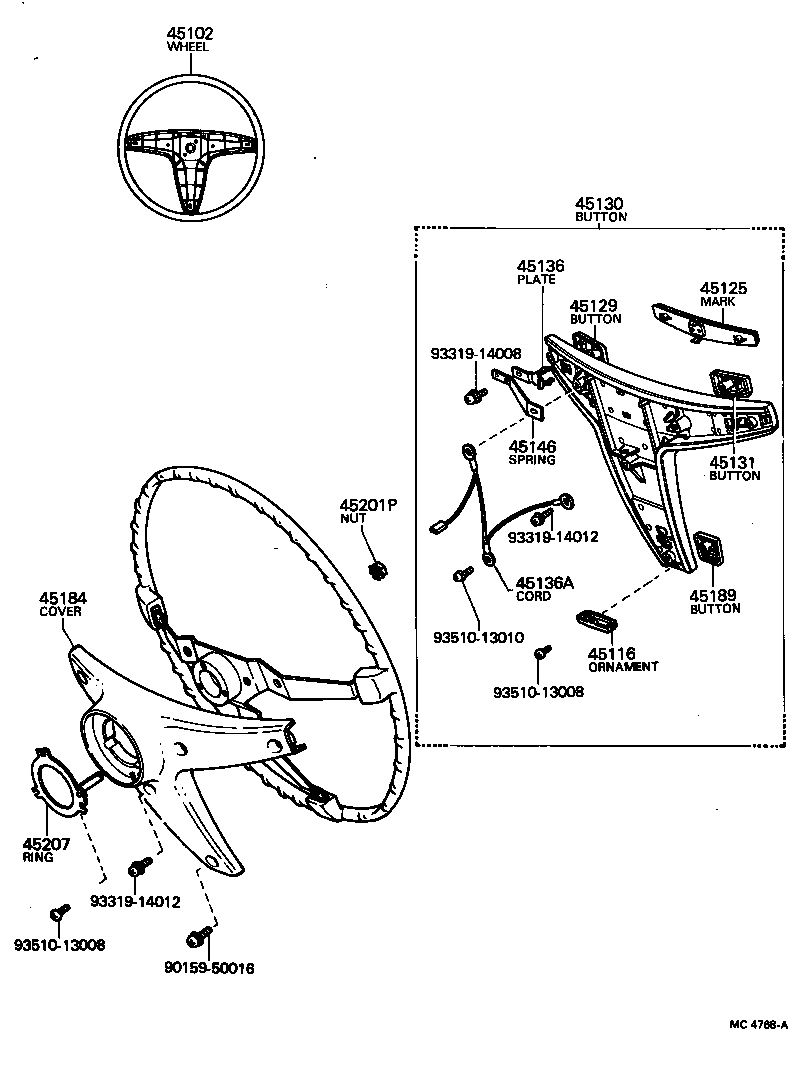

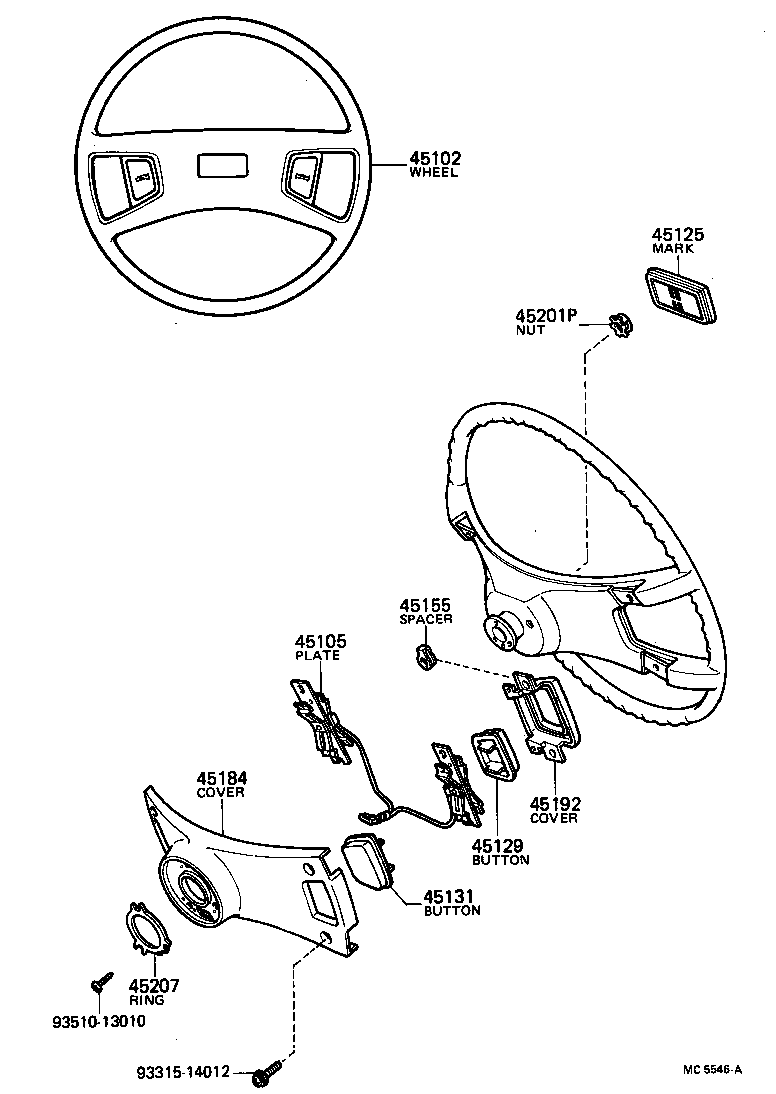

Figure MC4709B MC4709B 1976-12 → 1980-08 Figure MC4710B MC4710B 1976-12 → 1978-08 Figure MC5546A MC5546A 1978-08 → 1980-08 Figure MC5546A MC5546A 1979-08 → 1980-08 Figure MC4768A MC4768A 1977-07 → 1978-08 Figure MC4768A MC4768A 1978-08 → 1980-08

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45116 Ornament, Steering Wheel, NO.1
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45146 Spring, Horn Button Contact
45155 Spacer, Horn Button Contact Plate
45184 Cover, Steering Wheel Boss, Lower
45189 Button, Horn, NO.3
45192 Cover, Horn Button, Upper
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
