Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

5 part groups · 2 illustrations

Illustrations

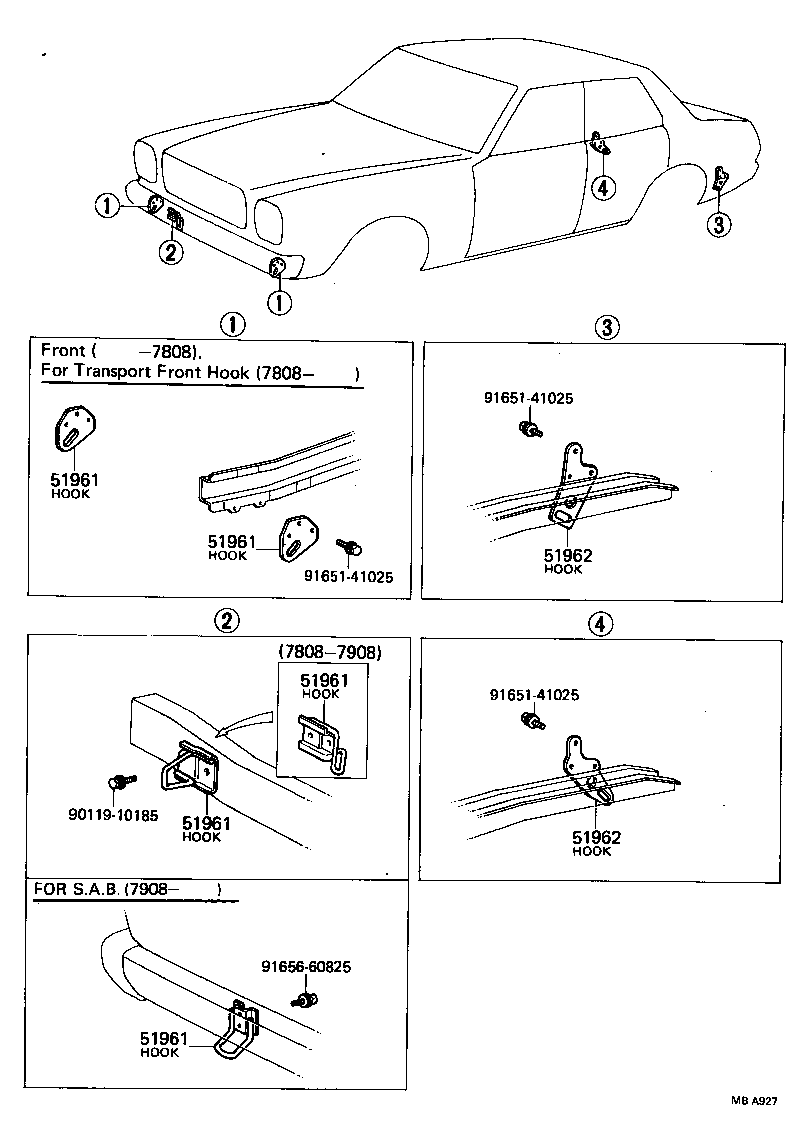

Figure MB6388J MB6388J 1976-12 → 1980-08 Figure MBA927 MBA927 1976-12 → 1980-08

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51296 Bolt, Front Suspension Member Mounting
51441 Cover, Engine Under, NO.1
51961 Hook, NO.1
51962 Hook, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
