Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

18 part groups · 3 illustrations

Illustrations

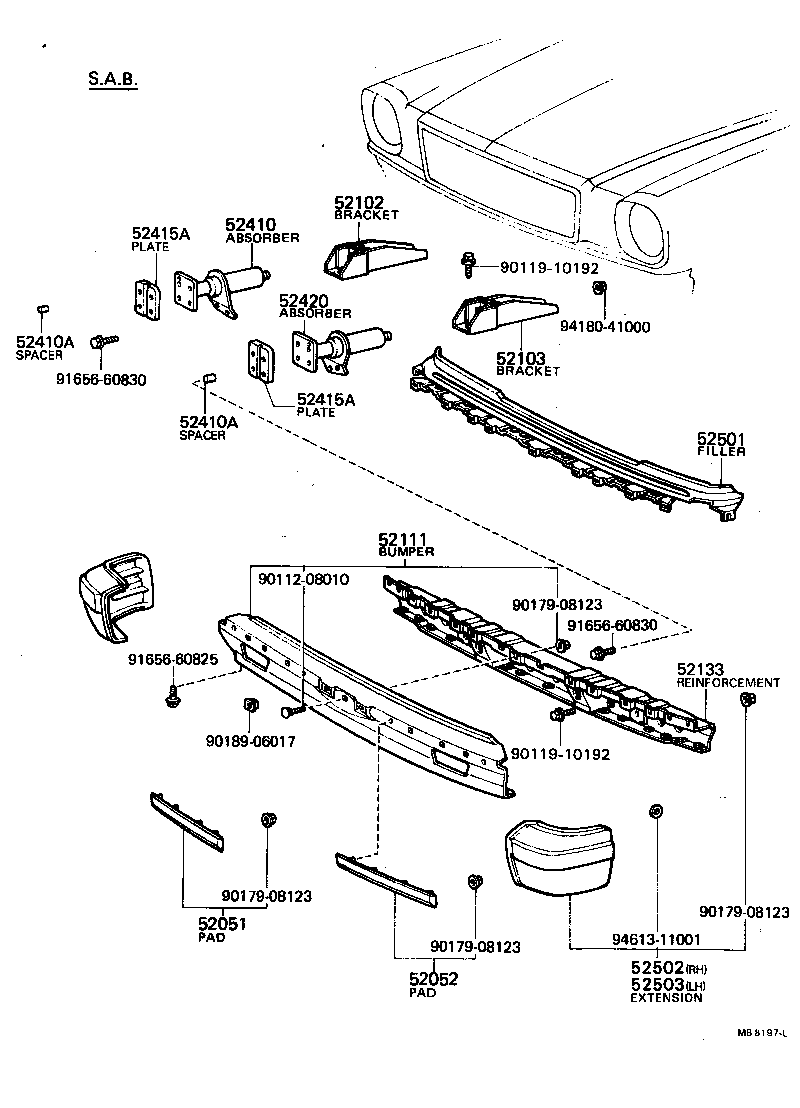

Figure MB6289G MB6289G 1976-12 → 1980-08 Figure MB8197L MB8197L 1979-08 → 1980-08 Figure MB8197L MB8197L 1980-01 → 1980-08

Part groups

PNCDescription
52051 Pad Sub-assy, Front Bumper, RH
52052 Pad Sub-assy, Front Bumper, LH
52053 Pad Sub-assy, Front Bumper
52102 Bracket Sub-assy, Front Bumper, RH
52103 Bracket Sub-assy, Front Bumper, LH
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52114 Guard, Bumper, Front RH
52115 Guard, Bumper, Front LH
52133 Reinforcement, Front Bumper
52410 Absorber, Front Bumper, RH
52410A Spacer, Front Bumper Absorber
52415A Plate, Front Absorber Mounting
52420 Absorber, Front Bumper, LH
52501 Filler Sub-assy, Front Bumper
52502 Extension Sub-assy, Front Bumper, RH
52503 Extension Sub-assy, Front Bumper, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
