Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 2 illustrations

Illustrations

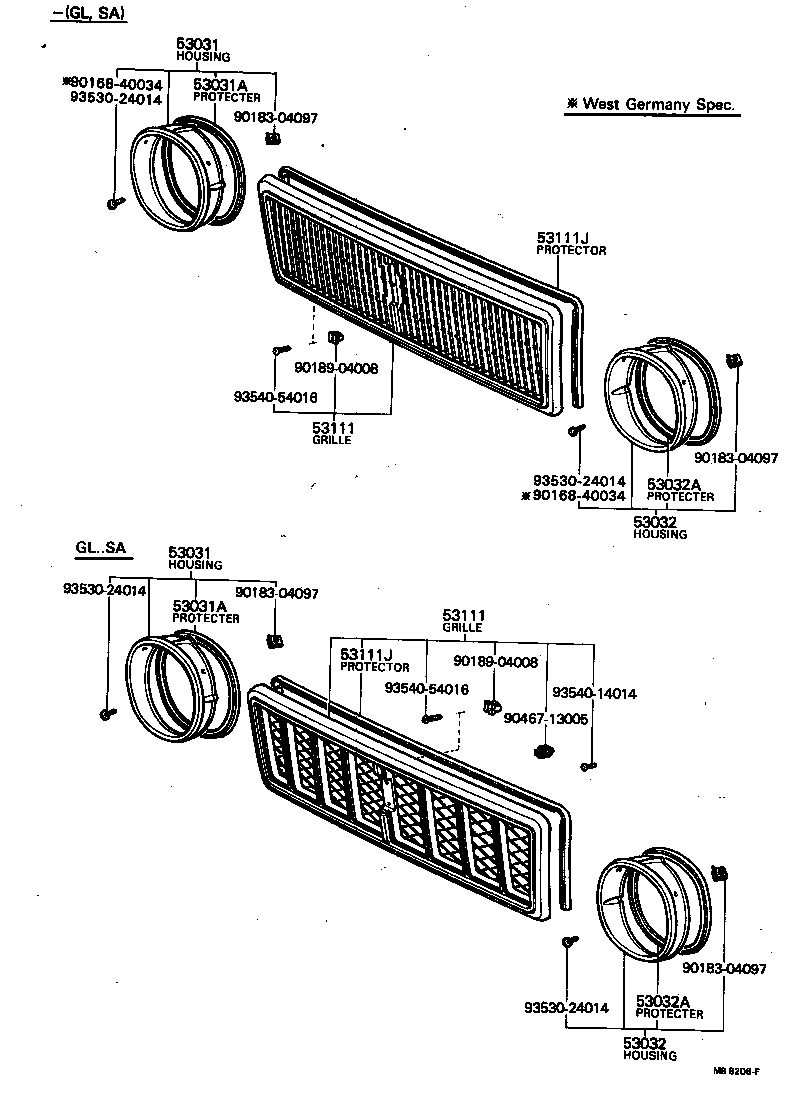

Figure MB6392F MB6392F 1976-12 → 1978-08 Figure MB8208F MB8208F 1978-08 → 1980-08

Part groups

PNCDescription
53031 Housing, Headlamp, RH
53031A Protector, Headlamp Door, RH
53032 Housing, Headlamp, LH
53032A Protector, Headlamp Door, LH
53111 Grille, Radiator
53111J Protector, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
