Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

18 part groups · 2 illustrations

Illustrations

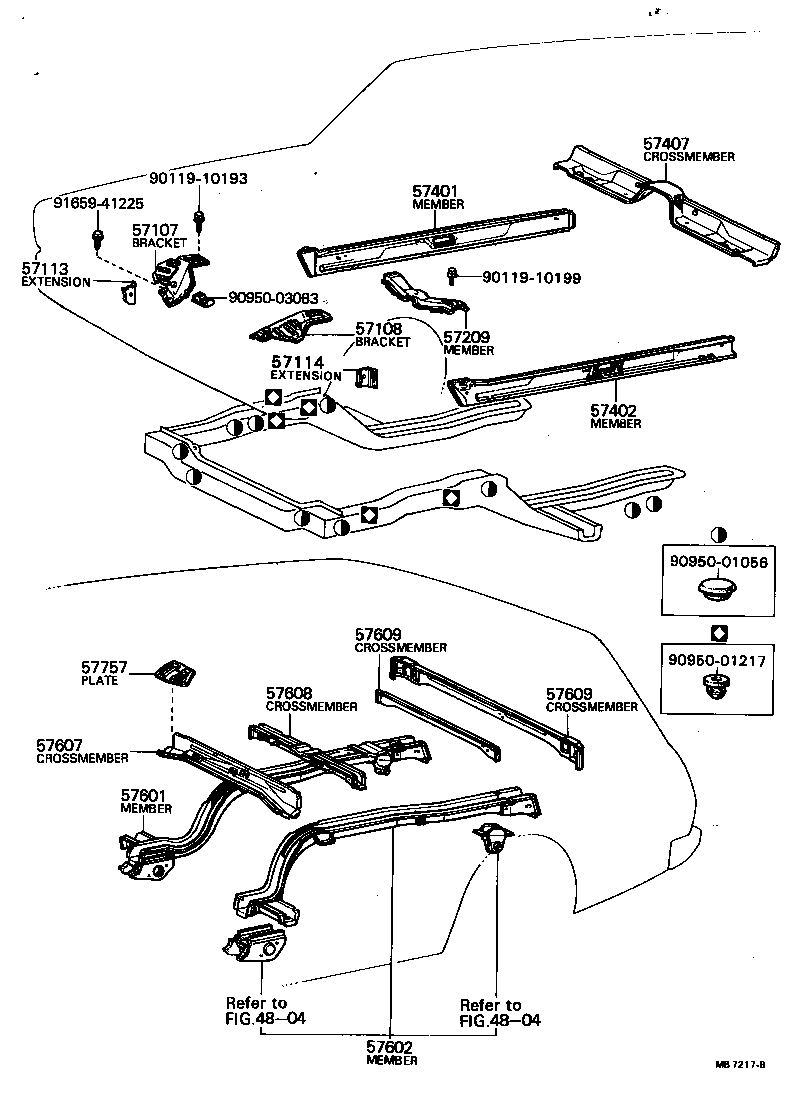

Figure MB6394E MB6394E 1976-12 → 1980-08 Figure MB7217B MB7217B 1976-12 → 1980-08

Part groups

PNCDescription
57071 Box Sub-assy, Torque, Rear RH
57072 Box Sub-assy, Torque, Rear LH
57073 Bracket Sub-assy, Lateral Rod
57081 Bracket Sub-assy, Rear Bumper Mounting
57107 Bracket Sub-assy, Strut Bar, RH
57108 Bracket Sub-assy, Strut Bar, LH
57113 Extension, Front Side Member, RH
57114 Extension, Front Side Member, LH
57209 Member Sub-assy, Engine Rear Support
57401 Member Sub-assy, Main Floor Side, RH
57402 Member Sub-assy, Main Floor Side, LH
57407 Crossmember Sub-assy, Center Floor, NO.1
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57607 Crossmember Sub-assy, Rear Floor, NO.1
57608 Crossmember Sub-assy, Rear Floor, NO.2
57609 Crossmember Sub-assy, Rear Floor, NO.3
57757 Plate, Rear Floor Crossmember
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
