Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01

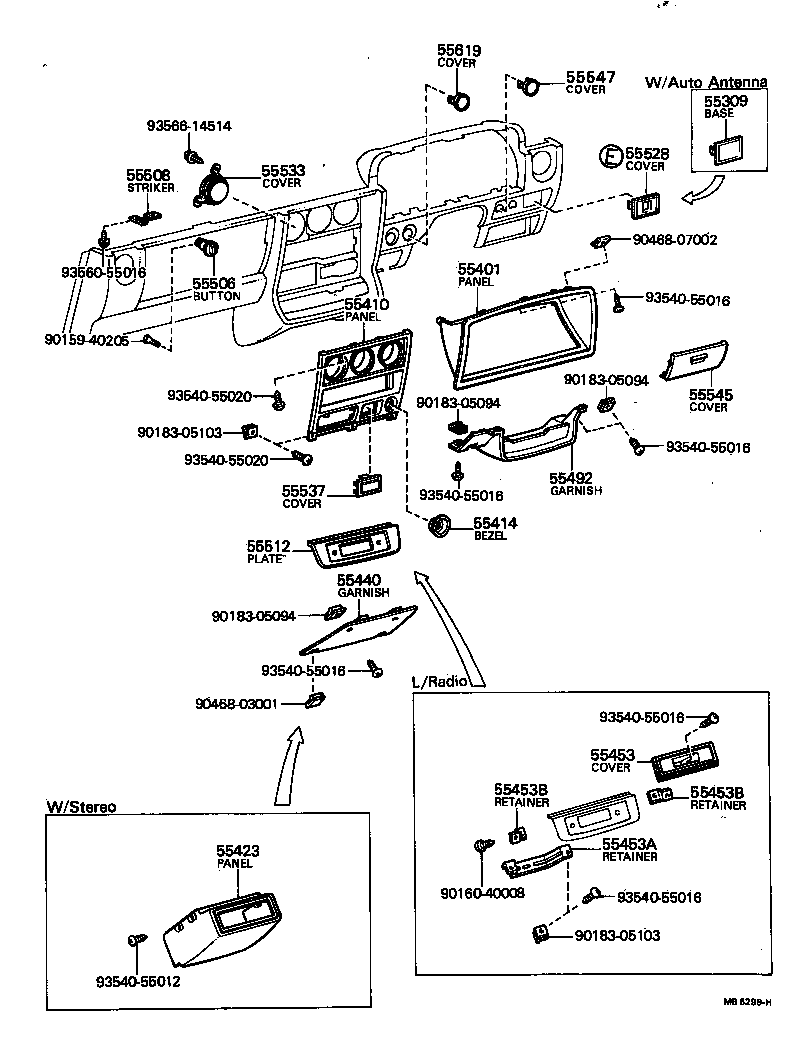

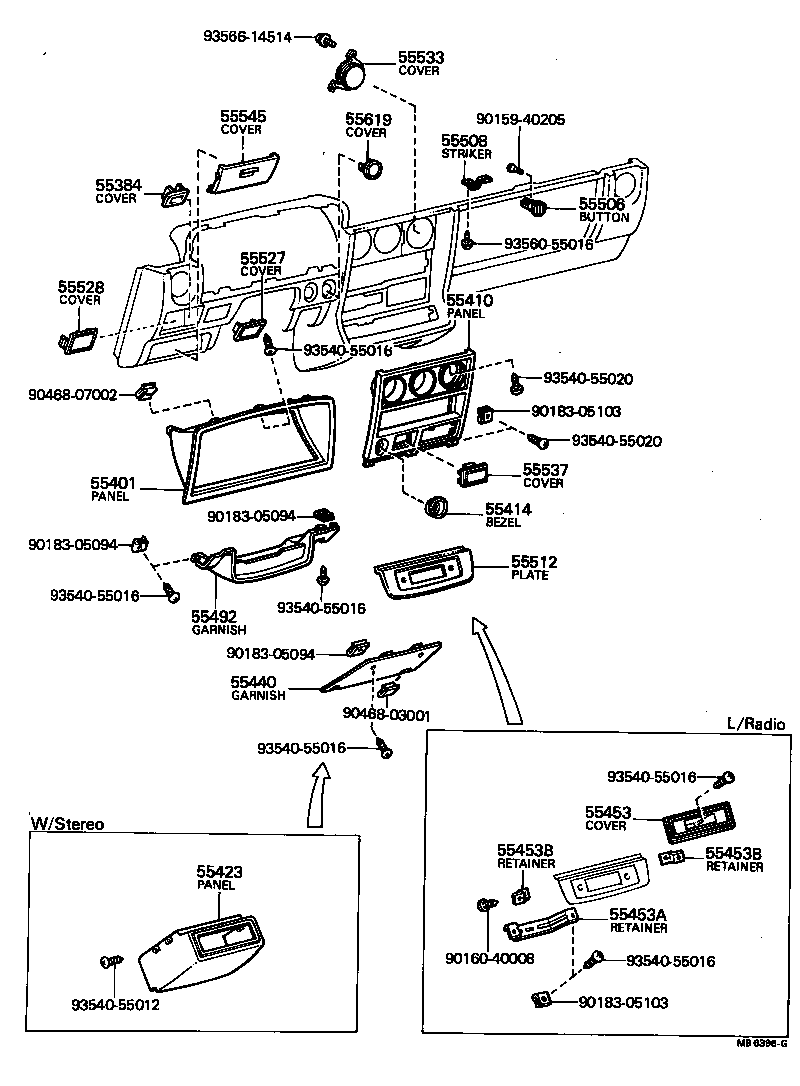

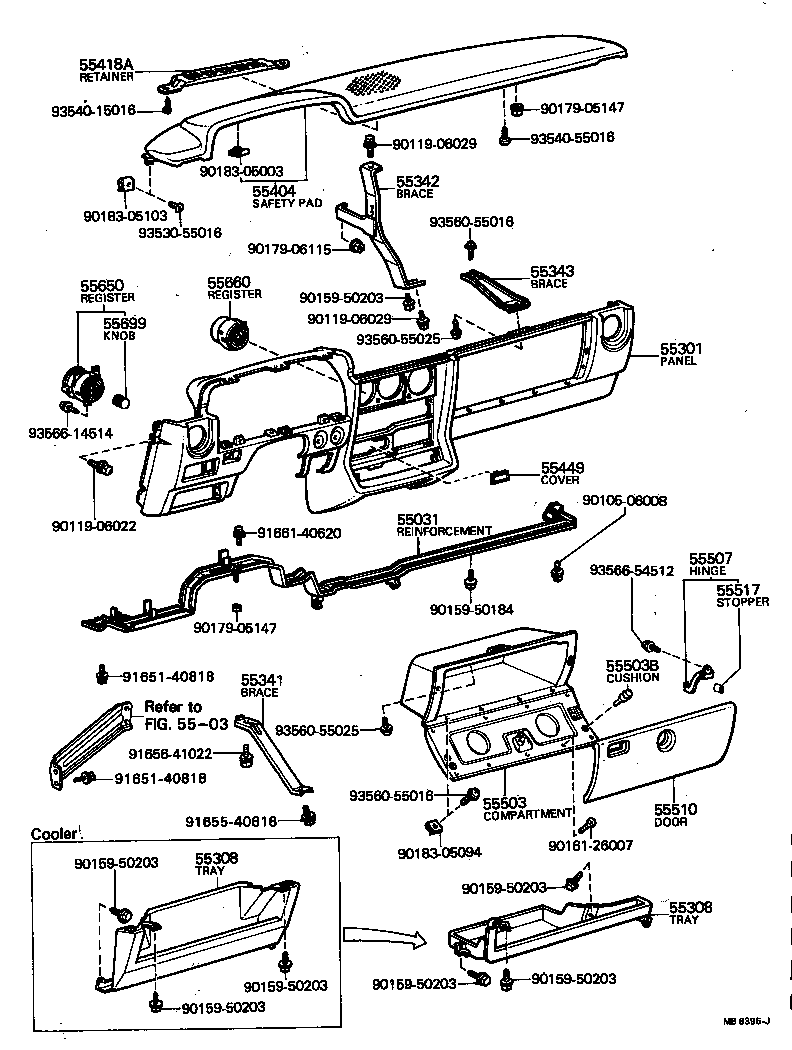

Instrument Panel & Glove Compartment

38 part groups · 4 illustrations

PNC	Description
55031	Reinforcement, Instrument Panel, NO.1
55301	Panel Sub-assy, Instrument
55308	Tray Sub-assy, Instrument Panel Under
55309	Base Sub-assy, Switch
55341	Brace, Instrument Panel, NO.1
55342	Brace, Instrument Panel, NO.2
55343	Brace, Instrument Panel, NO.3
55384	Cover, Base Switch Hole
55401	Panel Sub-assy, Instrument Cluster Finish
55404	Safety Pad Sub-assy, Instrument Panel, Upper
55410	Panel Assy, Instrument Cluster Finish, NO.2
55414	Bezel, Cigar Lighter Hole
55418A	Retainer, Safety Pad
55423	Panel, Stereo Player Finish
55440	Garnish, Instrument Panel, Center
55449	Cover, Cooler Switch Hole
55453	Cover, Radio Tuner Opening
55453A	Retainer, Radio Tuner Opening, NO.1
55453B	Retainer, Radio Tuner Opening, NO.2
55492	Garnish OR Safety Pad, Lower, RH
55503	Compartment Sub-assy, Glove
55503B	Cushion(FOR GLOVE COMPARTMENT)
55506	Button Sub-assy, Glove Compartment Door Lock
55507	Hinge Sub-assy, Glove Compartment Door
55508	Striker Sub-assy, Glove Compartment Door Lock
55510	Door Assy, Glove Compartment
55512	Plate, Radio Tuner Finish
55517	Stopper, Glove Compartment Door Arm
55527	Cover, Transmission Control Switch Hole
55528	Cover, Auto Drive Opening
55533	Cover, Auto Clock Hole
55537	Cover, Rear Window Defogger Switch Hole
55545	Cover, Fuse Box Opening
55547	Cover, Remote Control Mirror Hole
55619	Cover, Switch Hole
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55699	Knob, Instrument Panel Register Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
