Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

8 part groups · 2 illustrations

Illustrations

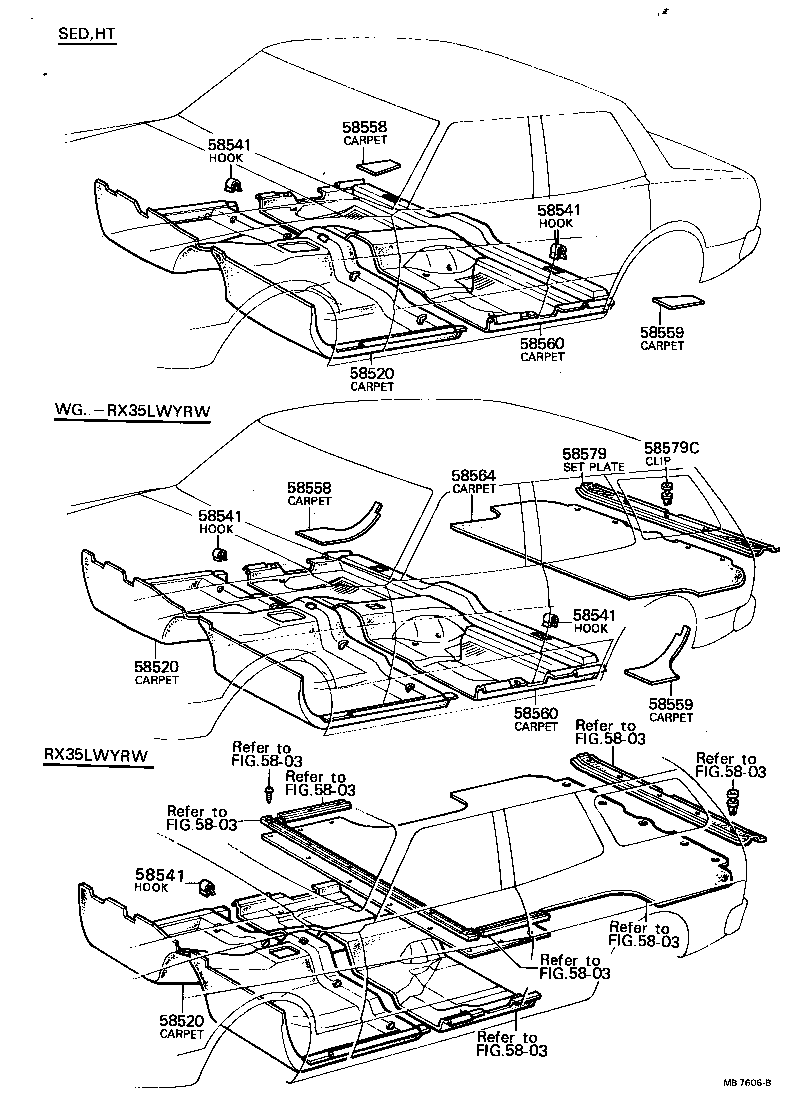

Figure MB7605A MB7605A 1976-12 → 1977-07 Figure MB7606B MB7606B 1977-07 → 1980-08

Part groups

PNCDescription
58520 Carpet Assy, Front Floor
58541 Hook, Male, NO.1(FOR CARPET)
58558 Carpet, Rear Seat Side, RH
58559 Carpet, Rear Seat Side, LH
58560 Carpet Assy, Floor, Rear
58564 Carpet, Rear Floor
58579 Set Plate, Rear Floor Carpet, NO.1
58579C Clip, Rear Floor Carpet Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
