Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 3 illustrations

Illustrations

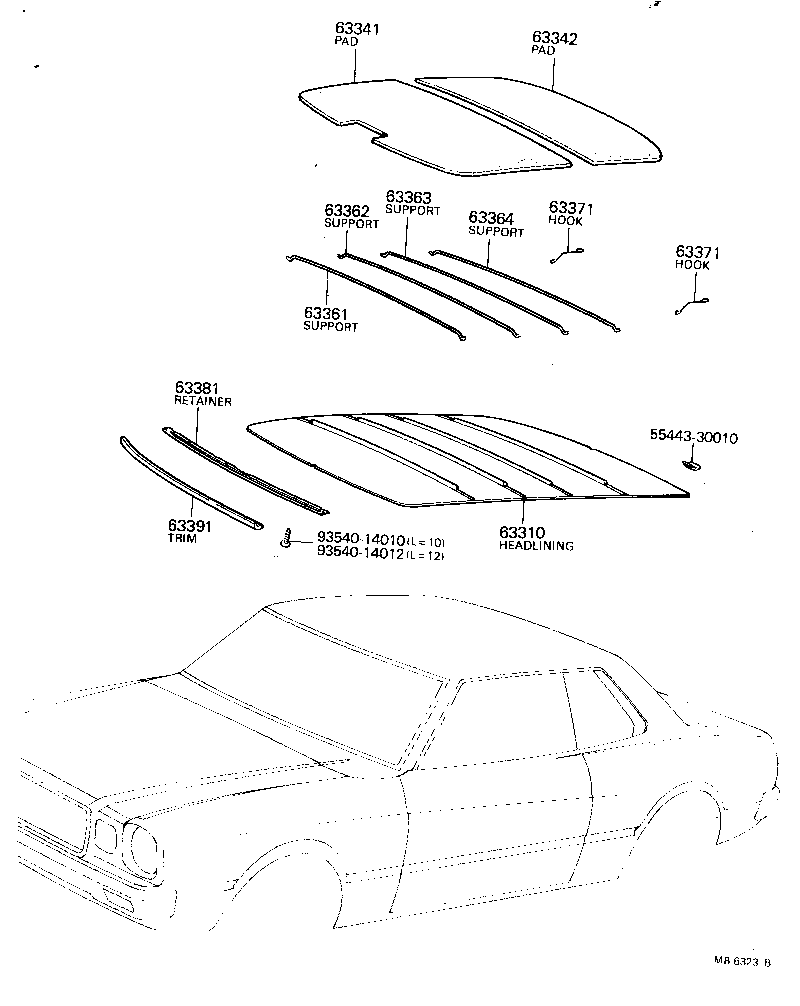

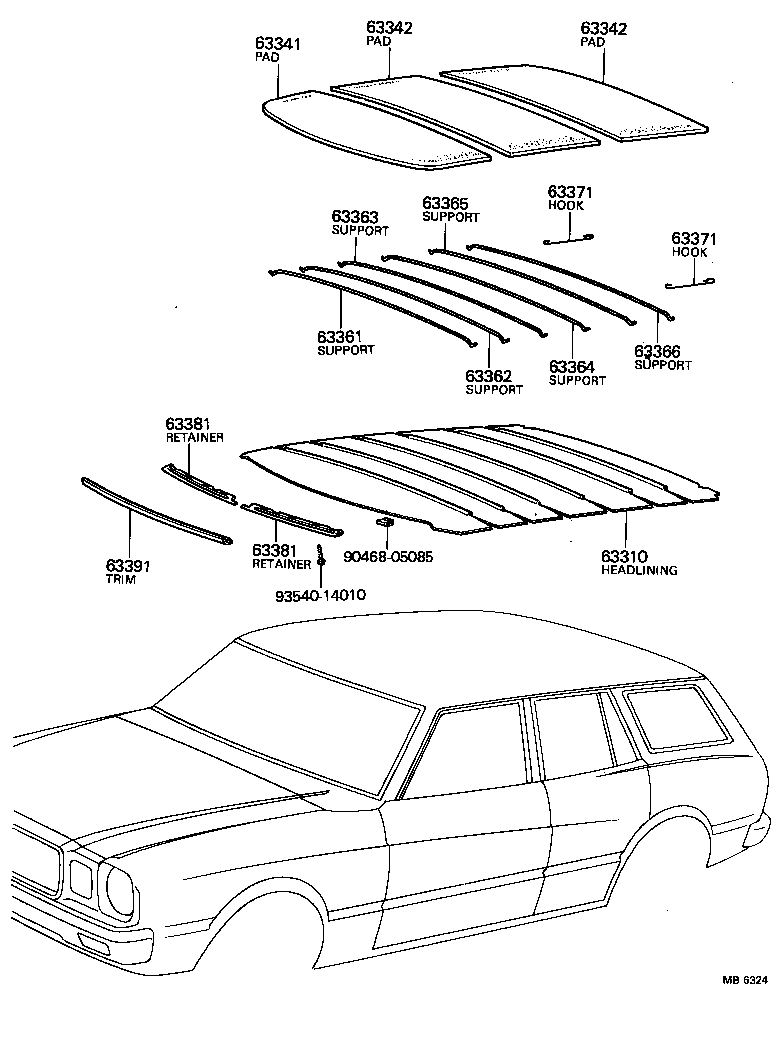

Figure MB6322B MB6322B 1976-12 → 1980-08 Figure MB6323B MB6323B 1976-12 → 1980-08 Figure MB6324 MB6324 1976-12 → 1980-08

Part groups

PNCDescription
63310 Headlining Assy, Roof
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63366 Support, Roof Headlining, NO.6
63371 Hook, Roof Headlining Support
63381 Retainer, Headlining, Front
63391 Trim, Roof Headlining, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
