Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

17 part groups · 3 illustrations

Illustrations

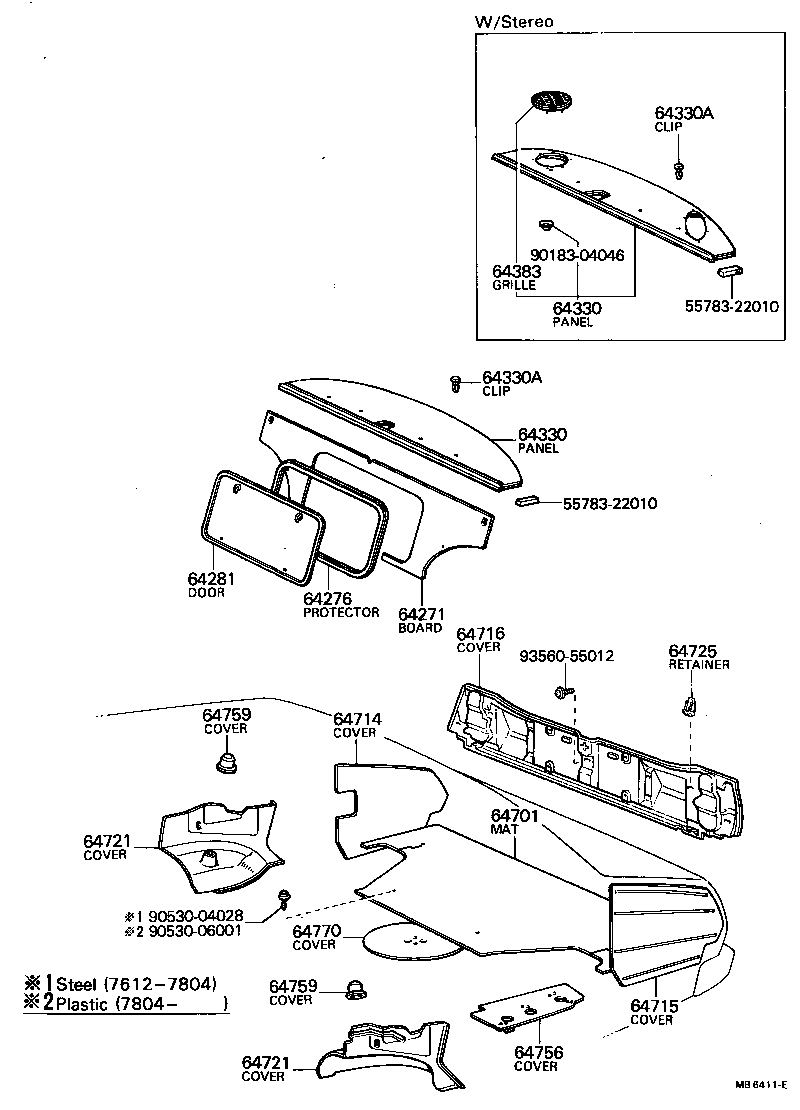

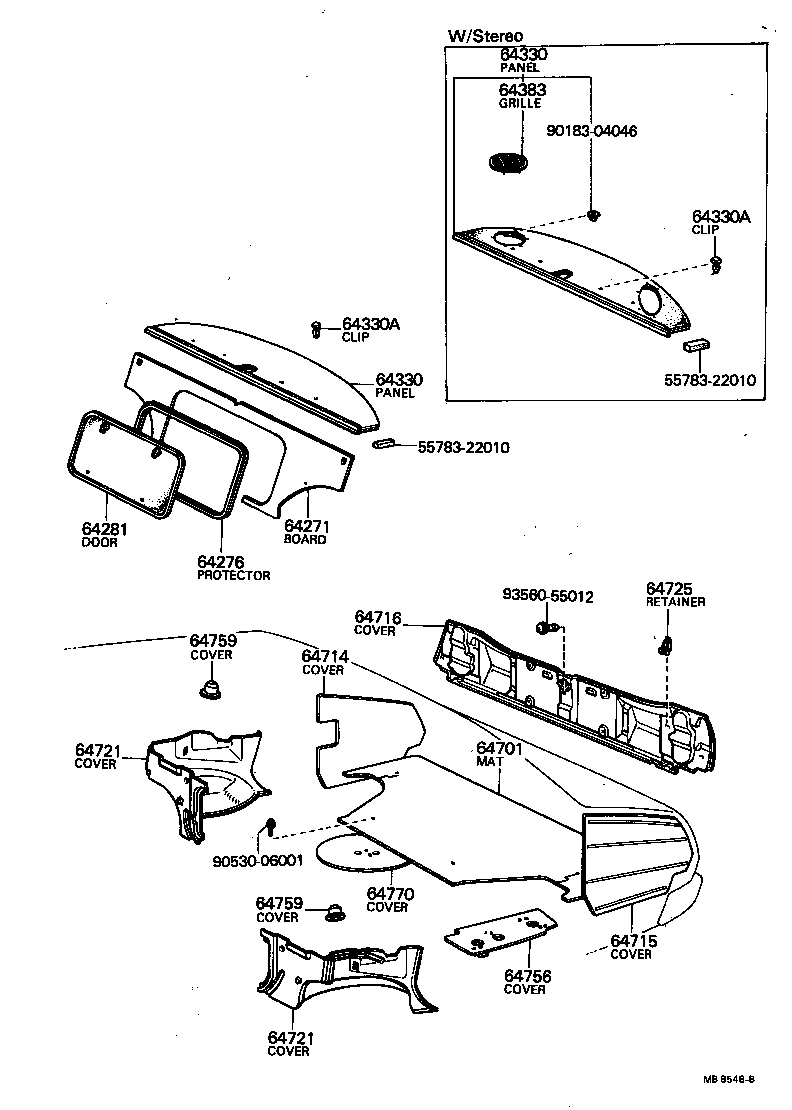

Figure MB6410G MB6410G 1976-12 → 1980-08 Figure MB6411E MB6411E 1976-12 → 1980-08 Figure MB8548B MB8548B 1978-08 → 1980-08

Part groups

PNCDescription
64271 Board, Room Partition, NO.1
64276 Protector, Room Partition Door Opening
64281 Door, Room Partition
64330 Panel Assy, Package Tray Trim
64330A Clip(FOR PACKAGE TRAY TRIM PANEL)
64330B Stopper(FOR PACKAGE TRAY TRIM PANEL)
64383 Grille, Speaker, Rear
64701 Mat Sub-assy, Luggage Compartment
64702 Cover Sub-assy, Luggage Compartment, Front
64714 Cover, Luggage Compartment, RH
64715 Cover, Luggage Compartment, LH
64716 Cover, Luggage Compartment, Rear Center
64721 Cover, Luggage Compartment Trim, Inner RH
64725 Retainer, Luggage Compartment Cover, NO.1
64756 Cover, Luggage Compartment Side
64759 Cover, Shock Absorber Head
64770 Cover Assy, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
