Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

23 part groups · 2 illustrations

Illustrations

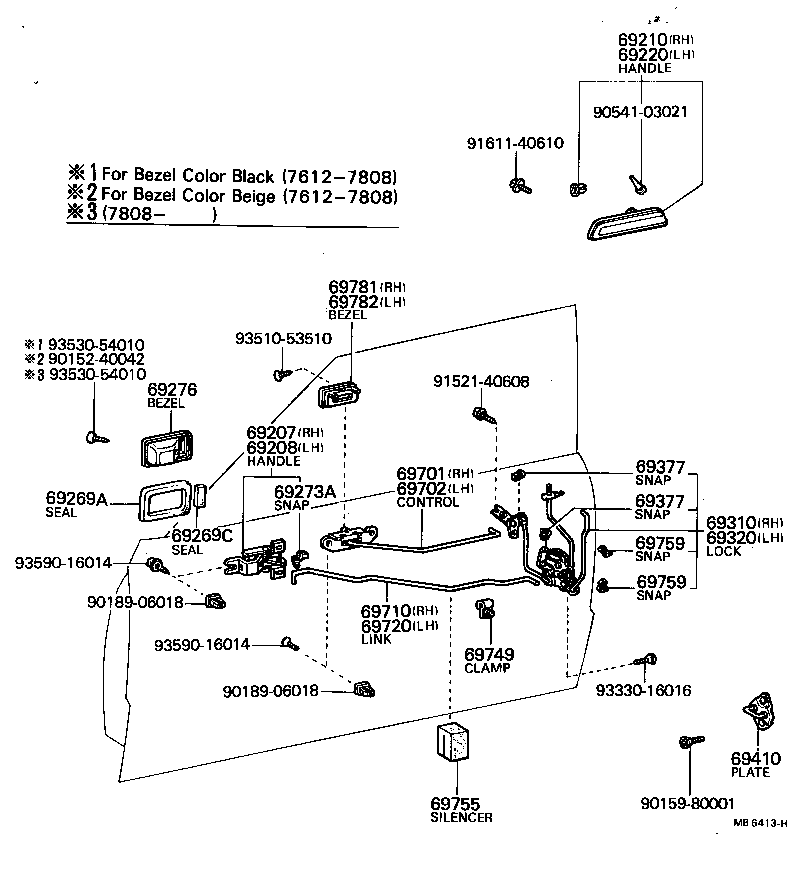

Figure MB7235F MB7235F 1976-12 → 1980-08 Figure MB6413H MB6413H 1976-12 → 1980-08

Part groups

PNCDescription
69207 Handle Sub-assy, Front Door Inside, RH
69208 Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69220 Handle Assy, Front Door Outside, LH
69269A Seal, Door Inside Handle NO.1(FOR FRONT DOOR)
69269C Seal, Door Inside Handle NO.2(FOR FRONT DOOR)
69273A Snap, Door Inside Handle Rod(FOR FRONT DOOR)
69276 Bezel, Front Door Inside Handle
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69377 Snap, Front Door Lock Control Rod
69410 Plate Assy, Front Door Lock Striker
69701 Control Sub-assy, Door Lock Remote, RH
69702 Control Sub-assy, Door Lock Remote, LH
69710 Link Assy, Front Door Open Control, RH
69720 Link Assy, Front Door Open Control, LH
69736A Guide, Front Door Lock Link
69747A Button, Door Locking(FOR FRONT DOOR)
69749 Clamp, Front Door Lock Link
69755 Silencer, Front Door Lock Link
69759 Snap, Door Lock Control Link, NO.1
69781 Bezel, Door Locking, RH
69782 Bezel, Door Locking, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
