Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

20 part groups · 2 illustrations

Illustrations

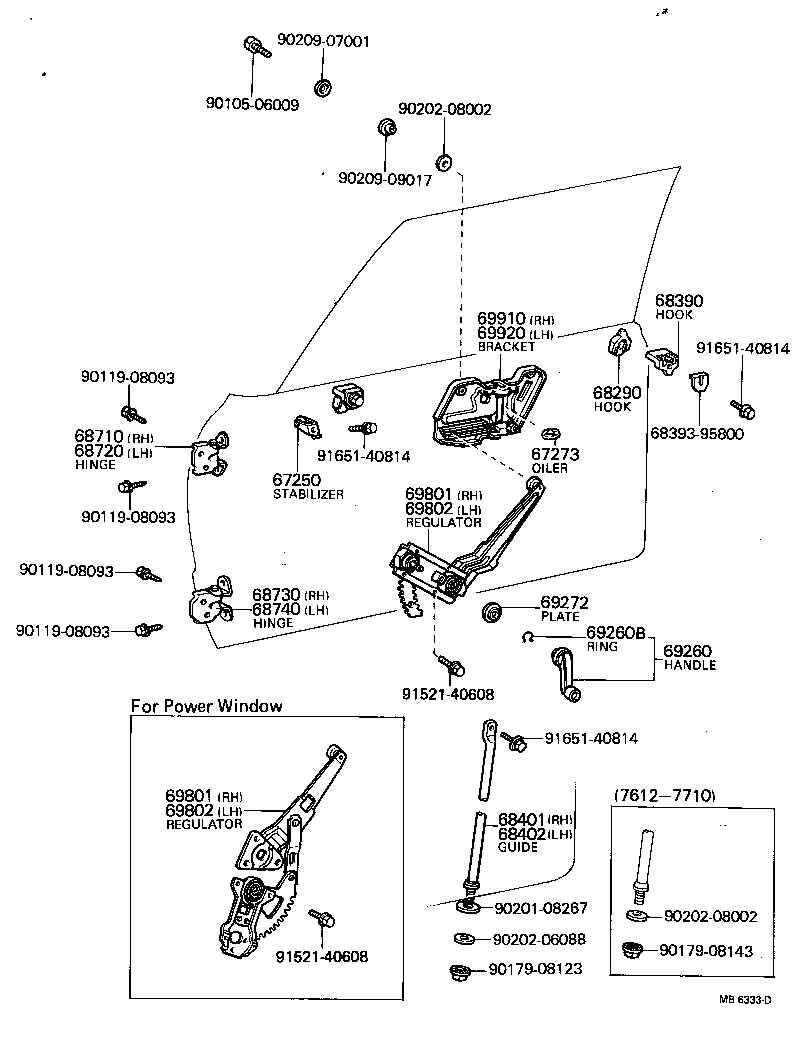

Figure MB6332C MB6332C 1976-12 → 1980-08 Figure MB6333D MB6333D 1976-12 → 1980-08

Part groups

PNCDescription
67250 Stabilizer Assy, Front Door Glass
67273 Oiler, Front Door Window Bar
68171 Weatherstrip, Front Door Glass Channel
68290 Hook Assy, Door Glass Male
68390 Hook, Door Glass Female
68401 Guide Sub-assy, Front Door Window, RH
68402 Guide Sub-assy, Front Door Window, LH
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69260 Handle Assy, Front Door Window Regulator
69260B Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272 Plate, Front Door Regulator Inside Handle
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
69901 Channel Sub-assy, Front Door Glass, RH
69902 Channel Sub-assy, Front Door Glass, LH
69910 Bracket Assy, Front Door Glass, RH
69920 Bracket Assy, Front Door Glass, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
