Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

16 part groups · 4 illustrations

Illustrations

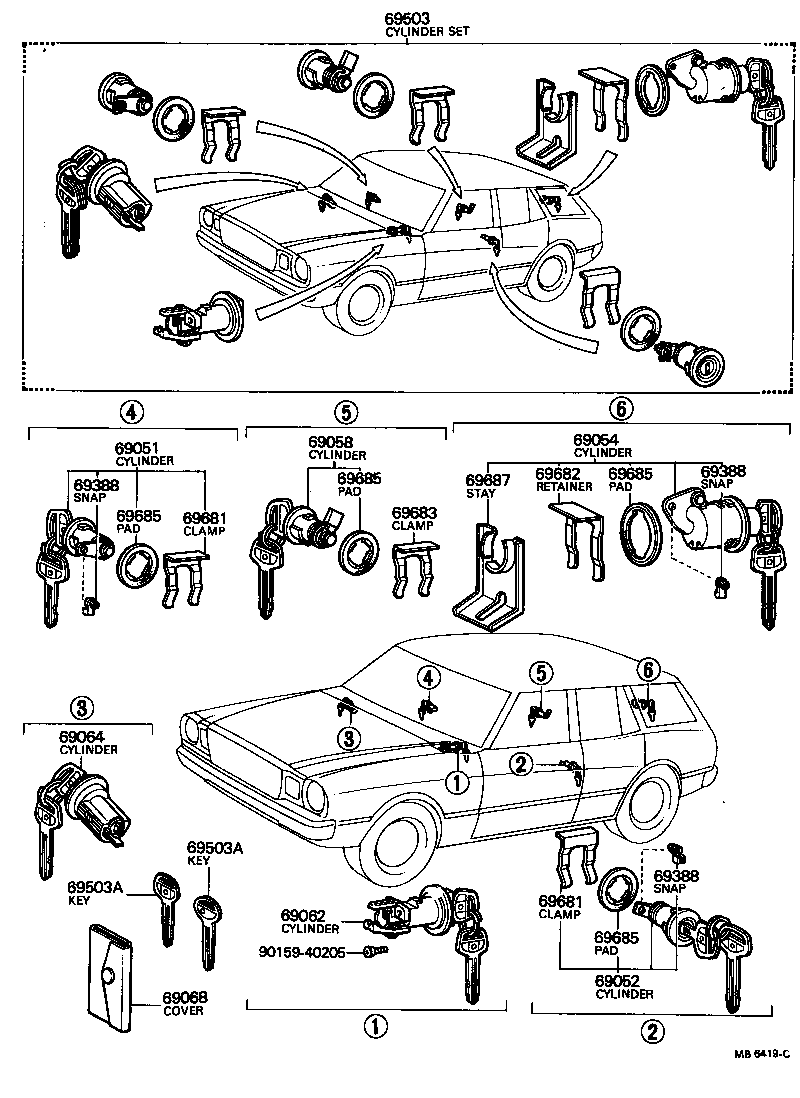

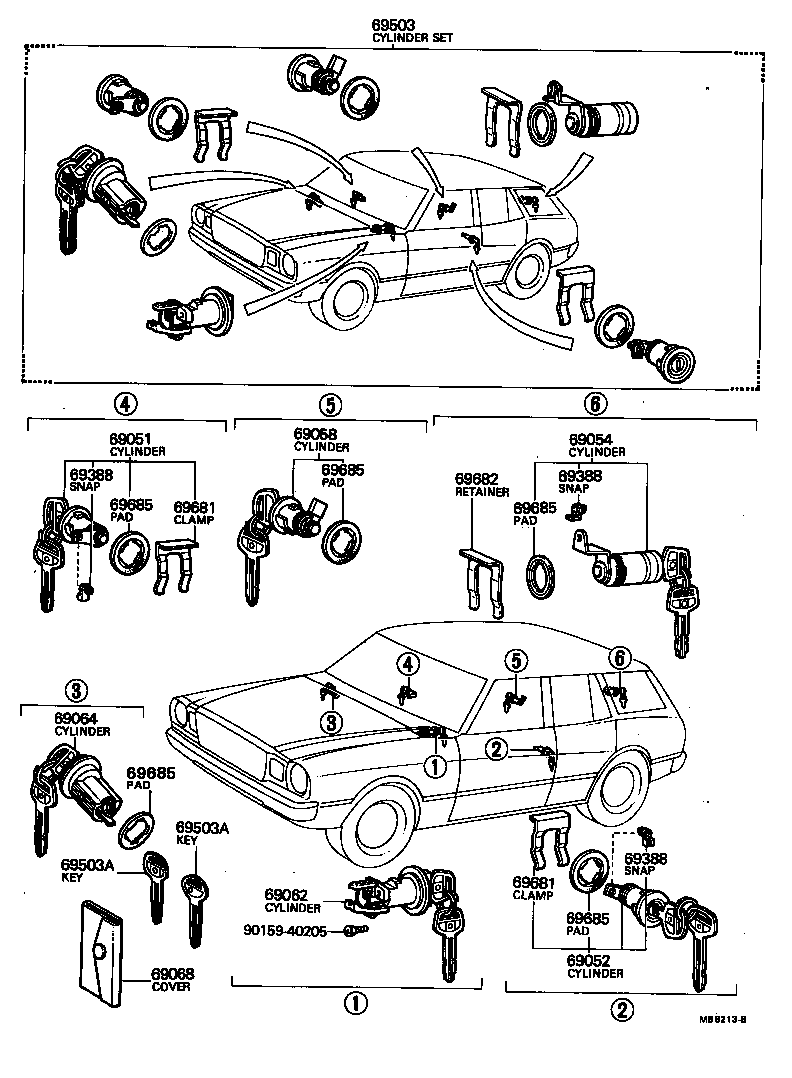

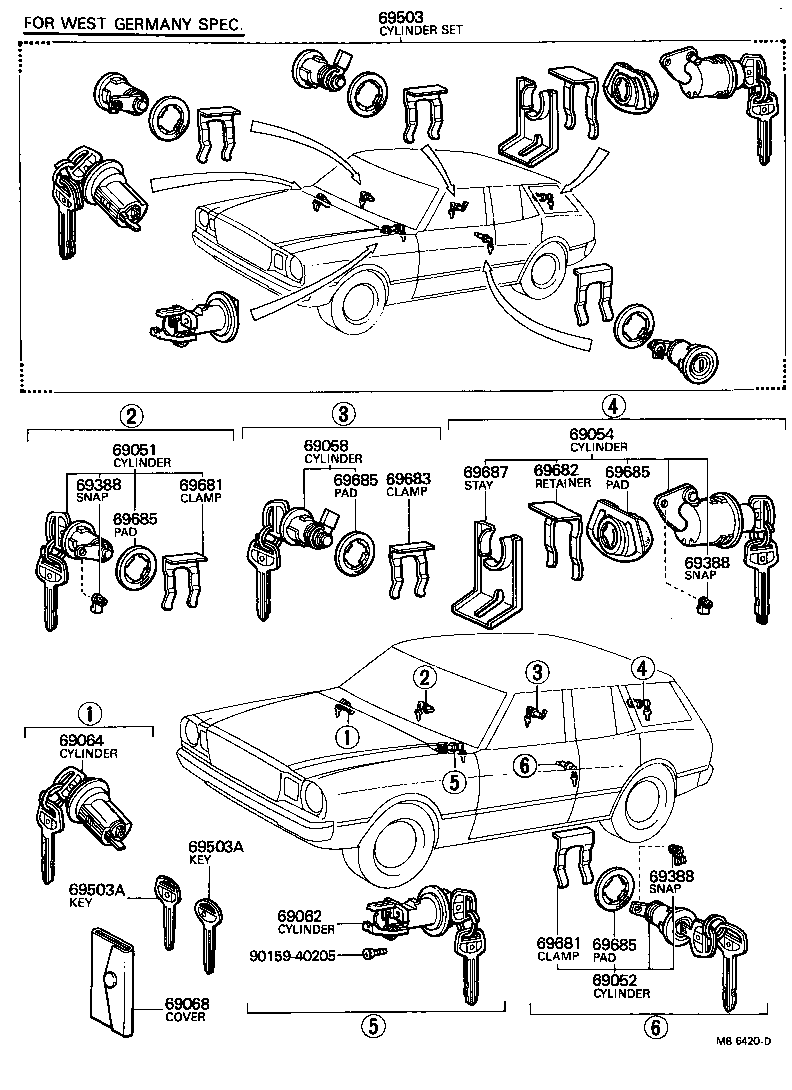

Figure MB6418B MB6418B 1976-12 → 1980-08 Figure MB6419C MB6419C 1976-12 → 1978-08 Figure MB6420D MB6420D 1976-12 → 1978-08 Figure MB8213B MB8213B 1978-08 → 1980-08

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054 Cylinder & Key Set, Back Door Lock
69058 Cylinder & Key Set, Fuel Filler Lid
69061 Cylinder & Key Set, Luggage Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69064 Cylinder & Key Set, Ignition Switch Lock
69068 Cover Sub-assy, Key
69388 Snap, Rod(FOR DOOR LOCK)
69503 Cylinder Set, Lock
69503A Key, Blank
69681 Clamp, Door Lock Cylinder & Sleeve
69682 Retainer, Lock Cylinder
69683 Clamp, Fuel Lock Cylinder
69685 Pad, Lock Cylinder
69687 Stay, Back Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
