Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

35 part groups · 8 illustrations

Illustrations

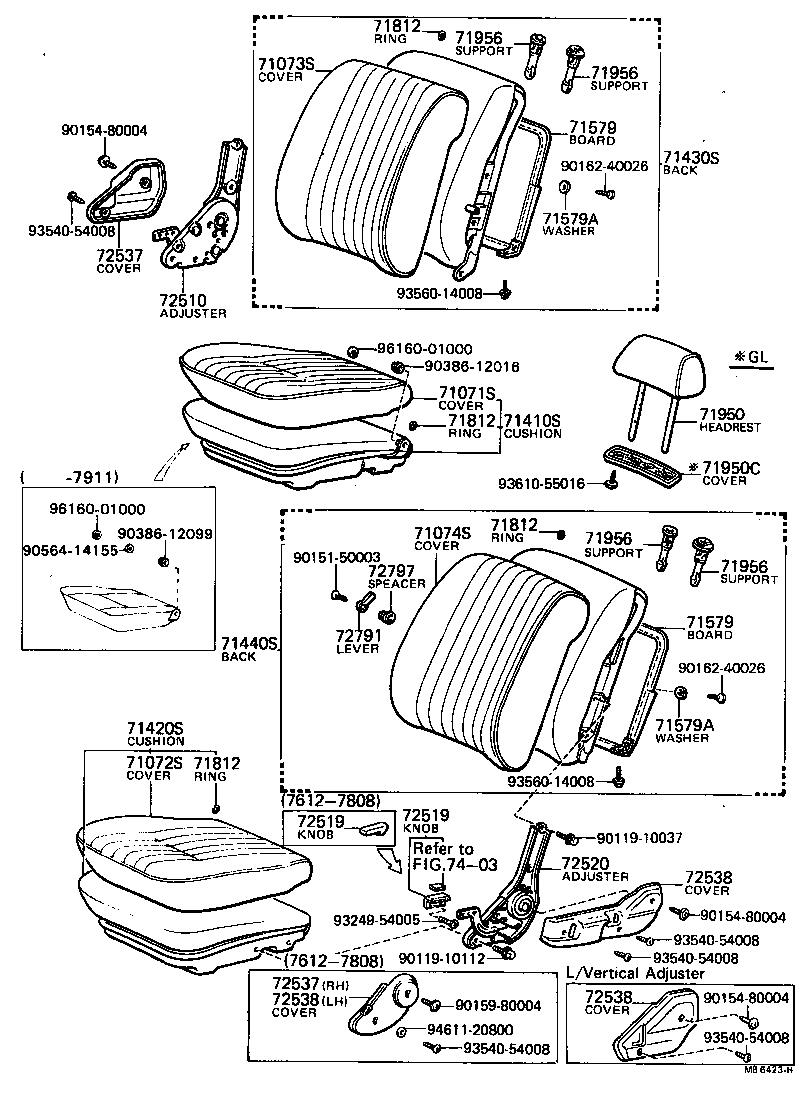

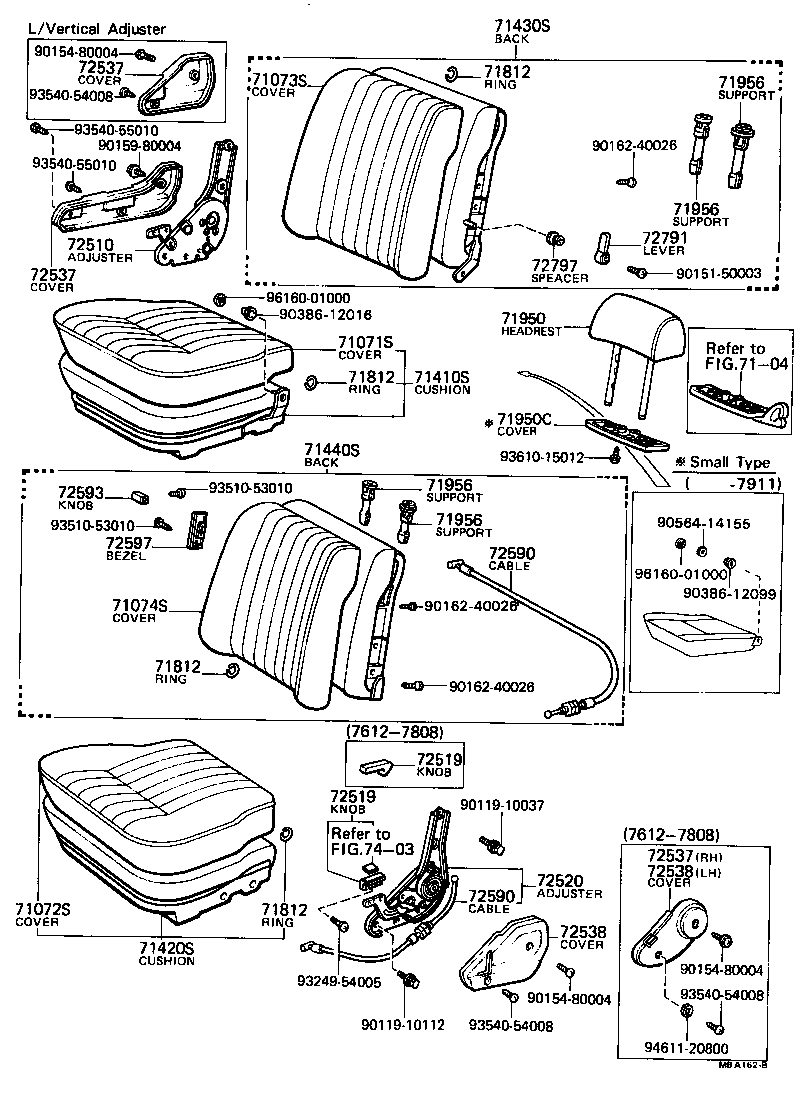

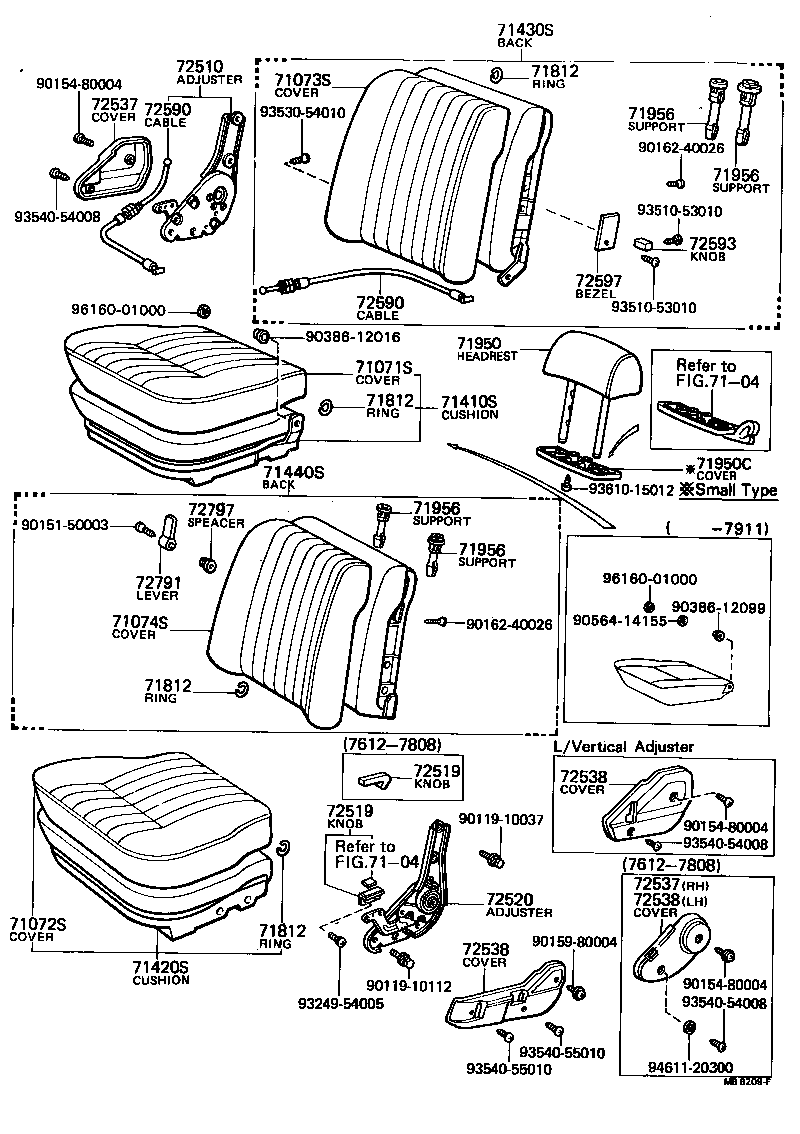

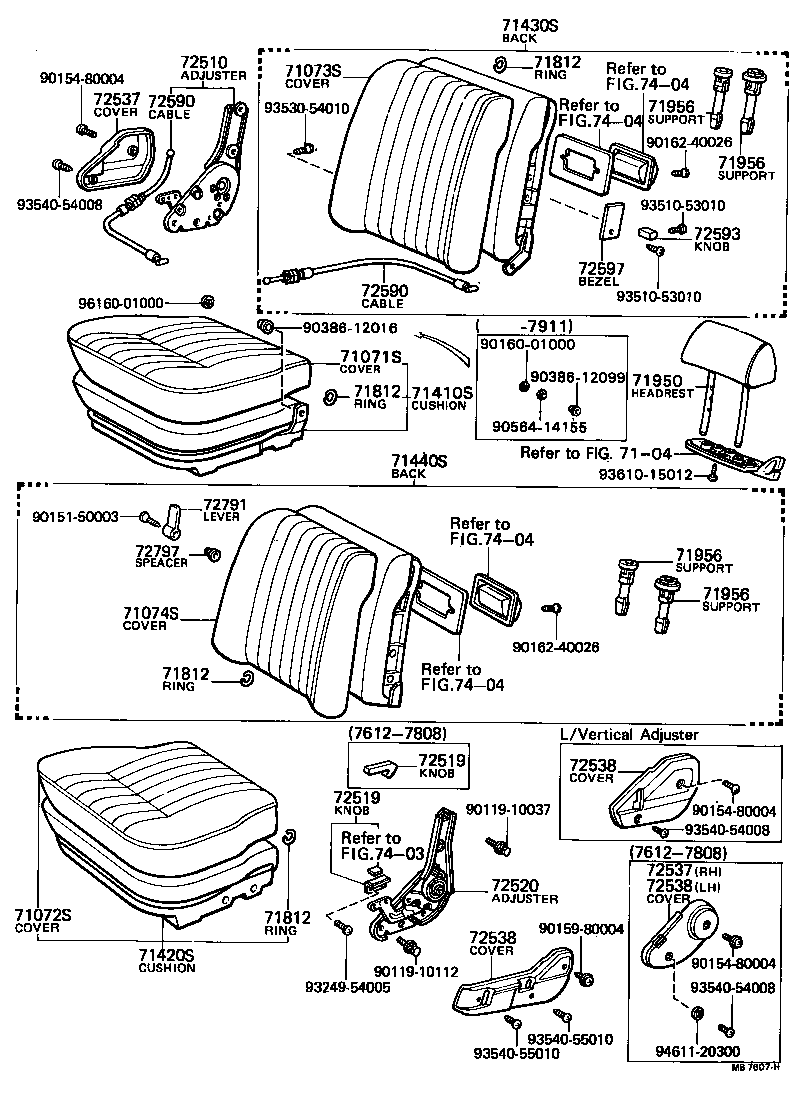

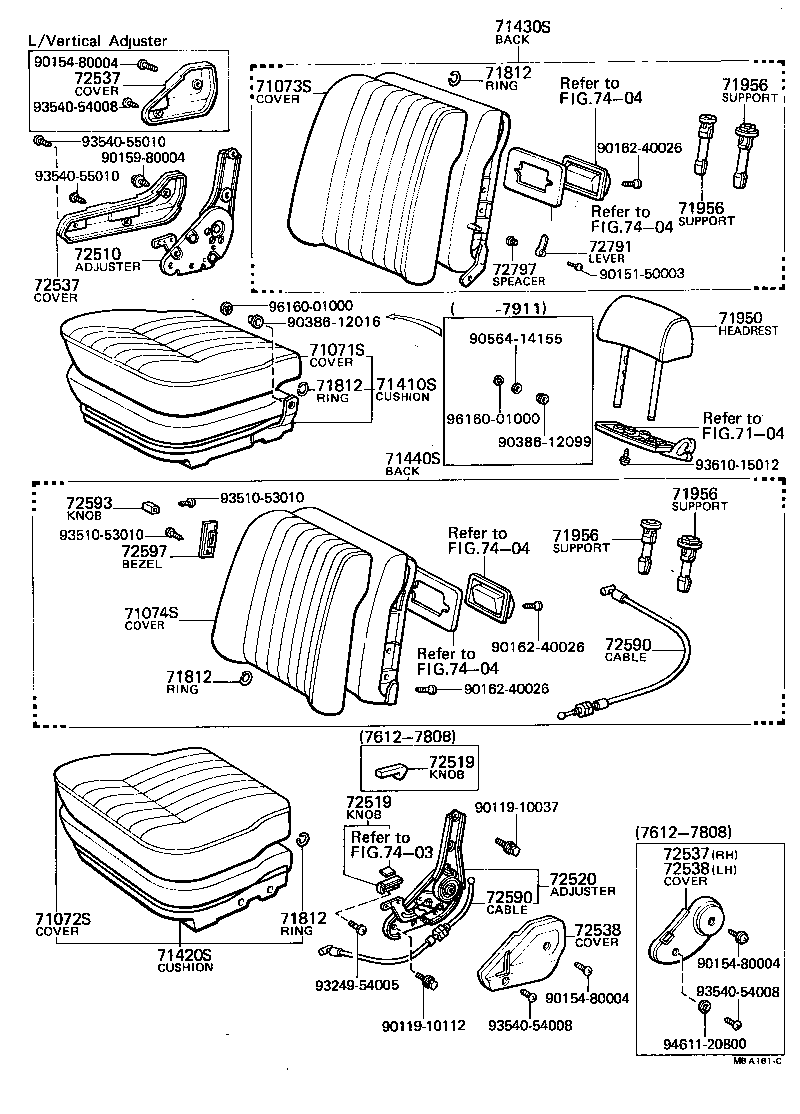

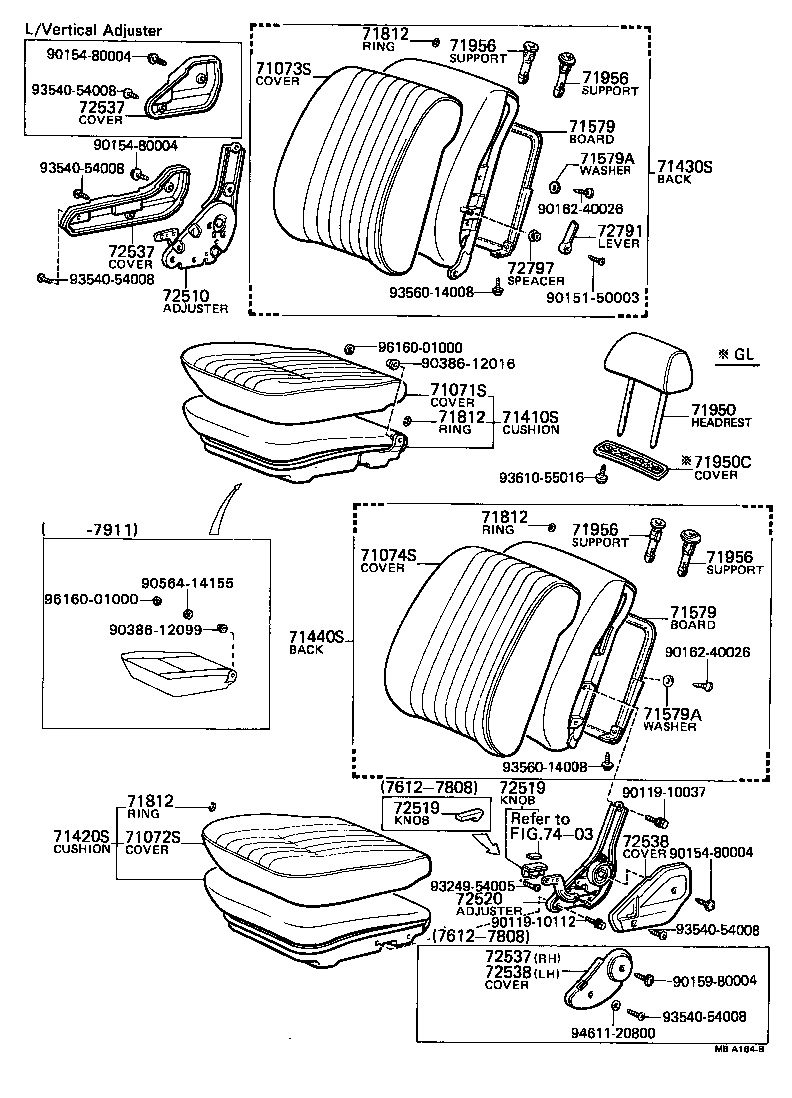

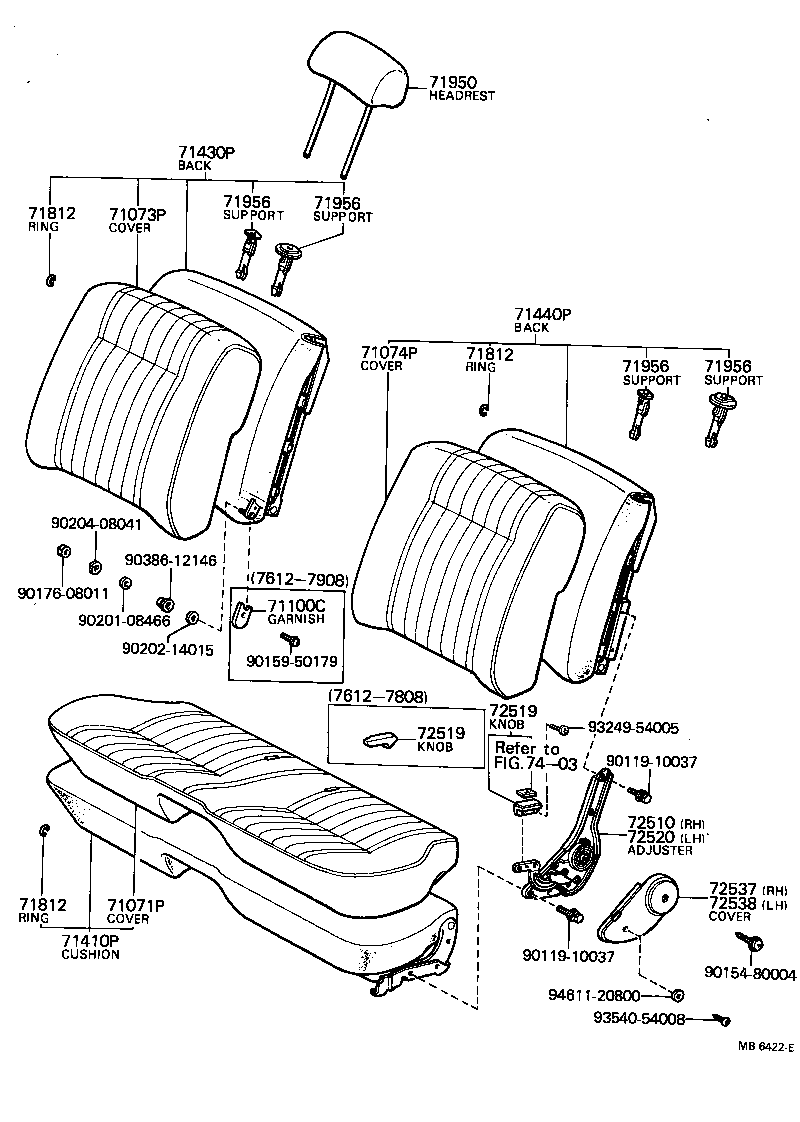

Figure MB6421C MB6421C 1976-12 → 1980-08 Figure MB6422E MB6422E 1976-12 → 1980-08 Figure MBA164B MBA164B 1976-12 → 1980-08 Figure MB6423H MB6423H 1976-12 → 1980-08 Figure MBA161C MBA161C 1976-12 → 1980-08 Figure MB7607H MB7607H 1976-12 → 1980-08 Figure MBA162B MBA162B 1976-12 → 1980-08 Figure MB8209F MB8209F 1978-08 → 1980-08

Part groups

PNCDescription
71071B Cover, Front Seat Cushion(FOR BENCH TYPE)
71071P Cover, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B Cover, Front Seatback(FOR BENCH TYPE)
71073P Cover, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074P Cover, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100C Garnish, Front Seat Hinge
71410B Cushion Assy, Front Seat(FOR BENCH TYPE)
71410P Cushion Assy, Front Seat(FOR SEMI-SEPARATE TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430B Back Assy, Front Seat(FOR BENCH TYPE)
71430P Back Assy, Front Seat, RH(FOR SEMI-SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440P Back Assy, Front Seat, LH(FOR SEMI-SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71579 Board, Front Seatback
71579A Washer, Front Seatback Board Setting
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71950 Headrest Assy, Front Seat
71950C Cover, Front Seat Headrest Under
71956 Support, Headrest
72510 Adjuster Assy, Reclining Seatback, RH
72519 Knob, Reclining Seatback Adjusting Arm
72520 Adjuster Assy, Reclining Seatback, LH
72537 Cover, Reclining Hinge Outer, RH
72538 Cover, Reclining Hinge Outer, LH
72590 Cable Assy, Seatback Control
72593 Knob, Reclining Remote Control Lever
72597 Bezel, Reclining Remote Control
72791 Lever, Lumbar Support
72797 Spacer, Lumbar Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
