Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Truck

15 part groups · 3 illustrations

Illustrations

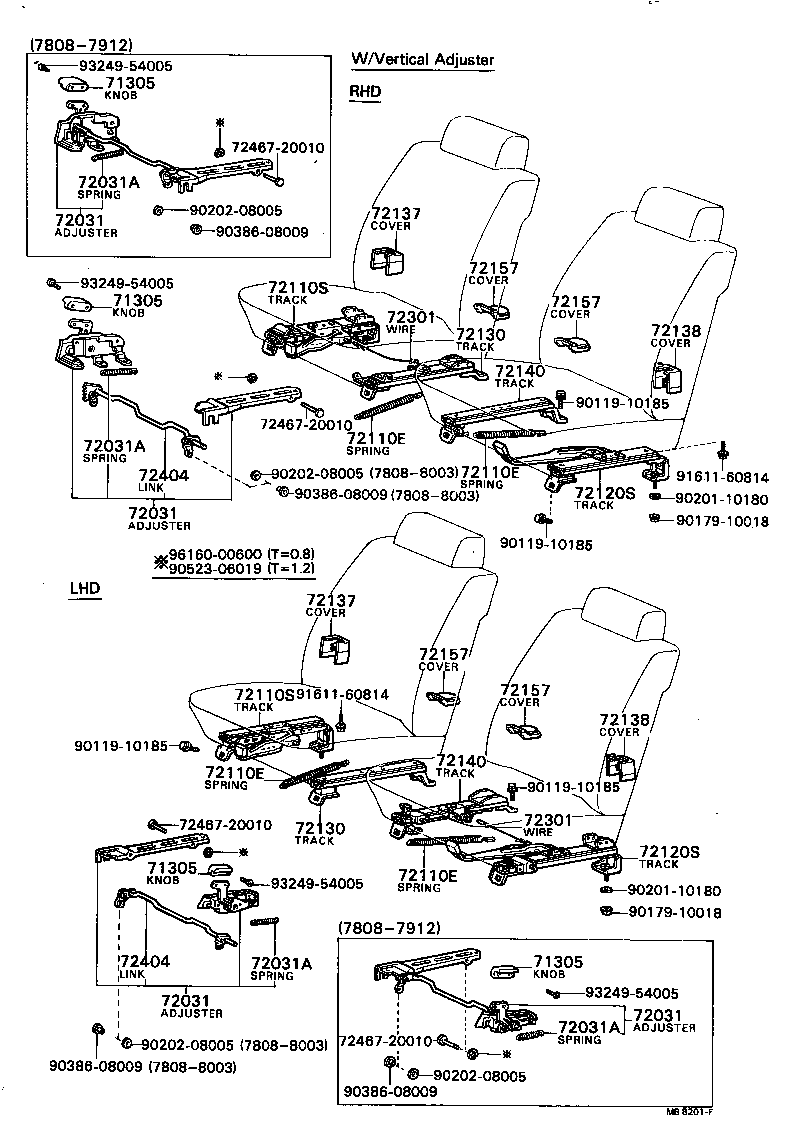

Figure MB6349C MB6349C 1976-12 → 1980-08 Figure MB6349C MB6349C 1978-08 → 1980-08 Figure MB8201F MB8201F 1978-08 → 1980-08

Part groups

PNCDescription
71305 Knob Sub-assy, Front Seat Adjusting
72031 Adjuster Assy, Front Seat Vertical
72031A Spring, Tension (FOR VERTICAL ADJUSTER)
72110B Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72110E Spring, Tension, NO.1 (FOR SEAT TRACK)
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120B Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72120S Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130 Track Assy, RH Seat, Inner
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72140 Track Assy, LH Seat, Inner
72157 Cover, Seat Track Bracket, Inner
72301 Wire Sub-assy, Seat Track Equalizing
72404 Link Sub-assy, Vertical Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
