Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

19 part groups · 4 illustrations

Illustrations

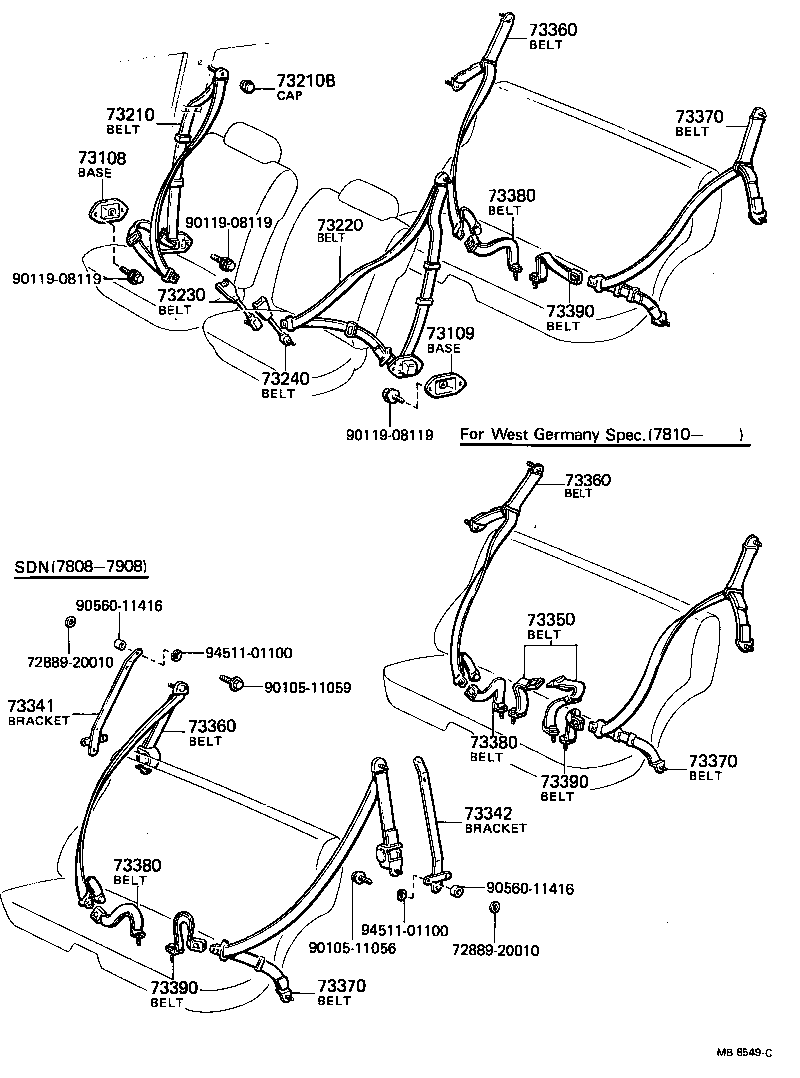

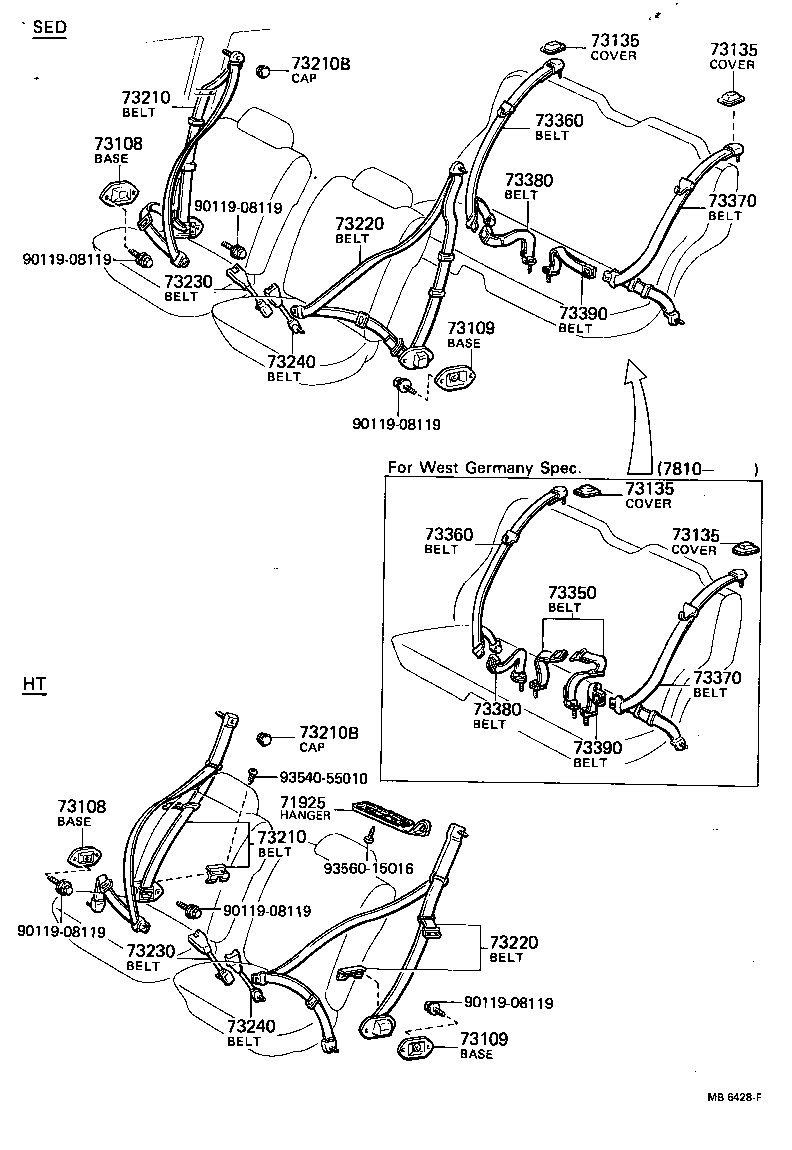

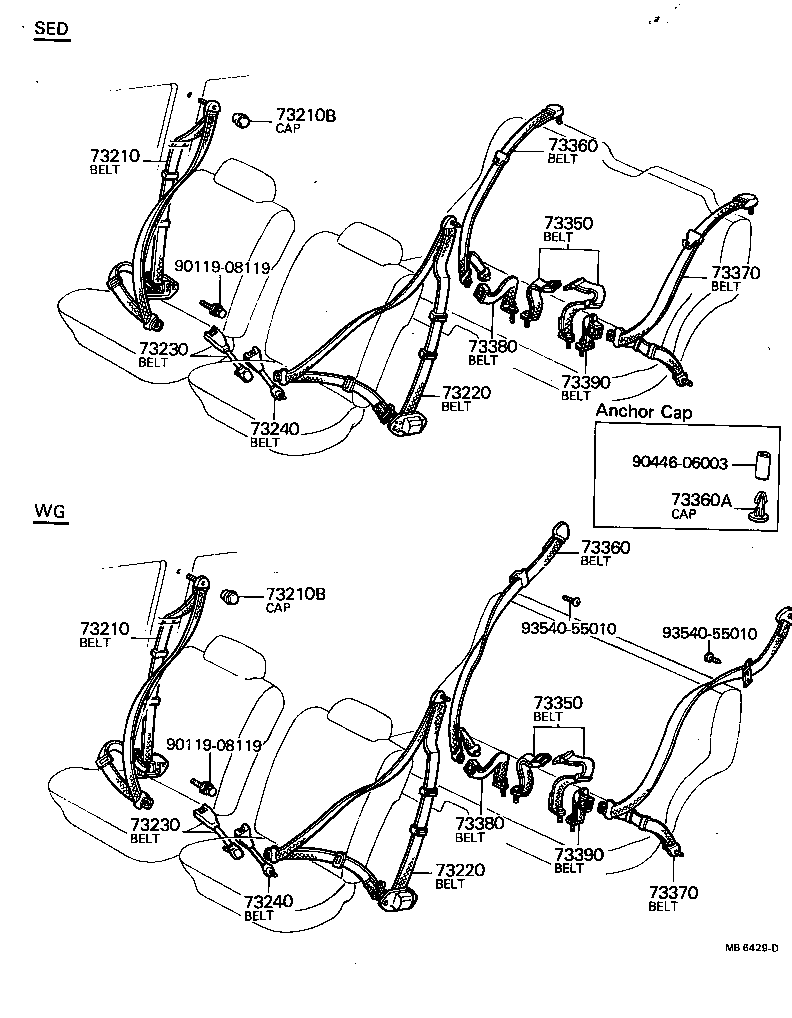

Figure MB6427C MB6427C 1976-12 → 1980-08 Figure MB6428F MB6428F 1976-12 → 1980-08 Figure MB8549C MB8549C 1976-12 → 1980-08 Figure MB6429D MB6429D 1976-12 → 1980-08

Part groups

PNCDescription
71925 Hanger, Seat Belt
73108 Base Sub-assy, Front Seat Belt Anchor, RH
73109 Base Sub-assy, Front Seat Belt Anchor, LH
73135 Cover, Shoulder Belt Anchorage Plate
73210 Belt Assy, Front Seat Outer, RH
73210B Cap (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73341 Bracket, Rear Belt Shoulder Retractor, RH
73342 Bracket, Rear Belt Shoulder Retractor, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73360A Cap, Rear Seat Belt Anchor
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
