Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

15 part groups · 3 illustrations

Illustrations

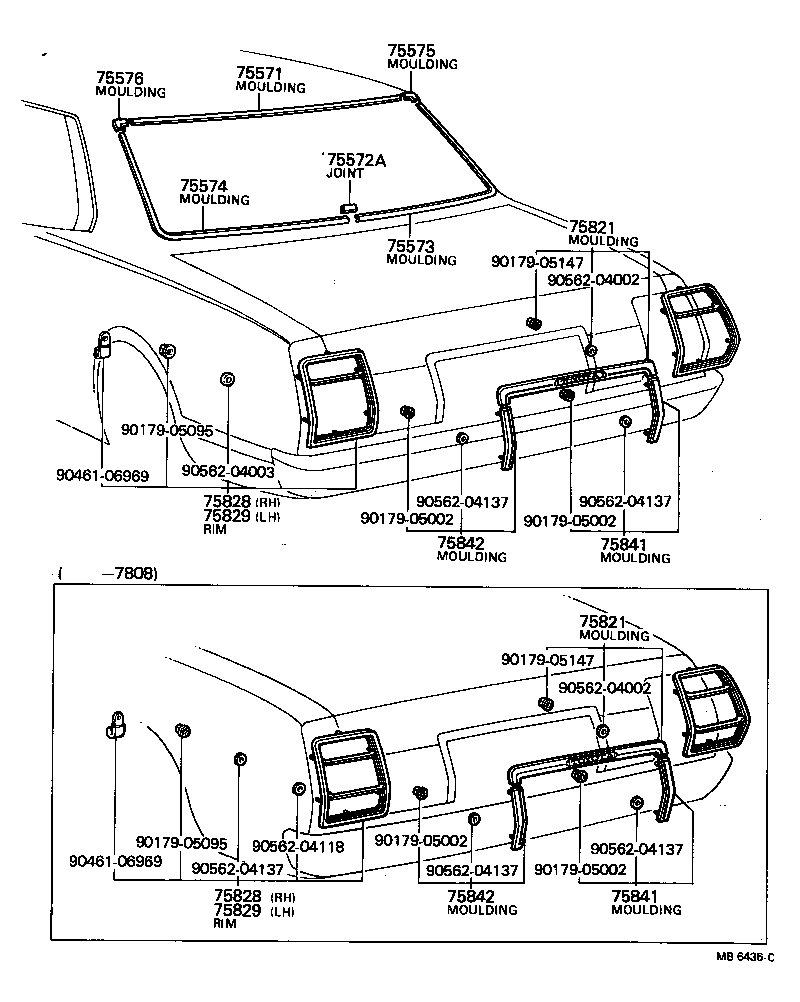

Figure MBB232 MBB232 1976-12 → 1980-08 Figure MB6436C MB6436C 1976-12 → 1980-08 Figure MB6365 MB6365 1976-12 → 1980-08

Part groups

PNCDescription
75571 Moulding, Back Window, Outside Upper
75571B Joint, Back Window Moulding, Upper
75572 Moulding, Back Window, Lower
75572A Joint, Back Window Moulding, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
75821 Moulding, Luggage Compartment Door Back
75828 Rim, Rear Combination Lamp Outer, RH
75829 Rim, Rear Combination Lamp Outer, LH
75841 Moulding, Body Lower Back Panel, RH
75842 Moulding, Body Lower Back Panel, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
