Toyota Cressida
1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe
Discontinued model
Data version 1981-01

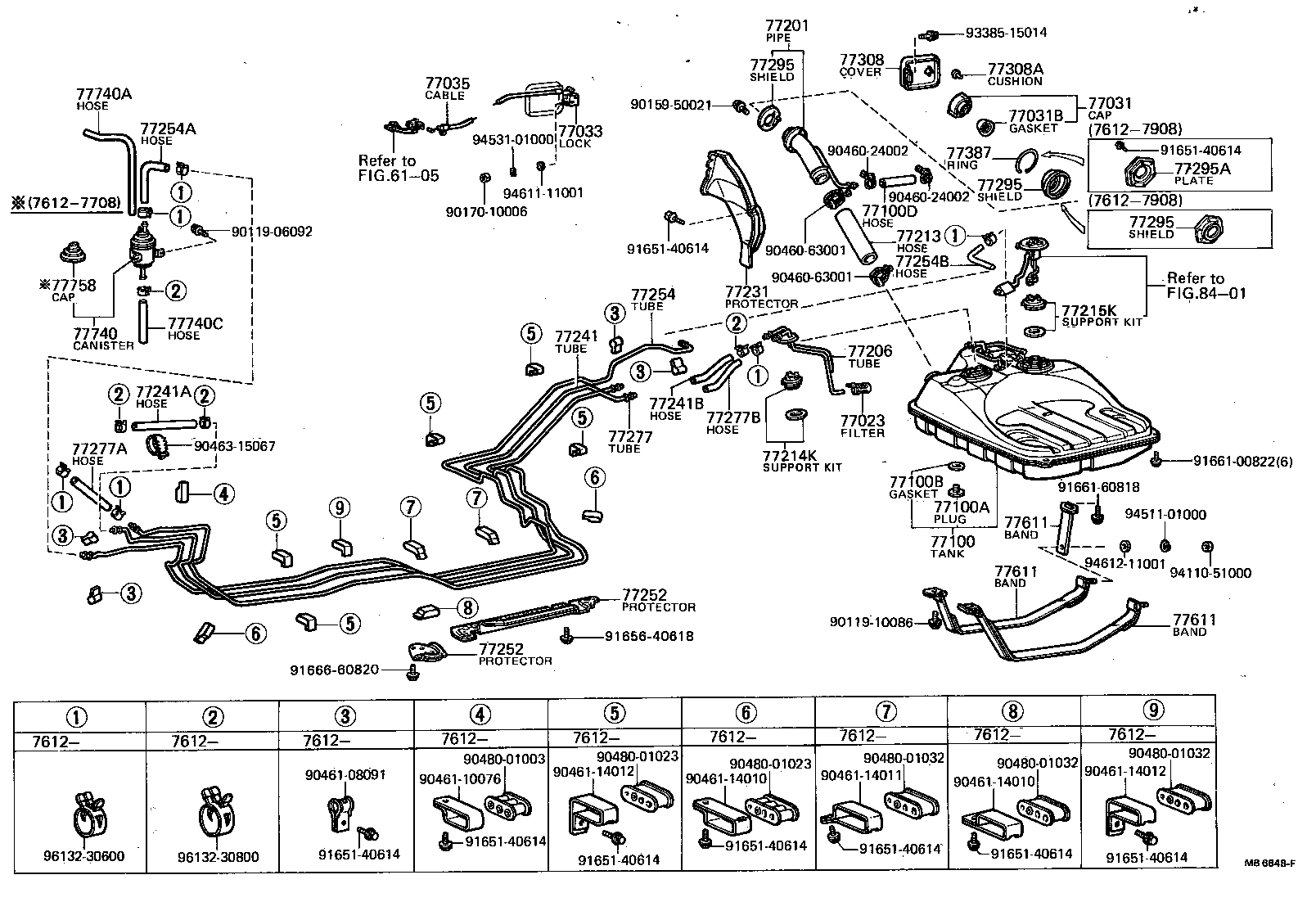

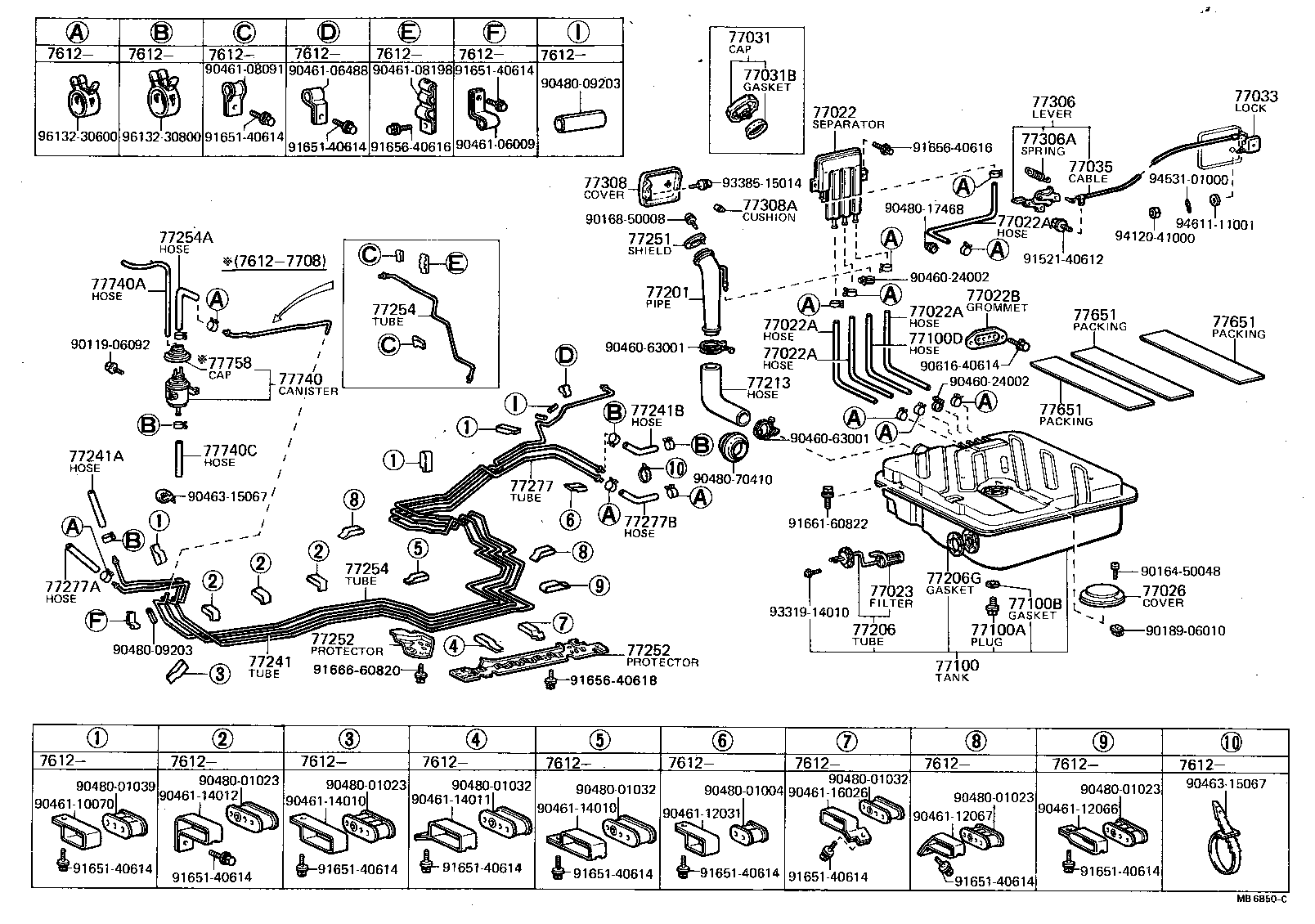

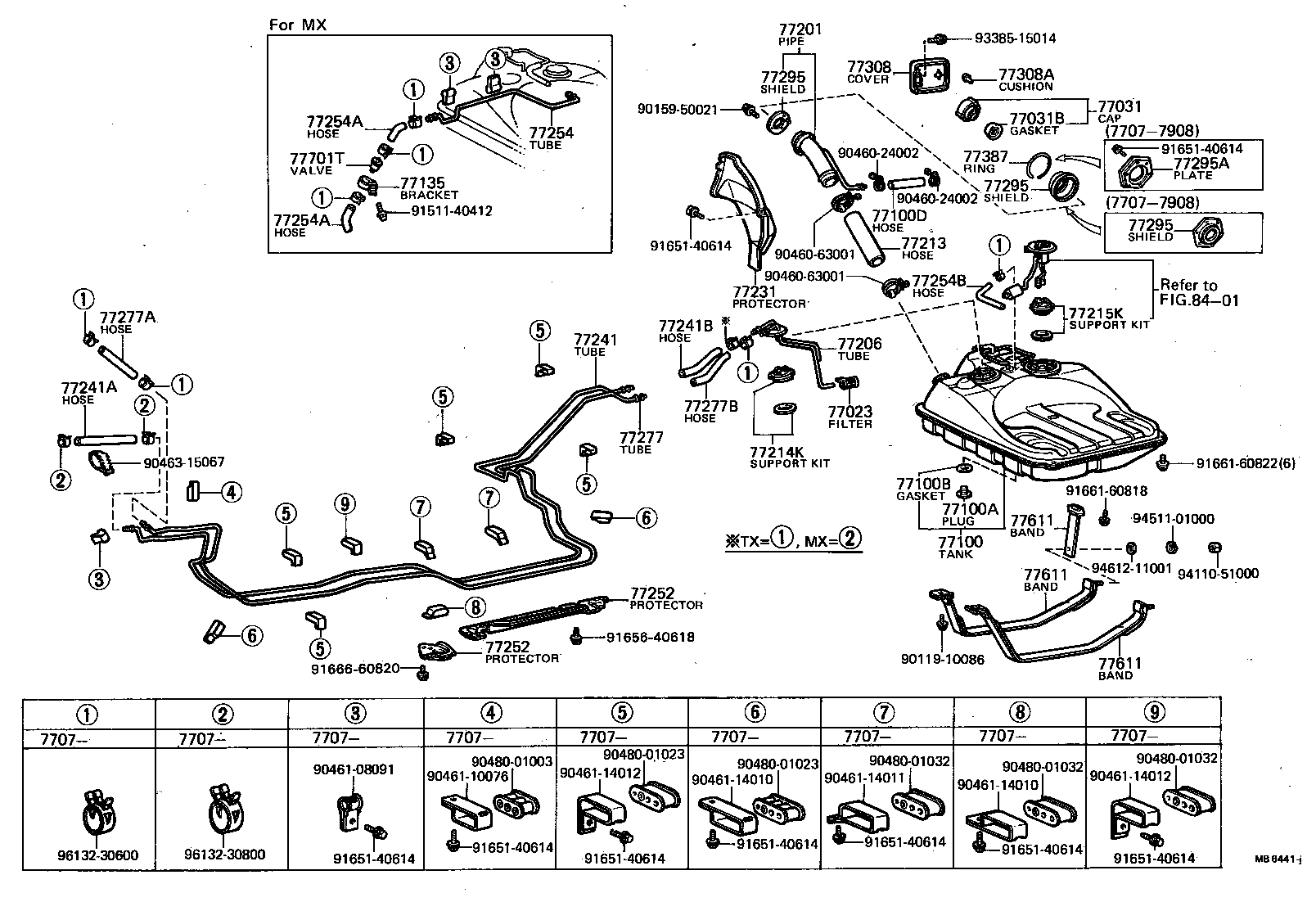

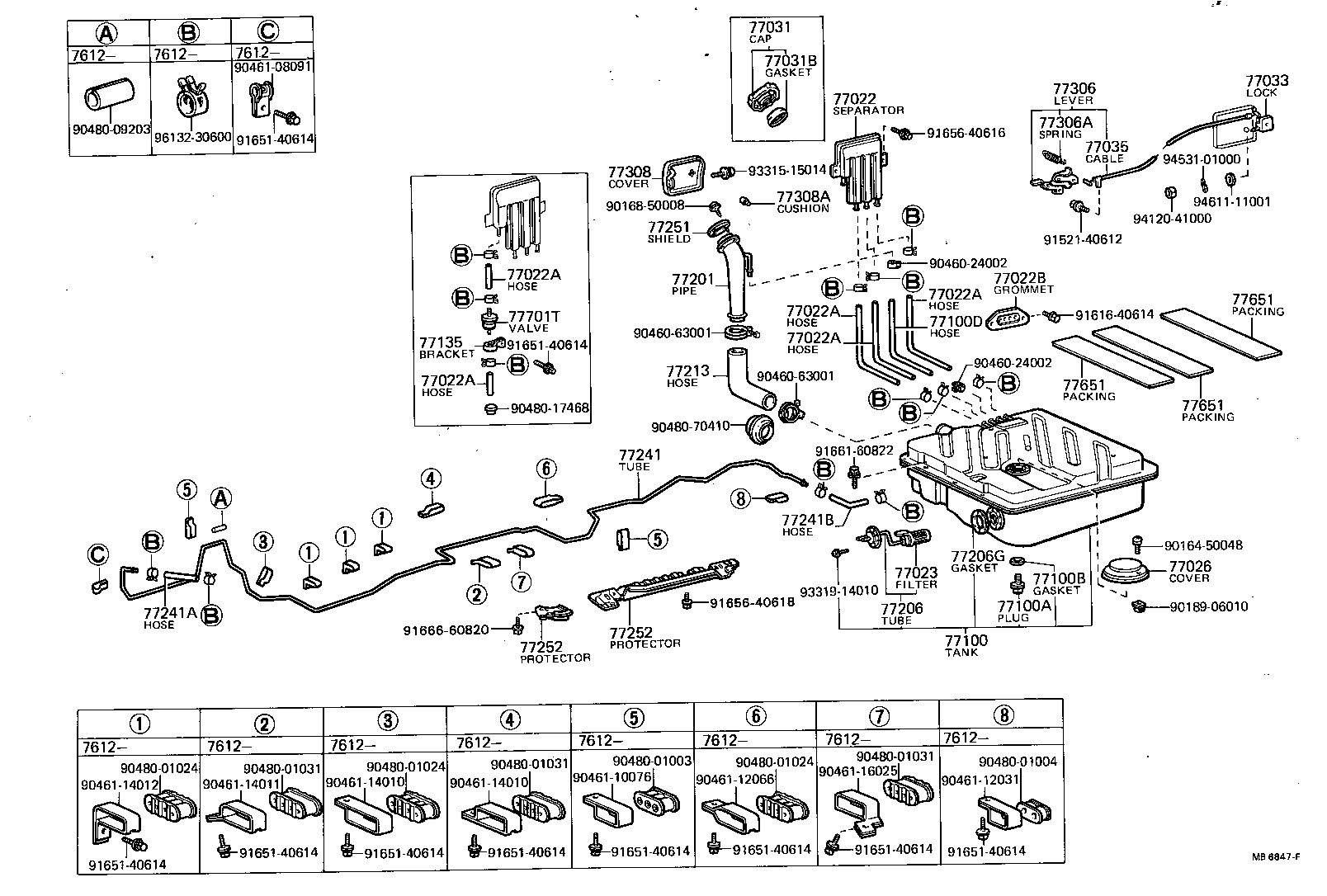

Fuel Tank & Tube
46 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 77022 | Separator Sub-assy, Fuel Evaporative |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77022B | Grommet(FOR FUEL EVAPORATIVE SEPARATOR FUEL HOSE) |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77026 | Cover Sub-assy, Fuel Sender Gage |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77033 | Lock Sub-assy, Fuel Tank Cap |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77135 | Bracket, Check Valve |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77206 | Tube Sub-assy, Fuel Tank Suction |
| 77206G | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77214K | Support Kit, Fuel Tank Tube |
| 77215K | Support Kit, Fuel Tank Gage |
| 77231 | Protector, Inlet Tube |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77251 | Shield, Fuel Tank, Inlet, NO.1 |
| 77252 | Protector, Fuel Tube |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77277 | Tube, Fuel Return, NO.1 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77295 | Shield, Fuel Filler Pipe |
| 77295A | Plate, Fuel Filler Pipe Shield Support |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77306A | Spring, Fuel Lid Open Lever |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77387 | Ring, Fuel Inlet Box |
| 77611 | Band, Fuel Tank |
| 77651 | Packing, Fuel Tank Bracket |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77758 | Cap, Charcoal Canister |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
