Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

19 part groups · 3 illustrations

Illustrations

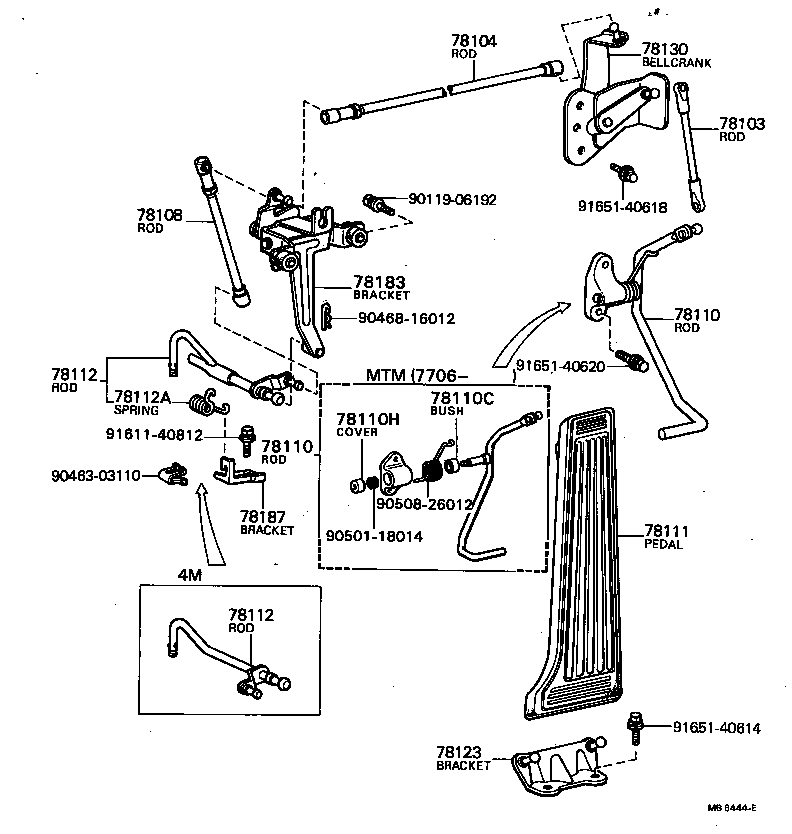

Figure MBA926 MBA926 1980-01 → 1980-08 Figure MB6444E MB6444E 1976-12 → 1980-08 Figure MB6445A MB6445A 1976-12 → 1980-08

Part groups

PNCDescription
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78108 Rod Sub-assy, Accelerator Connecting, NO.4
78110 Rod Assy, Accelerator Pedal
78110C Bush (FOR ACCELERATOR PEDAL ROD)
78110H Cover (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78112 Rod Sub-assy, Accelerator Connecting, NO.4
78112A Spring (FOR ACCELRATOR CONNECTING ROD)
78123 Bracket, Accelerator Pedal Support
78127 Bush, Accelerator Pedal, NO.2
78130 Bellcrank Assy, Accelerator
78180 Wire Assy, Accelerator
78183 Bracket, Accelerator Link Rod
78184 Channel, Accelerator Idle Adjusting Stopper
78184A Cushion (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
78187 Bracket, Accelerator Pull Back Spring
78191 Bracket, Accelerator Wire Support
78198 Boot, Accelerator Connecting Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
