Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

19 part groups · 4 illustrations

Illustrations

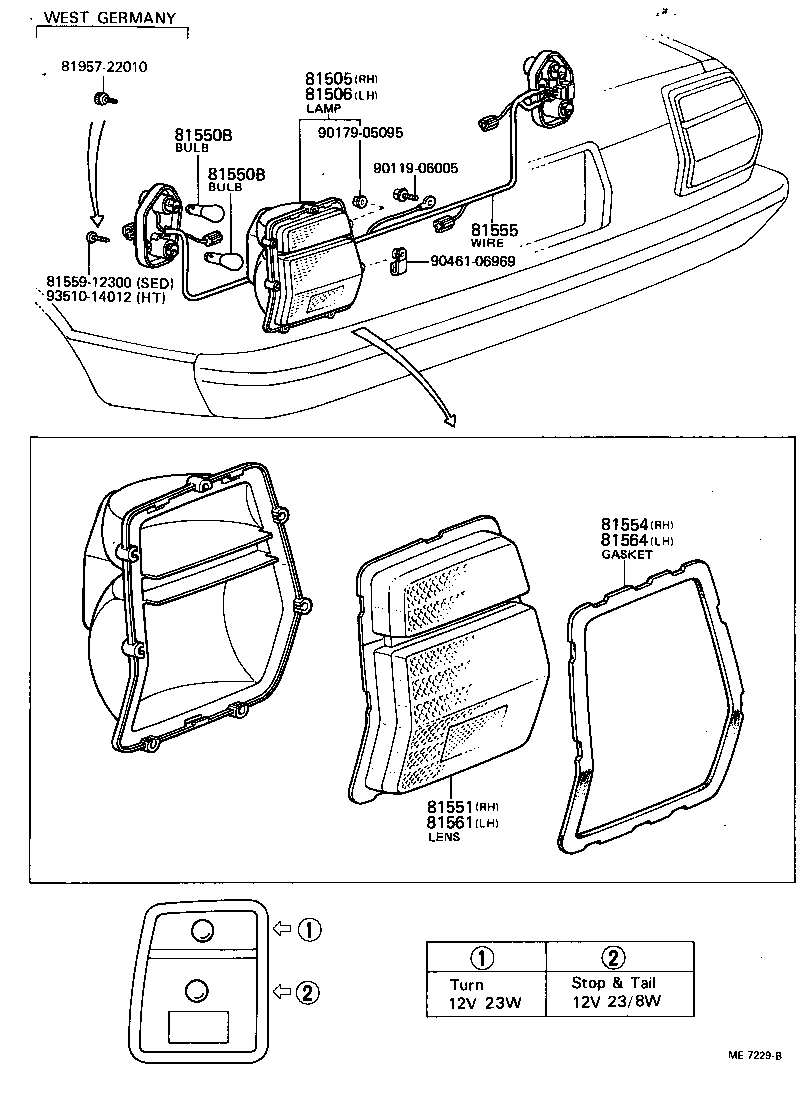

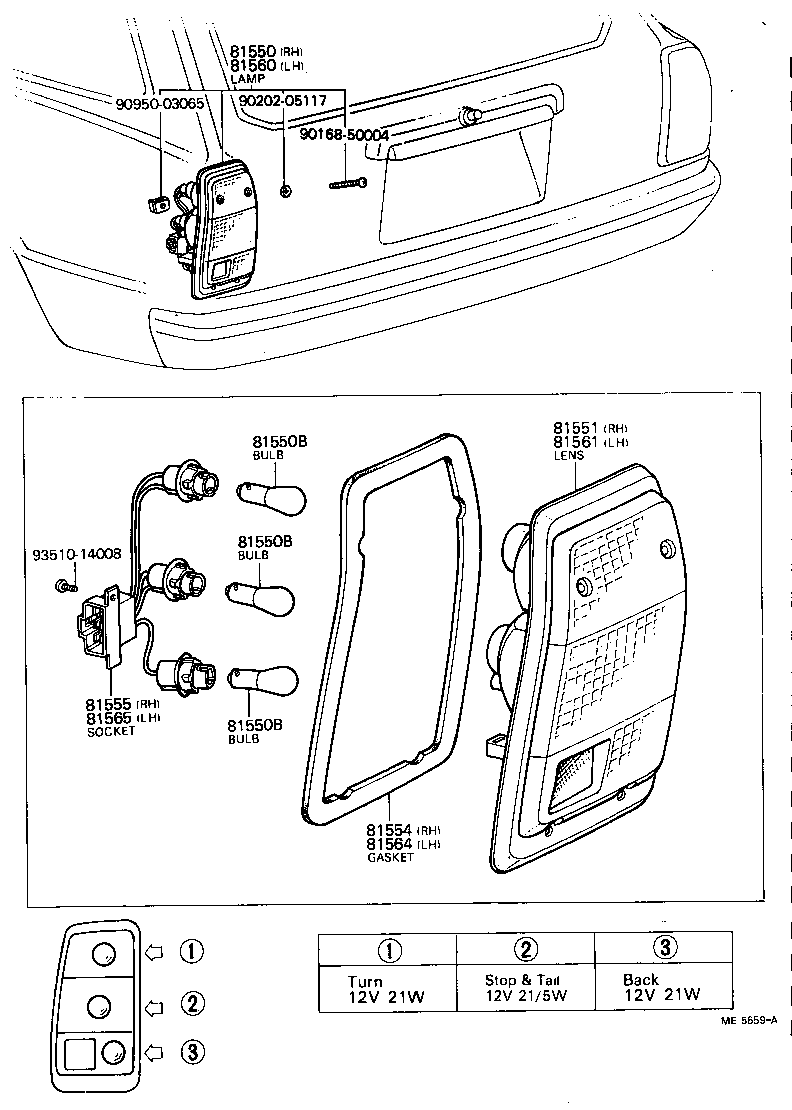

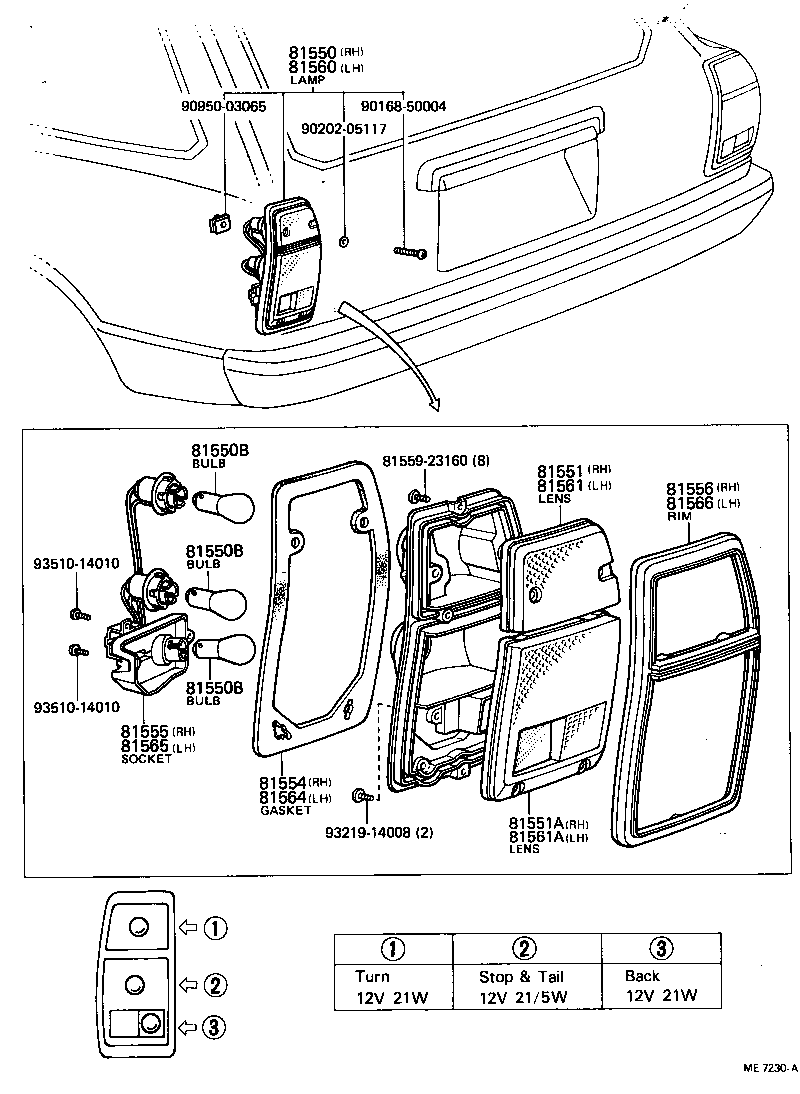

Figure ME5658B ME5658B 1976-12 → 1980-08 Figure ME7229B ME7229B 1978-08 → 1980-08 Figure ME5659A ME5659A 1976-12 → 1978-08 Figure ME7230A ME7230A 1978-08 → 1980-08

Part groups

PNCDescription
81505 Lamp Sub-assy, Rear Combination, RH
81506 Lamp Sub-assy, Rear Combination, LH
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81551A Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81556 Rim, Rear Combination Lamp, RH
81558 Shade, Rear Combination Lamp, NO.1 RH
81558A Shade, Rear Combination Lamp, NO.2 RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81561A Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81566 Rim, Rear Combination Lamp, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
81568A Shade, Rear Combination Lamp, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
