Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 9 illustrations

Illustrations

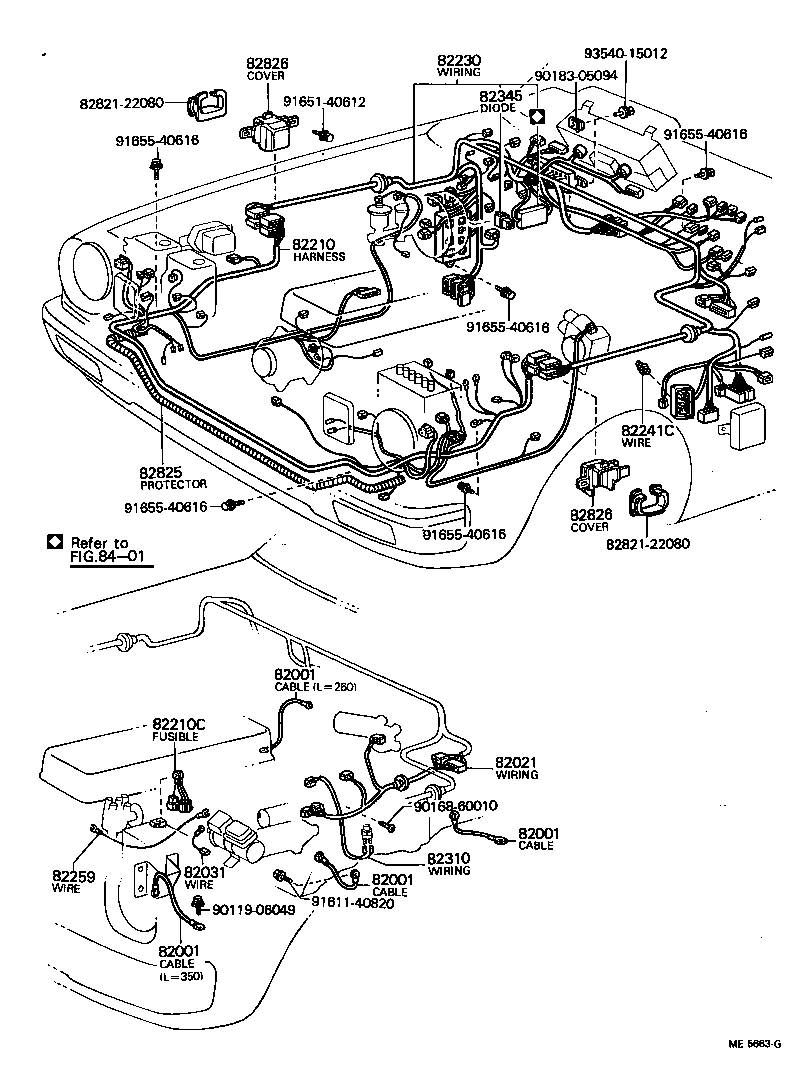

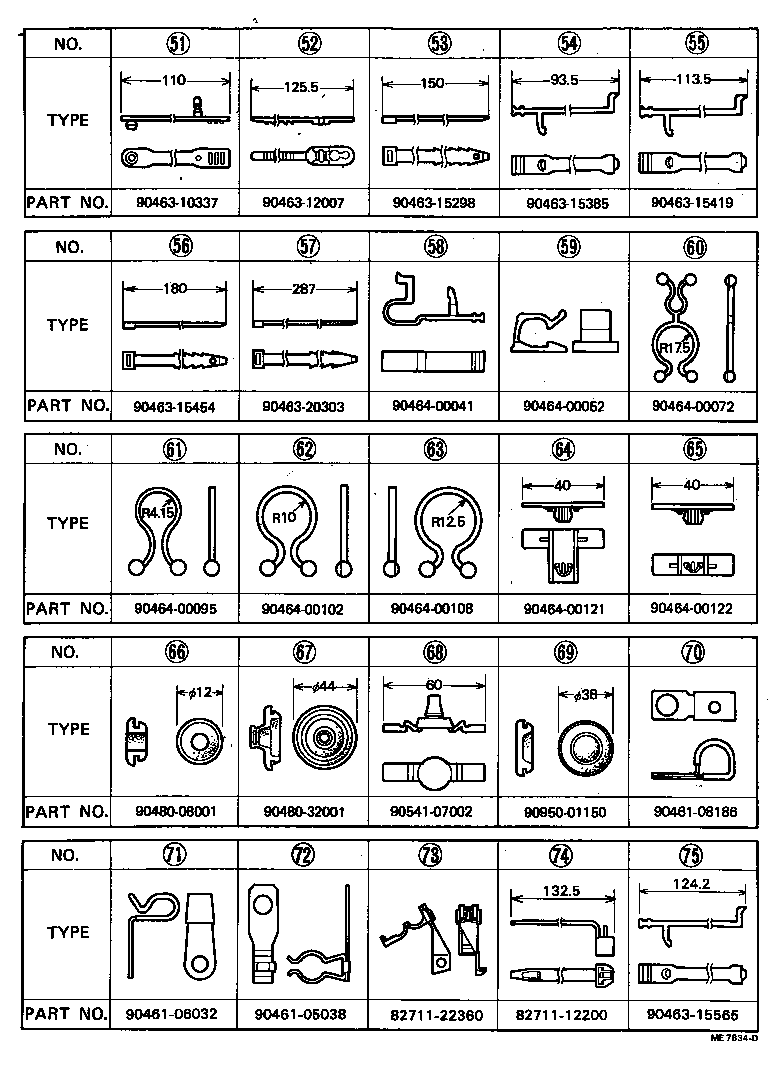

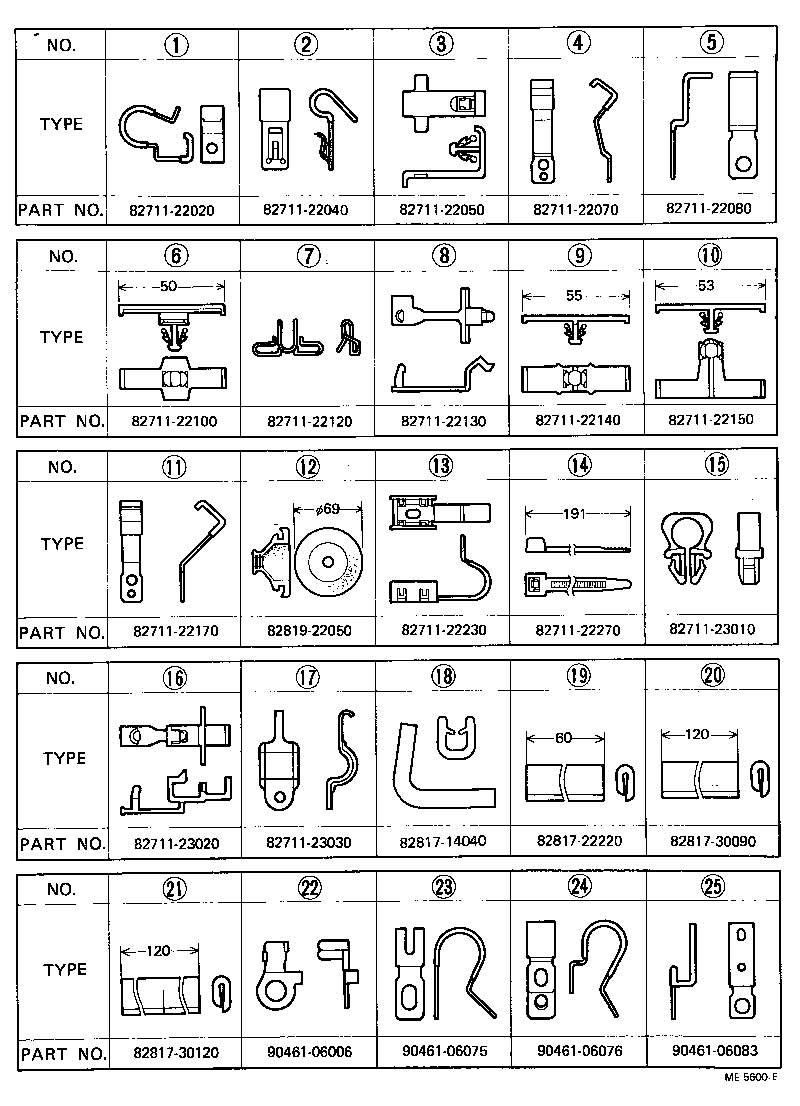

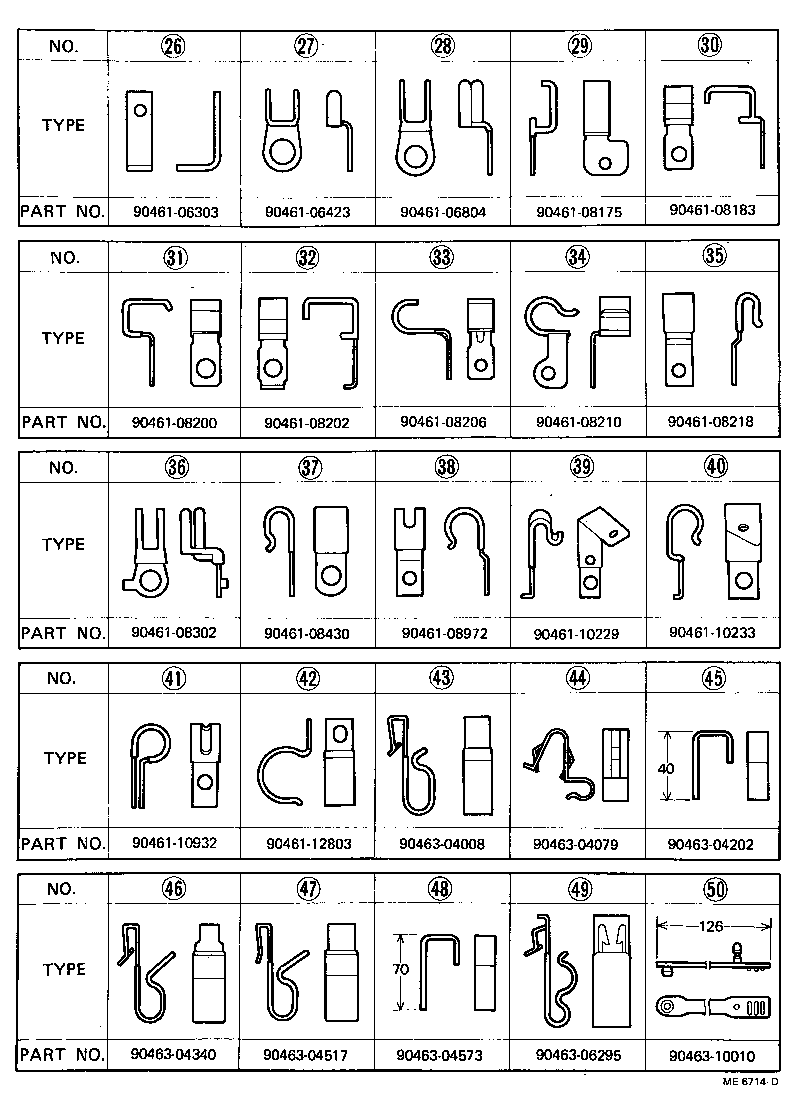

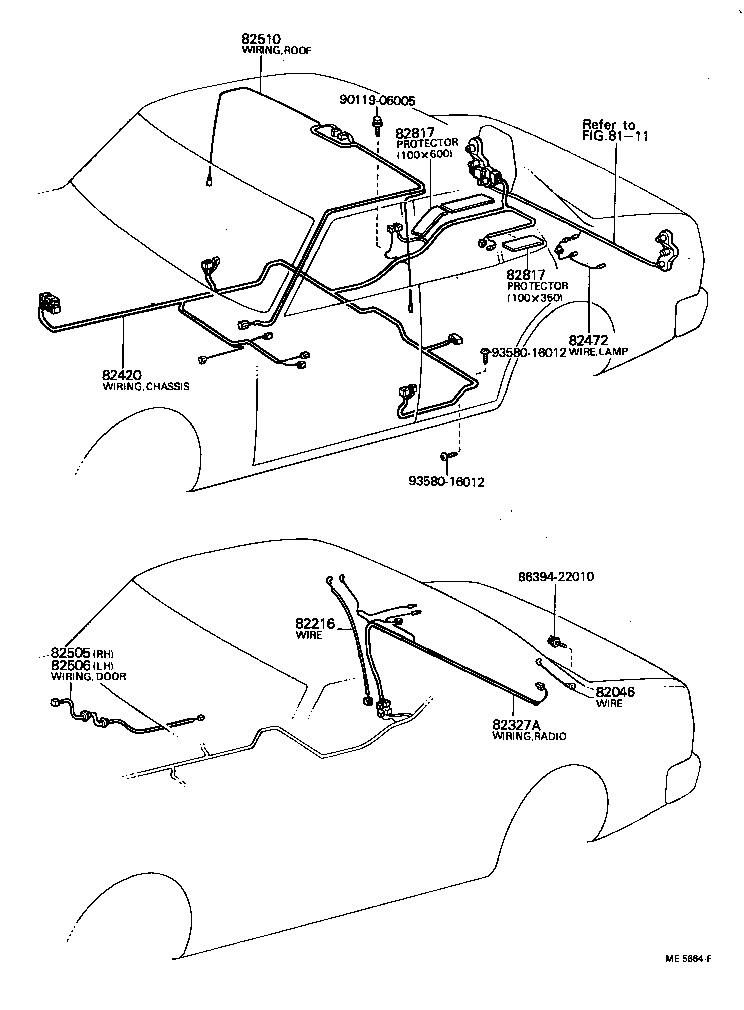

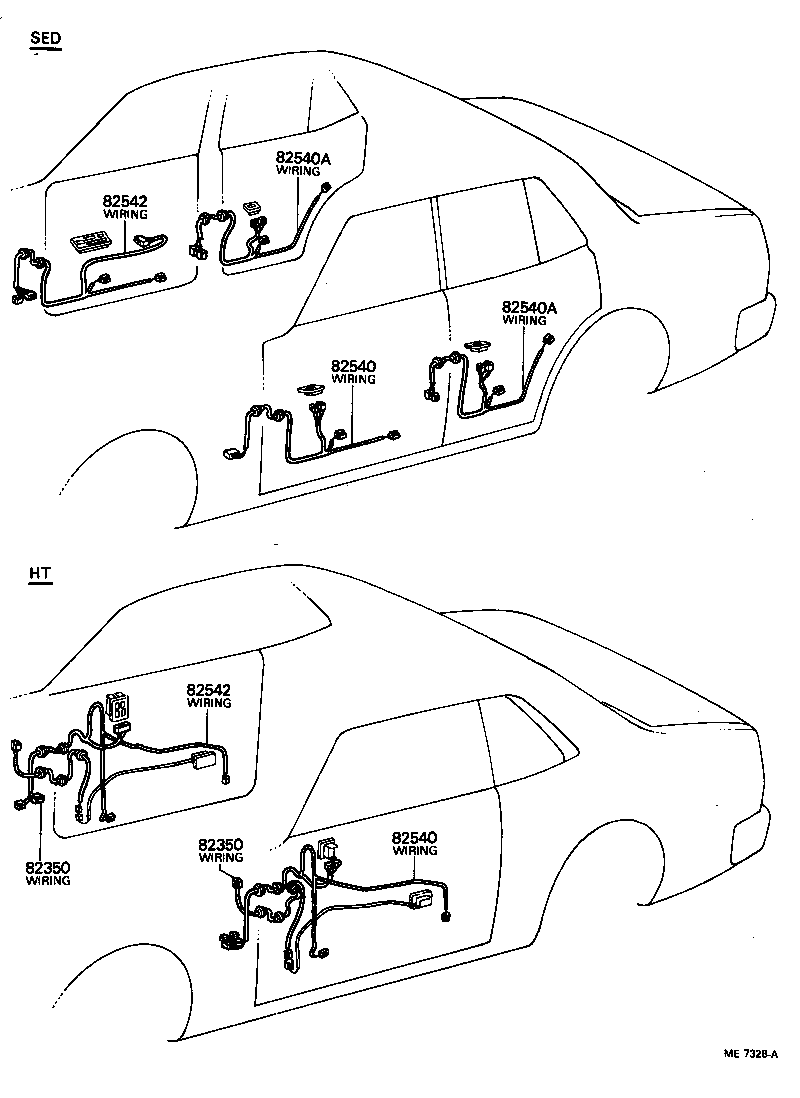

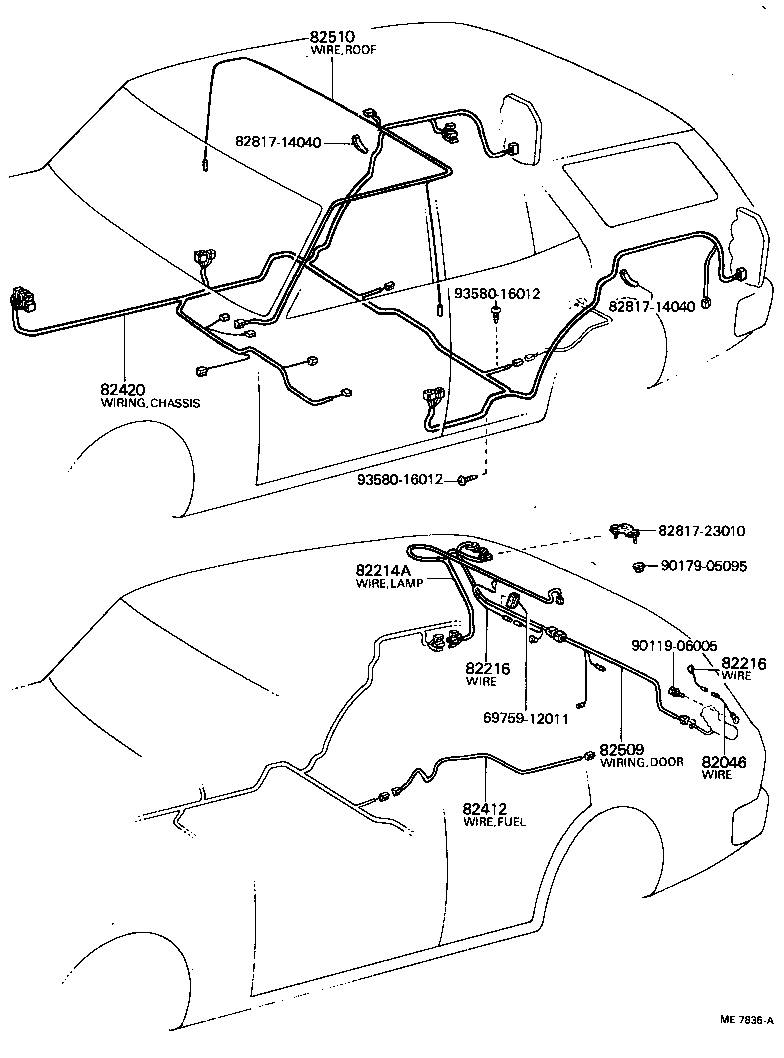

Figure ME5662J ME5662J 1976-12 → 1980-08 Figure ME5663G ME5663G 1976-12 → 1980-08 Figure ME5664F ME5664F 1976-12 → 1980-08 Figure ME7328A ME7328A 1976-12 → 1980-08 Figure ME7836A ME7836A 1976-12 → 1980-08 Figure ME5600E ME5600E 1976-12 → 1980-08 Figure ME6714D ME6714D 1976-12 → 1980-08 Figure ME7834D ME7834D 1976-12 → 1980-08 Figure ME8756B ME8756B 1976-12 → 1980-08

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82021 Wiring Assy, Starter
82031 Wire Sub-assy, Ignition Coil
82046 Wire Sub-assy, Rear Window Defogger Earth
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82214A Wire, Lamp
82216 Wire, Rear Window Defogger
82222 Wire, Heat Gage
82223 Wire, Switch
82230 Wiring Assy, Front Side
82230B Bulb, Front Side Wire
82241C Wire, Relay
82259 Wire, Distributor
82310 Wiring Assy, TO Back UP Lamp Switch
82327A Wiring Sub-assy, TO Radio Instration
82345 Diode
82350 Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR)
82371 Wire, Wiper Relay
82375A Wire, Wiper Motor
82412 Wire, Fuel Gage
82420 Wiring Assy, Chassis
82472 Wire, License Lamp
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82509 Wiring Sub-assy, Back Door
82510 Wiring Assy, Roof
82540 Wiring Assy, Power Window, Front LH
82540A Wiring Assy, Power Window, Rear
82542 Wiring Assy, Power Window, Front RH
82817 Protector, Wiring Harness, NO.1
82825 Protector, Wiring Harness
82826 Cover, Wiring Harness Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
