Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 5 illustrations

Illustrations

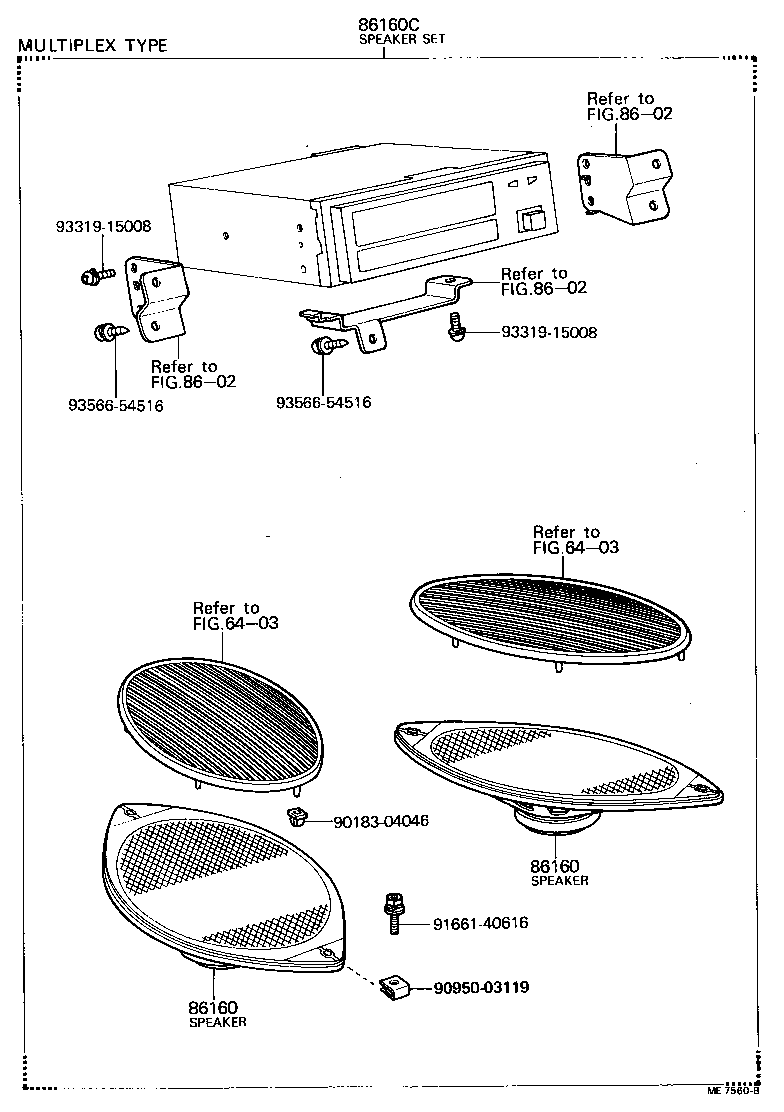

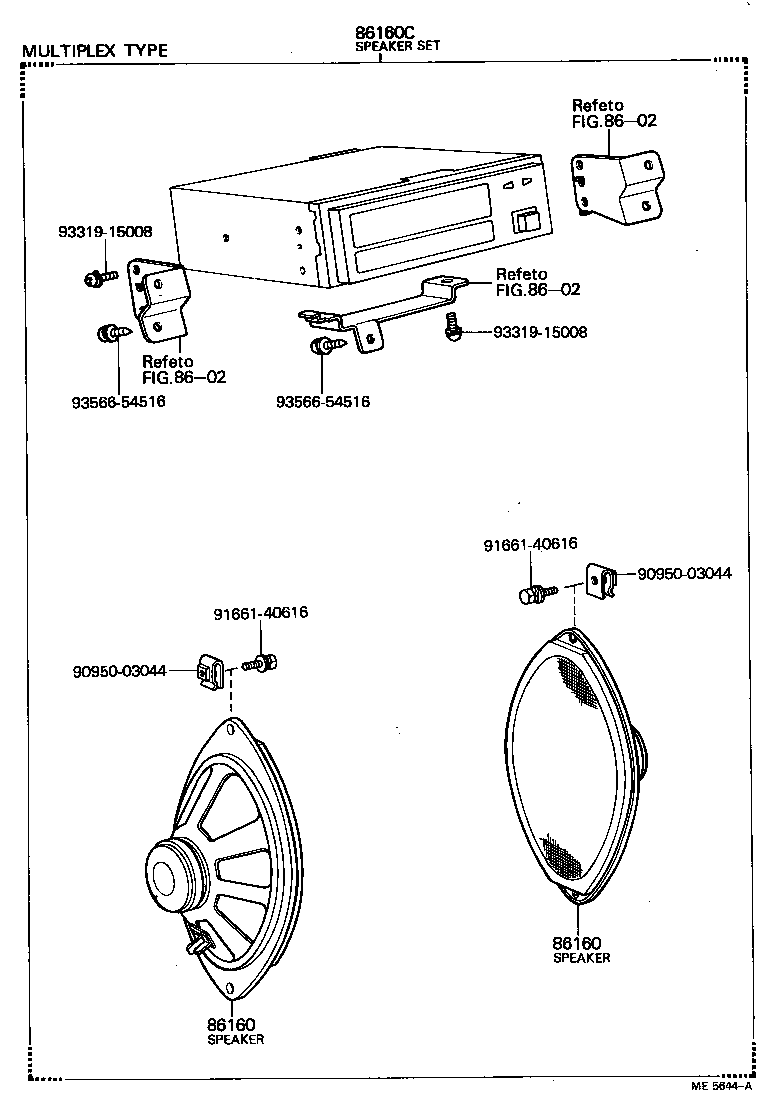

Figure ME6745C ME6745C 1976-12 → 1980-08 Figure ME7560B ME7560B 1978-08 → 1980-01 Figure ME7560B ME7560B 1979-08 → 1980-08 Figure ME7560B ME7560B 1980-01 → 1980-08 Figure ME5644A ME5644A 1979-08 → 1980-08

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86012 Parts Set, Radio Setting
86100 Radio Assy
86124 Knob, Radio Receiver Control
86125 Knob, Radio Receiver Switch
86160 Speaker Assy, Front NO.1
86160C Speaker Set, Rear
86211 Bracket, Radio, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
