Factory parts data · Europe

Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 3 illustrations

Illustrations

Figure ME5627D

ME5627D 1976-12 → 1978-08

Figure ME5627D

ME5627D 1978-08 → 1980-08

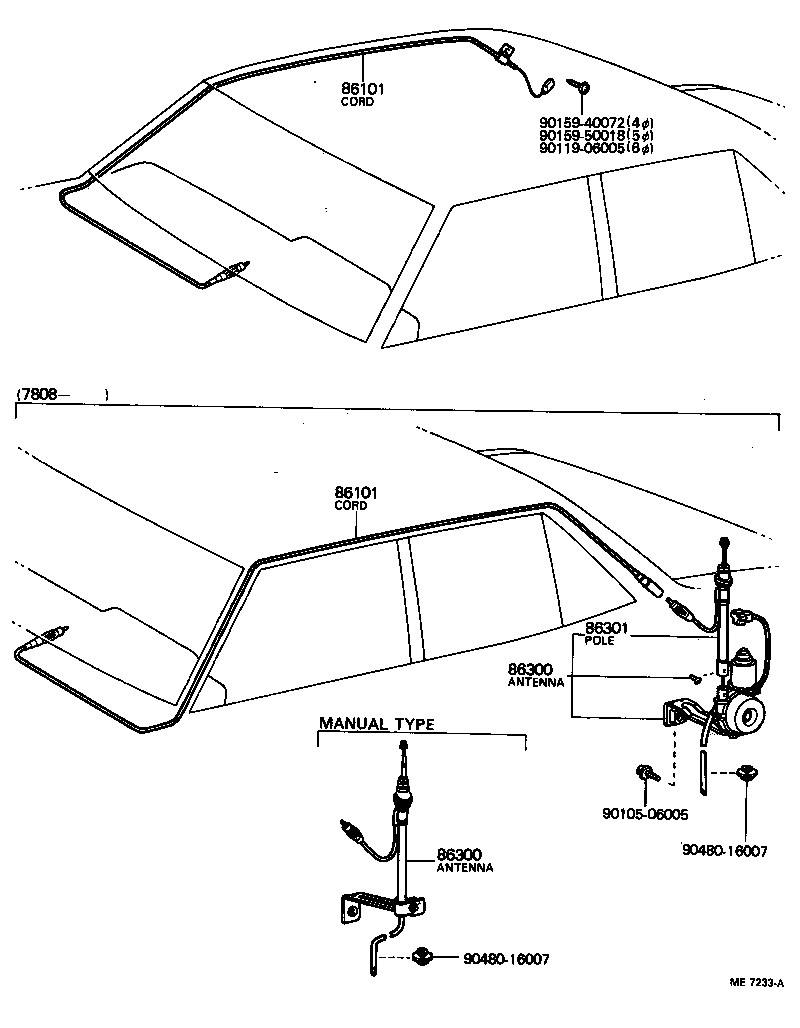

Figure ME7233A

ME7233A 1977-08 → 1980-08

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86301	Pole Sub-assy, Antenna
86309	Pole Sub-assy, Pillar Antenna
86391	Holder, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
