Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

8 part groups · 2 illustrations

Illustrations

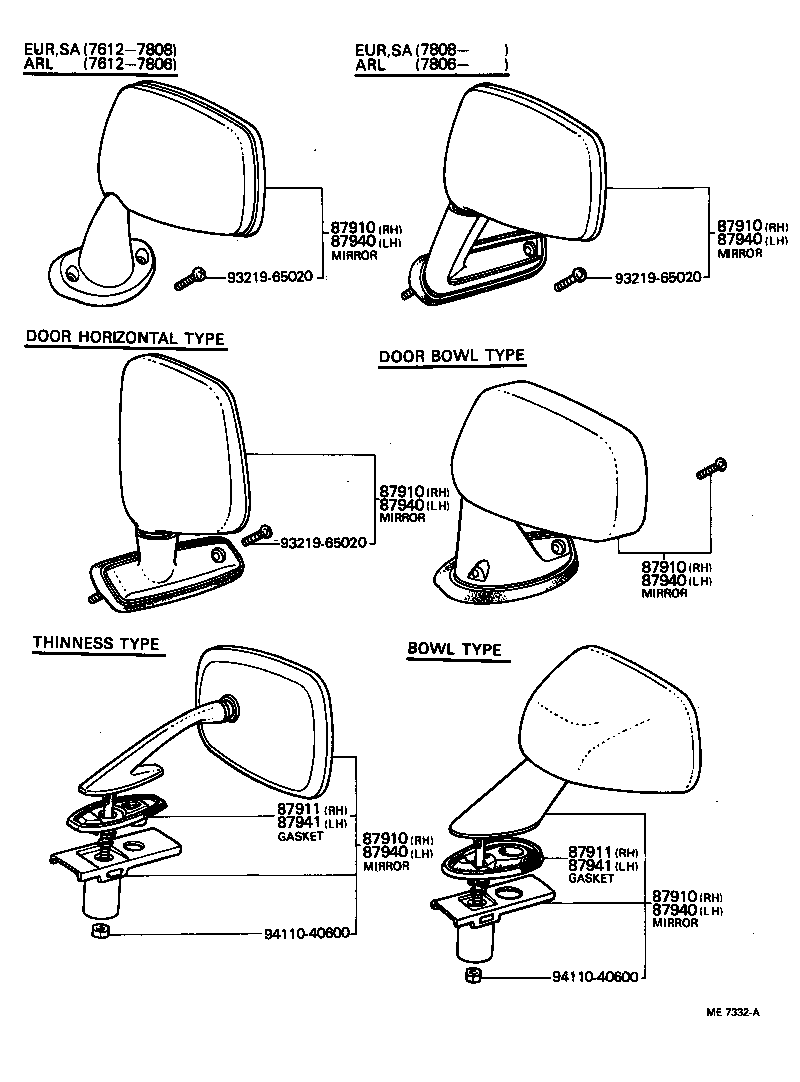

Figure ME5677D ME5677D 1976-12 → 1980-08 Figure ME7332A ME7332A 1976-12 → 1980-08

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87816 Spring, Inner Rear View Mirror
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
