Toyota Cressida
1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe
Discontinued model
Data version 1981-01
Heating & Air Conditioning - Heater Unit & Blower
15 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87114 | Cover, Heater |
| 87116 | Spring, Heater Case Fastening |

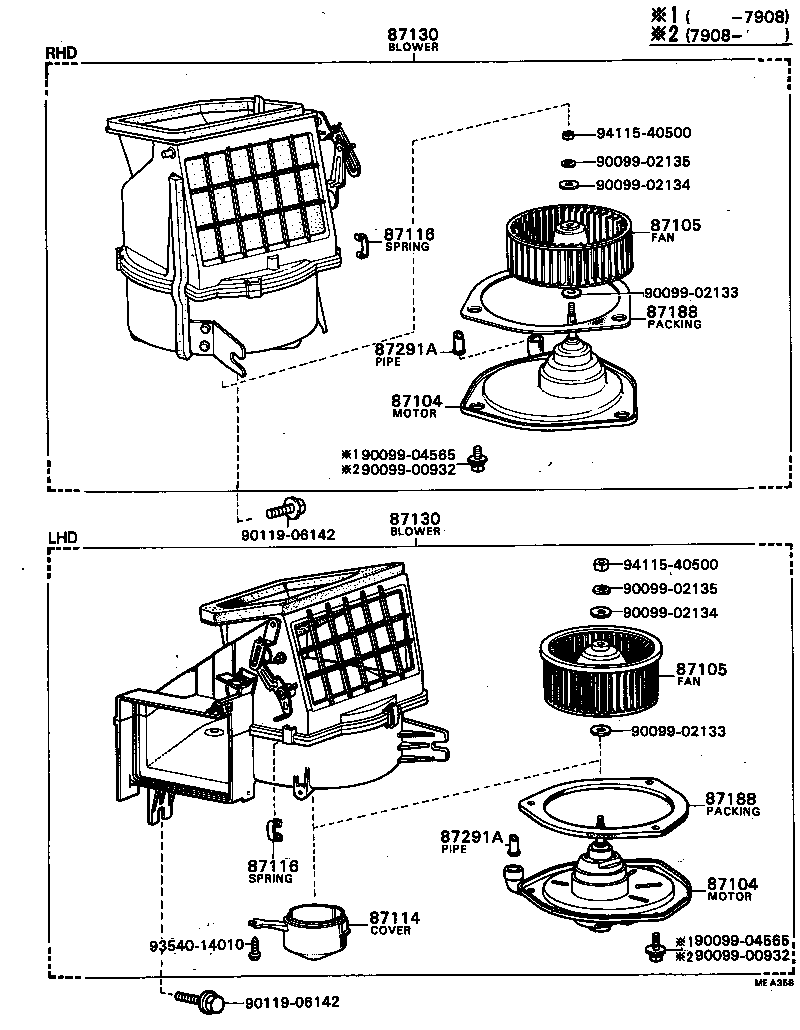

| 87130 | Blower Assy, Heater, Front |
| 87138 | Resistor, Heater Blower |

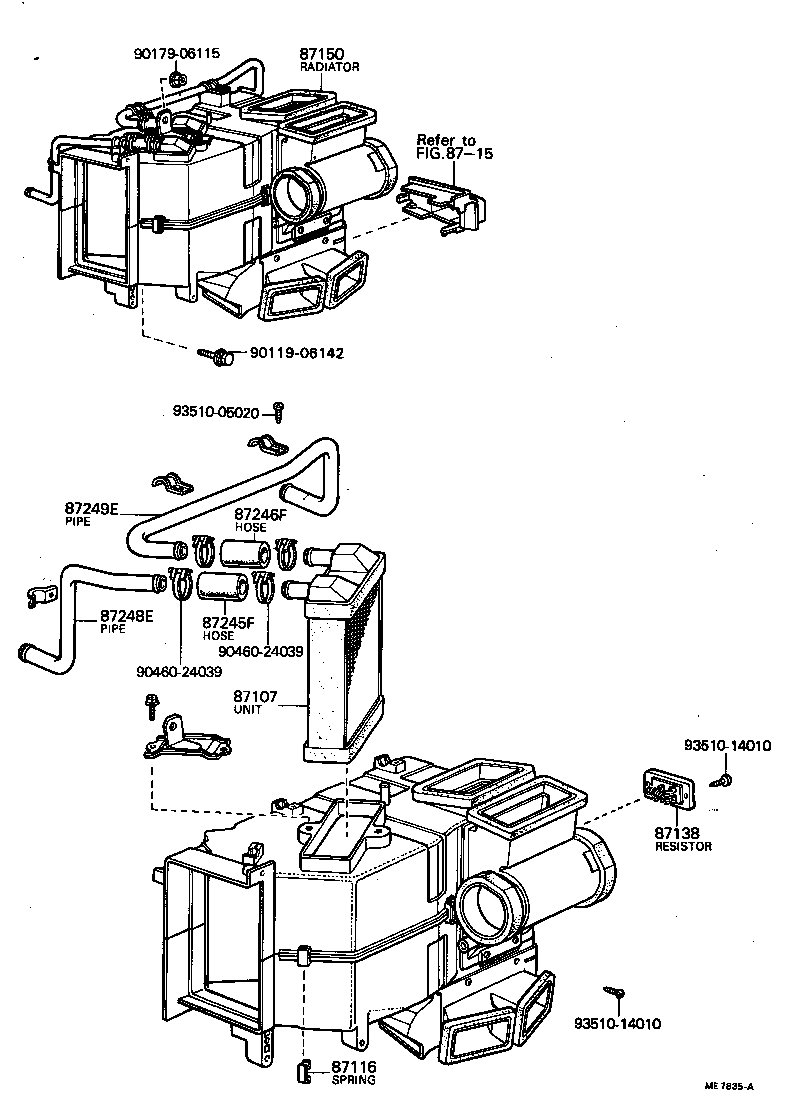

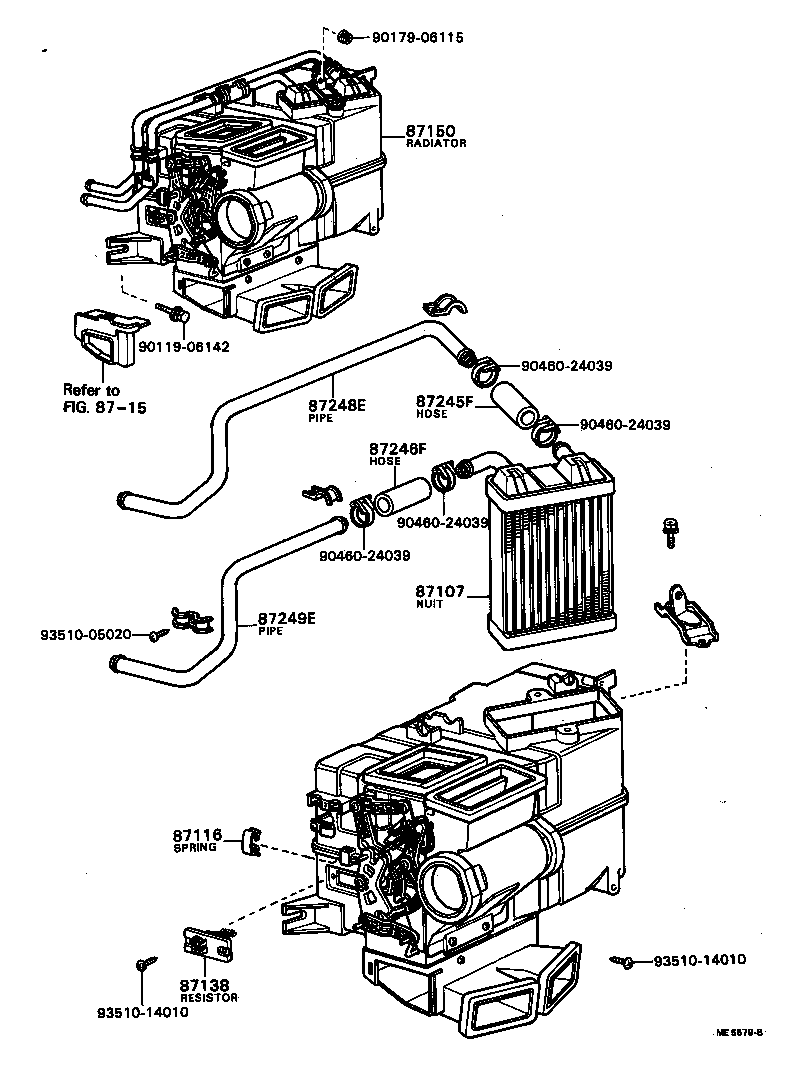

| 87150 | Radiator Assy, Heater |
| 87188 | Packing, Heater Blower Motor |
| 87245F | Hose, Heater Water, Inlet F |
| 87246F | Hose, Heater Water, Outlet F |
| 87248E | Pipe, Heater Water Inlet, E |
| 87249E | Pipe, Heater Water Outlet, E (FOR HEATER UNIT) |
| 87291A | Pipe, Air |

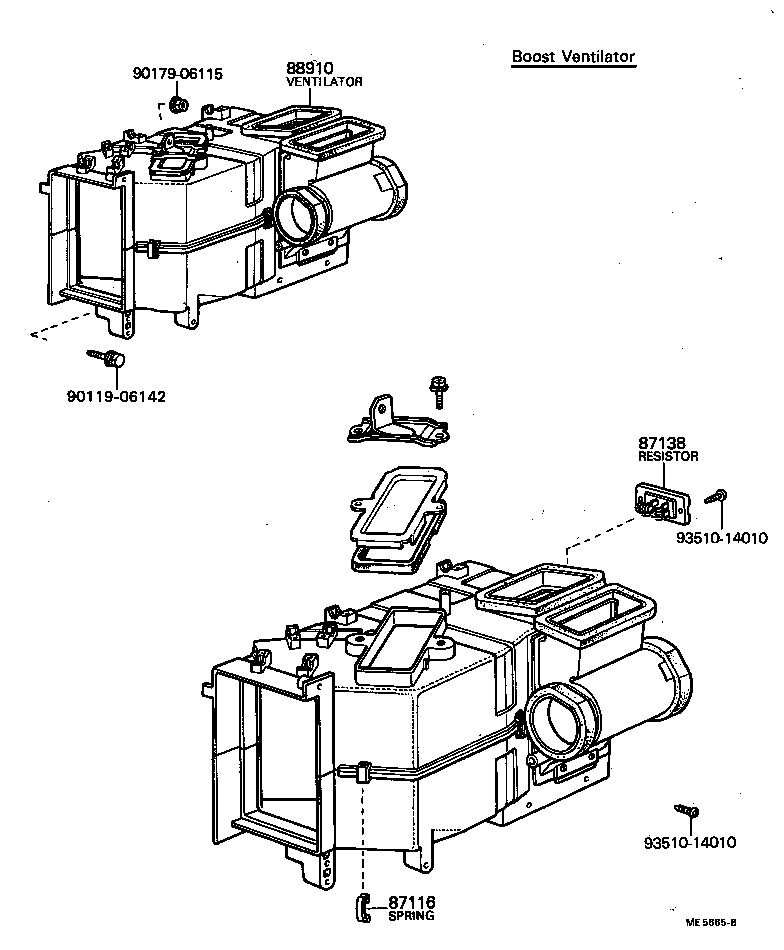

| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
