Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

16 part groups · 2 illustrations

Illustrations

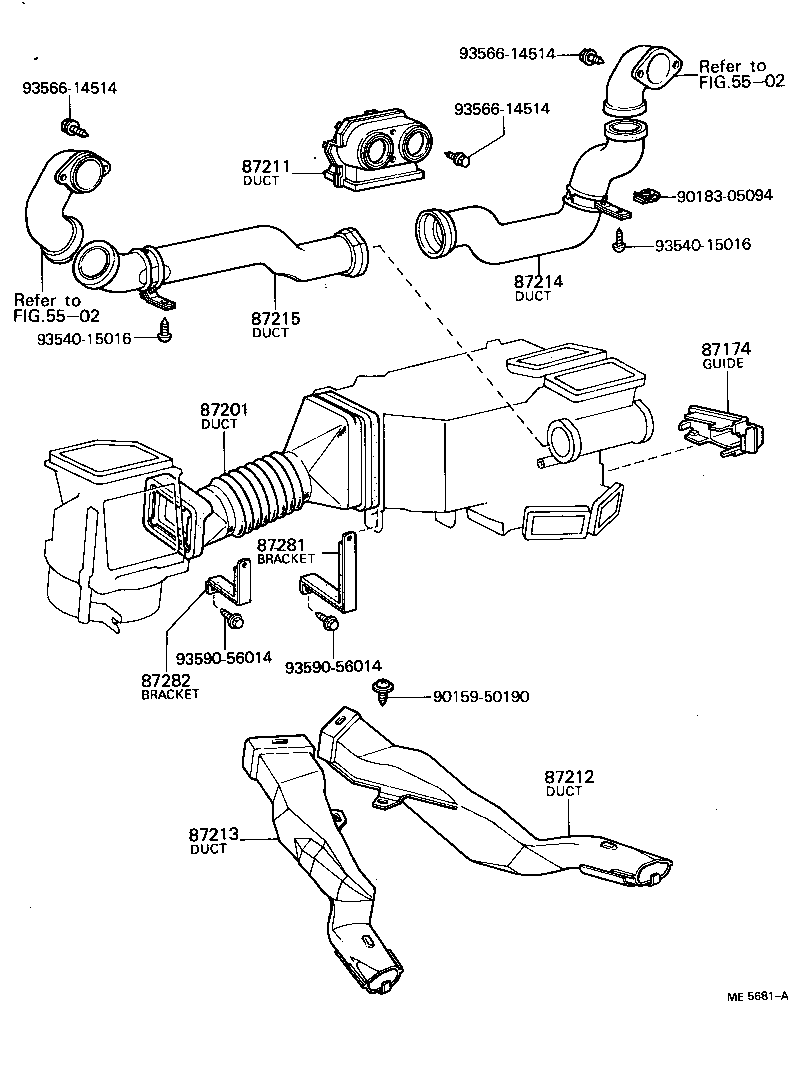

Figure ME6703A ME6703A 1976-12 → 1980-08 Figure ME5681A ME5681A 1976-12 → 1980-08

Part groups

PNCDescription
55903 Lever Sub-assy, Heater Control
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55910 Control Assy, Heater OR Boost Ventilator
55937 Knob, Heater Control Lever
87174 Guide, Air Duct
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87281 Bracket, Air Duct
87282 Bracket, Air Duct
87284 Resistor Sub-assy, Variable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
