Toyota Cressida
1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe
Discontinued model
Data version 1981-01

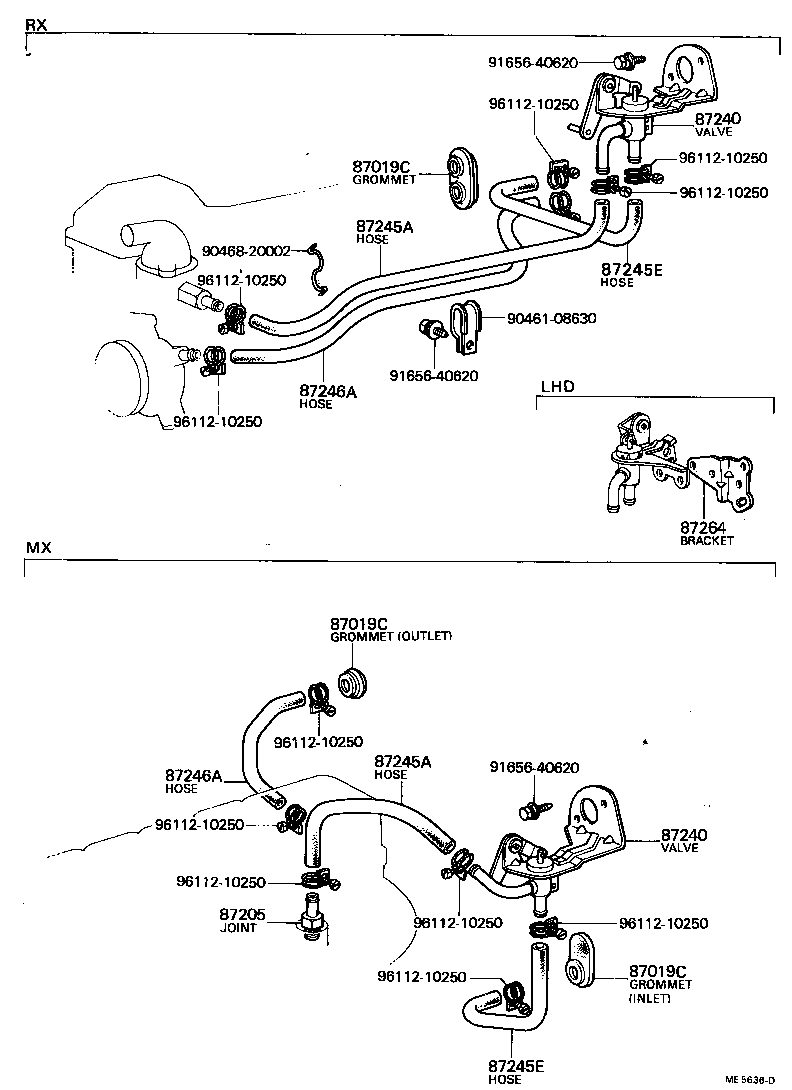

Heating & Air Conditioning - Water Piping
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87019C | Grommet, Heater Hose |
| 87205 | Joint OR Union, Front Heater Hose Through OR Inlet Valve |
| 87240 | Valve Assy, Heater Water |
| 87245A | Hose, Heater Water, Inlet A |
| 87245E | Hose, Heater Water, Inlet E |
| 87246A | Hose, Heater Water, Outlet A |
| 87264 | Bracket, Heater Water Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
