Toyota Cressida
1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe
Discontinued model
Data version 1985-04

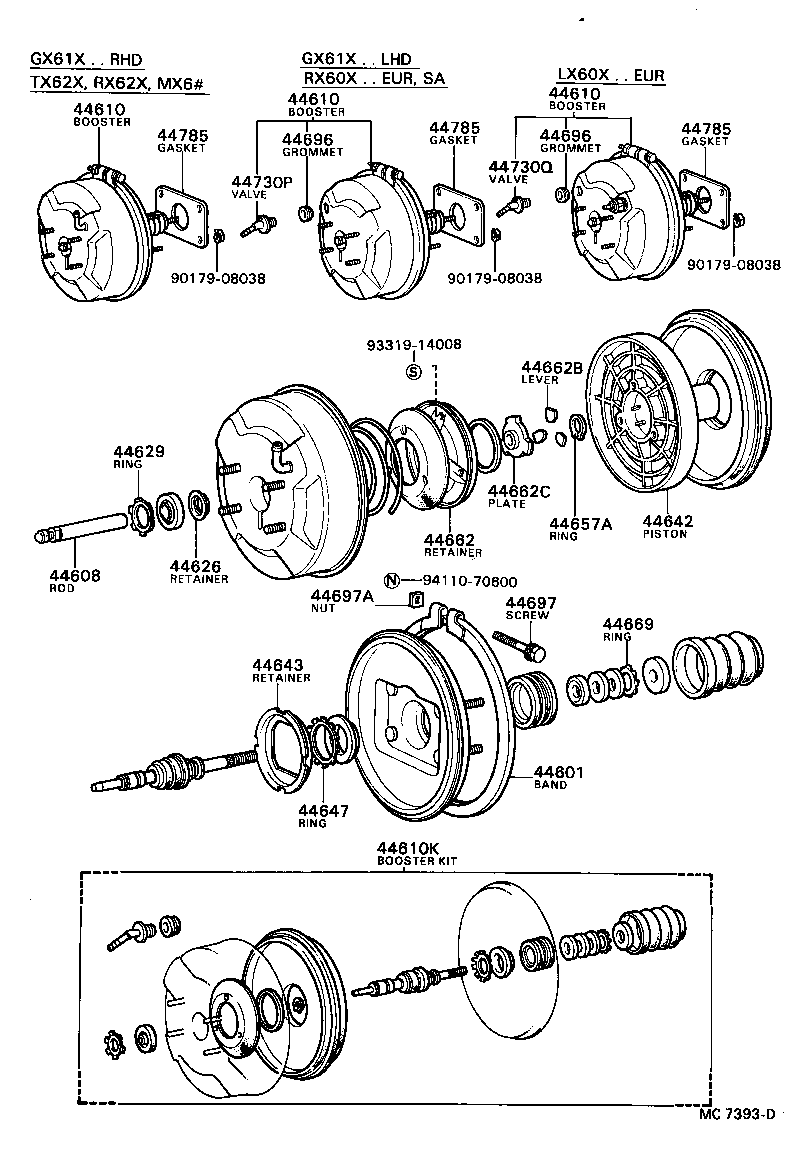

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44601 — Band Sub-assy, Booster Body | ||||
| 44605-30030 |
Band Sub-assy, Booster Body
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 ARL,EUR,SA | — | |
| 44608 — Push Rod Sub-assy, Booster | ||||
| 44606-35100 |
Push Rod Sub-assy, Booster
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 | — | |
| 44610 — Booster Assy, Brake | ||||
| 44610-22330 |
Booster Assy, Brake
1982-08 → 1984-07
ended
|
GX60 RHD GEN | — | |
| 44610-22350 |
Booster Assy, Brake
1980-09 → 1984-07
ended
|
LX60 GEN | — | |
| 44610-22360 |
Booster Assy, Brake
1980-09 → 1984-07
ended
|
RX60 GEN,ME,SAA | — | |
| 44610-22360 |
Booster Assy, Brake
1982-08 → 1984-07
ended
|
GX60 LHD | — | |
| 44610-22380 |
Booster Assy, Brake
1982-08 → 1984-07
ended
|
GX61 LHD | — | |
| 44610-22380 |
Booster Assy, Brake
1980-09 → 1985-04
ended
|
RX60 EUR,SA | — | |
| 44610-22390 |
Booster Assy, Brake
1980-09 → 1984-07
ended
|
LX60 EUG | — | |
| 44610-22400 |
Booster Assy, Brake
1982-08 → 1984-07
ended
|
GX61 RHD | — | |
| 44610-22400 |
Booster Assy, Brake
1980-09 → 1985-04
ended
|
GX60,MX6#,RX62,TX62 ARL,SA | — | |
| 44610K — Booster Kit, Brake | ||||
| 04443-22231 |
Booster Kit, Brake
1982-08 → 1984-07
ended
|
GX60 RHD GEN | — | |
| 04443-22260 |
Booster Kit, Brake
1980-09 → 1984-07
ended
|
LX60 GEN | — | |
| 04443-22270 |
Booster Kit, Brake
1980-09 → 1984-07
ended
|
RX60 GEN,ME,SAA | — | |
| 04443-22270 |
Booster Kit, Brake
1982-08 → 1984-07
ended
|
GX60 LHD | — | |
| 04443-22290 |
Booster Kit, Brake
1982-08 → 1984-07
ended
|
GX61 LHD | — | |
| 04443-22290 |
Booster Kit, Brake
1980-09 → 1985-04
ended
|
RX60 EUR,SA | — | |
| 04443-22300 |
Booster Kit, Brake
1980-09 → 1984-07
ended
|
LX60 EUG | — | |
| 04443-22310 |
Booster Kit, Brake
1980-09 → 1982-08
ended
|
MX62,RX62,TX62 | — | |
| 04443-22311 |
Booster Kit, Brake
1982-08 → 1984-07
ended
|
GX61,MX62 RHD | — | |
| 04443-22311 |
Booster Kit, Brake
1982-09 → 1985-04
ended
|
GX60,MX63,TX62 SA | — | |
| 44626 — Retainer, Booster Rod Cup | ||||
| 44626-60010 |
Retainer, Booster Rod Cup
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 | — | |
| 44629 — Ring, Circular Internal | ||||
| 44628-60010 |
Ring, Circular Internal
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 | — | |
| 44642 — Piston, Brake Booster | ||||
| 44642-14170 |
Piston, Brake Booster
1980-09 → 1984-07
ended
|
GX60,LX60,RX60 GEN,ME,SAA | — | |
| 44642-30030 |
Piston, Brake Booster
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 ARL,EUR,SA | — | |
| 44643 — Retainer, Diaphragm | ||||
| 44643-60010 |
Retainer, Diaphragm
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 | — | |
| 44647 — Ring, Circular Internal(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
Ring, Circular Internal(FOR BOOSTER BODY SEAL STOPPER)
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 | — | |
| 44657A — Ring, Snap(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
Ring, Snap(FOR BOOSTER AIR VALVE STOPPER)
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 | — | |
| 44662 — Retainer, Reaction, NO.1 | ||||
| 44662-20460 |
Retainer, Reaction, NO.1
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 ARL,EUR,SA | — | |
| 44662-35100 |
Retainer, Reaction, NO.1
1980-09 → 1984-07
ended
|
GX60,LX60,RX60 GEN,ME,SAA | — | |
| 44662B — Lever, Reaction | ||||
| 44661-35100 |
Lever, Reaction
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 | — | |
| 44662C — Plate, Reaction, NO.1 | ||||
| 44607-22330 |
Plate, Reaction, NO.1
1980-09 → 1984-07
ended
|
GX60,LX60,RX60 GEN,ME,SAA | — | |
| 44607-22380 |
Plate, Reaction, NO.1
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 ARL,EUR,SA | — | |
| 44669 — Ring, Circular Internal(FOR AIR CLEANER ELEMENT STOPPER) | ||||
| 44669-60010 |
Ring, Circular Internal(FOR AIR CLEANER ELEMENT STOPPER)
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 | — | |
| 44696 — Grommet, Check Valve | ||||
| 90480-24439 |
Grommet, Check Valve
1982-08 → 1984-07
ended
|
GX6# LHD | — | |
| 90480-24439 |
Grommet, Check Valve
1980-09 → 1985-04
ended
|
LX60,RX60 | — | |
| 44697 — Screw, Booster Band Set | ||||
| 44681-30170 |
Screw, Booster Band Set
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 ARL,EUR,SA | — | |
| 44697A — Nut(FOR BOOSTER BAND SET) | ||||
| 44686-30030 |
Nut(FOR BOOSTER BAND SET)
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 ARL,EUR,SA | — | |
| 44730P — Valve Assy, Vacuum Check, NO.1 | ||||
| 44730-10010 |
Valve Assy, Vacuum Check, NO.1
1982-08 → 1984-07
ended
|
GX6#,MX6#,TX62 RHD | — | |
| 44730-20010 |
Valve Assy, Vacuum Check, NO.1
1980-09 → 1982-08
ended
|
MX62,RX62,TX62 | — | |
| 44730-20030 |
Valve Assy, Vacuum Check, NO.1
1982-08 → 1984-07
ended
|
GX6# LHD | — | |
| 44730-20030 |
Valve Assy, Vacuum Check, NO.1
1980-09 → 1985-04
ended
|
RX60 | — | |
| 44730-22110 |
Valve Assy, Vacuum Check, NO.1
1980-09 → 1984-07
ended
|
LX60 | — | |
| 44730Q — Valve Assy, Vacuum Check, NO.2 | ||||
| 44730-20030 |
Valve Assy, Vacuum Check, NO.2
1980-09 → 1984-07
ended
|
LX60 | — | |
| 44785 — Gasket, Brake Booster | ||||
| 44785-30020 |
Gasket, Brake Booster
1980-09 → 1985-04
ended
|
GX6#,LX60,MX6#,RX6#,TX62 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
