Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

33 part groups · 8 illustrations

Illustrations

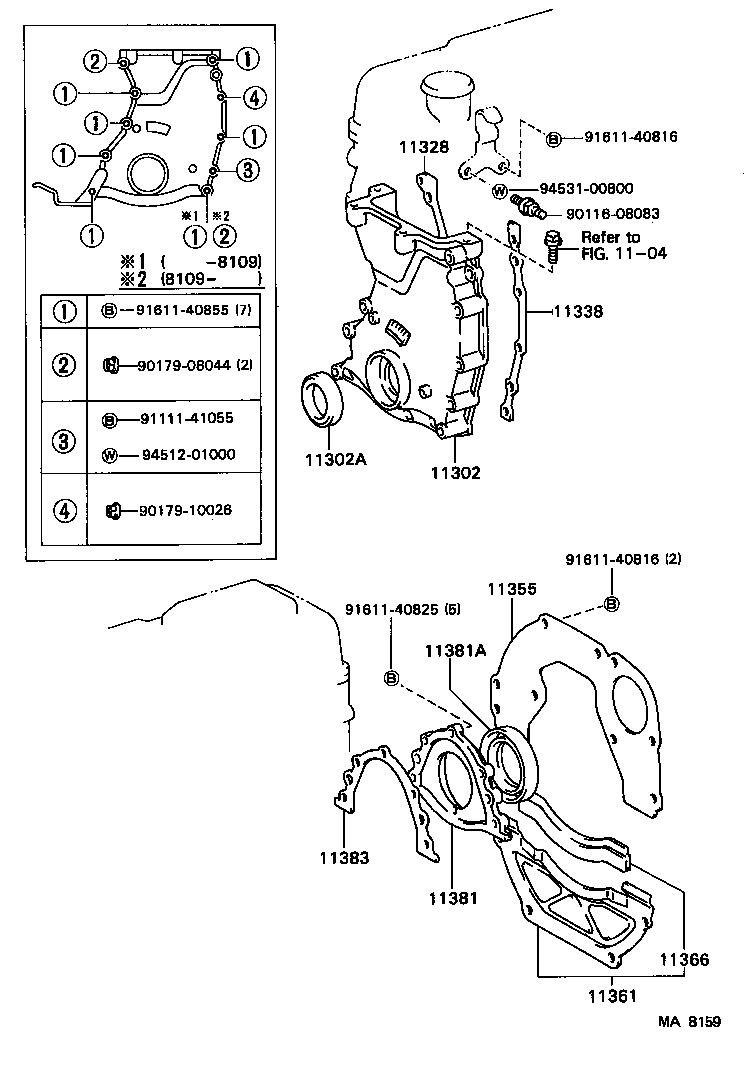

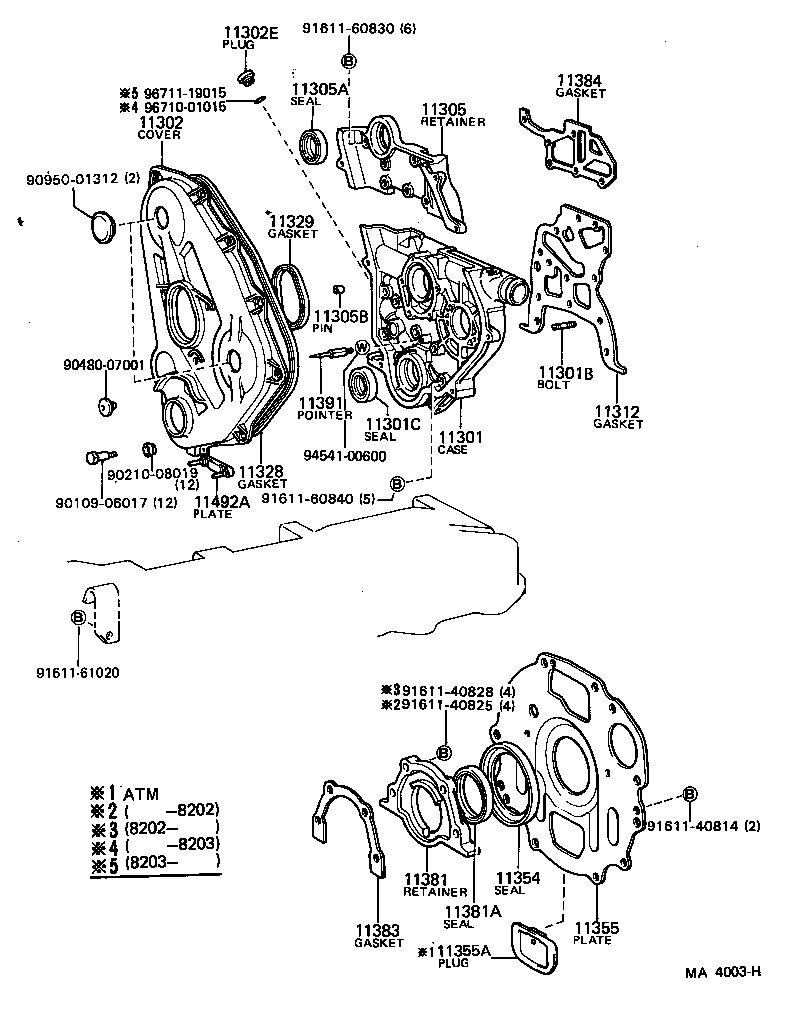

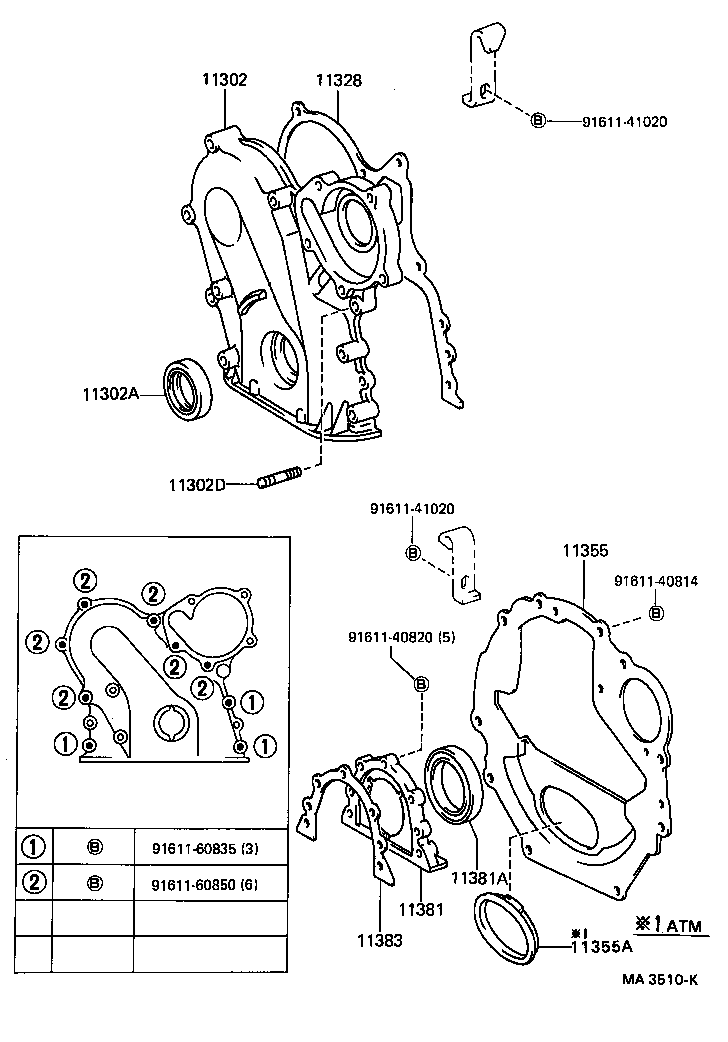

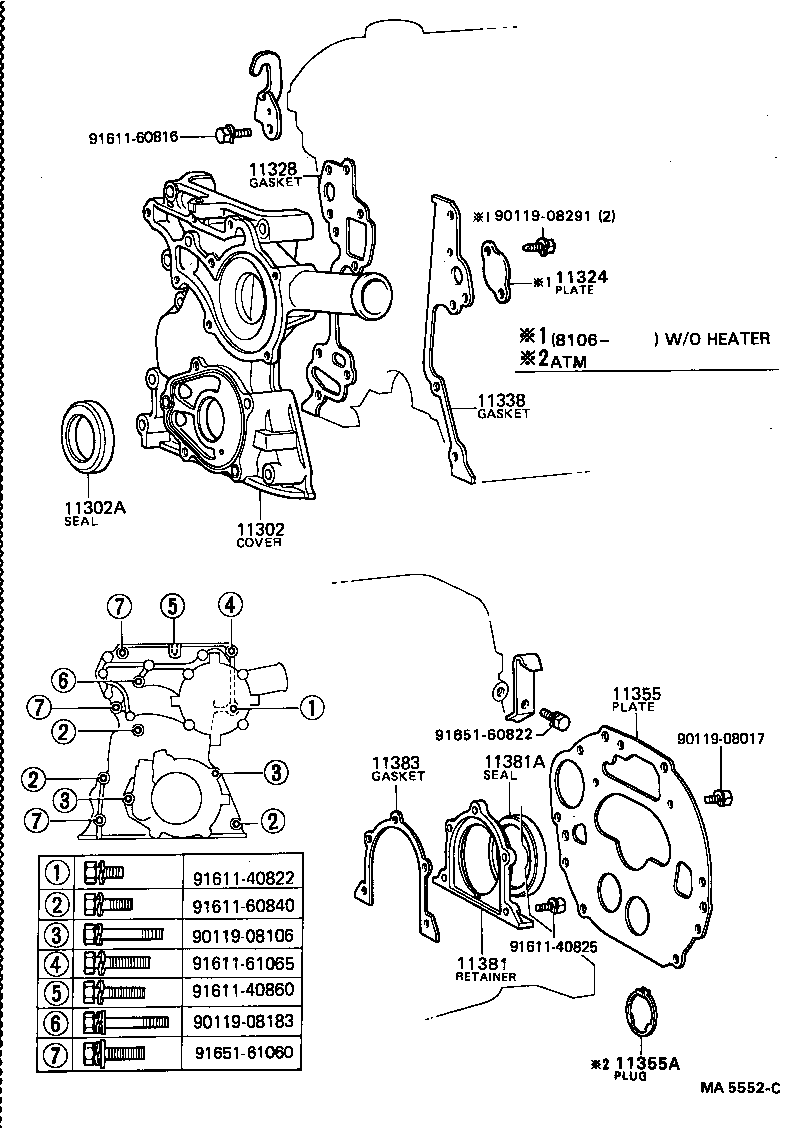

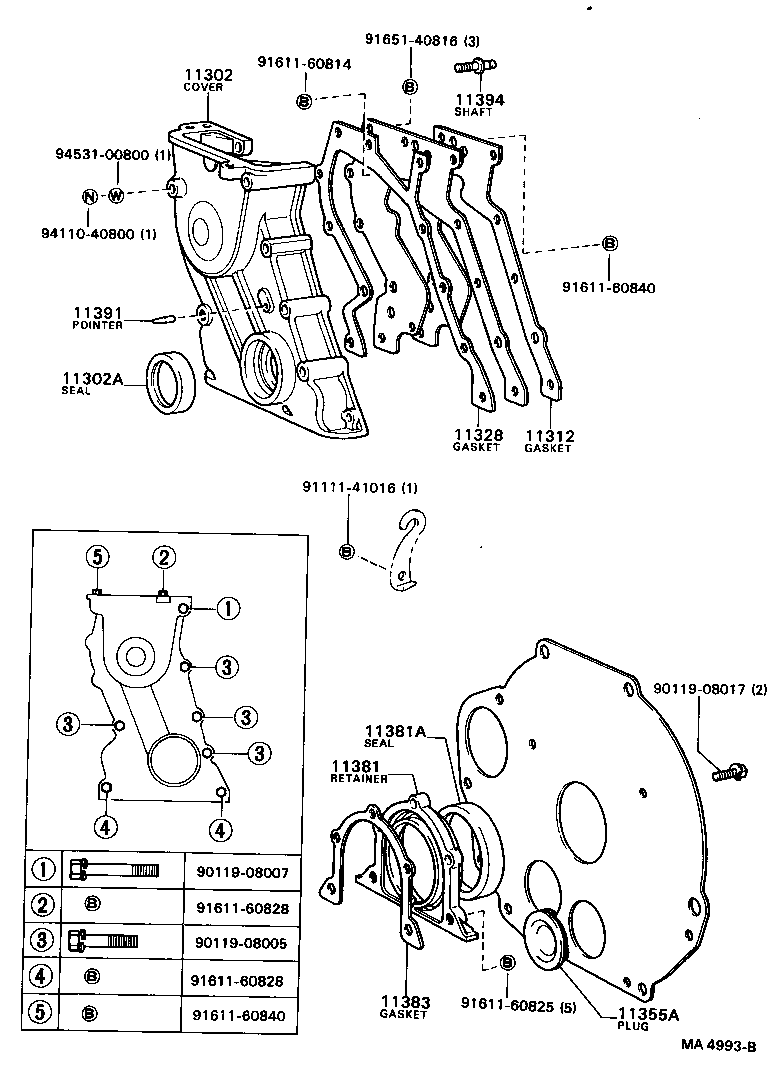

Figure MA5926B MA5926B 1982-08 → — Figure MA4003H MA4003H 1980-09 → — Figure MA8159 MA8159 1980-09 → — Figure MA4993B MA4993B 1981-07 → 1982-08 Figure MA5552C MA5552C 1980-09 → 1984-07 Figure MA5310A MA5310A 1984-08 → — Figure MA8168 MA8168 1984-08 → — Figure MA3510K MA3510K 1981-07 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301B Bolt,Stud(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302D Bolt, Stud(FOR TIMING GEAR COVER)
11302E Plug, Straight(FOR TIMING GEAR COVER)
11304 Cover, Timing Chain OR Belt, NO.2
11305 Retainer, Oil Seal, NO.2
11305A Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
11305B Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11307 Cover, Sub-assy, Timing Belt, NO.3
11309 Cover Sub-assy, Timing Belt, NO.4
11312 Gasket, Front End Plate
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11338 Gasket, Timing Chain Cover, NO.2
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11361 Cover, Flywheel Housing Under
11366 Seal, Flywheel Housing Under Cover Dust
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11384 Gasket, Oil Seal Retainer, NO.2
11385 Retainer, Camshaft Oil Seal
11385A Seal, Oil(FOR CAMSHAFT)
11391 Pointer, Timing
11394 Shaft, Chain Tenshioner
11492A Plate, Water Seal
12282 Hanger, Engine, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
