Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 9 illustrations

Illustrations

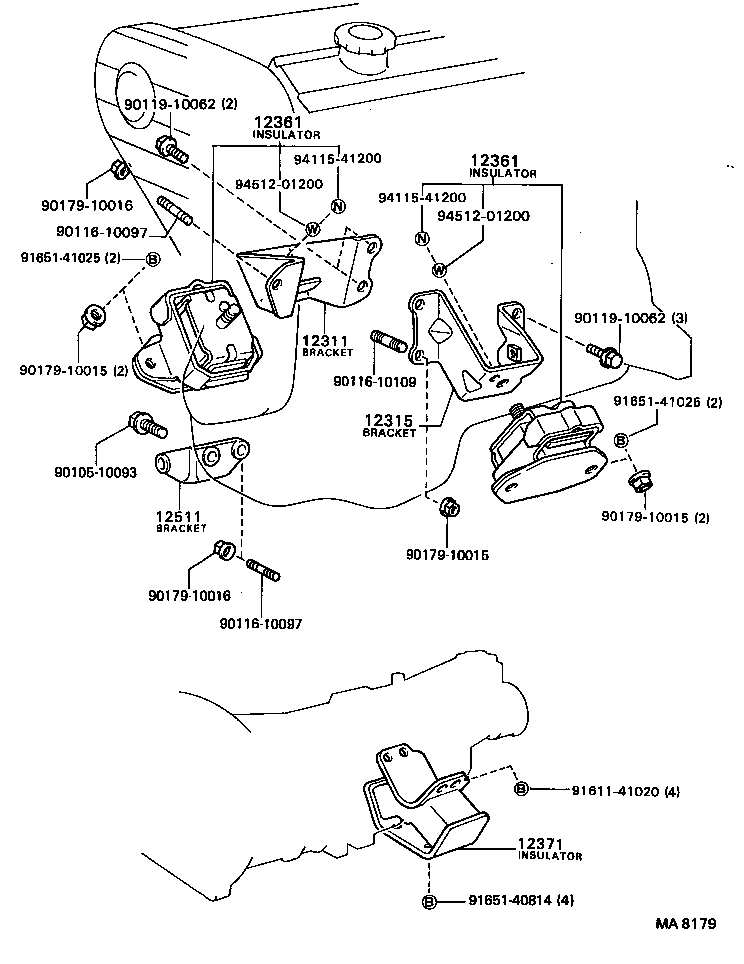

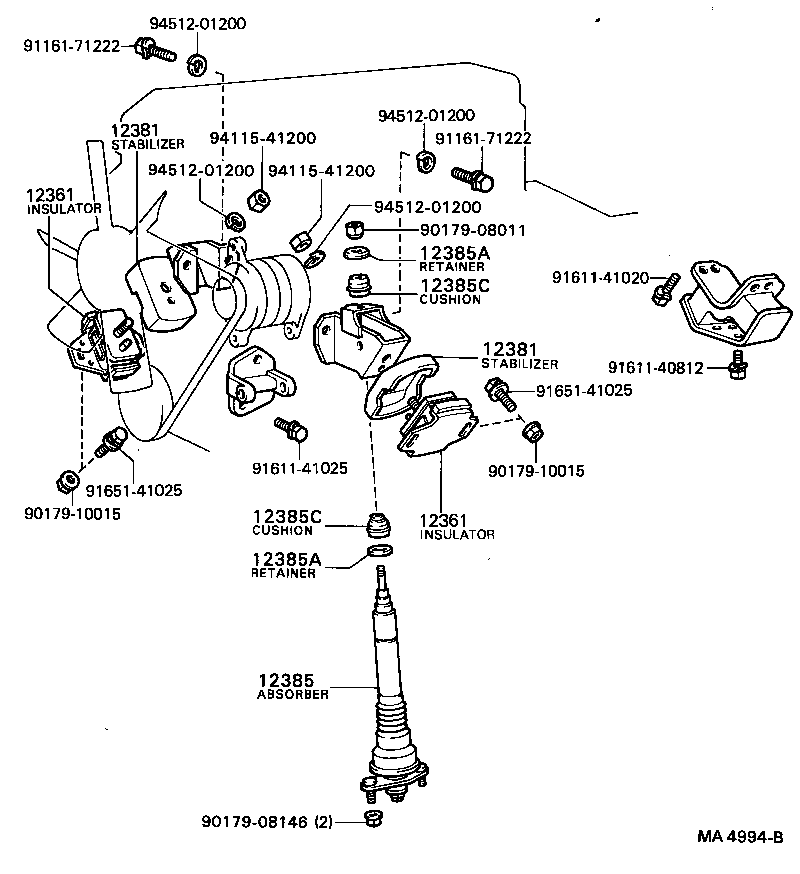

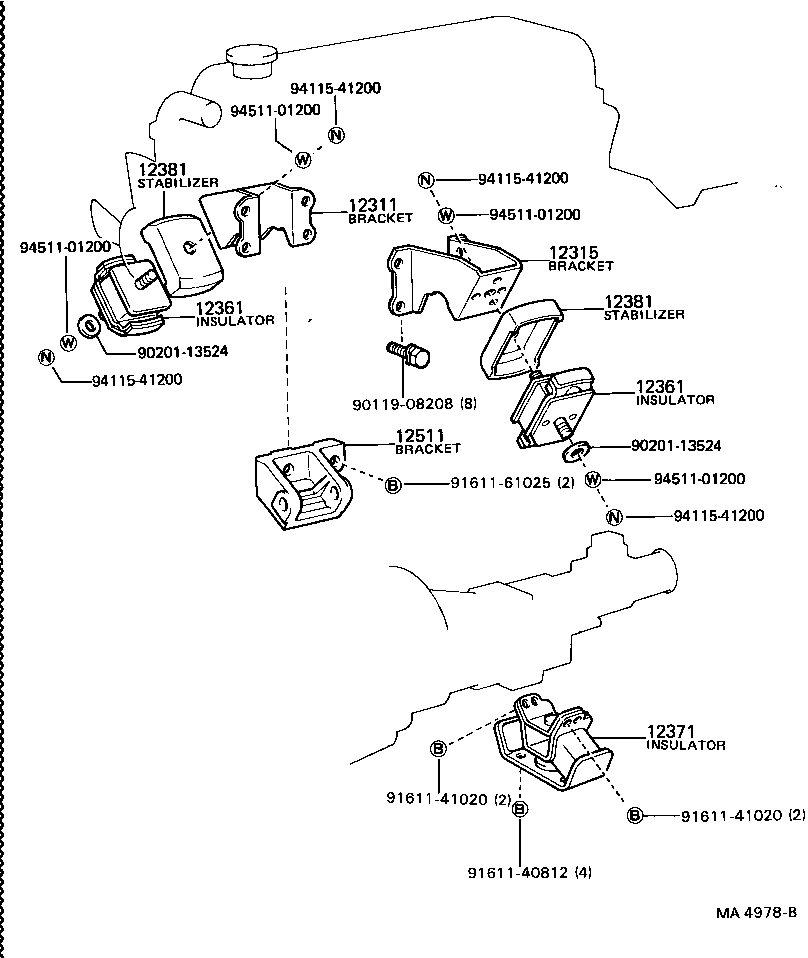

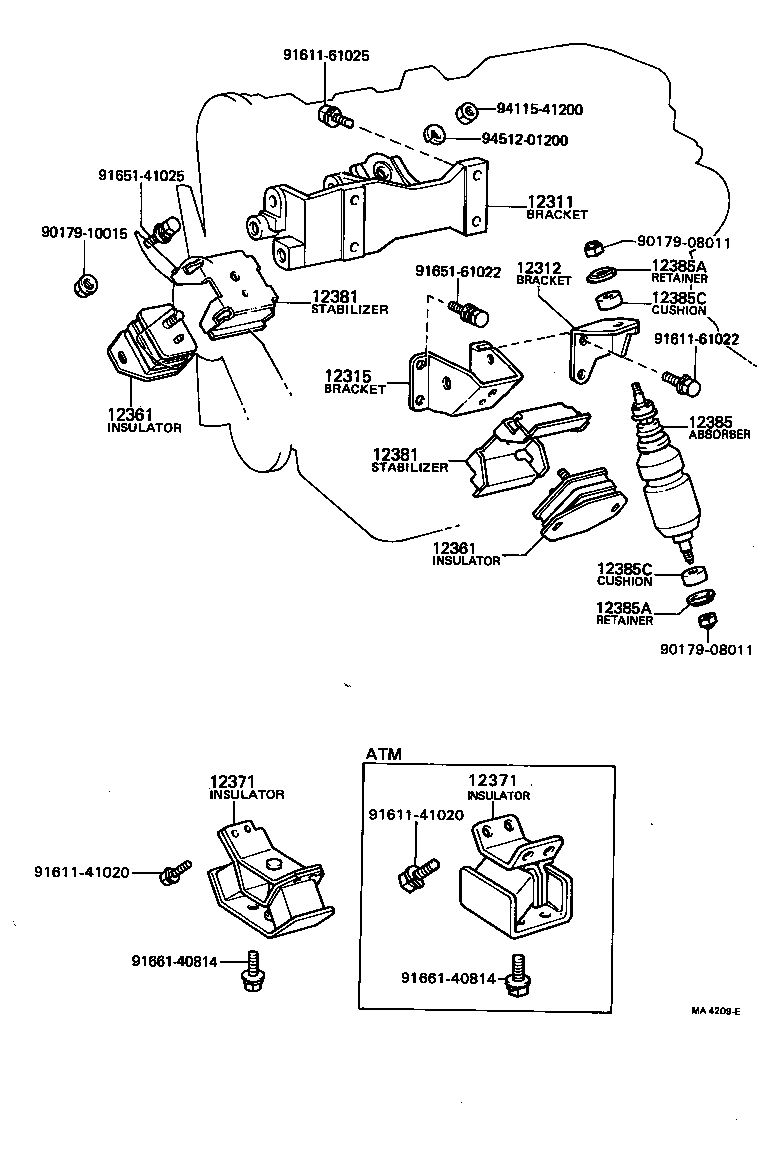

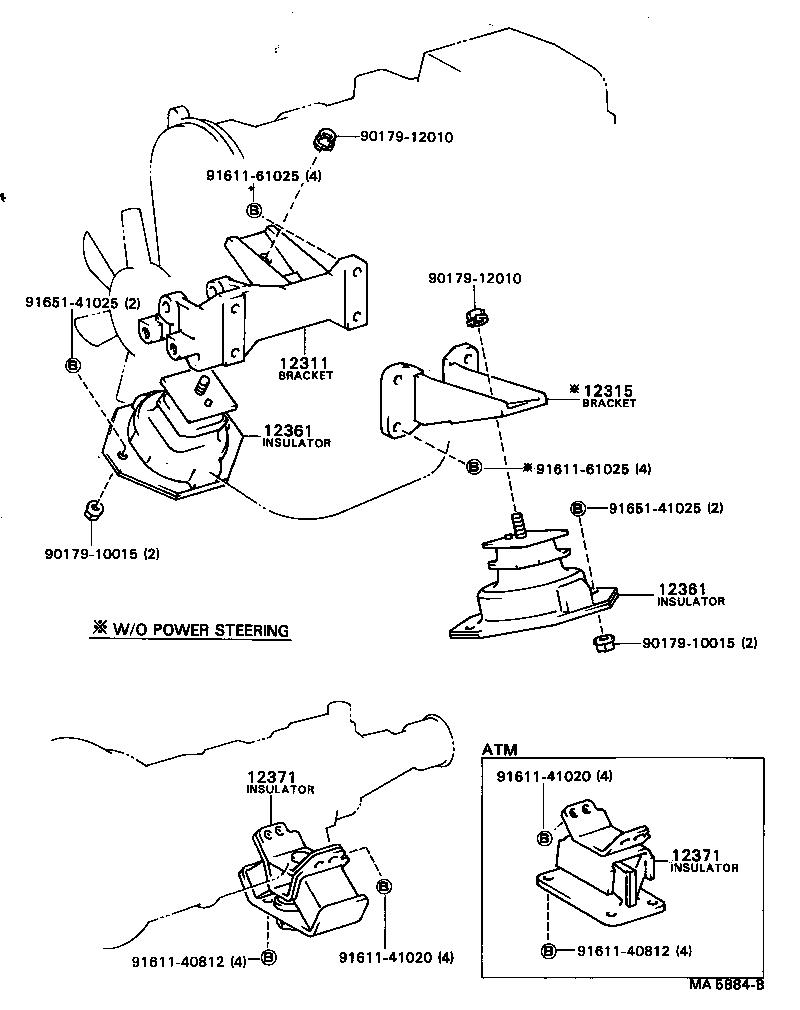

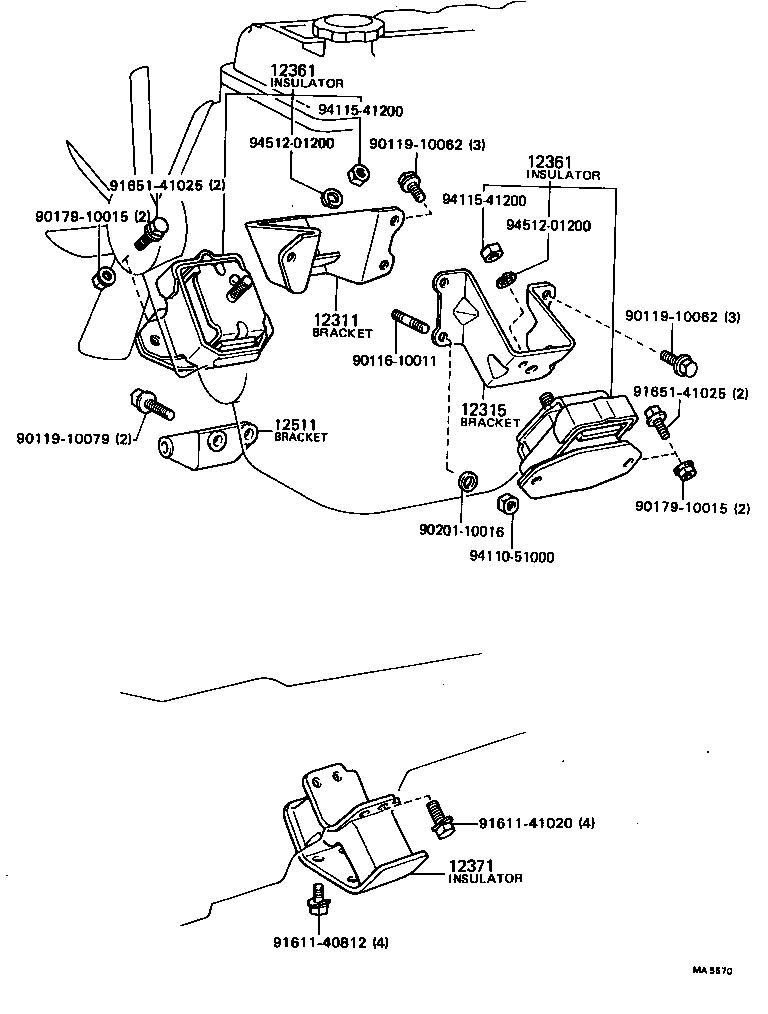

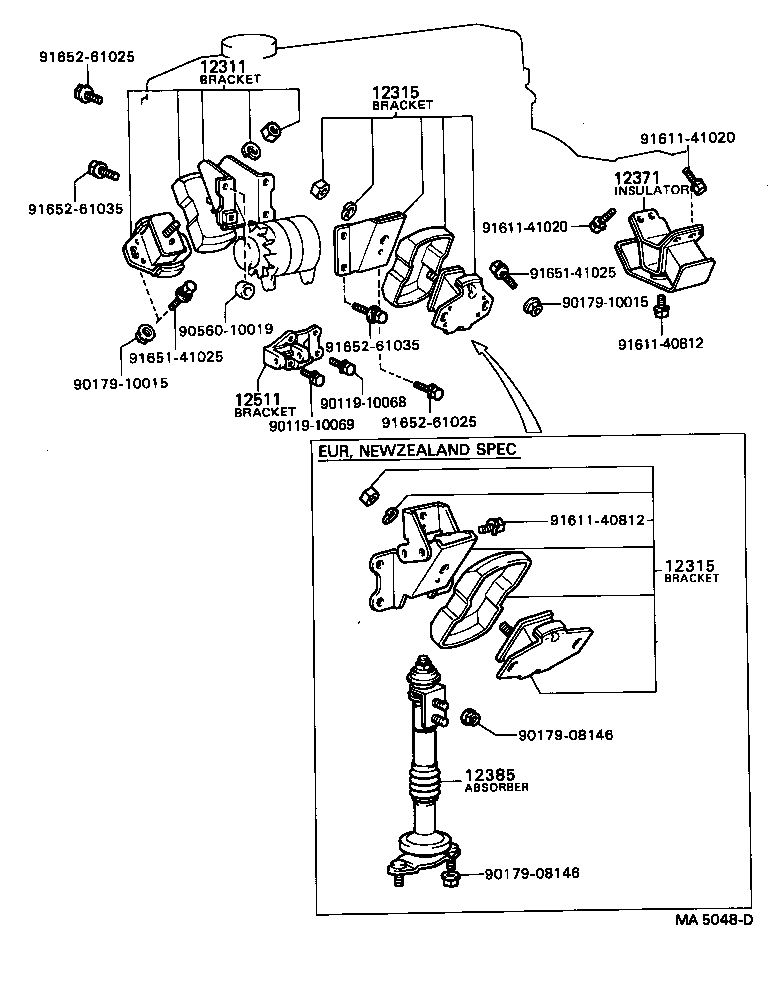

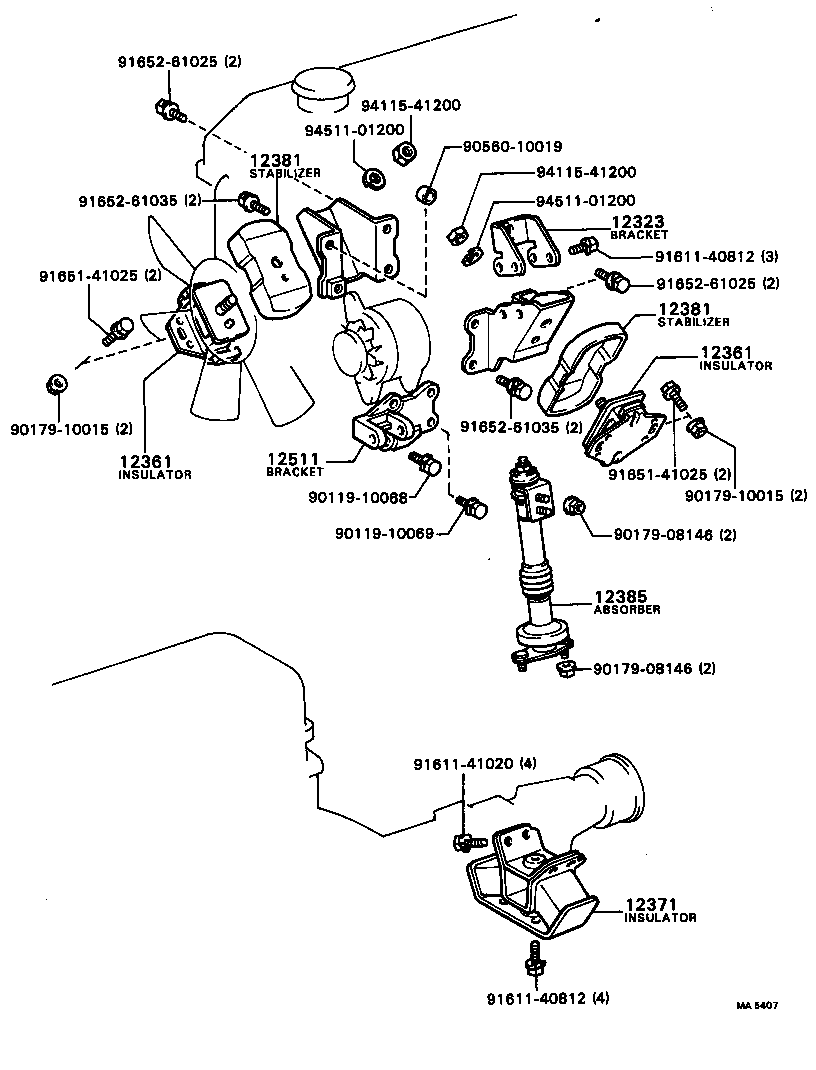

Figure MA4475F MA4475F 1982-08 → — Figure MA4209E MA4209E 1980-09 → 1982-08 Figure MA5884B MA5884B 1982-08 → — Figure MA5570 MA5570 1980-09 → 1984-07 Figure MA8179 MA8179 1984-08 → — Figure MA4994B MA4994B 1981-07 → 1982-08 Figure MA5048D MA5048D 1980-09 → — Figure MA5407 MA5407 1981-07 → — Figure MA4978B MA4978B 1981-07 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12312 Bracket, Engine Mounting, Front NO.2
12315 Bracket, Engine Mounting, Front NO.1 LH
12323 Bracket, Engine Mounting Absorber
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12385 Absorber, Engine Mounting, NO.1
12385A Retainer, Shock Absorber Cushion
12385C Cushion, Shock Absorber
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
