Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

9 part groups · 6 illustrations

Illustrations

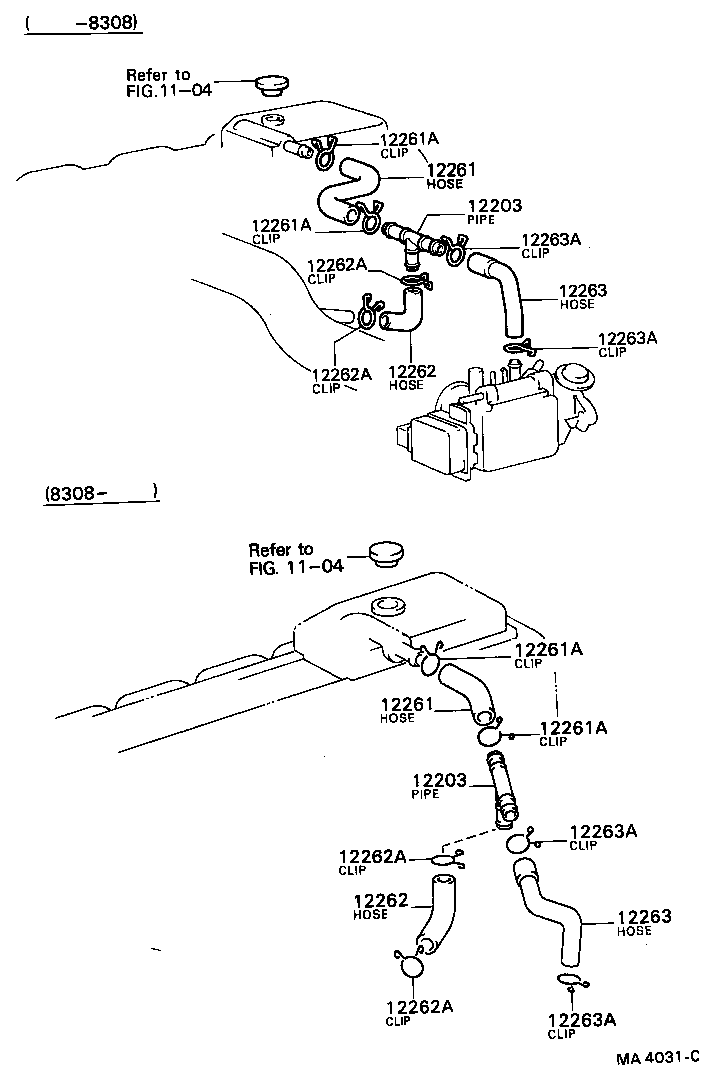

Figure MA4954 MA4954 1980-09 → — Figure MA3067 MA3067 1980-09 → — Figure MA4031C MA4031C 1980-09 → — Figure MA4995 MA4995 1981-07 → — Figure MA5028 MA5028 1980-09 → — Figure MA4352 MA4352 1981-07 → —

Part groups

PNCDescription
12203 Pipe Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
