Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

46 part groups · 7 illustrations

Illustrations

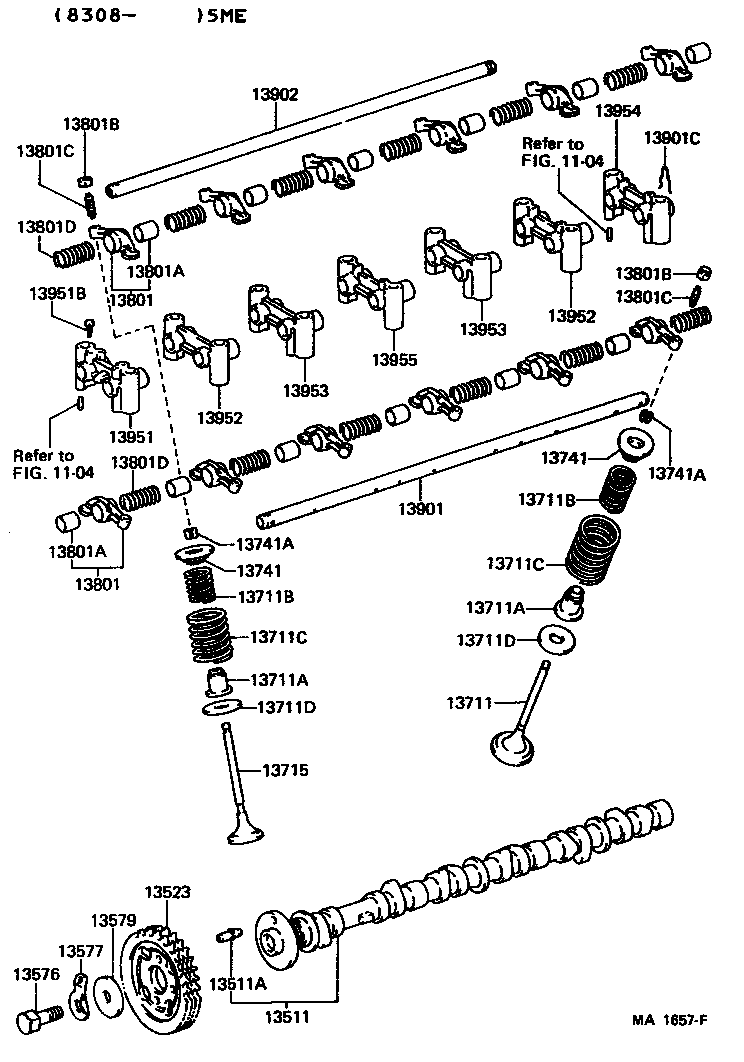

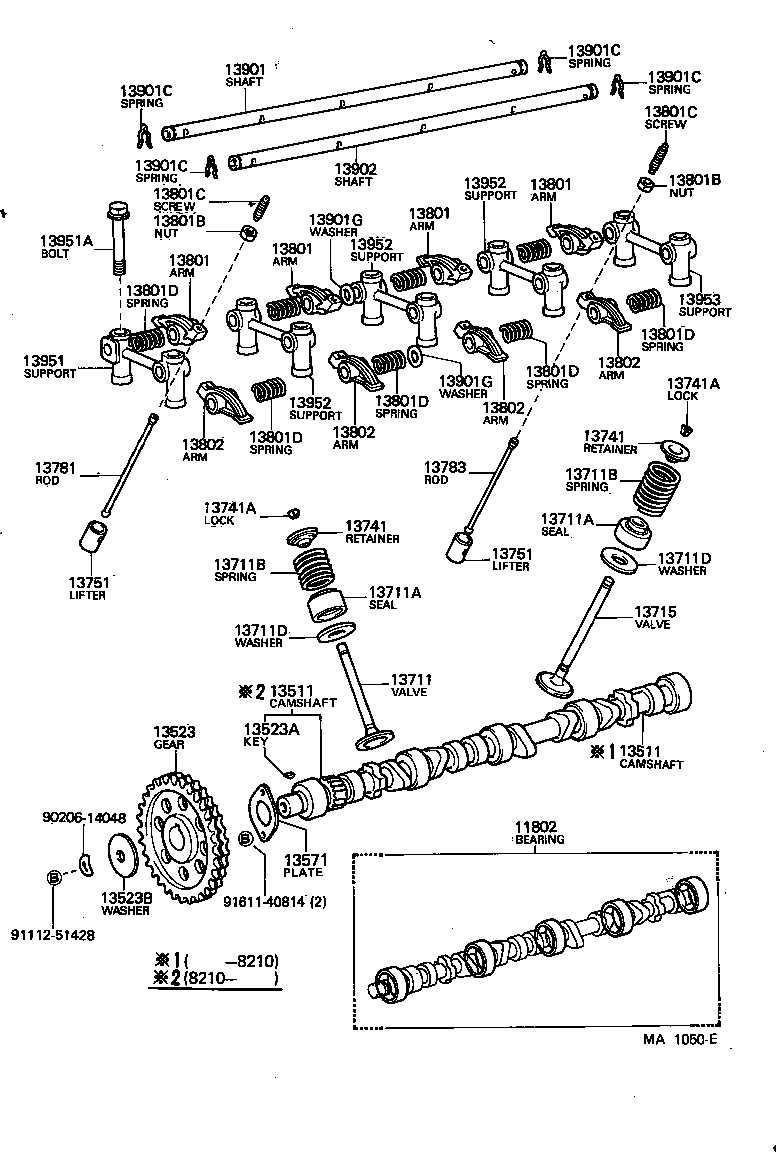

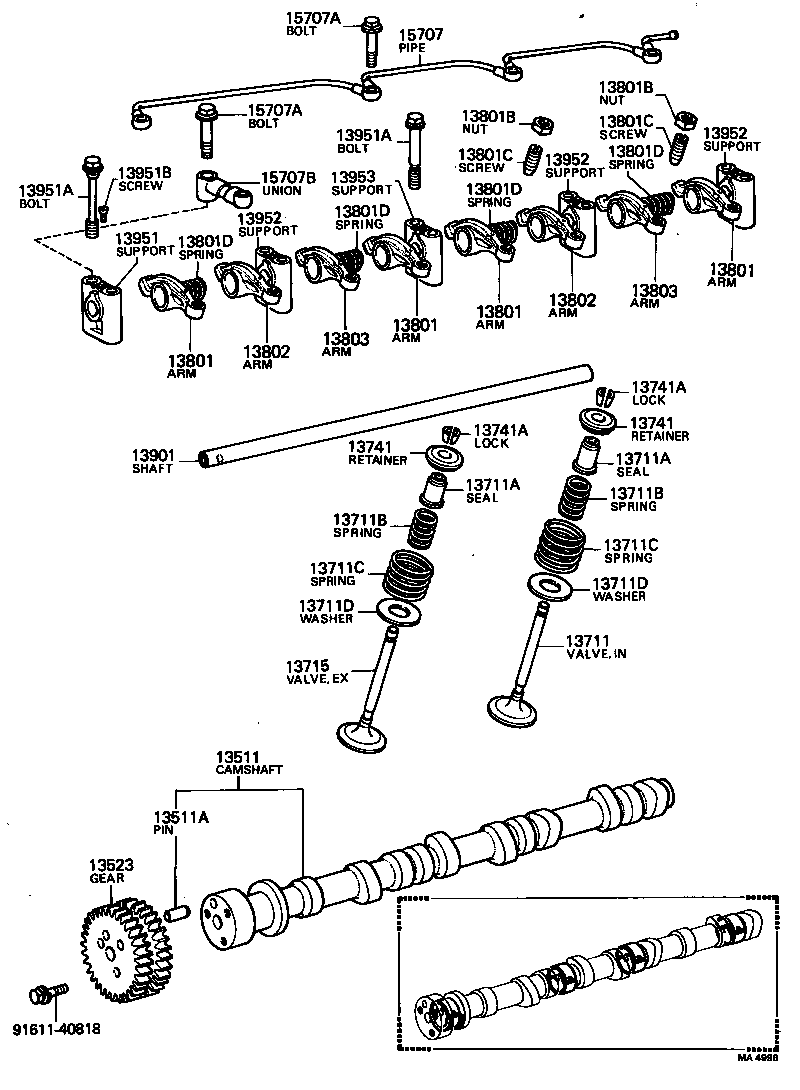

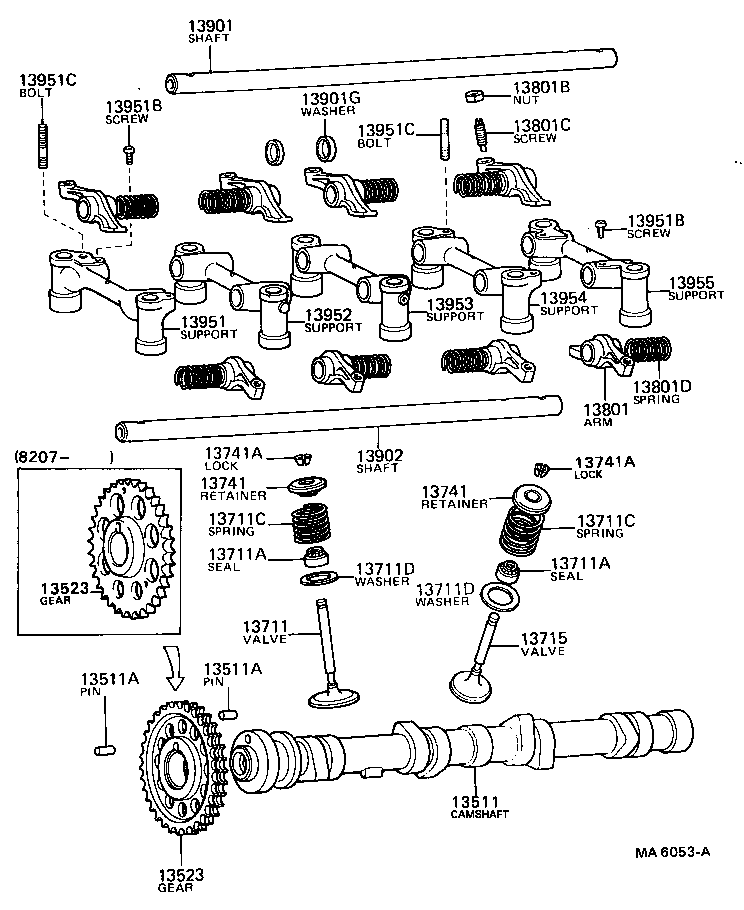

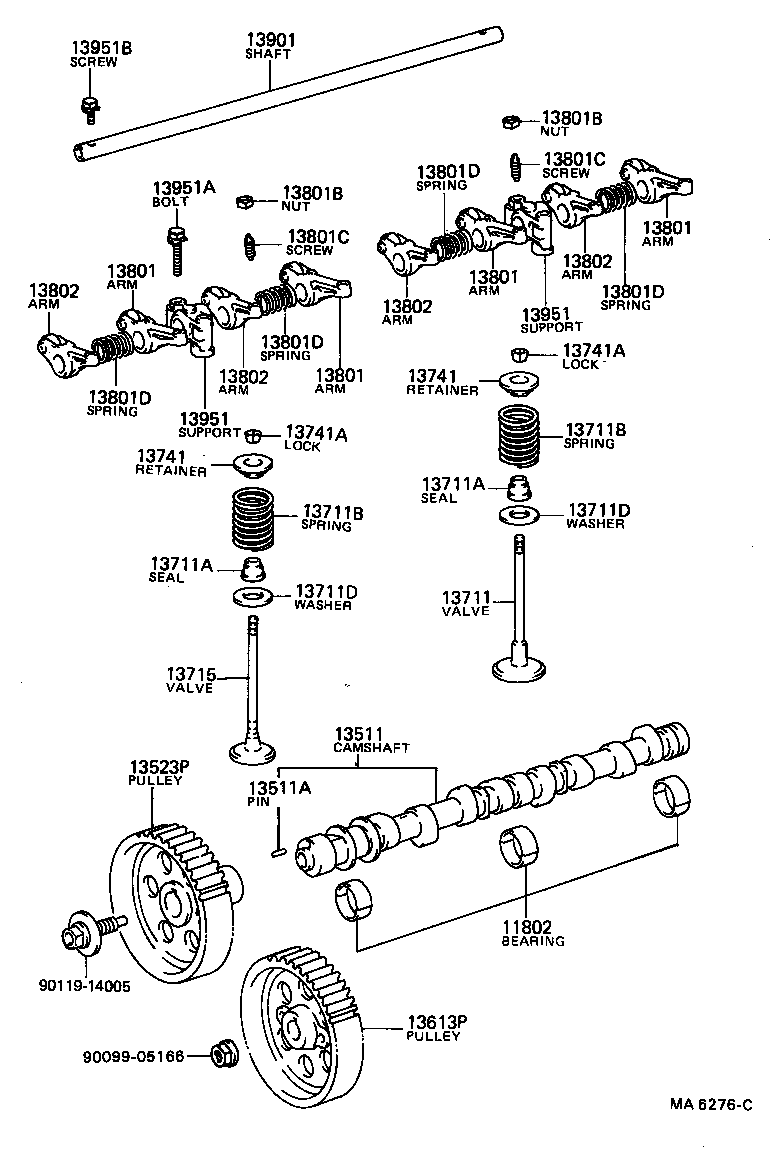

Figure MA4478A MA4478A 1982-08 → — Figure MA3069J MA3069J 1980-09 → 1983-08 Figure MA6276C MA6276C 1983-08 → — Figure MA1657F MA1657F 1980-09 → — Figure MA4996 MA4996 1981-07 → 1982-08 Figure MA6053A MA6053A 1980-09 → — Figure MA1050E MA1050E 1981-07 → —

Part groups

PNCDescription
11802 Bearing Set, Camshaft
13511 Camshaft
13511A Pin, Straight(FOR CAMSHAFT KNOCK)
13523 Gear OR Sprocket, Camshaft Timing
13523A Key, Woodruff(FOR TIMING GEAR)
13523B Washer, Plate(FOR TIMING GEAR)
13523P Pulley, Camshaft Timing
13571 Plate, Camshaft Thrust
13576 Bolt, Camshaft Timing Gear
13577 Plate, Lock
13579 Washer, Camshaft Timing Gear Bolt
13613P Pulley, Injection Pump Drive
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711C Spring, Compression(FOR OUTER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13750 Adjuster Assy, Valve Lash
13751 Lifter, Valve
13781 Rod, Valve Push
13783 Rod, Valve Push, NO.2
13801 Arm Sub-assy, Valve Rocker, NO.1
13801A Bush, Bimetal Formed(FOR ROCKER ARM)
13801B Nut, Hexagon(FOR VALVE ADJUSTING)
13801C Screw, Valve Adjusting
13801D Spring, Compression(FOR ROCKER ARM)
13802 Arm Sub-assy, Valve Rocker, NO.2
13803 Arm Sub-assy, Valve Rocker, NO.3
13901 Shaft Sub-assy, Valve Rocker, NO.1
13901C Spring, Retainer(FOR VALVE ROCKER SHAFT)
13901G Washer, Rocker Shaft
13902 Shaft Sub-assy, Valve Rocker, NO.2
13951 Support, Valve Rocker, NO.1
13951A Bolt(FOR ROCKER SUPPORT SET)
13951B Screw OR Bolt(FOR VALVE ROCKER SHAFT LOCK)
13951C Bolt, Stud(FOR ROCKER SUPPORT)
13952 Support, Valve Rocker, NO.2
13953 Support, Valve Rocker, NO.3
13954 Support, Valve Rocker, NO.4
13955 Support, Valve Rocker, NO.5
15707 Pipe Sub-assy, Oil
15707A Bolt, Union(FOR OIL PIPE)
15707B Union(FOR OIL PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
