Toyota Cressida
1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe
Discontinued model
Data version 1985-04
Timing Chain

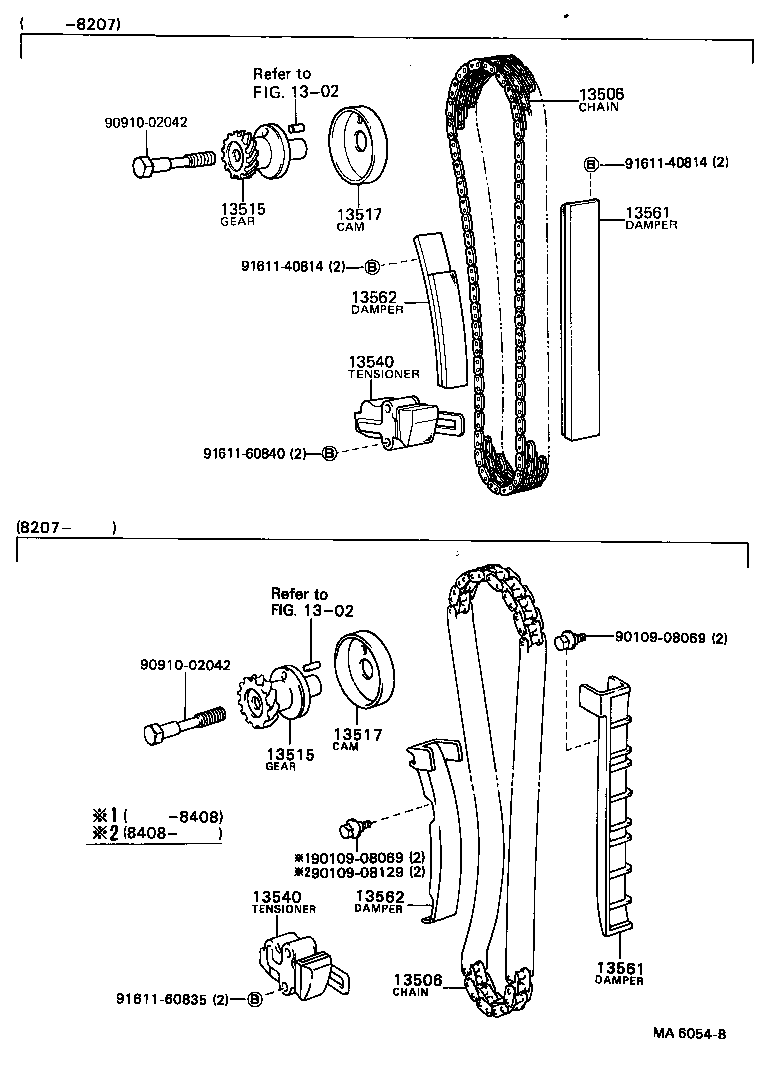

36 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 13065 | Gear Sub-assy, Tension |
| 13065B | Washer, Timing Chain Tension Gear Claw |
| 13065C | Ring, Shaft Snap(FOR TENSION GEAR) |
| 13504 | Arm Sub-assy, Tension |
| 13506 | Chain Sub-assy |
| 13515 | Gear, Distributor Drive |
| 13516 | Jet, Oil |
| 13516A | Bolt Union(FOR OIL JET) |
| 13517 | Cam, Fuel Pump Drive |
| 13522 | Gear, Pump Drive Shaft |
| 13522A | Key, Woodruff(FOR PUMP DRIVE SHAFT GEAR) |
| 13522B | Washer, Plate(FOR PUMP DRIVE SHAFT GEAR) |
| 13528 | Gear, Camshaft Drive |
| 13528A | Key, Woodruff(FOR CAMSHAFT DRIVE GEAR) |
| 13528B | Washer, Plate(FOR CAMSHAFT DRIVE GEAR SET) |
| 13528C | Washer, Wave(FOR CAMSHAFT DRIVE GEAR SET) |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13540A | Spring, Compression(FOR CHAIN TENSIONER) |
| 13540C | Gasket(FOR CHAIN TENSIONER) |
| 13545 | Plunger, Chain Tensioner |
| 13547 | Plate, Tensioner Bolt Lock, NO.1 |
| 13547A | Bolt(FOR TENSIONER LOCK PLATE SET) |
| 13547B | Bolt, Union(FOR TENSIONER LOCK PLATE) |
| 13551 | Body, Chain Tensioner, NO.2 |
| 13551A | Gasket(FOR CHAIN TENSIONER BODY) |
| 13553 | Cover, Chain Tensioner Dust |
| 13553A | Gasket(FOR CHAIN TENSIONER DUST COVER) |
| 13555 | Plunger, Chain Tensioner, NO.2 |
| 13555A | Spring(FOR CHAIN TENSIONER PLUNGER) |
| 13559 | Slipper, Chain Tensioner |
| 13559A | Ring, E(FOR CHAIN TENSIONER SLIPPER) |
| 13561 | Damper, Chain Vibration, NO.1 |
| 13562 | Damper, Chain Vibration, NO.2 |
| 13574 | Plate, Pump Drive Shaft |
| 13594 | Shaft, Tension Gear Arm |
| 13612 | Shaft, Pump Drive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
