Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

11 part groups · 6 illustrations

Illustrations

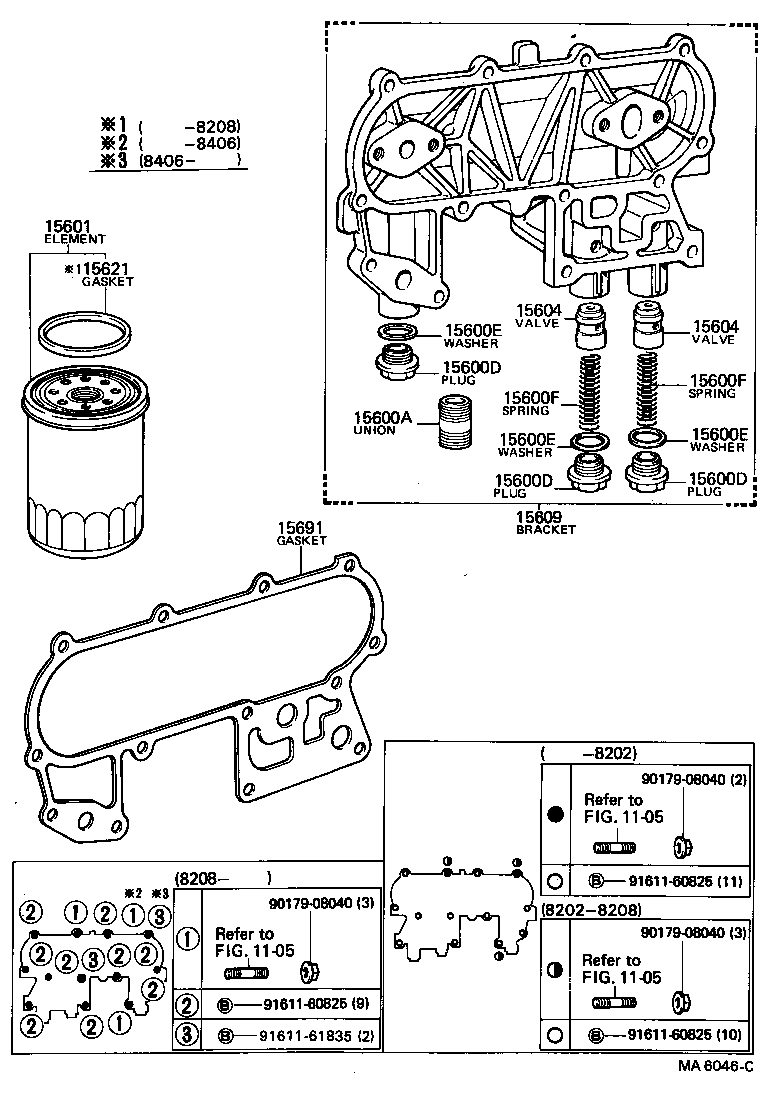

Figure MA5031A MA5031A 1980-09 → — Figure MA6046C MA6046C 1980-09 → — Figure MA3073B MA3073B 1980-09 → — Figure MA5031A MA5031A 1980-09 → — Figure MA5031A MA5031A 1980-09 → — Figure MA5031A MA5031A 1980-09 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15621 Gasket, Oil Filter Body
15691 Gasket, Oil Filter
15710 Cooler Assy, Oil
15710C Gasket(FOR OIL COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
