Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · Europe

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

46 part groups · 11 illustrations

Illustrations

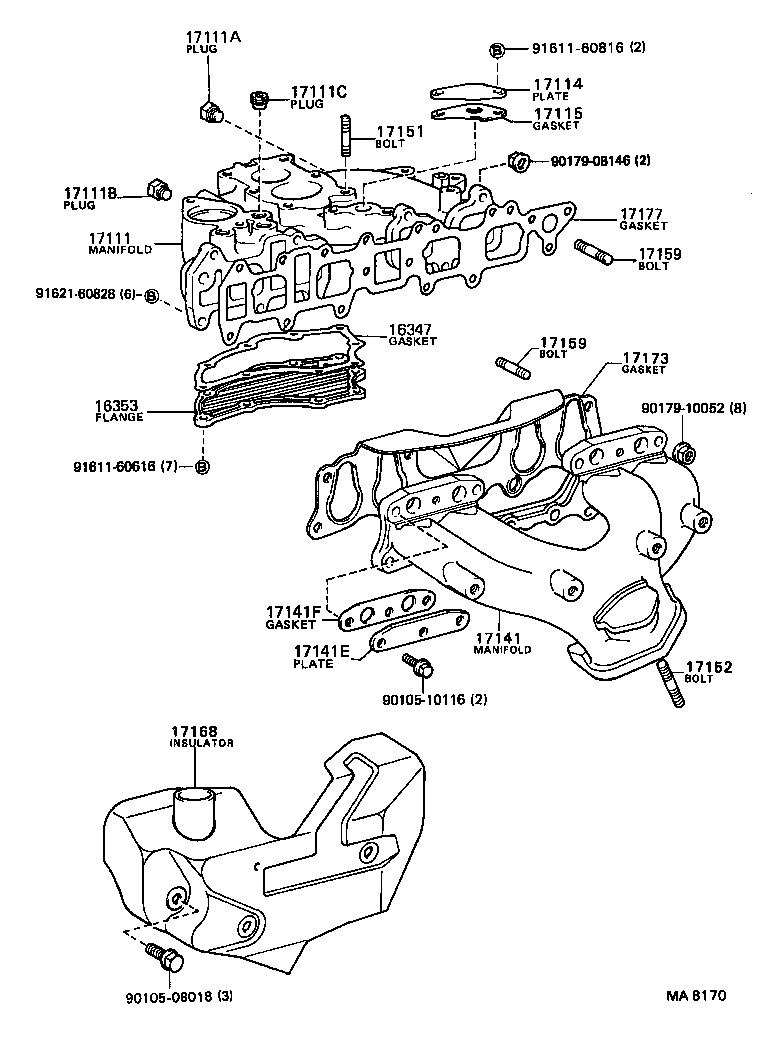

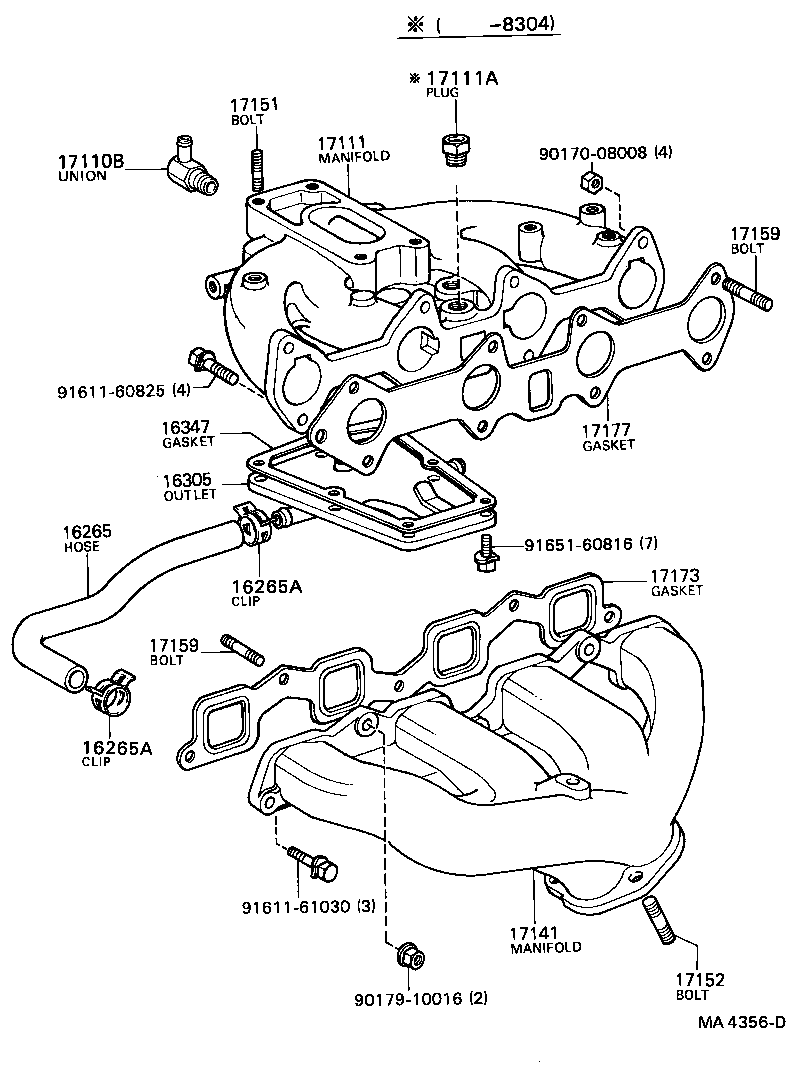

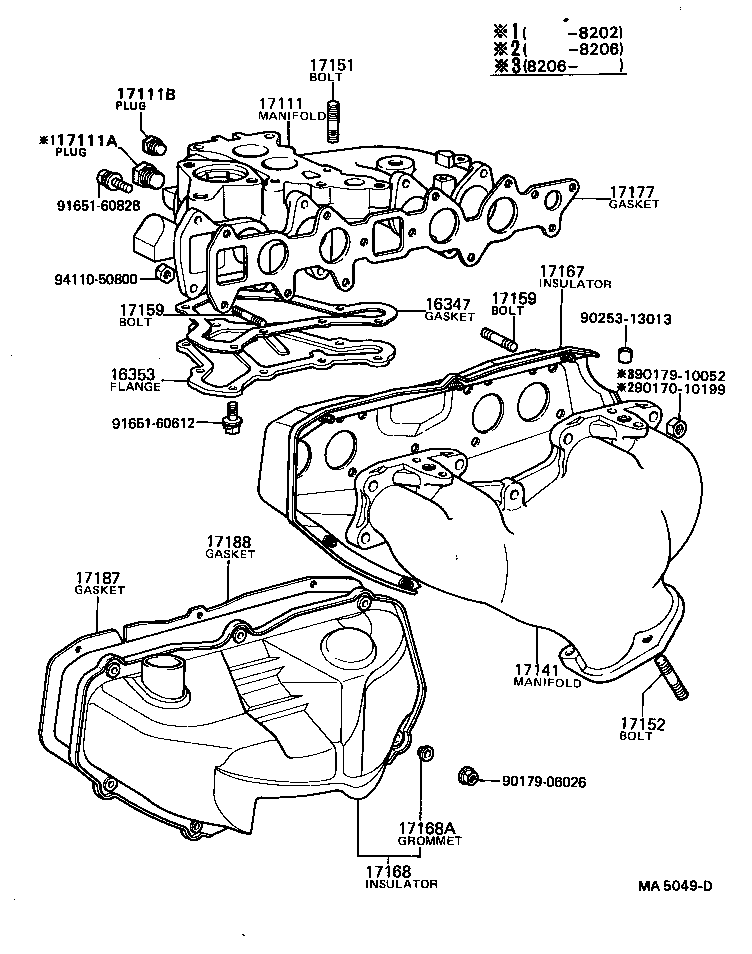

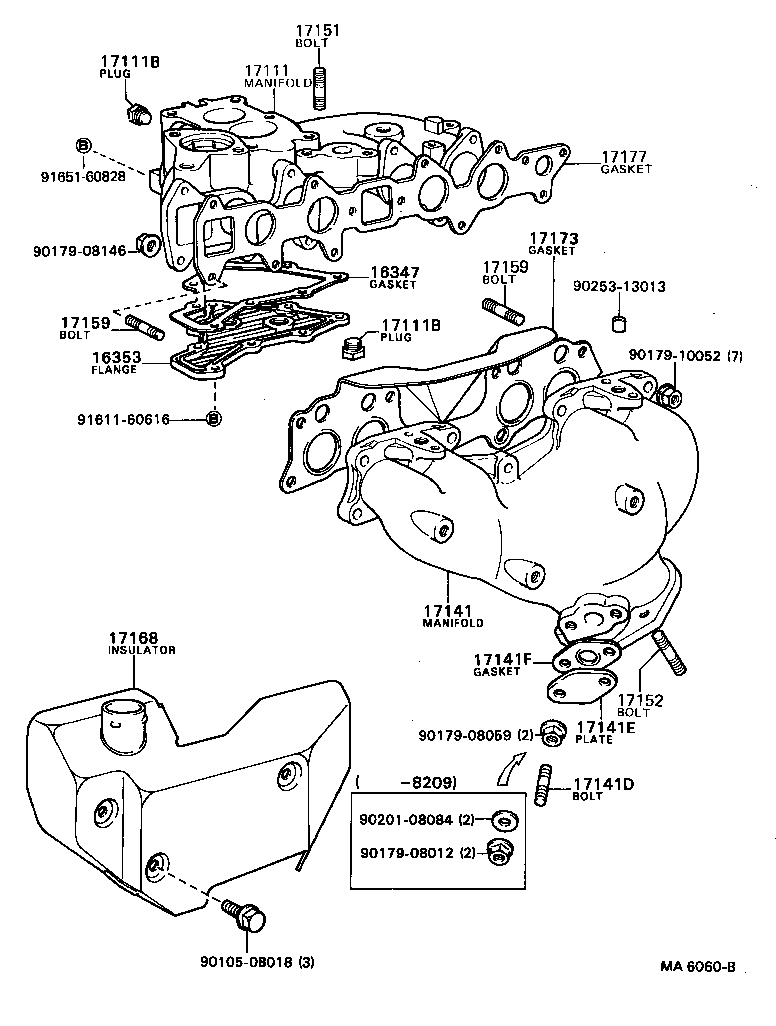

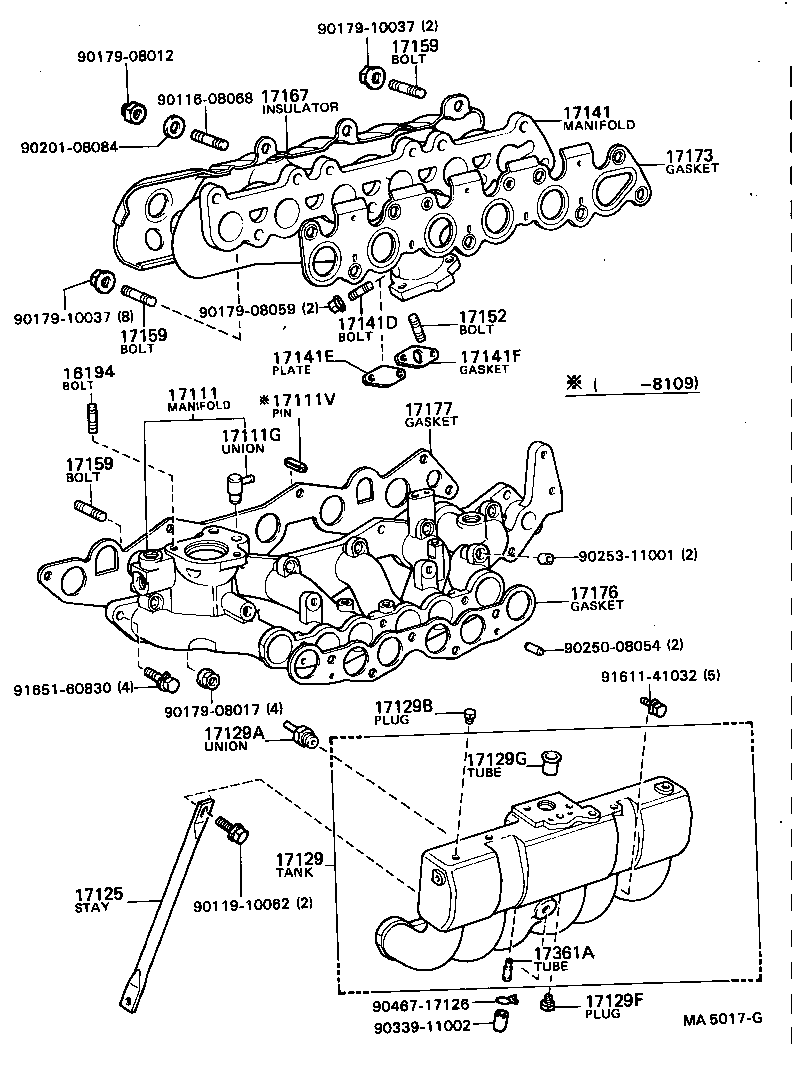

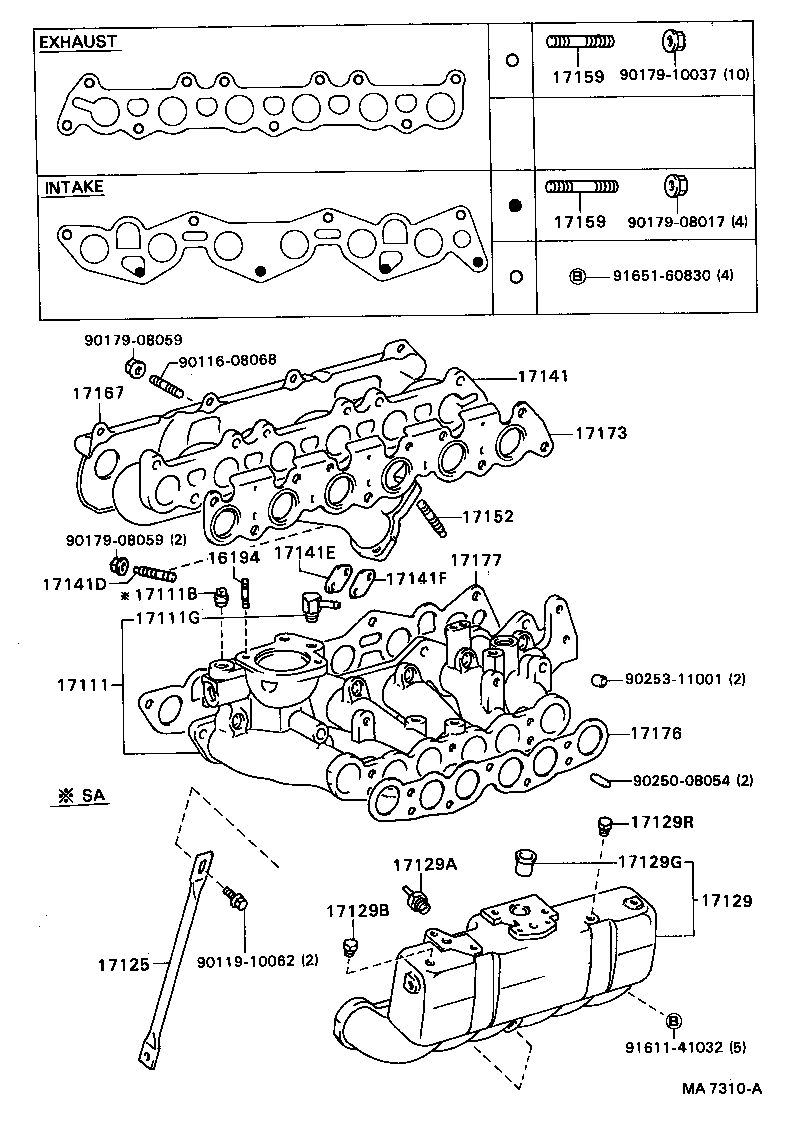

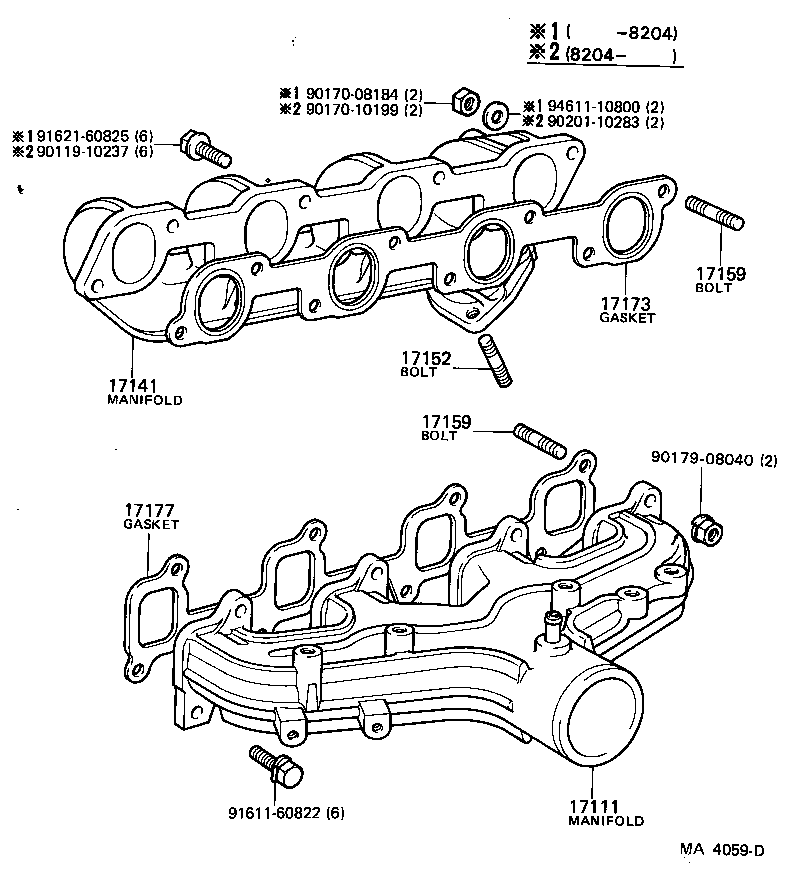

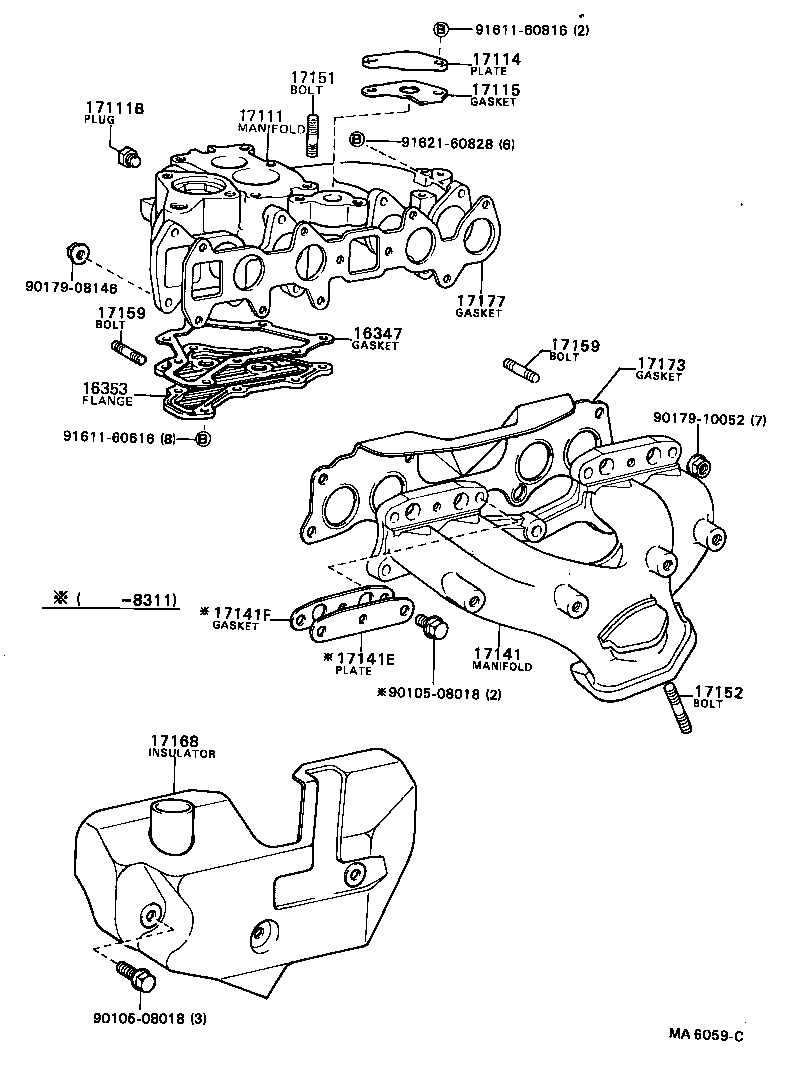

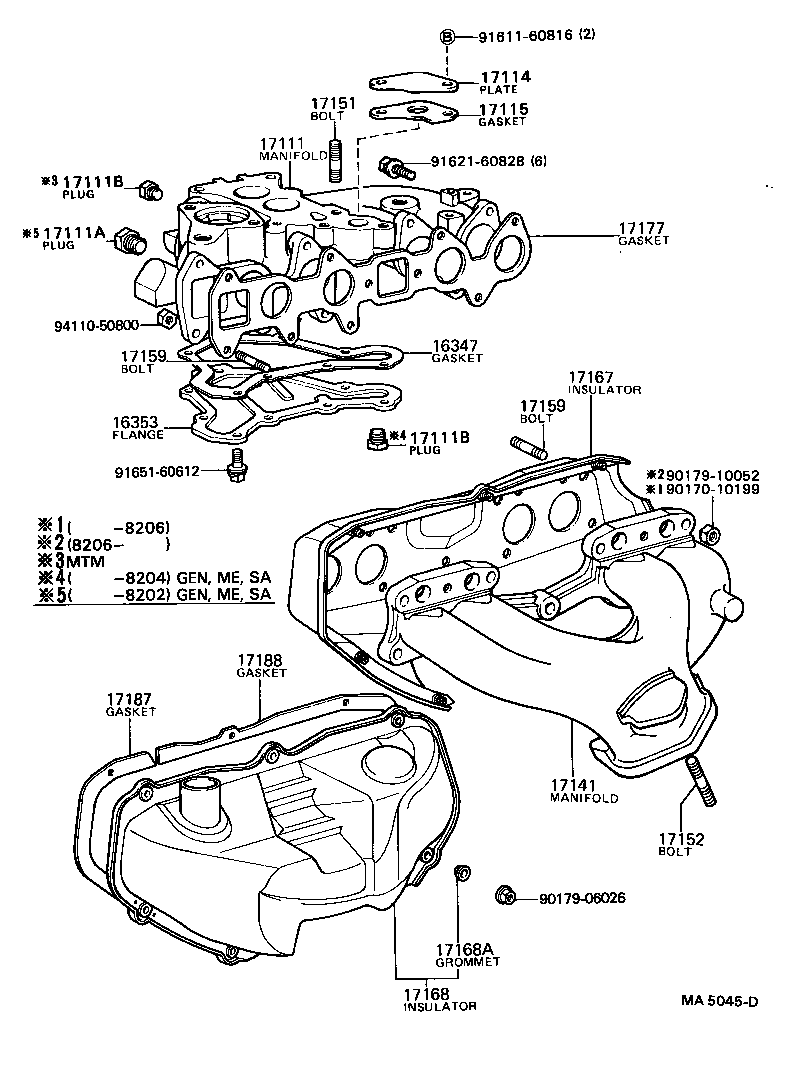

Figure MA5916B MA5916B 1982-08 → — Figure MA4059D MA4059D 1980-09 → — Figure MA5017G MA5017G 1980-09 → 1983-08 Figure MA7310A MA7310A 1983-08 → — Figure MA4363 MA4363 1981-07 → 1982-08 Figure MA5045D MA5045D 1980-09 → 1982-08 Figure MA6059C MA6059C 1982-08 → 1984-07 Figure MA8170 MA8170 1984-08 → — Figure MA5049D MA5049D 1980-09 → 1982-08 Figure MA6060B MA6060B 1982-08 → — Figure MA4356D MA4356D 1981-07 → —

Part groups

PNCDescription
16194 Bolt, Stud(FOR WATER OUTLET SETTING)
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
16305 Outlet Sub-assy, Water By-pass
16347 Gasket, Water By-pass
16353 Flange, Water By-pass
17110A Union, Vacuum Hose
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17111G Union(FOR INTAKE MANIFOLD WATER)
17111V Pin, Straight(FOR INTAKE MANIFOLD SETTING)
17114 Plate, Intake Manifold Hole Cover
17115 Gasket, Intake Manifold Hole Cover
17118 Stay, Manifold
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17129A Union, NO.1
17129B Plug
17129D Union, NO.2
17129F Plug, Intake Manifold Suction Hole
17129G Tube, Egr Inlet
17129H Union, NO.4
17129M Bolt, Stud(FOR COLD START INJECTOR)
17129R Plug, W/Head Taper Screw(FOR INTAKE AIR SURGE TANK)
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141E Plate, Exhaust Manifold
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17168A Grommet(FOR EXHAUST MANIFOLD HEAT INSULATOR)
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17187 Gasket, Heat Insulator, NO.1
17188 Gasket, Heat Insulator, NO.2
17361A Tube, Air(FOR EFI)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
